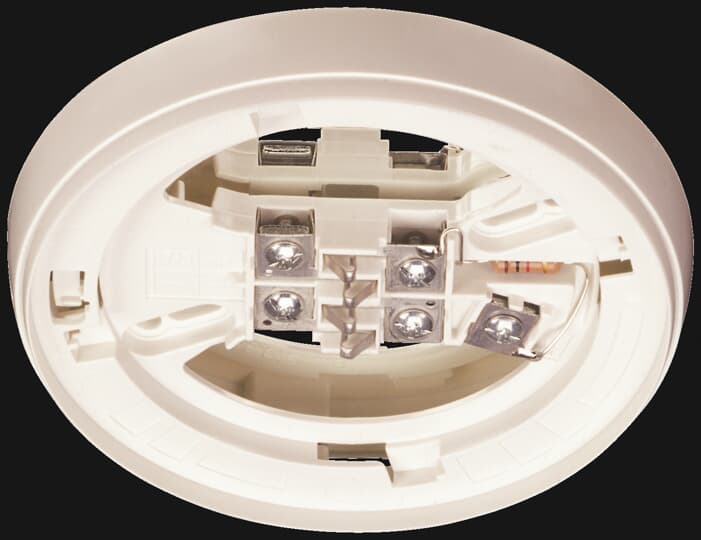

2CDG430050R0011 ABB - FC600/BR
ABB 2CDG430050R0011 ABB - FC600/BR
$0.00
Sold Out

Technical

Manual Operation:
No

Electrical

Auxiliary Voltage AC/DC:
10 ... 30 V DC

Design

Color:
white

Material Compliance

REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP30

Dimensions

Product Net Width:
110 mm
Product Net Height:
110 mm
Product Net Depth / Length:
16 mm
Product Net Weight:
0.04 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.225 kg

Certificates and Declarations

Installation

Mounting Type:
Surface Mounted

Popular Downloads

External Classifications and Standards

ETIM 9:
EC001489 - Base for fire detector
ETIM 10:
EC001489 - Base for fire detector
eClass:
V11.0 : 40040109
Object Classification Code:
A

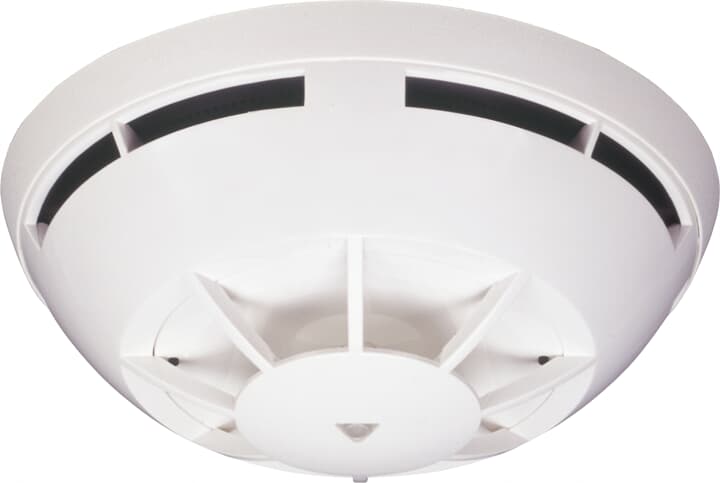

2CDG430079R0011 ABB - FC650/O
ABB 2CDG430079R0011 ABB - FC650/O
$0.00
Sold Out

Technical

Operating Principle:
Optic
Sound dB (A):
0 dB
Manual Operation:
No
Number of Batteries:
0

Electrical

Supply Voltage:
10 ... 30 V
Auxiliary Voltage AC/DC:
10 ... 30 V DC
Input Voltage Type:
DC
Power Supply Type:
Mains Power Supply

Design

RAL Number:
RAL 9010 - Pure White
Color:
white

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20160801
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP30

Dimensions

Product Net Width:
106 mm
Product Net Height:
106 mm
Product Net Depth / Length:
45 mm
Product Net Weight:
0.08 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.09 kg
E-Number (Switzerland):
961860213

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Type:
Surface Mounted

Popular Downloads

External Classifications and Standards

ETIM 9:
EC001763 - Fire detector
ETIM 10:
EC001763 - Fire detector
eClass:
V11.0 : 40040103
Object Classification Code:
A

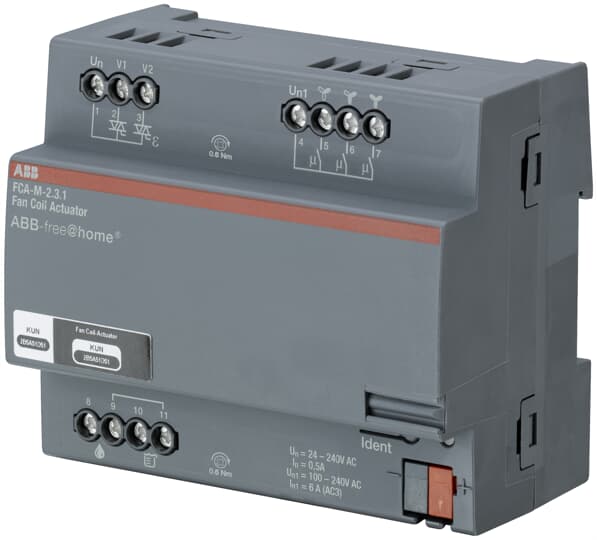

2CDG510010R0011 ABB - FCA-M-2.3.1
ABB 2CDG510010R0011 ABB - FCA-M-2.3.1
$270.00
Only 1 unit left

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Special Functions:
Valve Protection
Number of Outputs:
3
Number of Digital Inputs:
2
Compatible Bus Systems:
free@home (TP)
Product Range:
free@home
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
6 A
Output Current Maximum (Iout):
6 A
Power Loss:
3 W

Design

Color:
grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
108 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.3 kg

Engineering

Ordering

E-Number (Finland):
2815555
E-Number (Sweden):
1701126

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001586 - Heating actuator for bus system
ETIM 10:
EC001586 - Heating actuator for bus system
eClass:
V11.0 : 27143147
UNSPSC:
39121801
Object Classification Code:
A

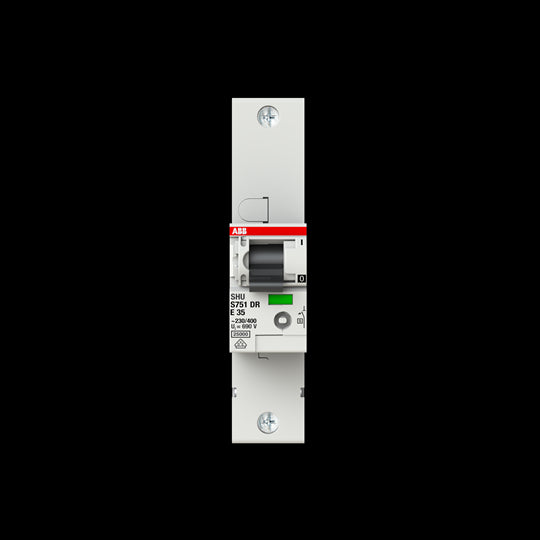

2CDH781001R0352 ABB - S751DR-E35
ABB 2CDH781001R0352 ABB - S751DR-E35
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 45.9 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Function:
Single Pole Switching
Suitable for Isolation:
Yes
Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Number of Poles:
1P
Tightening Torque:
2.5 ... 3 N·m
Screw Terminal Type:
Cable Clamp
Actuator Marking:
I / O
Recommended Screw Driver:
Cross Recess Pozidriv 2
Slotted 1 x 5.5
Cross Recess Pozidriv 2
Slotted 1 x 5.5
Accessories Available:
Yes
Connecting Capacity:
Flexible with Ferrule 2.5 ... 50 mm²
Flexible 2x 0.5 ... 1.5 mm²
Flexible 2.5 ... 50 mm²
Rigid 2x 0.5 ... 1.5 mm²
Rigid 2.5 ... 50 mm²
Stranded 2.5 ... 50 mm²
Flexible with Ferrule 2.5 ... 50 mm²
Flexible 2x 0.5 ... 1.5 mm²
Flexible 2.5 ... 50 mm²
Rigid 2x 0.5 ... 1.5 mm²
Rigid 2.5 ... 50 mm²
Stranded 2.5 ... 50 mm²
Installation Size:
acc. to DIN 43880 3
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
E (Selective)
Rated Operational Voltage:
230 / 400 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
at 2000 m 8 kV
at Sea Level 9.8 kV
6 kV
at 2000 m 8 kV
at Sea Level 9.8 kV
Input Voltage Type:
AC
Rated Current (In):
35 A
Rated Short-Circuit Capacity:
(230 / 400 V AC) 25 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 6.3 W
Overvoltage Category:
IV
I²t Characteristic:

Technical UL/CSA

Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20160607
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Degree of Protection:
IP20
Enclosure with Cover IP40
IP20
Enclosure with Cover IP40
Pollution Degree:
3
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 2g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 3 shocks 11 ms

Dimensions

Product Net Width:
27 mm
Product Net Height:
130 mm
Product Net Depth / Length:
92 mm
Product Net Weight:
0.35 kg
Pole Net Weight:
0.35 kg

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
carton 3 piece
Package Level 1 Gross Weight:
1.15 kg
E-Number (Norway):
1634333

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
1 ... 6
any
1 ... 6
any

Popular Downloads

Data Sheet, Technical Information (Part 2):
I²t Characteristic:
Time-Current Characteristic Curve:

External Classifications and Standards

ETIM 9:
EC001047 - Selective main line circuit breaker
ETIM 10:
EC001047 - Selective main line circuit breaker
UNSPSC:
39121614
eClass:
V11.0 : 27141903
Object Classification Code:
F
Standards:
DIN VDE 0641-21
Certification Agency:
DIN
Standardization Body:
DIN

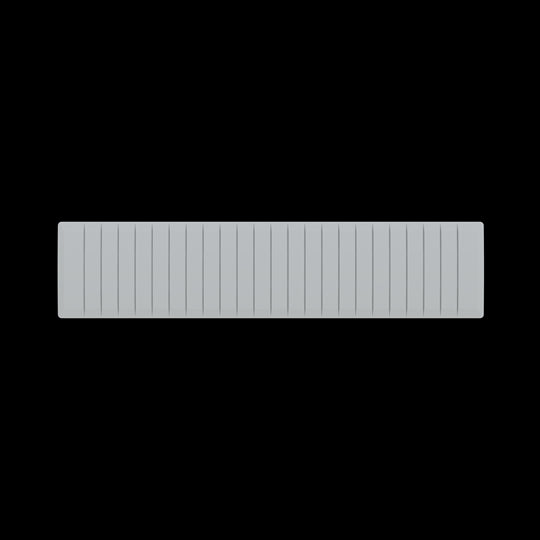

2CDL000001R1220 ABB - SZ-BP12G
ABB 2CDL000001R1220 ABB - SZ-BP12G
$0.00
Sold Out

Technical

Accessory Type:
Connection technique
Accessories Available:
Yes

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20170117
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Weight:
0.024 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
1.355 kg

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002649 - Accessories/spare parts for domestic switching devices
ETIM 10:
EC002649 - Accessories/spare parts for domestic switching devices
eClass:
V11.0 : 27144076

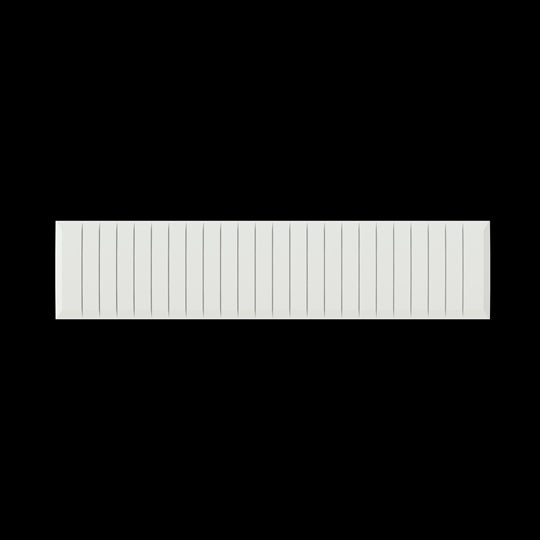

2CDL000001R2220 ABB - SZ-BP 12 W
ABB 2CDL000001R2220 ABB - SZ-BP 12 W
$0.00
Sold Out

Technical

Accessory Type:
Connection technique
Accessories Available:
Yes

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20170117
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Weight:
0.02 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
1.355 kg

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002649 - Accessories/spare parts for domestic switching devices
ETIM 10:
EC002649 - Accessories/spare parts for domestic switching devices
eClass:
V11.0 : 27144076

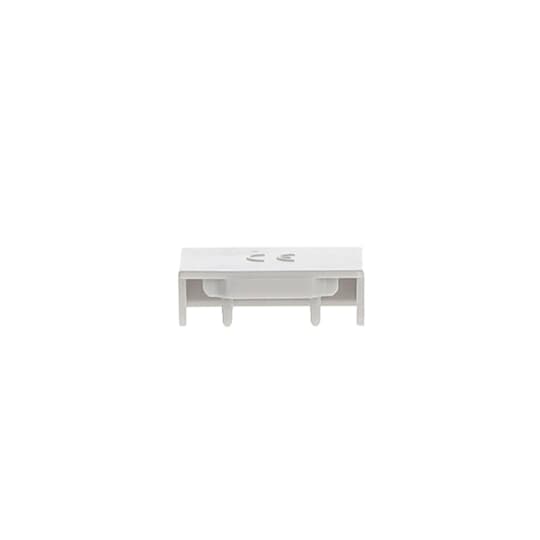

2CDL200001R0002 ABB - PS-END1
ABB 2CDL200001R0002 ABB - PS-END1
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S-ARC1
DS-ARC1
S200
F200
DDA200
S-ARC1
DS-ARC1
Suitable for Product Class:
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Accessory Type:
Busbar

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
a00ef5fb-4499-4756-b272-1173374c1a2b Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
24 mm
Product Net Height:
17 mm
Product Net Depth / Length:
8 mm
Product Net Weight:
0.002 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
0.1 kg
E-Number (Finland):
3259495
E-Number (Norway):
1665952
E-Number (Sweden):
2100372

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39122221
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory

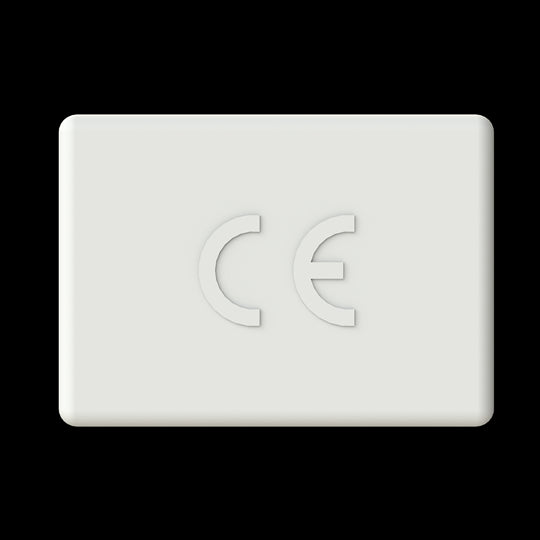

2CDL200001R0004 ABB - PS-END 0
ABB 2CDL200001R0004 ABB - PS-END 0
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Accessory Type:
Busbar

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
27b8e44c-fc32-403b-9a91-2b7f39b31606 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
20 mm
Product Net Height:
8 mm
Product Net Depth / Length:
6 mm
Product Net Weight:
0.001 kg

Ordering

Package Level 1 Units:
carton 25 piece
Package Level 1 Gross Weight:
0.1 kg
E-Number (Finland):
3211091
E-Number (Norway):
1665953
E-Number (Sweden):
2102705

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39122221
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory

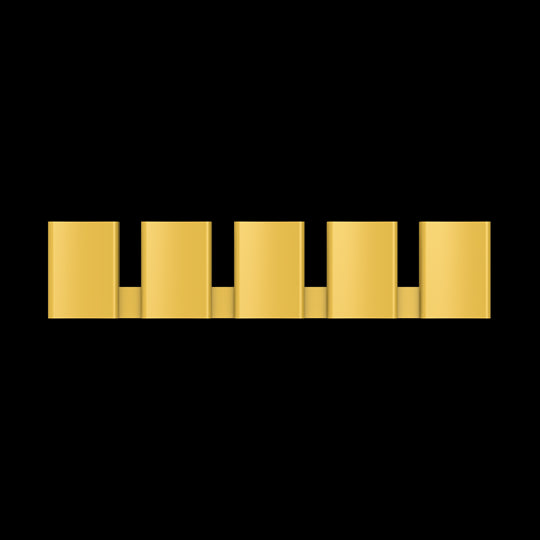

2CDL200001R0011 ABB - SZ-BSK
ABB 2CDL200001R0011 ABB - SZ-BSK
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
83 mm
Product Net Height:
18 mm
Product Net Depth / Length:
12 mm
Product Net Weight:
0.003 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
0.06 kg
E-Number (Finland):
3259499
E-Number (Norway):
1655776
E-Number (Sweden):
2102706

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39122221
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory

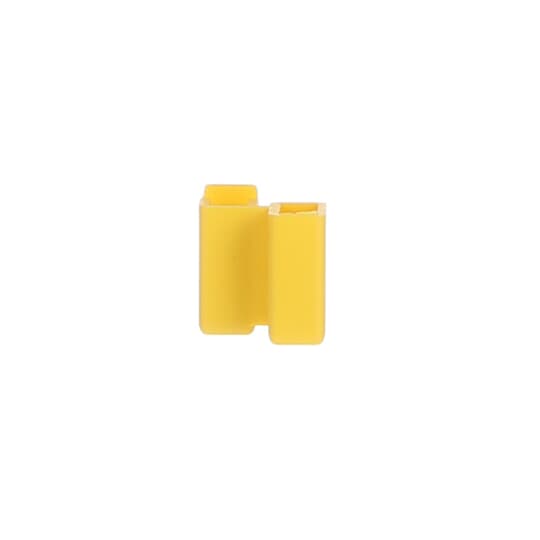

2CDL200001R0021 ABB - BSK P+N
ABB 2CDL200001R0021 ABB - BSK P+N
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Weight:
0.001 kg

Certificates and Declarations

Installation

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar

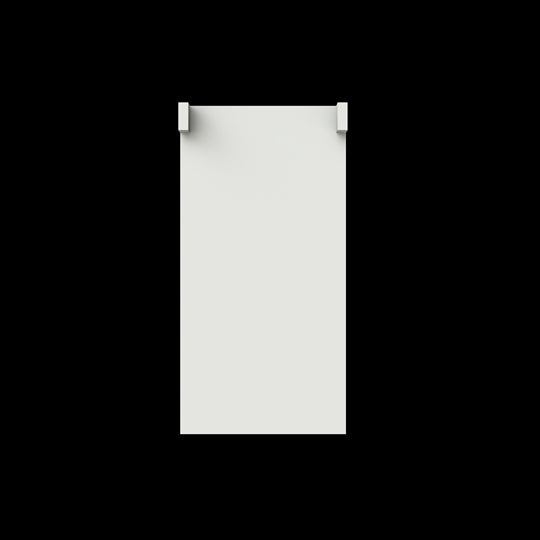

2CDL200001R3001 ABB - PS-END3
ABB 2CDL200001R3001 ABB - PS-END3
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Accessory Type:
Busbar

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
48faac21-09f7-49d6-8da1-dcd3535cca2c Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
7 mm
Product Net Height:
30 mm
Product Net Depth / Length:
15 mm
Product Net Weight:
0.001 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
0.1 kg
E-Number (Sweden):
2100373

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39122221
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory

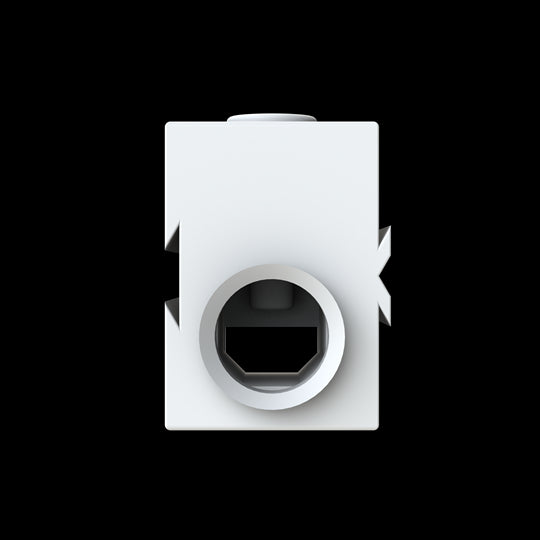

2CDL200001R3501 ABB - SZ-ESK2
ABB 2CDL200001R3501 ABB - SZ-ESK2
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
6563ee32-e4b0-4a97-8795-dd380d6bb960 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
19 mm
Product Net Height:
27 mm
Product Net Depth / Length:
24 mm
Product Net Weight:
0.025 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
0.28 kg
E-Number (Sweden):
2102693

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC:
39121410
IDEA Granular Category Code (IGCC):
4555 >> Feed-through terminal block

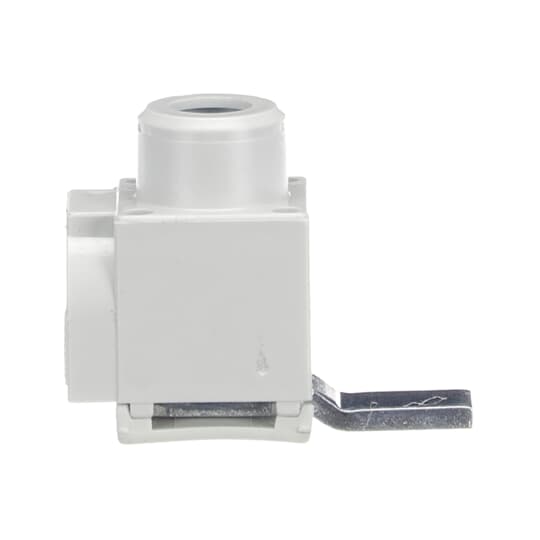

2CDL200001R5015 ABB - AST50/15
ABB 2CDL200001R5015 ABB - AST50/15
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Miniature Circuit Breakers
Residual Current Circuit Breakers
Residual Current Circuit Breakers with Overcurrent Protection
Rated Operational Current (Ie):
80 A

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
b39d641a-9d71-43d4-b4dc-399e82a5b71e Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Weight:
0.022 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
1.15 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000001 - Busbar terminal
ETIM 10:
EC000001 - Busbar terminal
UNSPSC:
39121432
eClass:
V11.0 : 27141146
IDEA Granular Category Code (IGCC):
4604 >> Busbar terminal
2CDL210001R1002 ABB - PS1/2
ABB 2CDL210001R1002 ABB - PS1/2
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
Pitch:
44698.0
Number of Poles:
2P
Number of Phases:
1-phase
Number of Mountable Devices:
2
Number of Terminals (Nterm):
2
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
35 mm
Product Net Weight:
0.008 kg

Ordering

Package Level 1 Units:
carton 180 piece
Package Level 1 Gross Weight:
1.5 kg
E-Number (Finland):
3211048
E-Number (Sweden):
2102708

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

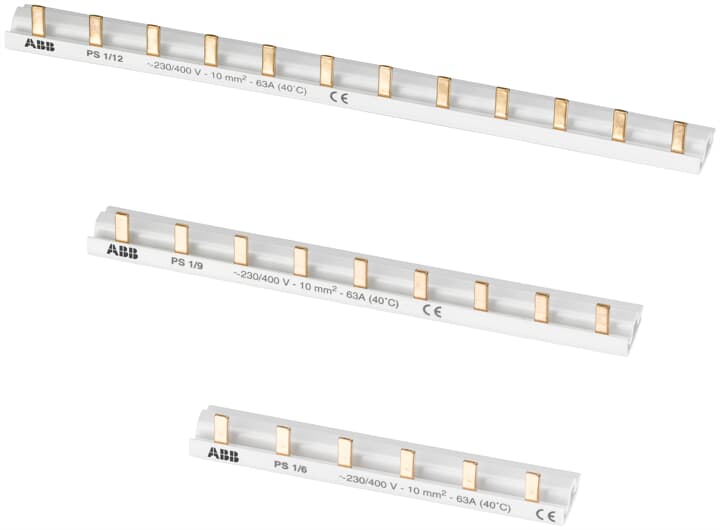

2CDL210001R1003 ABB - PS1/3
ABB 2CDL210001R1003 ABB - PS1/3
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Pitch:
44698.0
Number of Poles:
3P
Number of Phases:
1-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
3
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
53 mm
Product Net Weight:
0.025 kg

Ordering

Package Level 1 Units:
carton 120 piece
Package Level 1 Gross Weight:
3.05 kg
E-Number (Finland):
3211049

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210001R1004 ABB - PS1/4
ABB 2CDL210001R1004 ABB - PS1/4
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
Pitch:
17.5
Number of Poles:
4P
Number of Phases:
1-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
4
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
21 mm
Product Net Height:
18 mm
Product Net Depth / Length:
67 mm
Product Net Weight:
0.03 kg

Ordering

Package Level 1 Units:
carton 100 piece
Package Level 1 Gross Weight:
3.08 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210001R1006 ABB - PS1/6
ABB 2CDL210001R1006 ABB - PS1/6
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Pitch:
44698.0
Number of Poles:
6P
Number of Phases:
1-phase
Number of Mountable Devices:
6
Number of Terminals (Nterm):
6
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
106 mm
Product Net Weight:
0.025 kg

Ordering

Package Level 1 Units:
carton 60 piece
Package Level 1 Gross Weight:
1.55 kg
E-Number (Finland):
3211050
E-Number (Sweden):
2102709

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210001R1009 ABB - PS1/9
ABB 2CDL210001R1009 ABB - PS1/9
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
Pitch:
44698.0
Number of Poles:
9P
Number of Phases:
1-phase
Number of Mountable Devices:
9
Number of Terminals (Nterm):
9
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
9.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
158 mm
Product Net Weight:
0.039 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
1.22 kg
E-Number (Finland):
3211051
E-Number (Sweden):
2102710

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

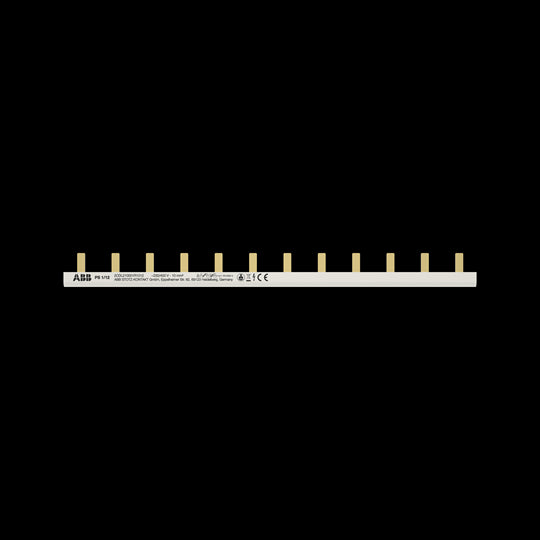

2CDL210001R1012 ABB - PS1/12
ABB 2CDL210001R1012 ABB - PS1/12
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
1-phase
Number of Mountable Devices:
12
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
211 mm
Product Net Weight:
0.052 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
1.61 kg
E-Number (Finland):
3259491
E-Number (Sweden):
2102711

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210001R1038 ABB - PS1/38H
ABB 2CDL210001R1038 ABB - PS1/38H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole device + auxiliary contanct
Pitch:
44698.0
Number of Poles:
38P
Number of Phases:
1-phase
Number of Mountable Devices:
38
Number of Terminals (Nterm):
38
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
57.0
Product Net Width:
20.2 mm
Product Net Height:
18.2 mm
Product Net Depth / Length:
995 mm
Product Net Weight:
0.22 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
6.81 kg
E-Number (Sweden):
2100333

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210001R1638 ABB - PS1/38/16H
ABB 2CDL210001R1638 ABB - PS1/38/16H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole device + auxiliary contanct
Pitch:
44698.0
Number of Poles:
38P
Number of Phases:
1-phase
Number of Mountable Devices:
38
Number of Terminals (Nterm):
38
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
57.0
Product Net Width:
20.5 mm
Product Net Height:
20.2 mm
Product Net Depth / Length:
995 mm
Product Net Weight:
0.45 kg

Ordering

Package Level 1 Units:
carton 20 piece
Package Level 1 Gross Weight:
6.97 kg
E-Number (Finland):
3219975
E-Number (Norway):
1665911
E-Number (Sweden):
2100334

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

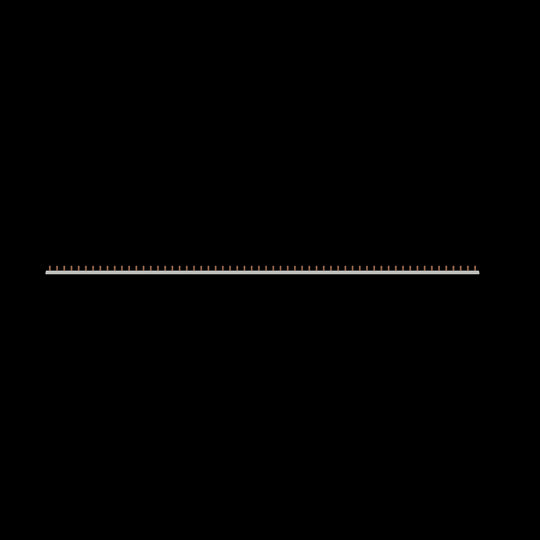

2CDL210001R1660 ABB - PS1/60/16
ABB 2CDL210001R1660 ABB - PS1/60/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
1-pole devices (e.g. S201-SD201)
Residual Current Circuit Breakers with Overcurrent Protection
Pitch:
44698.0
Number of Poles:
60P
Number of Phases:
1-phase
Number of Mountable Devices:
60
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
20 mm
Product Net Height:
17 mm
Product Net Depth / Length:
1050 mm
Product Net Weight:
0.41 kg

Ordering

Package Level 1 Units:
carton 20 piece
Package Level 1 Gross Weight:
0.87 kg
E-Number (Finland):
3259606
E-Number (Norway):
1665910

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL210011R1657 ABB - PS1/57/16NA
ABB 2CDL210011R1657 ABB - PS1/57/16NA
$0.00
Sold Out

Technical

Sub-Function:
cross wiring for neutral conductor
Sub-Function 2:
Pins for breaking off
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
cross wiring neutral conductor
Pitch:
44698.0
Number of Poles:
57P
Number of Phases:
1-phase
Number of Mountable Devices:
57
Number of Terminals (Nterm):
57
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
NA
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
blue isolation

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
57.0
Product Net Width:
21 mm
Product Net Height:
18 mm
Product Net Depth / Length:
996 mm
Product Net Weight:
0.203 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
10.36 kg
E-Number (Finland):
3259604

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

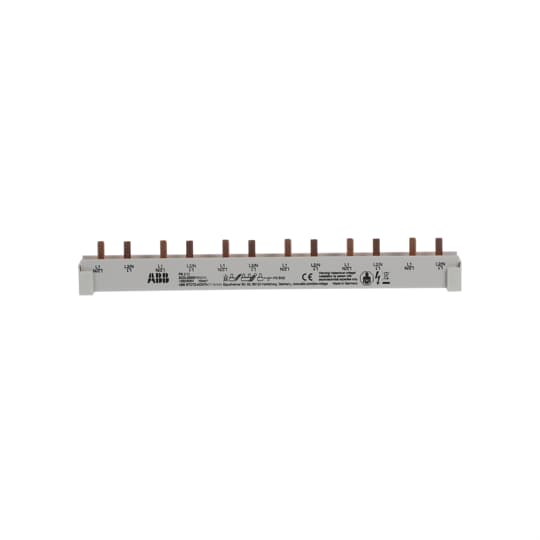

2CDL220001R1012 ABB - PS2/12
ABB 2CDL220001R1012 ABB - PS2/12
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
44729.0
Number of Poles:
12P
Number of Phases:
2-phase
Number of Mountable Devices:
6
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.075 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
3.91 kg
E-Number (Finland):
3210191
E-Number (Norway):
1665920
E-Number (Sweden):
2102524

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

Recently viewed
