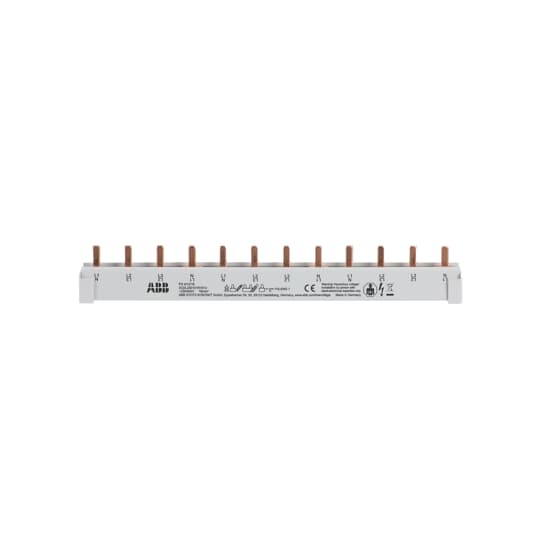

2CDL240101R1612 ABB - PS4/12/16
ABB 2CDL240101R1612 ABB - PS4/12/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole devices (e.g.: S204 or F204)
Pitch:
17.5
Number of Poles:
12P
Number of Phases:
4-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
4f244919-568a-443c-b5bc-019174df634a Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
23.7 mm
Product Net Height:
31.5 mm
Product Net Depth / Length:
212 mm
Product Net Weight:
0.14 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
7.32 kg

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1652 ABB - PS4/52/16H
ABB 2CDL240101R1652 ABB - PS4/52/16H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole devices + auxiliary contact
Pitch:
17.5
Number of Poles:
52P
Number of Phases:
4-phase
Number of Mountable Devices:
13
Number of Terminals (Nterm):
52
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
20.4 mm
Product Net Height:
30.5 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.778 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
7.99 kg
E-Number (Finland):
3259638
E-Number (Sweden):
2100337

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1658 ABB - PS4/58/16N
ABB 2CDL240101R1658 ABB - PS4/58/16N
$0.00
Sold Out

Technical

Sub-Function:
cross wiring for neutral conductor
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
17.5
Number of Poles:
58P
Number of Phases:
4-phase
Number of Mountable Devices:
14
Number of Terminals (Nterm):
58
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
N
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
20.4 mm
Product Net Height:
30.5 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.75 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
7.71 kg
E-Number (Finland):
3259634
E-Number (Sweden):
2100339

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1660 ABB - PS4/60/16
ABB 2CDL240101R1660 ABB - PS4/60/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole devices (e.g.: S204 or F204)
Pitch:
17.5
Number of Poles:
60P
Number of Phases:
4-phase
Number of Mountable Devices:
15
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
20.4 mm
Product Net Height:
30.5 mm
Product Net Depth / Length:
1056 mm
Product Net Weight:
0.819 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
8.41 kg
E-Number (Finland):
3259628
E-Number (Sweden):
2100343

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240110R1058 ABB - PS4/58NNA
ABB 2CDL240110R1058 ABB - PS4/58NNA
$0.00
Sold Out

Technical

Sub-Function:
cross wiring for neutral conductor
Sub-Function 2:
Pins for breaking off
Sub-Function 3:
Pins for breaking off
Suitable For:
S200
F200
DDA200
S-ARC1
S200
F200
DDA200
S-ARC1
Suitable for Product Class:
F204 + 2-pole devices
Pitch:
17.5
Number of Poles:
58P
Number of Phases:
4-phase
Number of Mountable Devices:
14
Number of Terminals (Nterm):
58
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
NNA
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
23.7 mm
Product Net Height:
31.5 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.568 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
5.89 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240213R1012 ABB - PS4/12NA
ABB 2CDL240213R1012 ABB - PS4/12NA
$0.00
Sold Out

Technical

Sub-Function:
cross wiring for neutral conductor
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
PS4/32-DDA204
Pitch:
17.5
Number of Poles:
12P
Number of Phases:
4-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
NA
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
af3c6049-b65e-44ae-90c0-ab4281e14730 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
19.3 mm
Product Net Height:
30.5 mm
Product Net Depth / Length:
212 mm
Product Net Weight:
0.105 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
3.31 kg
E-Number (Finland):
3210196
E-Number (Norway):
1665945

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL310150R1013 ABB - PSN 1/13 KIT
ABB 2CDL310150R1013 ABB - PSN 1/13 KIT
$0.00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Weight:
351 g

Ordering

Package Level 1 Units:
bag 10 piece
Package Level 1 Gross Weight:
0.45 kg

Certificates and Declarations

Installation

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
2CDL800001R0021 ABB - BB-END 2.1
ABB 2CDL800001R0021 ABB - BB-END 2.1
$0.00
Sold Out

Technical

Suitable For:
S200C
DSN201E
S200C
DSN201E
Accessory Type:
End Cap
Number of Batteries:
0

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20220913
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
0.008 m
Product Net Height:
0.011 m
Product Net Depth / Length:
0.015 m
Product Net Weight:
0.001 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
0.01 kg
E-Number (Finland):
3212117
E-Number (Norway):
1683150
E-Number (Sweden):
2100983

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
2CDL800001R0030 ABB - BB-END 3.2
ABB 2CDL800001R0030 ABB - BB-END 3.2
$0.00
Sold Out

Technical

Suitable For:
S200C
DSN201E
S200C
DSN201E
Accessory Type:
End Cap
Number of Batteries:
0

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20220913
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
0.008 m
Product Net Height:
0.017 m
Product Net Depth / Length:
0.018 m
Product Net Weight:
0.001 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
0.01 kg
E-Number (Finland):
3212119
E-Number (Norway):
1683167
E-Number (Sweden):
2100985

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
2CDL800001R2527 ABB - BB-FS 25/27 Q
ABB 2CDL800001R2527 ABB - BB-FS 25/27 Q
$0.00
Sold Out

Technical

Suitable For:
S200C
DSN201E
S200C
DSN201E
Number of Batteries:
0

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20220913
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
590572d8-9ba5-4a4a-a971-ff8046dd5ecc Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
0.04 m
Product Net Height:
0.022 m
Product Net Depth / Length:
0.023 m
Product Net Weight:
0.015 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
0.48 kg
E-Number (Finland):
3212115
E-Number (Norway):
1683166
E-Number (Sweden):
2100989

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121432
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4604 >> Busbar terminal
Object Classification Code:
Q
2CDS200907R0001 ABB - S2C-A1L
ABB 2CDS200907R0001 ABB - S2C-A1L
$0.00
Sold Out

Technical

Function:
Shunt Trip
Accessory Type:
Auxiliary Contact / Signal Contact

Electrical

Power Loss:
0 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230502
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
4906475e-2b37-45cb-918c-db295dd155a2 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
17.5 mm
Product Net Height:
69 mm
Product Net Depth / Length:
74 mm
Product Net Weight:
0.14 kg

Engineering

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
0.145 kg
Replacement Product ID (NEW):
2CDS200981R0001

Installation

Instructions and Manuals:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121614
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
2CDS200912R0001 ABB - S2C-H6R
ABB 2CDS200912R0001 ABB - S2C-H6R
$92.57
Only 6 units left

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Auxiliary Contact
Suitable For:
S200
S200M
S200P
S200S
S300P
SN201L+SN201-IH
SN201+SN201-IH
SN201M+SN201-IH
F200
DS201
DS202C
DS200
S-ARC1
DS-ARC1
S200
S200M
S200P
S200S
S300P
SN201L+SN201-IH
SN201+SN201-IH
SN201M+SN201-IH
F200
DS201
Suitable for Product Class:
Miniature Circuit Breaker
Residual Current Device
Miniature Circuit Breaker
Residual Current Device
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Accessory Type:
Auxiliary Contact
Technical Information:
AUXILIARYCONTACT

Electrical

Power Loss:
0.5 W
Maximum 0.5 W
0.5 W
Maximum 0.5 W
Number of Auxiliary Contacts CO (SPDT):
1

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230731
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
c151f68f-6fbb-44f7-badf-ba96efd56de4 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Environmental Information:

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.043 kg

Engineering

Ordering

Package Level 1 Units:
blister 1 piece
Package Level 1 Gross Weight:
0.045 kg
E-Number (Finland):
3210836
E-Number (Norway):
1665769
E-Number (Sweden):
2102500

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
right

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Object Classification Code:
Q
Standards:
CSA Class 3215-30
CSA Class 3215-90
GB/T 14048.5
IEC/EN 60947-5-1
UL 1077
CSA Class 3215-30
CSA Class 3215-90
GB/T 14048.5
IEC/EN 60947-5-1
UL 1077
2CDS200918R0001 ABB - S2C-NT
ABB 2CDS200918R0001 ABB - S2C-NT
$0.00
Sold Out

Technical

Function:
Hand Operated Neutral
Suitable For:
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
Suitable for Product Class:
Miniature Circuit Breaker

Electrical

Power Loss:
2 W
Maximum 2 W
2 W
Maximum 2 W

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20160708
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.059 kg

Engineering

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
2.591 kg
E-Number (Finland):
3210856
E-Number (Sweden):
2102521

Certificates and Declarations

cULus Certificate:

Installation

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC:
39121603
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
Q
2CDS200924R0001 ABB - S2C-S6RU
ABB 2CDS200924R0001 ABB - S2C-S6RU
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Signal Contact
Suitable For:
S200U
S200UP
S200UDC
SU200M
S200U
S200UP
S200UDC
SU200M
Suitable for Product Class:
Miniature Circuit Breaker
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Accessory Type:
Signal Contact

Electrical

Power Loss:
0.5 W
Maximum 0.5 W
0.5 W
Maximum 0.5 W
Number of Auxiliary Contacts CO (SPDT):
1

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230731
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
c151f68f-6fbb-44f7-badf-ba96efd56de4 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
100 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.035 kg

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
0.06 kg
E-Number (Finland):
3210889

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
right

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Standards:
CSA 22.2 No. 5
IEC/EN 60947-5-1
UL 489
CSA 22.2 No. 5
IEC/EN 60947-5-1
UL 489
2CDS200931R0001 ABB - G2C-H6-L+R
ABB 2CDS200931R0001 ABB - G2C-H6-L+R
$0.00
Sold Out

G2C-H6-L+R Signal / Auxiliary contact
2CDS200932R0001 ABB - G2C-S/H6-L+R
ABB 2CDS200932R0001 ABB - G2C-S/H6-L+R
$0.00
Sold Out

G2C-S/H6-L+R Signal / Auxiliary contact
2CDS200936R0002 ABB - S2C-H20L
ABB 2CDS200936R0002 ABB - S2C-H20L
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Auxiliary Contact
Suitable For:
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
Suitable for Product Class:
Miniature Circuit Breaker
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
2
Accessory Type:
Auxiliary Contact

Electrical

Power Loss:
1 W
Maximum 1 W
1 W
Maximum 1 W
Number of Auxiliary Contacts CO (SPDT):
0

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230731
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Environmental Information:

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.055 kg

Ordering

Package Level 1 Units:
blister 1 piece
Package Level 1 Gross Weight:
0.058 kg
E-Number (Finland):
3210848
E-Number (Norway):
1630491
E-Number (Sweden):
2102506

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
left

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
2CDS200936R0003 ABB - S2C-H02L
ABB 2CDS200936R0003 ABB - S2C-H02L
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Auxiliary Contact
Suitable For:
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
S200
S200M
S200P
S200S
S200 MT
S200 MUC
S300P
Suitable for Product Class:
Miniature Circuit Breaker
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
0
Accessory Type:
Auxiliary Contact

Electrical

Power Loss:
1 W
Maximum 1 W
1 W
Maximum 1 W
Number of Auxiliary Contacts CO (SPDT):
0

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230731
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Environmental Information:

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.055 kg

Ordering

Package Level 1 Units:
blister 1 piece
Package Level 1 Gross Weight:
0.058 kg
E-Number (Finland):
3210850
E-Number (Norway):
1630490
E-Number (Sweden):
2102507

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
left

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
2CDS200946R0001 ABB - S2C-H6-11R
ABB 2CDS200946R0001 ABB - S2C-H6-11R
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Auxiliary Contact
Suitable For:
S200
S200M
S200MT
S200S
S200P
S200MUC
S300P
F200
S-ARC1
DS-ARC1
DS201
S200
S200M
S200MT
S200S
S200P
S200MUC
S300P
F200
S-ARC1
DS-ARC1
Suitable for Product Class:
Miniature Circuit Breaker
Residual Current Device
Miniature Circuit Breaker
Residual Current Device
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Accessory Type:
Auxiliary Contact

Electrical

Power Loss:
1 W
Maximum 1 W
1 W
Maximum 1 W
Number of Auxiliary Contacts CO (SPDT):
0

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
0335
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Environmental Information:

Dimensions

Product Net Width:
8.8 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.04 kg

Ordering

Package Level 1 Units:
blister 1 piece
Package Level 1 Gross Weight:
0.05 kg
E-Number (Sweden):
2100351

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
right

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Standards:
CSA 22.2 No. 235
GB/T 14048.5
IEC/EN 60947-5-1
UL 1077
CSA 22.2 No. 235
GB/T 14048.5
IEC/EN 60947-5-1
UL 1077
2CDS200970R0032 ABB - S2C-H10
ABB 2CDS200970R0032 ABB - S2C-H10
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Function:
Auxiliary Contact
Suitable For:
S200
S200M
S200P
S200S
S200 MT
S200 MTR
S200 MUC
S300P
DS-ARC1
SD200
DS201(2019)
S200
S200M
S200P
S200S
S200 MT
S200 MTR
S200 MUC
S300P
DS-ARC1
SD200
Suitable for Product Class:
Miniature Circuit Breaker
Residual Current Device
Miniature Circuit Breaker
Residual Current Device
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Accessory Type:
Auxiliary Contact

Electrical

Power Loss:
0.5 W
Maximum 0.5 W
0.5 W
Maximum 0.5 W
Number of Auxiliary Contacts CO (SPDT):
0

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230731
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Environmental Information:

Dimensions

Product Net Width:
17.4 mm
Product Net Height:
21.2 mm
Product Net Depth / Length:
23.1 mm
Product Net Weight:
0.008 kg

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
0.012 kg
E-Number (Finland):
3210854
E-Number (Norway):
1628616
E-Number (Sweden):
2100168

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
bottom

External Classifications and Standards

ETIM 9:
EC001286 - Auxiliary device for distribution board devices
ETIM 10:
EC001286 - Auxiliary device for distribution board devices
UNSPSC:
39121522
eClass:
V11.0 : 27143502
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Standards:
CSA 22.2 No. 235
GB/T 14048.5
UL 1077
CSA 22.2 No. 235
GB/T 14048.5
UL 1077
2CDS211001R0024 ABB - SH201-C2
ABB 2CDS211001R0024 ABB - SH201-C2
$68.01
In stock, 100 units

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 92.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
20000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P
Tightening Torque:
2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
No
Connecting Capacity:
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 230 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC
Rated Current (In):
2 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
1.8 W
at Rated Operating Conditions per Pole 1.8 W
1.8 W
at Rated Operating Conditions per Pole 1.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group II, RAL 7035

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
0335
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Enclosure with Cover IP40
IP20
Enclosure with Cover IP40
Pollution Degree:
2
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
17.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.125 kg
Pole Net Weight:
0.125 kg
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
1.29 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CDS211001R0044 ABB - SH201-C4
ABB 2CDS211001R0044 ABB - SH201-C4
$67.47
In stock, 100 units

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 92.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
20000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P
Tightening Torque:
2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
No
Connecting Capacity:
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 230 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC
Rated Current (In):
4 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
1.8 W
at Rated Operating Conditions per Pole 1.8 W
1.8 W
at Rated Operating Conditions per Pole 1.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group II, RAL 7035

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
0335
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Enclosure with Cover IP40
IP20
Enclosure with Cover IP40
Pollution Degree:
2
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
17.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.125 kg
Pole Net Weight:
0.125 kg
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
1.29 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CDS211001R0064 ABB - SH201-C6
ABB 2CDS211001R0064 ABB - SH201-C6
$85.62
Only 6 units left

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 92.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
20000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P
Tightening Torque:
2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
No
Connecting Capacity:
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 230 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC
Rated Current (In):
6 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2 W
at Rated Operating Conditions per Pole 2 W
2 W
at Rated Operating Conditions per Pole 2 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group II, RAL 7035

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
0335
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Enclosure with Cover IP40
IP20
Enclosure with Cover IP40
Pollution Degree:
2
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
17.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.125 kg
Pole Net Weight:
0.125 kg
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
1.29 kg
E-Number (Finland):
3210164

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CDS211001R0065 ABB - SH201-B6
ABB 2CDS211001R0065 ABB - SH201-B6
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 92.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
20000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P
Tightening Torque:
2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
No
Connecting Capacity:
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
B
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Operational Voltage:
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Maximum (Incl. Tolerance) 253 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC
Rated Current (In):
6 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
(AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 6 kA
(400 V) 6 kA
(230 V) 6 kA
(400 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2 W
at Rated Operating Conditions per Pole 2 W
2 W
at Rated Operating Conditions per Pole 2 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group II, RAL 7035

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
0335
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Enclosure with Cover IP40
IP20
Enclosure with Cover IP40
Pollution Degree:
2
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
17.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.125 kg
Pole Net Weight:
0.125 kg
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
1.29 kg
E-Number (Finland):
3210967

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC

Recently viewed
