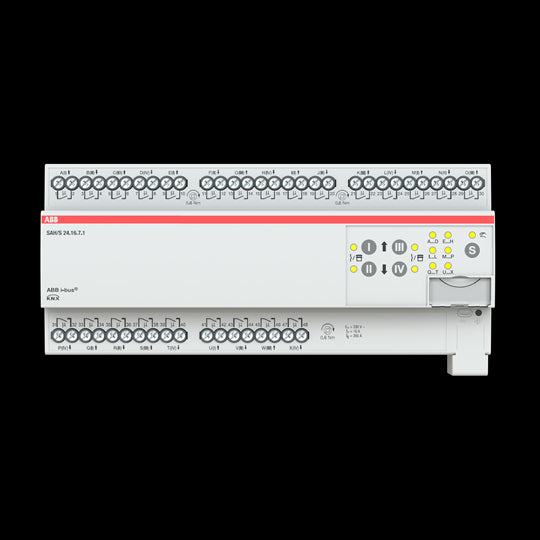

2CDG110252R0011 ABB - SAH/S24.16.7.1
ABB 2CDG110252R0011 ABB - SAH/S24.16.7.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
24
Number of LEDs:
12
Maximum Number of Switching Outputs:
24
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
1200 W
Power Loss:
12 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
210 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.72 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2814687
E-Number (Norway):
4549793
E-Number (Sweden):
1739890
E-Number (Switzerland):
405 865 245

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 29.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
55fd151c-9476-4eff-864b-c08b5844f259 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110253R0011 ABB - SA/S2.6.2.2
ABB 2CDG110253R0011 ABB - SA/S2.6.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
2
Number of LEDs:
1
Maximum Number of Switching Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
6 A
Maximum Switching Current:
6 A
Maximum Switching Power:
1380 W
Power Loss:
0.9 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.13 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814688
E-Number (Norway):
4545301
E-Number (Sweden):
1739891
E-Number (Switzerland):
405 660 025

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 37.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
8cc70e29-e751-407e-b362-1d3c6743db68 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110255R0011 ABB - SA/S8.6.2.2
ABB 2CDG110255R0011 ABB - SA/S8.6.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
6 A
Maximum Switching Current:
6 A
Maximum Switching Power:
1380 W
Power Loss:
1.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.406 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814690
E-Number (Norway):
4545303
E-Number (Sweden):
1739893
E-Number (Switzerland):
405 660 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 33.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
5c52175e-e682-4d9c-b337-f8457263342c Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110257R0011 ABB - SA/S2.10.2.2
ABB 2CDG110257R0011 ABB - SA/S2.10.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
2
Number of LEDs:
1
Maximum Number of Switching Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
2500 W
Power Loss:
1.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.13 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814692
E-Number (Norway):
4545305
E-Number (Sweden):
1739895
E-Number (Switzerland):
405 663 025

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 37.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
f244a133-7f6f-471f-9848-5f5f5fdef05a Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110258R0011 ABB - SA/S4.10.2.2
ABB 2CDG110258R0011 ABB - SA/S4.10.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
4
Number of LEDs:
1
Maximum Number of Switching Outputs:
4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
2500 W
Power Loss:
2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.215 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814693
E-Number (Norway):
4545306
E-Number (Sweden):
1739896
E-Number (Switzerland):
405 663 045

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 36.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
311c0ad4-d72d-41f5-963e-437818047996 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110259R0011 ABB - SA/S8.10.2.2
ABB 2CDG110259R0011 ABB - SA/S8.10.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
2500 W
Power Loss:
2.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.406 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814694
E-Number (Norway):
4545307
E-Number (Sweden):
1739945
E-Number (Switzerland):
405 663 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 33.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
c5ff877b-1fdf-4042-8167-4027e2beea3b Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

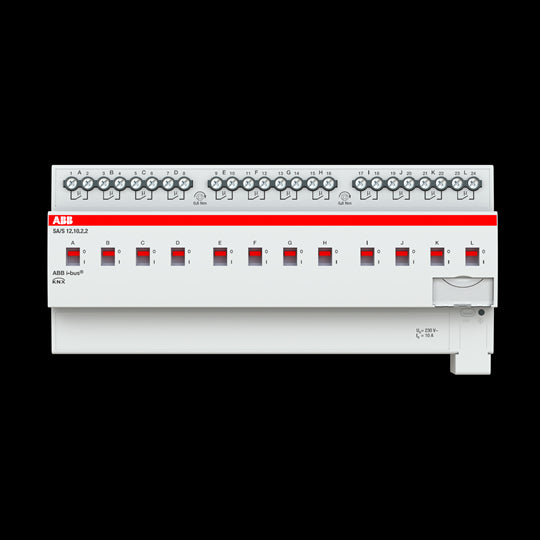

2CDG110260R0011 ABB - SA/S12.10.2.2
ABB 2CDG110260R0011 ABB - SA/S12.10.2.2
$432.00
Only 1 unit left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
12
Number of LEDs:
1
Maximum Number of Switching Outputs:
12
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
2500 W
Power Loss:
6.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
210 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.608 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814695
E-Number (Norway):
4545308
E-Number (Sweden):
1739946
E-Number (Switzerland):
405 663 125

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 31.8 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Modularity
Product Durability
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Modularity
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
0c52fd34-6513-4ebf-981d-88983562145b Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

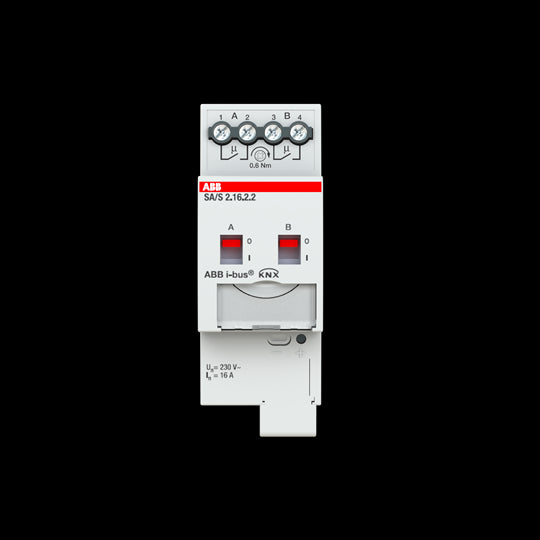

2CDG110261R0011 ABB - SA/S2.16.2.2
ABB 2CDG110261R0011 ABB - SA/S2.16.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
2
Number of LEDs:
1
Maximum Number of Switching Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
2500 W
Power Loss:
2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.13 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814696
E-Number (Norway):
4545309
E-Number (Sweden):
1739947
E-Number (Switzerland):
405 665 025

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 37.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
520a43ee-b1d6-425b-9c63-5b2e9152a816 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

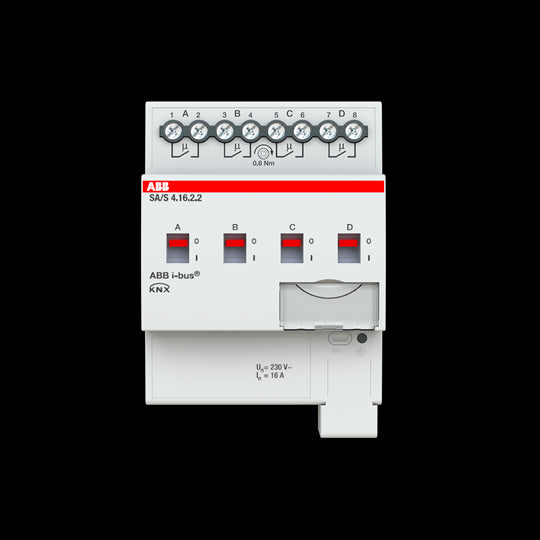

2CDG110262R0011 ABB - SA/S4.16.2.2
ABB 2CDG110262R0011 ABB - SA/S4.16.2.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
4
Number of LEDs:
1
Maximum Number of Switching Outputs:
4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
2500 W
Power Loss:
4 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.215 kg
Built-In Depth (t2):
63.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814697
E-Number (Norway):
4545310
E-Number (Sweden):
1739948
E-Number (Switzerland):
405 665 045

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 36.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

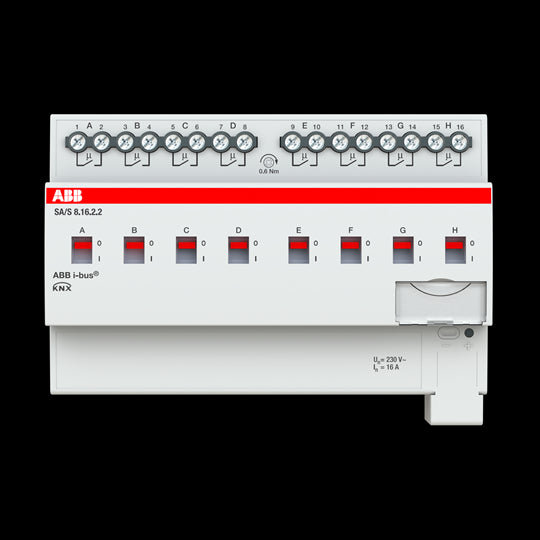

2CDG110263R0011 ABB - SA/S8.16.2.2
ABB 2CDG110263R0011 ABB - SA/S8.16.2.2
$365.72
Only 1 unit left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
2500 W
Power Loss:
8 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.406 kg
Built-In Depth (t2):
63.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814698
E-Number (Norway):
4545311
E-Number (Sweden):
1739949
E-Number (Switzerland):
405 665 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 33.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
0c06a879-7848-461a-b086-5b6399fd154d Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110264R0011 ABB - SA/S12.16.2.2
ABB 2CDG110264R0011 ABB - SA/S12.16.2.2
$577.13
Only 2 units left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
12
Number of LEDs:
1
Maximum Number of Switching Outputs:
12
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
2500 W
Power Loss:
12 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
210 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.608 kg
Built-In Depth (t2):
63.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2814699
E-Number (Norway):
4545312
E-Number (Sweden):
1739950
E-Number (Switzerland):
405 665 125

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 31.8 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Modularity
Product Durability
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Modularity
Offered with Takeback Services:
Take Back for Recycling

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
4212ff3b-e762-416d-a247-61411f67e39f Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

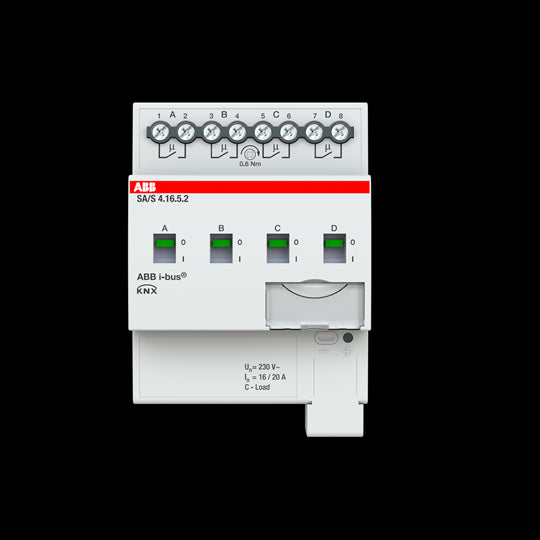

2CDG110266R0011 ABB - SA/S4.16.5.2
ABB 2CDG110266R0011 ABB - SA/S4.16.5.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
4
Number of LEDs:
1
Maximum Number of Switching Outputs:
4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Suitable for C-Load:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
20 A
Maximum Switching Current:
20 A
Maximum Switching Power:
3680 W
Load Type:
Resistive Load
Capacitive Load
Inductive Load
Resistive Load
Capacitive Load
Inductive Load
Power Loss:
4 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.236 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2815622
E-Number (Norway):
4545314
E-Number (Sweden):
1739952
E-Number (Switzerland):
405 667 045

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 33.9 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
b78f181f-6b7a-40ab-a414-1d21bb508707 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

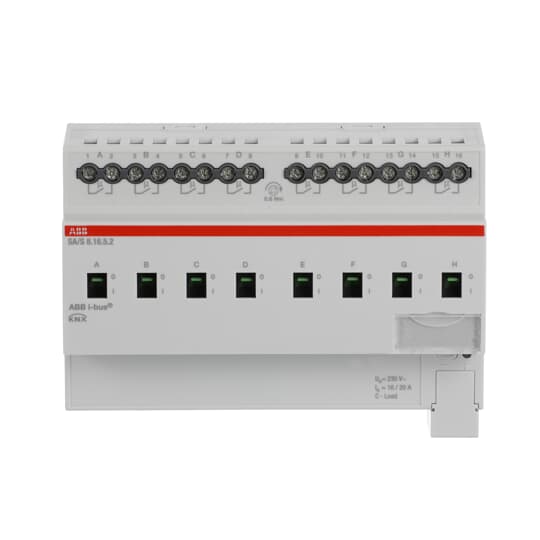

2CDG110267R0011 ABB - SA/S8.16.5.2
ABB 2CDG110267R0011 ABB - SA/S8.16.5.2
$423.90
Only 1 unit left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Suitable for C-Load:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
20 A
Maximum Switching Current:
20 A
Maximum Switching Power:
3680 W
Load Type:
Resistive Load
Capacitive Load
Inductive Load
Resistive Load
Capacitive Load
Inductive Load
Power Loss:
8 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.452 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2815623
E-Number (Norway):
4545315
E-Number (Sweden):
1739953
E-Number (Switzerland):
405 667 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 30 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
d7898b4b-ac3e-4fff-aed0-2a294f6b6a8a Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

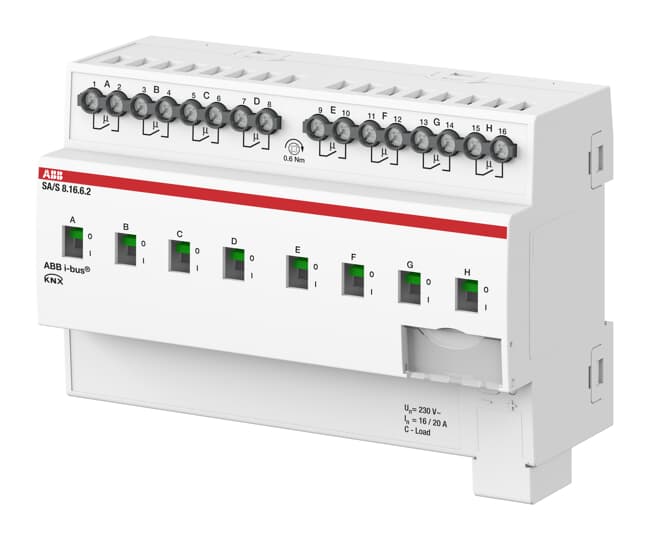

2CDG110271R0011 ABB - SA/S8.16.6.2
ABB 2CDG110271R0011 ABB - SA/S8.16.6.2
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Suitable for C-Load:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
20 A
Maximum Switching Current:
20 A
Maximum Switching Power:
3680 W
Load Type:
Resistive Load
Capacitive Load
Inductive Load
Resistive Load
Capacitive Load
Inductive Load
Power Loss:
8 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.561 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replaced Product ID (OLD):
E-Number (Finland):
2815627
E-Number (Norway):
4544054
E-Number (Sweden):
1739957
E-Number (Switzerland):
405 669 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 28.6 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

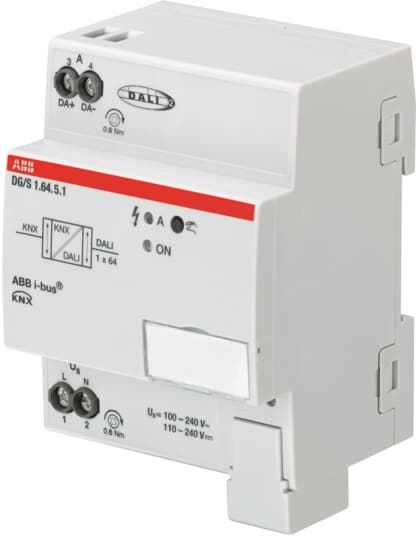

2CDG110273R0011 ABB - DG/S1.64.5.1
ABB 2CDG110273R0011 ABB - DG/S1.64.5.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Communication Interface:
DALI
Number of Outputs:
1
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
DALI
KNX (TP)
DALI
Product Range:
KNX
Software Updateable:
Yes
Integrated Webserver:
No
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
110 ... 230 V AC
Input Voltage (Uin):
85 ... 264 V AC
Power Loss:
2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.133 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2814675
E-Number (Norway):
4544205
E-Number (Sweden):
1739866
E-Number (Switzerland):
405670325

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
4040c569-de3a-44cb-9a18-14dbb8ac76fd Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001099 - System interface/media gateway for bus system
ETIM 10:
EC001099 - System interface/media gateway for bus system
eClass:
V11.0 : 27143136
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system

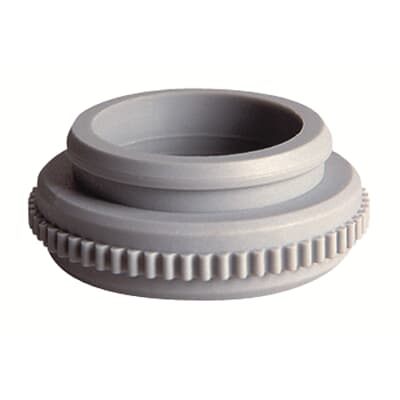

2CDG120009R0011 ABB - VA/Z10.1
ABB 2CDG120009R0011 ABB - VA/Z10.1
$0.00
Sold Out

Installation

Instructions and Manuals:
Mounting Type:
Accessory

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Product Range:
KNX
free@home
KNX
free@home
Product Type:
Adapter
Manual Operation:
No
Number of Batteries:
0

Electrical

Power Loss:
0 W

Design

Color:
white

Dimensions

Product Net Width:
40 mm
Product Net Height:
15 mm
Product Net Depth / Length:
40 mm
Product Net Weight:
0.045 kg

Engineering

Building Information Modeling – BIM:

Ordering

E-Number (Finland):
2815550
E-Number (Switzerland):
405590005

Material Compliance

REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001583 - Accessories/spare parts for bus system
ETIM 10:
EC001583 - Accessories/spare parts for bus system
eClass:
V11.0 : 27143192
UNSPSC:
31163032
IDEA Granular Category Code (IGCC):
2735 >> Electrical coupling adapter
Object Classification Code:
A

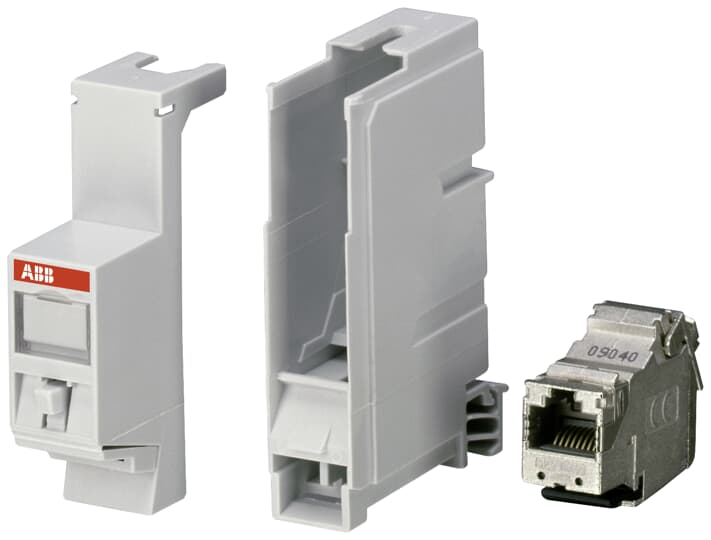

2CDG120036R0011 ABB - IPM/S 1.1
ABB 2CDG120036R0011 ABB - IPM/S 1.1
$0.00
Sold Out

Installation

Mounting Type:
DIN-Rail

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Outputs:
1
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 1
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Power Loss:
0 W

Design

RAL Number:
RAL 7035 - Light Grey
Color:
light grey

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
18 mm
Product Net Height:
73 mm
Product Net Depth / Length:
66.7 mm
Product Net Weight:
0.052 kg

Ordering

E-Number (Finland):
2815415
E-Number (Norway):
4546687
E-Number (Sweden):
1740132
E-Number (Switzerland):
405701305

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001128 - Patch panel copper (twisted pair)
ETIM 10:
EC001128 - Patch panel copper (twisted pair)
eClass:
V11.0 : 19170112
Object Classification Code:
A

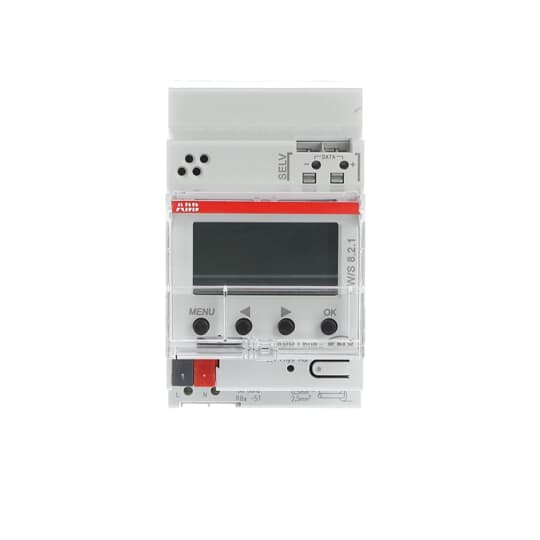

2CDG120039R0011 ABB - FW/S8.2.1
ABB 2CDG120039R0011 ABB - FW/S8.2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Number of Channels:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Transmission Standard:
Twisted Pair Wiring
Options Provided:
Daily program
Weekly program
Annual program
Astro program
Days off programmable
Summer-/winter switchover
Daily program
Weekly program
Annual program
Astro program
Days off programmable
Summer-/winter switchover
Manual Operation:
Yes
Battery Chemical Composition:
Lithium
Battery Size:
CR1
Battery Type:
Button Cell
Battery Weight:
0.01 kg
Number of Batteries:
1
Terminal Type:
Bus Connection

Electrical

Voltage Range:
110 ... 230 V AC
Auxiliary Voltage AC/DC:
110 ... 240 V AC
Power Loss:
1 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
53 mm
Product Net Height:
90 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
0.156 kg
Screen Size:
2 in

Ordering

E-Number (Finland):
2815428
E-Number (Norway):
4544140
E-Number (Sweden):
1738419
E-Number (Switzerland):
405960505

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000689 - Time switch for bus system
ETIM 10:
EC000689 - Time switch for bus system
eClass:
V11.0 : 27143140
UNSPSC:
39121801
Object Classification Code:
A
2CDG120040R0011 ABB - FAD/A 1.1
ABB 2CDG120040R0011 ABB - FAD/A 1.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP54

Technical

Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Number of Batteries:
0

Electrical

Power Loss:
0 W

Design

Color:
transparent

Dimensions

Product Net Width:
72 mm
Product Net Height:
93 mm
Product Net Depth / Length:
57 mm
Product Net Weight:
0.135 kg

Engineering

Building Information Modeling – BIM:

Ordering

E-Number (Finland):
2815438
E-Number (Norway):
4544101
E-Number (Sweden):
1738420
E-Number (Switzerland):
533901909

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC002296 - Accessories/spare parts for time switches
ETIM 10:
EC002296 - Accessories/spare parts for time switches
eClass:
V11.0 : 27142391
Object Classification Code:
A
2CDG120044R0011 ABB - HS/S 4.2.1
ABB 2CDG120044R0011 ABB - HS/S 4.2.1
$296.99
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Channels:
10
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Illuminance:
1 ... 100000 lx
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
KNX
Power Loss:
1 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
53 mm
Product Net Height:
90 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
0.187 kg
Screen Size:
2 in

Engineering

Building Information Modeling – BIM:

Ordering

E-Number (Finland):
2815442
E-Number (Norway):
4544150
E-Number (Sweden):
1738424
E-Number (Switzerland):
405461105

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000927 - Brightness sensor for bus system
ETIM 10:
EC000927 - Brightness sensor for bus system
eClass:
V11.0 : 27143111
UNSPSC:
39121801
Object Classification Code:
A
2CDG120046R0011 ABB - WES/A 3.1
ABB 2CDG120046R0011 ABB - WES/A 3.1
$0.00
Sold Out

Installation

Mounting Type:
Surface Mounted
Wall mounting
Surface Mounted
Wall mounting

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Degree of Protection:
IP44

Technical

Data Sheet, Technical Information:
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Additional Information:
Heater included
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
24 V DC
Rated Current (In):
0.2 A
Power Loss:
4.15 W

Design

Color:
transparent

Dimensions

Product Net Width:
121 mm
Product Net Height:
109 mm
Product Net Depth / Length:
227 mm
Product Net Weight:
0.36 kg

Engineering

Building Information Modeling – BIM:

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815539
E-Number (Sweden):
1738707
E-Number (Switzerland):
205550305

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT):
SCIP:
4fbb172d-ec04-4579-b47f-6ba692d89e0d Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC000926 - Physical sensor for bus system
ETIM 10:
EC000926 - Physical sensor for bus system
eClass:
V11.0 : 27143137
Object Classification Code:
A
2CDG120049R0011 ABB - TSA/K230.2
ABB 2CDG120049R0011 ABB - TSA/K230.2
$0.00
Sold Out

Installation

Wiring Diagram:
Mounting Type:
Built-in
Surface Mounted
Built-in
Surface Mounted
Modular Components Included:
Complete Device

Environmental

Degree of Protection:
IP54

Technical

Data Sheet, Technical Information:
Product Range:
KNX
free@home
KNX
free@home
Manual Operation:
No
Number of Batteries:
0

Electrical

Rated Voltage (Ur):
230 V
Rated Frequency (f):
50/60 Hz
Power Loss:
1 W

Design

Color:
white

Dimensions

Product Net Width:
44.4 mm
Product Net Height:
59.1 mm
Product Net Depth / Length:
58.4 mm
Product Net Weight:
0.104 kg

Engineering

Building Information Modeling – BIM:

Ordering

E-Number (Finland):
2815548
E-Number (Norway):
4544740
E-Number (Sweden):
1738699
E-Number (Switzerland):
205571005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC000792 - Actuating drive for bus system
ETIM 10:
EC000792 - Actuating drive for bus system
eClass:
V11.0 : 27143135
UNSPSC:
31251505
IDEA Granular Category Code (IGCC):
3262 >> Valve actuators
Object Classification Code:
A
2CDG250003R0011 ABB - WRK/W
ABB 2CDG250003R0011 ABB - WRK/W
$0.00
Sold Out

Environmental

Degree of Protection:
IP67

Technical

Data Sheet, Technical Information:
Operating Principle:
Mechanical
Manual Operation:
No
VdS Class:
Class C
Number of Batteries:
0

Electrical

Voltage Range:
10 ... 30 V DC
Maximum Switching Current:
0.3 A
Power Loss:
0 W

Dimensions

Product Net Width:
8.25 mm
Product Net Height:
43.7 mm
Product Net Depth / Length:
18 mm
Product Net Weight:
0.02 kg

Ordering

E-Number (Switzerland):
961822103

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
Product Not in WEEE Scope

Certificates and Declarations

Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001759 - Detector for locking surveillance
ETIM 10:
EC001759 - Detector for locking surveillance
eClass:
V11.0 : 27143230
Object Classification Code:
A
2CDG250007R0011 ABB - IM-C1.1
ABB 2CDG250007R0011 ABB - IM-C1.1
$0.00
Sold Out

Installation

Instructions and Manuals:
Mounting Type:
Built-on
Surface Mounted
Built-on
Surface Mounted

Technical

Data Sheet, Technical Information:
Number of Outputs:
0
Number of Digital Inputs:
0
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 0
Manual Operation:
No
Number of Batteries:
0

Electrical

Maximum Switching Current:
0 mA
Power Loss:
0 W

Design

Color:
Stainless steel

Dimensions

Width in Number of Modular Spacings:
0
Product Net Width:
10 mm
Product Net Height:
10 mm
Product Net Depth / Length:
500 mm
Product Net Weight:
0.05 kg

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
Product Not in WEEE Scope

Certificates and Declarations

Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC002942 - Accessories/spare parts for danger detection system
ETIM 10:
EC002942 - Accessories/spare parts for danger detection system
eClass:
V11.0 : 27399090

Recently viewed
