14678 products

Showing 7369 - 7392 of 14678 products

Showing 7369 - 7392 of 14678 products
View

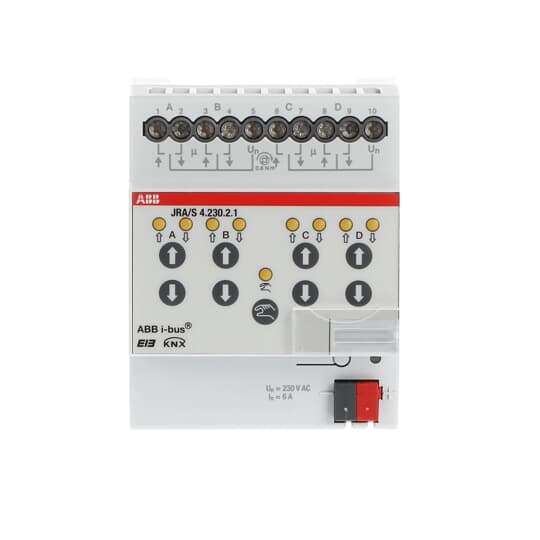

2CDG110121R0011 ABB - JRA/S4.230.2.1
ABB 2CDG110121R0011 ABB - JRA/S4.230.2.1
$270.00
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
4
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
0.7 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.22 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815404
E-Number (Norway):
4545178
E-Number (Switzerland):
405430245

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
f01e1dea-cf98-4f39-99fb-26bd1168f764 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

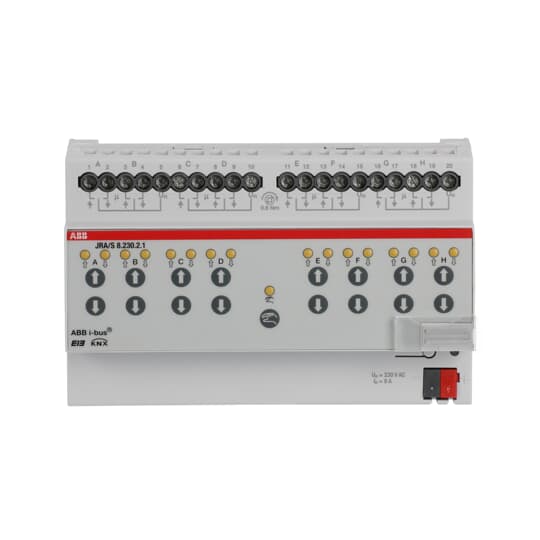

2CDG110122R0011 ABB - JRA/S8.230.2.1
ABB 2CDG110122R0011 ABB - JRA/S8.230.2.1
$303.75
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
8
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
0.7 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
144 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.41 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815405
E-Number (Norway):
4545182
E-Number (Switzerland):
405430285

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
84441b3c-4b1f-4c64-9a69-9db8b102921d Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

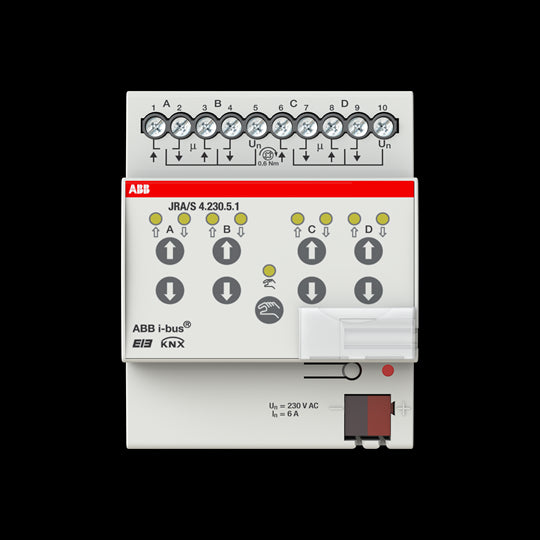

2CDG110125R0011 ABB - JRA/S 4.230.5.1
ABB 2CDG110125R0011 ABB - JRA/S 4.230.5.1
$310.50
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
4
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
0.02 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.252 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815400
E-Number (Norway):
4545179
E-Number (Switzerland):
405430345

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

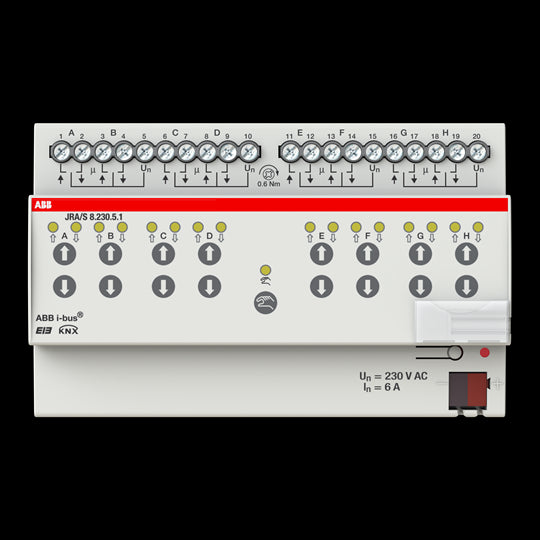

2CDG110126R0011 ABB - JRA/S 8.230.5.1
ABB 2CDG110126R0011 ABB - JRA/S 8.230.5.1
$673.65
Only 2 units left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
8
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
0.08 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
144 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.41 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815401
E-Number (Norway):
4545183
E-Number (Switzerland):
405430385

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

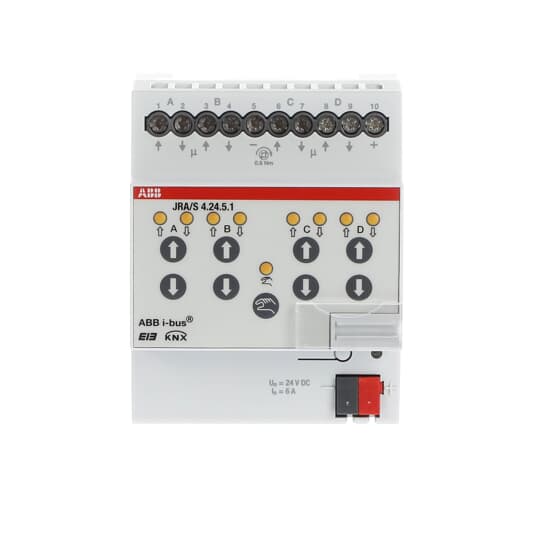

2CDG110128R0011 ABB - JRA/S 4.24.5.1
ABB 2CDG110128R0011 ABB - JRA/S 4.24.5.1
$567.00
Only 2 units left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
4
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
DC
Voltage Range:
24 V
Output Voltage (Uout):
24 V DC
Maximum Switching Current:
16 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.22 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815402
E-Number (Norway):
4545180
E-Number (Switzerland):
405430445

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

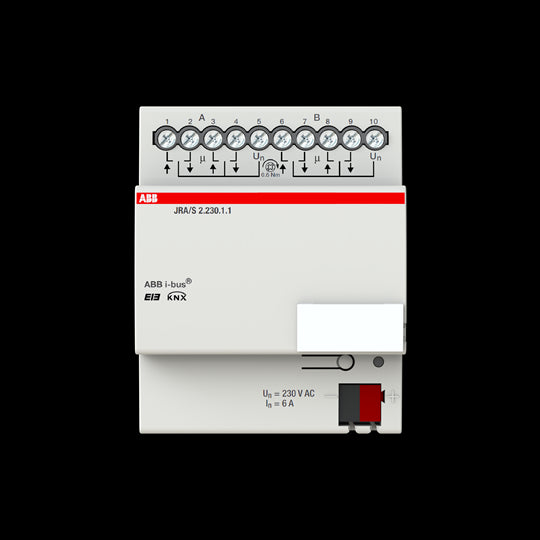

2CDG110129R0011 ABB - JRA/S 2.230.1.1
ABB 2CDG110129R0011 ABB - JRA/S 2.230.1.1
$403.65
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
2
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
16 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.205 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815406
E-Number (Norway):
4545171
E-Number (Switzerland):
405430125

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

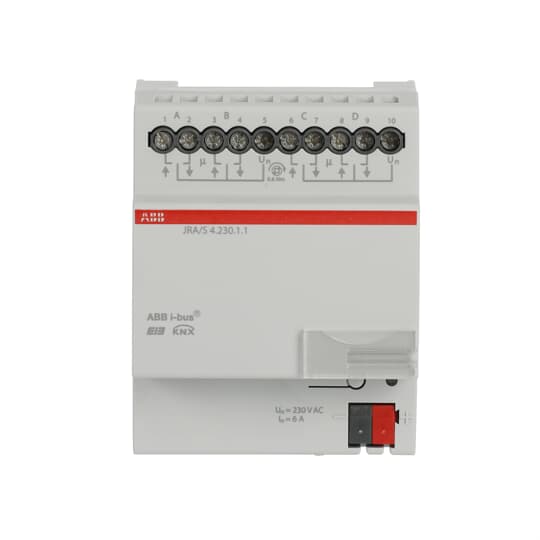

2CDG110130R0011 ABB - JRA/S 4.230.1.1
ABB 2CDG110130R0011 ABB - JRA/S 4.230.1.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
4
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
6 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.22 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815407
E-Number (Norway):
4545177
E-Number (Switzerland):
405430145

Material Compliance

RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A
2CDG110144R0011 ABB - SV/S 30.160.1.1
ABB 2CDG110144R0011 ABB - SV/S 30.160.1.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Number of Outputs:
1
Number of LEDs:
1
Number of Integrated Chokes:
1
Number of Supplied Lines:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
110 ... 230 V AC
Output Voltage (Uout):
30 V DC
Buffer Voltage:
No
Output Current Maximum (Iout):
0.16 A
Power Loss:
4.4 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.26 kg

Engineering

Ordering

E-Number (Finland):
2815461
E-Number (Norway):
4544369
E-Number (Sweden):
1738576
E-Number (Switzerland):
405800415

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000675 - Power supply for bus system
ETIM 10:
EC000675 - Power supply for bus system
eClass:
V11.0 : 27143114
UNSPSC:
39121004
IDEA Granular Category Code (IGCC):
4127 >> Power supply units
Object Classification Code:
A
2CDG110161R0011 ABB - SA/S8.16.2.1
ABB 2CDG110161R0011 ABB - SA/S8.16.2.1
$0.00
Sold Out

Installation

Mounting Type:
DIN-Rail

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
1
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
2500 W
Power Loss:
8 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
144 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.406 kg
Built-In Depth (t2):
64.5 mm

Ordering

Replacement Product ID (NEW):
E-Number (Sweden):
1738098
E-Number (Switzerland):
405665685

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
Object Classification Code:
A
2CDG110165R0011 ABB - RM/S3.1
ABB 2CDG110165R0011 ABB - RM/S3.1
$0.00
Sold Out

Installation

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Outputs:
8
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 12
Number of Input Channels:
12
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Output Voltage (Uout):
230 V AC
Maximum Switching Current:
20 A
Power Loss:
5.15 W

Design

Color:
white

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
216 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.55 kg

Engineering

Ordering

E-Number (Finland):
2815262
E-Number (Norway):
4545019
E-Number (Sweden):
1738088
E-Number (Switzerland):
405613215

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
6193a316-b044-494c-b96a-0ed2c891e119 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001584 - I/O device for bus system
ETIM 10:
EC001584 - I/O device for bus system
eClass:
V11.0 : 27143145
UNSPSC:
39122221
Object Classification Code:
A
2CDG110166R0011 ABB - SV/S 30.320.1.1
ABB 2CDG110166R0011 ABB - SV/S 30.320.1.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Number of Outputs:
1
Number of LEDs:
1
Number of Integrated Chokes:
1
Number of Supplied Lines:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
110 ... 230 V AC
Output Voltage (Uout):
30 V DC
Buffer Voltage:
No
Output Current Maximum (Iout):
0.32 A
Power Loss:
6 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.26 kg

Engineering

Ordering

E-Number (Finland):
2815462
E-Number (Norway):
4544376
E-Number (Sweden):
1738578
E-Number (Switzerland):
405800515

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000675 - Power supply for bus system
ETIM 10:
EC000675 - Power supply for bus system
eClass:
V11.0 : 27143114
UNSPSC:
39121004
IDEA Granular Category Code (IGCC):
4127 >> Power supply units
Object Classification Code:
A
2CDG110192R0011 ABB - ABA/S 1.2.1
ABB 2CDG110192R0011 ABB - ABA/S 1.2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
24 V
Auxiliary Voltage AC/DC:
24 V DC
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.192 kg

Ordering

E-Number (Finland):
2815597
E-Number (Norway):
4544175
E-Number (Sweden):
1739158
E-Number (Switzerland):
405670115

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
585d1a3d-dbc0-4d88-9de5-ea2f14c189f2 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000676 - Logic component for bus system
ETIM 10:
EC000676 - Logic component for bus system
eClass:
V11.0 : 27143103
UNSPSC:
32151705
IDEA Granular Category Code (IGCC):
3567 >> PLC function/technology module
Object Classification Code:
A
2CDG110198R0011 ABB - DG/S 1.64.1.1
ABB 2CDG110198R0011 ABB - DG/S 1.64.1.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Communication Interface:
DALI
Number of Outputs:
1
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
DALI
KNX (TP)
DALI
Product Range:
KNX
Software Updateable:
Yes
Integrated Webserver:
No
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
110 ... 230 V AC
Input Voltage (Uin):
85 ... 264 V AC
Power Loss:
2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.133 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2815584
E-Number (Norway):
4544214
E-Number (Sweden):
1739089
E-Number (Switzerland):
405670305

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
202aa237-cd1a-4cd1-8f22-4e17f0717ba9 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001099 - System interface/media gateway for bus system
ETIM 10:
EC001099 - System interface/media gateway for bus system
eClass:
V11.0 : 27143136
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system
Object Classification Code:
A
Standards:
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
DIN EN 60669-2-1:2010-09
EN 60669-2-1 2004/A12:2010
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
DIN EN 60669-2-1:2010-09
EN 60669-2-1 2004/A12:2010
2CDG110199R0011 ABB - DG/S 2.64.1.1
ABB 2CDG110199R0011 ABB - DG/S 2.64.1.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Communication Interface:
DALI
Number of Outputs:
2
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
DALI
KNX (TP)
DALI
Product Range:
KNX
Software Updateable:
Yes
Integrated Webserver:
No
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
110 ... 230 V AC
Input Voltage (Uin):
85 ... 264 V AC
Power Loss:
4 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.15 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2815585
E-Number (Norway):
4544215
E-Number (Sweden):
1739090
E-Number (Switzerland):
405670315

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
64299150-b132-4960-9f61-198f02c15350 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001099 - System interface/media gateway for bus system
ETIM 10:
EC001099 - System interface/media gateway for bus system
eClass:
V11.0 : 27143136
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system
Object Classification Code:
A
Standards:
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
DIN EN 60669-2-1:2010-09
EN 60669-2-1 2004/A12:2010
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
DIN EN 60669-2-1:2010-09
EN 60669-2-1 2004/A12:2010
2CDG110204R0011 ABB - IPS/S3.5.1
ABB 2CDG110204R0011 ABB - IPS/S3.5.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Communication Interface:
Ethernet
Number of LEDs:
3
Compatible Bus Systems:
KNX (TP)
KNX (IP)
KNX (TP)
KNX (IP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0
Security Standard:
KNX IP Secure

Electrical

Voltage Range:
PoE
Auxiliary Voltage AC/DC:
12 ... 30 V DC
Power Loss:
1.8 W

Design

Surface Finishing:
Matt
Housing Material:
Plastic
RAL Number:
RAL 7035 - Light Grey
Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.1 kg

Engineering

Ordering

E-Number (Finland):
2815672
E-Number (Norway):
4544098
E-Number (Sweden):
1739849
E-Number (Switzerland):
405701055

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000674 - Interface for bus system
ETIM 10:
EC000674 - Interface for bus system
eClass:
V11.0 : 27143102
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system
Object Classification Code:
A
2CDG110206R0011 ABB - AC/S1.2.1
ABB 2CDG110206R0011 ABB - AC/S1.2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Compatible Bus Systems:
KNX (TP)
BACnet
KNX (TP)
BACnet
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
24 V DC
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.192 kg

Engineering

Ordering

E-Number (Finland):
2814555
E-Number (Norway):
4544166
E-Number (Sweden):
1739446

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
f9ebbc07-310b-42ef-aec4-1f92e32128c5 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000676 - Logic component for bus system
ETIM 10:
EC000676 - Logic component for bus system
eClass:
V11.0 : 27143103
UNSPSC:
32151705
IDEA Granular Category Code (IGCC):
3567 >> PLC function/technology module
Object Classification Code:
A
2CDG110211R0011 ABB - FCC/S1.1.2.1
ABB 2CDG110211R0011 ABB - FCC/S1.1.2.1
$837.00
Only 2 units left

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Special Functions:
Valve Protection
Number of Outputs:
5
Number of Digital Inputs:
4
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Maximum Switching Current:
16 A
Output Current Maximum (Iout):
0.5 A
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
105 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.235 kg

Engineering

Ordering

E-Number (Finland):
2814557
E-Number (Sweden):
1739448
E-Number (Switzerland):
405712025

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001586 - Heating actuator for bus system
ETIM 10:
EC001586 - Heating actuator for bus system
eClass:
V11.0 : 27143147
UNSPSC:
39121801
Object Classification Code:
A
2CDG110215R0011 ABB - FCC/S1.3.2.1
ABB 2CDG110215R0011 ABB - FCC/S1.3.2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Special Functions:
Valve Protection
Number of Outputs:
4
Number of Digital Inputs:
4
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems:
KNX (TP)
Manipulated Variable:
Continious
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
0 ... 10 V DC
Maximum Switching Current:
16 A
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
105 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.215 kg

Engineering

Ordering

E-Number (Finland):
2814561
E-Number (Norway):
4545318
E-Number (Sweden):
1739452
E-Number (Switzerland):
405712225

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001586 - Heating actuator for bus system
ETIM 10:
EC001586 - Heating actuator for bus system
eClass:
V11.0 : 27143147
UNSPSC:
39121801
Object Classification Code:
A
2CDG110218R0011 ABB - HCC/S2.1.1.1
ABB 2CDG110218R0011 ABB - HCC/S2.1.1.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Special Functions:
Valve Protection
Number of Outputs:
4
Number of Digital Inputs:
10
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 10
Compatible Bus Systems:
KNX (TP)
Manipulated Variable:
Continious
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
0 ... 10 V DC
Maximum Switching Current:
5 A
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.28 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2814567
E-Number (Sweden):
1739457
E-Number (Switzerland):
405711215

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001586 - Heating actuator for bus system
ETIM 10:
EC001586 - Heating actuator for bus system
eClass:
V11.0 : 27143147
UNSPSC:
39121801
Object Classification Code:
A
2CDG110229R0011 ABB - QA/S4.64.1
ABB 2CDG110229R0011 ABB - QA/S4.64.1
$0.00
Sold Out

QA/S4.64.1 Energy Analyzer, Modbus RTU, 64 Devices, MDRC. Energy management solution for capturing and analyzing consumption data of up to 64 electricity, gas, water or heat meters via Modbus RTU. Web-based user interface with graphical analysis functions such as historical data, dashboard, and more. Various export functions and APIs for further processing of metering data.
2CDG110246R0011 ABB - SAH/S24.6.7.1
ABB 2CDG110246R0011 ABB - SAH/S24.6.7.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
24
Number of LEDs:
12
Maximum Number of Switching Outputs:
24
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
6 A
Maximum Switching Current:
6 A
Maximum Switching Power:
1200 W
Power Loss:
7.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
210 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.72 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2814681
E-Number (Norway):
4549787
E-Number (Sweden):
1739884
E-Number (Switzerland):
405 860 245

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 29.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
0792c385-95e4-48d3-bf45-09e0a5646d98 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110247R0011 ABB - SAH/S8.10.7.1
ABB 2CDG110247R0011 ABB - SAH/S8.10.7.1
$567.00
Only 1 unit left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
8
Number of LEDs:
8
Maximum Number of Switching Outputs:
8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
1200 W
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.272 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2814682
E-Number (Norway):
4549788
E-Number (Sweden):
1739885
E-Number (Switzerland):
405 863 085

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 32.7 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
2c476654-f5a9-433b-b725-6ca8fc809e48 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110248R0011 ABB - SAH/S16.10.7.1
ABB 2CDG110248R0011 ABB - SAH/S16.10.7.1
$1,356.60
Only 2 units left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
16
Number of LEDs:
10
Maximum Number of Switching Outputs:
16
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
10 A
Maximum Switching Current:
10 A
Maximum Switching Power:
1200 W
Power Loss:
6 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.502 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2814683
E-Number (Norway):
4549789
E-Number (Sweden):
1739886
E-Number (Switzerland):
405 863 165

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 30.5 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
136c4a14-8d9e-4c0f-87a4-0b29193c931d Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
2CDG110251R0011 ABB - SAH/S16.16.7.1
ABB 2CDG110251R0011 ABB - SAH/S16.16.7.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Contact Position Indication:
ON / OFF
Number of Outputs:
16
Number of LEDs:
10
Maximum Number of Switching Outputs:
16
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Utilization Category:
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation:
Yes
Suitable for C-Load:
No
Number of Batteries:
0

Electrical

Voltage Range:
230 V AC
Auxiliary Voltage AC/DC:
KNX
Output Voltage (Uout):
230 V AC
Rated Current (In):
16 A
Maximum Switching Current:
16 A
Maximum Switching Power:
1200 W
Power Loss:
8 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
8.0
Product Net Width:
140 mm
Product Net Height:
90 mm
Product Net Depth / Length:
63.5 mm
Product Net Weight:
0.502 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2814686
E-Number (Norway):
4549792
E-Number (Sweden):
1739889
E-Number (Switzerland):
405 865 165

ABB EcoSolutions

Circular Value

Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 30.5 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Product Durability
Product Modularity
Offered with Takeback Services:
Take Back for Recycling
Environmental Product Declaration - EPD:

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
5d96afc8-ddee-4959-ae5b-e82cf0b90bdf Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator

Recently viewed
