2CDL220001R1048 ABB - PS2/48H
ABB 2CDL220001R1048 ABB - PS2/48H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S-ARC1
S200
F200
DDA200
S-ARC1
Suitable for Product Class:
2-pole devices + auxiliary contact
Pitch:
44729.0
Number of Poles:
48P
Number of Phases:
2-phase
Number of Mountable Devices:
24
Number of Terminals (Nterm):
48
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
14.8 mm
Product Net Height:
29 mm
Product Net Depth / Length:
1046 mm
Product Net Weight:
0.354 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
3.76 kg
E-Number (Finland):
3210194

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

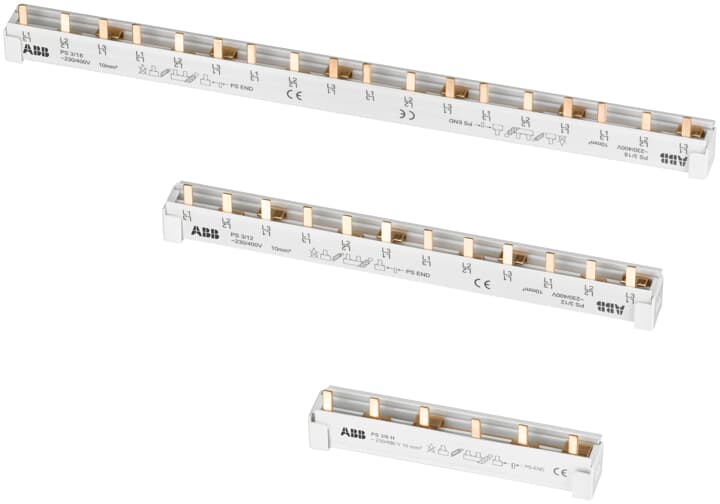

2CDL220001R1612 ABB - PS2/12/16
ABB 2CDL220001R1612 ABB - PS2/12/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
17.6
Number of Poles:
12P
Number of Phases:
2-phase
Number of Mountable Devices:
6
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.085 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
4.41 kg

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

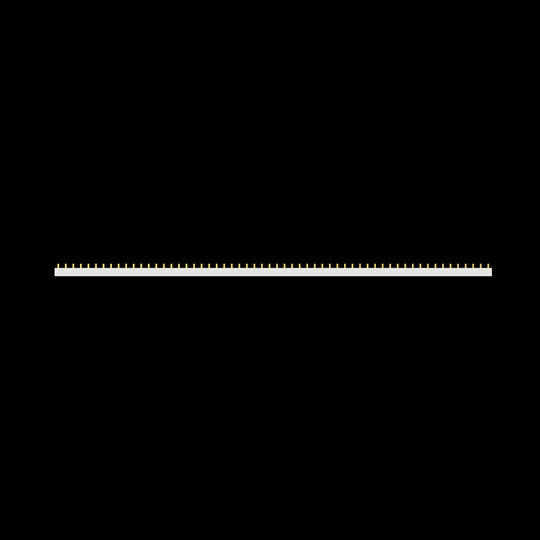

2CDL220001R1658 ABB - PS2/58/16
ABB 2CDL220001R1658 ABB - PS2/58/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
44729.0
Number of Poles:
58P
Number of Phases:
2-phase
Number of Mountable Devices:
29
Number of Terminals (Nterm):
58
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
18 mm
Product Net Height:
29 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.488 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
5.09 kg
E-Number (Finland):
3211070
E-Number (Sweden):
2102530

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL220001R3058 ABB - PS2/58/30
ABB 2CDL220001R3058 ABB - PS2/58/30
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
17.6
Number of Poles:
58P
Number of Phases:
2-phase
Number of Mountable Devices:
29
Number of Terminals (Nterm):
58
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
30 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
120 A
Rated Frequency (f):
50 / 60 Hz
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
15.1 mm
Product Net Height:
42 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
1.81 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
9.57 kg

Certificates and Declarations

Installation

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL220010R1012 ABB - PS2/12A
ABB 2CDL220010R1012 ABB - PS2/12A
$0.00
Sold Out

Technical

Sub-Function:
Pins for breaking of
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
44729.0
Number of Poles:
12P
Number of Phases:
2-phase
Number of Mountable Devices:
6
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
A
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.075 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
3.91 kg
E-Number (Finland):
3210192
E-Number (Norway):
1665923

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

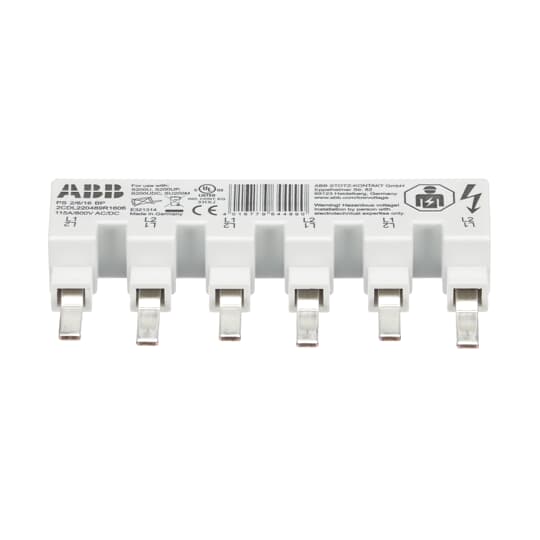

2CDL220489R1606 ABB - PS2/6/16BP
ABB 2CDL220489R1606 ABB - PS2/6/16BP
$0.00
Sold Out

Technical

Sub-Function:
Branch Protection (UL 489)
Suitable For:
S200U
S200UP
S200U
S200UP
Suitable for Product Class:
UL 489 Devices
Pitch:
44729.0
Number of Poles:
6P
Number of Phases:
2-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
6
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
BP
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 480 V
690 V AC/DC
Maximum 480 V
Rated Short-time Withstand Current Low Voltage (Icw):
10 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
15.5 mm
Product Net Height:
46 mm
Product Net Depth / Length:
99 mm
Product Net Weight:
0.062 kg

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
6.44 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
UL 489
2CDL230001R1012 ABB - PS3/12
ABB 2CDL230001R1012 ABB - PS3/12
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
3-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.092 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
4.76 kg

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL230001R1039 ABB - PS3/39H
ABB 2CDL230001R1039 ABB - PS3/39H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
1-pole device + auxiliary contanct
Pitch:
44698.0
Number of Poles:
39P
Number of Phases:
3-phase
Number of Mountable Devices:
13
Number of Terminals (Nterm):
39
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
15 mm
Product Net Height:
29 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.442 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
4.63 kg
E-Number (Finland):
3259612
E-Number (Sweden):
2102555

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL230001R1048 ABB - PS3/48H
ABB 2CDL230001R1048 ABB - PS3/48H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole devices + auxiliary contact
Pitch:
44698.0
Number of Poles:
48P
Number of Phases:
3-phase
Number of Mountable Devices:
16
Number of Terminals (Nterm):
48
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
56.0
Product Net Width:
14.8 mm
Product Net Height:
29 mm
Product Net Depth / Length:
980 mm
Product Net Weight:
0.441 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
4.62 kg
E-Number (Finland):
3211062
E-Number (Sweden):
2102559

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

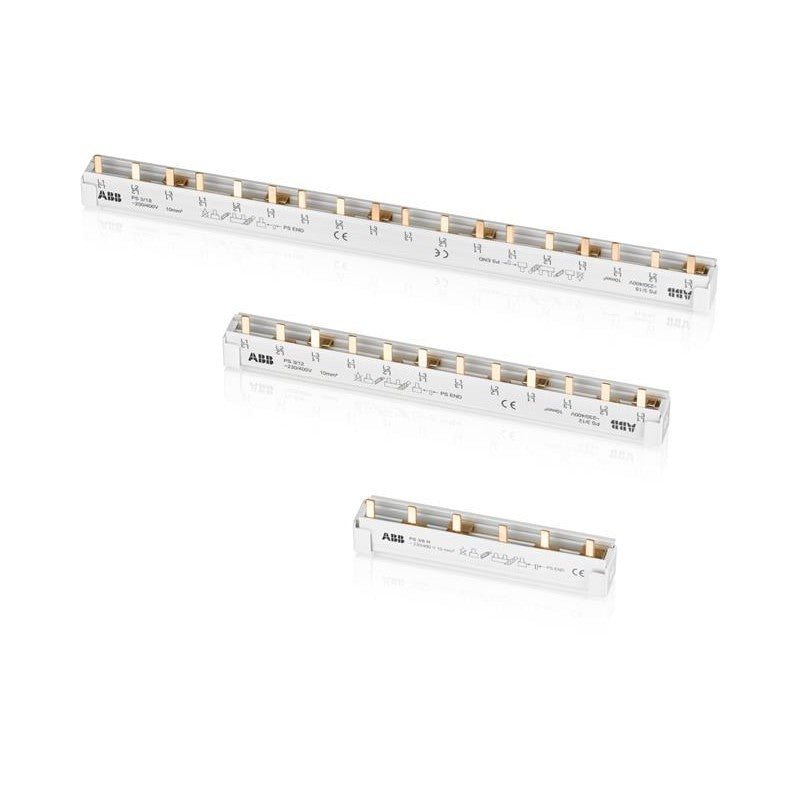

2CDL230001R1060 ABB - PS3/60
ABB 2CDL230001R1060 ABB - PS3/60
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
60P
Number of Phases:
3-phase
Number of Mountable Devices:
20
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
14.8 mm
Product Net Height:
29 mm
Product Net Depth / Length:
1056 mm
Product Net Weight:
0.487 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
5.09 kg
E-Number (Finland):
3259497
E-Number (Sweden):
2102712

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

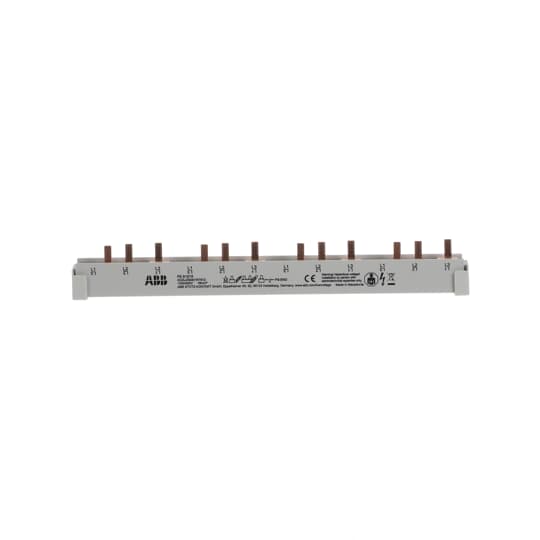

2CDL230001R1612 ABB - PS3/12/16
ABB 2CDL230001R1612 ABB - PS3/12/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
3-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.121 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
6.21 kg
E-Number (Sweden):
2100376

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL230001R1648 ABB - PS3/48/16H
ABB 2CDL230001R1648 ABB - PS3/48/16H
$0.00
Sold Out

Technical

Sub-Function:
Space for auxiliary contatct
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole devices + auxiliary contact
Pitch:
44698.0
Number of Poles:
4P
Number of Phases:
3-phase
Number of Mountable Devices:
1
Number of Terminals (Nterm):
48
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
H
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
56.0
Product Net Width:
16 mm
Product Net Height:
29 mm
Product Net Depth / Length:
980 mm
Product Net Weight:
0.601 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
6.22 kg
E-Number (Finland):
3259618
E-Number (Norway):
1665932
E-Number (Sweden):
2102561

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

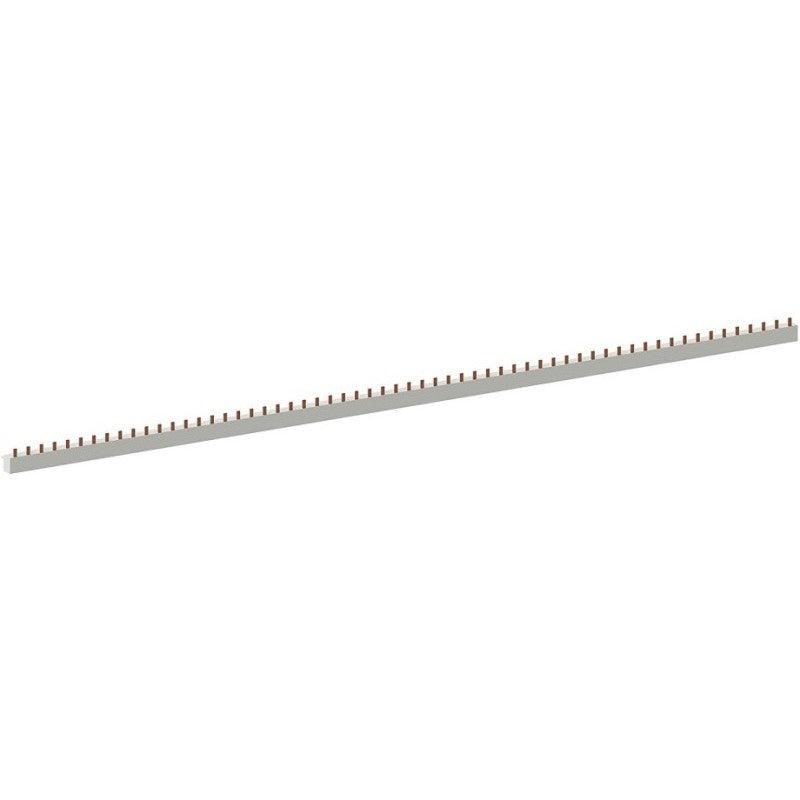

2CDL230001R1660 ABB - ps3/60/16
ABB 2CDL230001R1660 ABB - ps3/60/16
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
16P
Number of Phases:
3-phase
Number of Mountable Devices:
5
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
16 mm
Product Net Height:
29 mm
Product Net Depth / Length:
1056 mm
Product Net Weight:
0.666 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
6.88 kg
E-Number (Finland):
3259490
E-Number (Sweden):
2102540

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

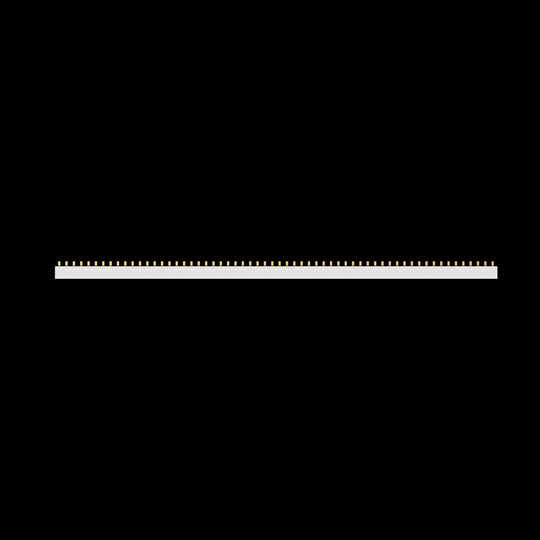

2CDL230001R3060 ABB - PS3/60/30
ABB 2CDL230001R3060 ABB - PS3/60/30
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
17.5
Number of Poles:
60P
Number of Phases:
3-phase
Number of Mountable Devices:
20
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
30 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
120 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
15.1 mm
Product Net Height:
42 mm
Product Net Depth / Length:
1056 mm
Product Net Weight:
2.65 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
13.27 kg

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL230002R1012 ABB - PS3/12FI
ABB 2CDL230002R1012 ABB - PS3/12FI
$0.00
Sold Out

Technical

Sub-Function:
4th module without pin for neutral conductor
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole RCD wired with 1-pole or 3-pole devices
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
3-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
11
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
FI
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
18 mm
Product Net Height:
30.3 mm
Product Net Depth / Length:
214 mm
Product Net Weight:
0.089 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
4.61 kg
E-Number (Finland):
3259620

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

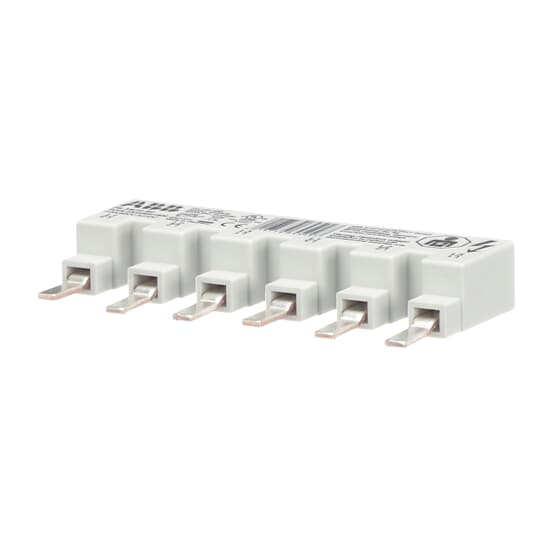

2CDL230489R1606 ABB - PS3/6/16BP
ABB 2CDL230489R1606 ABB - PS3/6/16BP
$0.00
Sold Out

Technical

Sub-Function:
Branch Protection (UL 489)
Suitable For:
S200U
S200UP
S200U
S200UP
Suitable for Product Class:
UL 489 Devices
Pitch:
44698.0
Number of Poles:
6P
Number of Phases:
3-phase
Number of Mountable Devices:
2
Number of Terminals (Nterm):
6
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
BP
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 480 V
690 V AC/DC
Maximum 480 V
Rated Short-time Withstand Current Low Voltage (Icw):
10 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
15.5 mm
Product Net Height:
46 mm
Product Net Depth / Length:
99 mm
Product Net Weight:
0.064 kg

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
6.85 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
UL 489

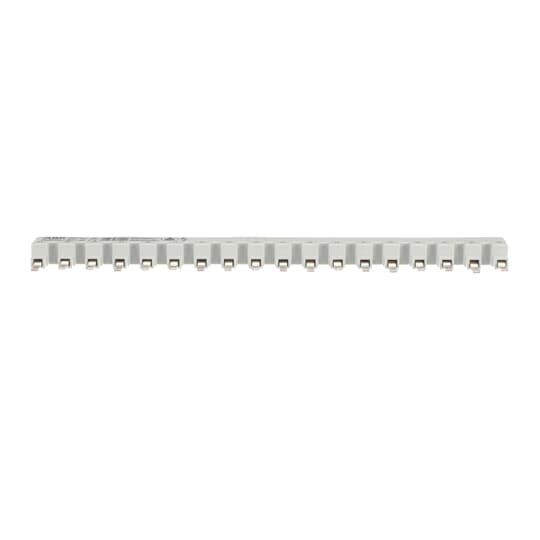

2CDL230489R1618 ABB - PS3/18/16BP
ABB 2CDL230489R1618 ABB - PS3/18/16BP
$0.00
Sold Out

Technical

Sub-Function:
Branch Protection (UL 489)
Suitable For:
S200U
S200UP
S200U
S200UP
Suitable for Product Class:
UL 489 Devices
Pitch:
44698.0
Number of Poles:
18P
Number of Phases:
3-phase
Number of Mountable Devices:
6
Number of Terminals (Nterm):
18
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
BP
Rated Cross-Section:
16 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 480 V
690 V AC/DC
Maximum 480 V
Rated Short-time Withstand Current Low Voltage (Icw):
10 kA
Rated Uninterrupted Current (Iu):
80 A
Rated Frequency (f):
50 / 60 Hz
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
18.0
Product Net Width:
15.5 mm
Product Net Height:
46 mm
Product Net Depth / Length:
310 mm
Product Net Weight:
0.235 kg

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
12.46 kg

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
UL 489

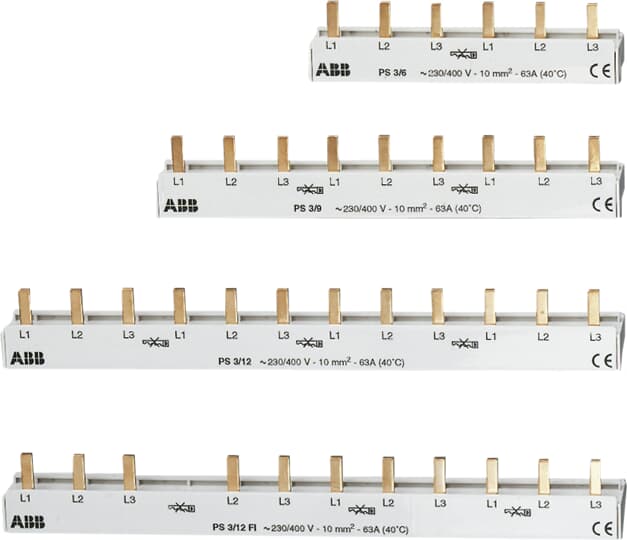

2CDL231001R1006 ABB - PS3/6
ABB 2CDL231001R1006 ABB - PS3/6
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
6P
Number of Phases:
3-phase
Number of Mountable Devices:
2
Number of Terminals (Nterm):
6
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
21 mm
Product Net Height:
27 mm
Product Net Depth / Length:
106 mm
Product Net Weight:
0.042 kg

Ordering

Package Level 1 Units:
carton 60 piece
Package Level 1 Gross Weight:
2.57 kg
E-Number (Finland):
3211052
E-Number (Norway):
1667495
E-Number (Sweden):
2102713

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

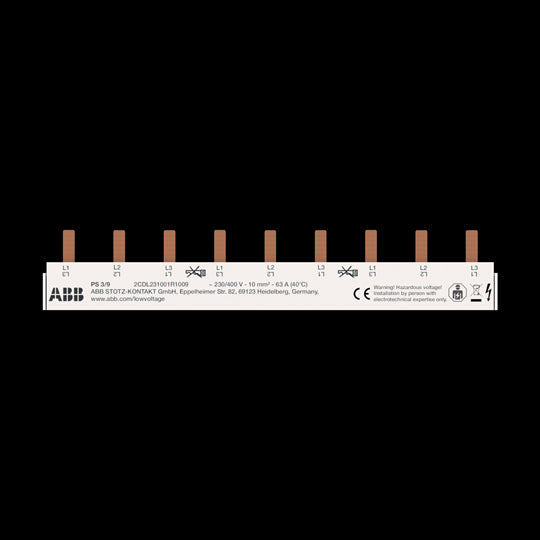

2CDL231001R1009 ABB - PS3/9
ABB 2CDL231001R1009 ABB - PS3/9
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
9P
Number of Phases:
3-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
9
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
9.0
Product Net Width:
21 mm
Product Net Height:
27 mm
Product Net Depth / Length:
158 mm
Product Net Weight:
0.069 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
2.12 kg
E-Number (Finland):
3259493
E-Number (Norway):
1667496
E-Number (Sweden):
2102714

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

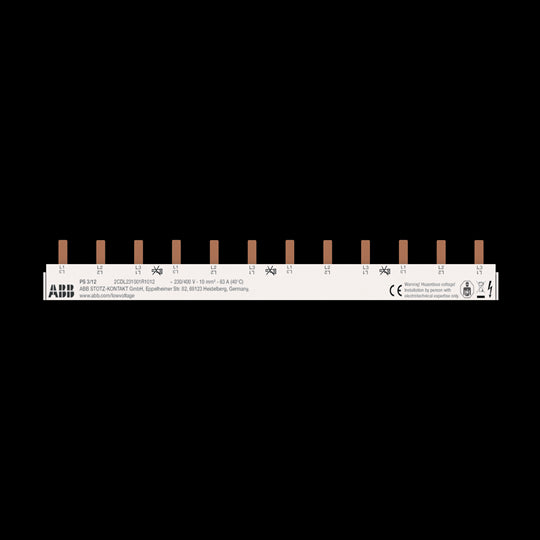

2CDL231001R1012 ABB - PS3/12
ABB 2CDL231001R1012 ABB - PS3/12
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
3-pole or 1-pole devices
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
3-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
21 mm
Product Net Height:
27 mm
Product Net Depth / Length:
211 mm
Product Net Weight:
0.096 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
2.93 kg
E-Number (Finland):
3259496
E-Number (Sweden):
2102715

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL231002R1012 ABB - PS3/12FI
ABB 2CDL231002R1012 ABB - PS3/12FI
$0.00
Sold Out

Technical

Sub-Function:
4th module without pin for neutral conductor
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole RCD wired with 1-pole or 3-pole devices
Pitch:
44698.0
Number of Poles:
12P
Number of Phases:
3-phase
Number of Mountable Devices:
4
Number of Terminals (Nterm):
11
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
FI
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
690 V AC/DC
Maximum 690 V
690 V AC/DC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
21 mm
Product Net Height:
27 mm
Product Net Depth / Length:
211 mm
Product Net Weight:
0.094 kg

Ordering

Package Level 1 Units:
carton 50 piece
Package Level 1 Gross Weight:
4.75 kg
E-Number (Sweden):
2102718

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1012 ABB - PS4/12
ABB 2CDL240101R1012 ABB - PS4/12
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole devices (e.g.: S204 or F204)
Pitch:
17.5
Number of Poles:
12P
Number of Phases:
4-phase
Number of Mountable Devices:
3
Number of Terminals (Nterm):
12
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
09997593-618b-4cb9-b884-ec312eeec835 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
12.0
Product Net Width:
19.3 mm
Product Net Height:
30.5 mm
Product Net Depth / Length:
212 mm
Product Net Weight:
0.105 kg

Ordering

Package Level 1 Units:
carton 30 piece
Package Level 1 Gross Weight:
3.31 kg
E-Number (Norway):
1665940

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1058 ABB - PS4/58N
ABB 2CDL240101R1058 ABB - PS4/58N
$0.00
Sold Out

Technical

Sub-Function:
cross wiring for neutral conductor
Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
2-pole devices (L1+N)
Pitch:
17.5
Number of Poles:
58P
Number of Phases:
4-phase
Number of Mountable Devices:
14
Number of Terminals (Nterm):
58
Accessory Type:
Busbar
Connection Type:
Pin
Options Provided:
N
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
58.0
Product Net Width:
23.7 mm
Product Net Height:
31.5 mm
Product Net Depth / Length:
1020 mm
Product Net Weight:
0.565 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
5.86 kg
E-Number (Finland):
3259630
E-Number (Sweden):
2100338

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Position:
any

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1
2CDL240101R1060 ABB - PS4/60
ABB 2CDL240101R1060 ABB - PS4/60
$0.00
Sold Out

Technical

Suitable For:
S200
F200
DDA200
S200
F200
DDA200
Suitable for Product Class:
4-pole devices (e.g.: S204 or F204)
Pitch:
17.5
Number of Poles:
60P
Number of Phases:
4-phase
Number of Mountable Devices:
15
Number of Terminals (Nterm):
60
Accessory Type:
Busbar
Connection Type:
Pin
Rated Cross-Section:
10 mm²

Electrical

Rated Operational Voltage:
230 / 400 V AC
Maximum 690 V
230 / 400 V AC
Maximum 690 V
Rated Short-time Withstand Current Low Voltage (Icw):
25 kA
Rated Uninterrupted Current (Iu):
63 A
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Overvoltage Category:
III

Design

RAL Number:
RAL 7035 - Light Grey
Color:
grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230517
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Pollution Degree:
2
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
23.7 mm
Product Net Height:
31.5 mm
Product Net Depth / Length:
1056 mm
Product Net Weight:
0.576 kg

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
5.98 kg
E-Number (Finland):
3259626
E-Number (Sweden):
2100341

Certificates and Declarations

Installation

Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000215 - Phase busbar
ETIM 10:
EC000215 - Phase busbar
UNSPSC:
39121117
eClass:
V11.0 : 27371306
IDEA Granular Category Code (IGCC):
4378 >> Phase busbar
Object Classification Code:
W
Standards:
IEC/EN 60947-1

Recently viewed
