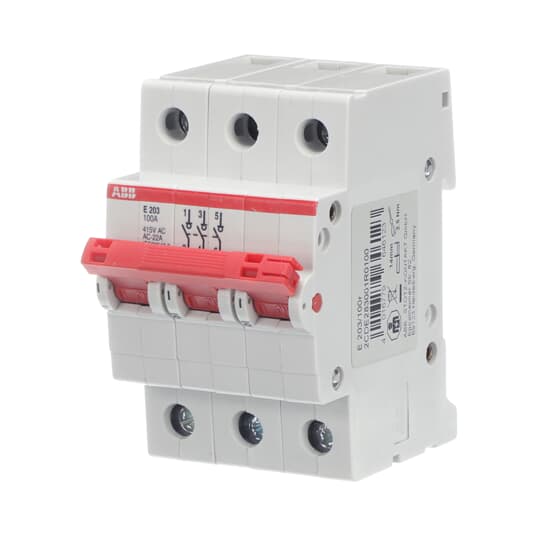

2CDE283001R0100 ABB - E203/100R
ABB 2CDE283001R0100 ABB - E203/100R
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 38.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Offered with Takeback Services:
Take Back for Recycling
End Of Life Disassembling Instructions:

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
25 kA
Number of Poles:
3P
Switch Type:
Off
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Cover Color:
Grey

Electrical

Rated Voltage (Ur):
400 V
12 V Minimum
400 V
12 V Minimum
Rated Operational Voltage:
230 / 400 V AC
Input Voltage Type:
AC
Rated Current (In):
100 A
Rated Conditional Short-Circuit Current (Inc):
25 kA
Power Loss:
at Rated Operating Conditions per Pole 3.95 W
Number of Contacts CO:
0
Number of Contacts NC:
0
Number of Contacts NO:
3

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20240111
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP10

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
52.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.29 kg
Built-In Depth (t2):
70 mm

Ordering

Package Level 1 Units:
carton 3 piece
Package Level 1 Gross Weight:
0.915 kg
E-Number (Norway):
1424330

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001545 - Main switch for distribution board
ETIM 10:
EC001545 - Main switch for distribution board
UNSPSC:
39122233
eClass:
V11.0 : 27142301
IDEA Granular Category Code (IGCC):
5293 >> Switch disconnector
Object Classification Code:
Q
Standards:
IEC/EN 60947-3
Certification Agency:
EN
IEC
EN
IEC
2CDE283001R0125 ABB - E203/125R
ABB 2CDE283001R0125 ABB - E203/125R
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 38.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Offered with Takeback Services:
Take Back for Recycling
End Of Life Disassembling Instructions:

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
6 kA
Number of Poles:
3P
Switch Type:
Off
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Cover Color:
Grey

Electrical

Rated Voltage (Ur):
400 V
12 V Minimum
400 V
12 V Minimum
Rated Operational Voltage:
230 / 400 V AC
Input Voltage Type:
AC
Rated Current (In):
125 A
Rated Conditional Short-Circuit Current (Inc):
6 kA
Power Loss:
at Rated Operating Conditions per Pole 6.1 W
Number of Contacts CO:
0
Number of Contacts NC:
0
Number of Contacts NO:
3

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20240111
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP10

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
52.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.29 kg
Built-In Depth (t2):
70 mm

Ordering

Package Level 1 Units:
carton 3 piece
Package Level 1 Gross Weight:
0.915 kg
E-Number (Norway):
1424331

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001545 - Main switch for distribution board
ETIM 10:
EC001545 - Main switch for distribution board
eClass:
V11.0 : 27142301
Object Classification Code:
Q
Standards:
IEC/EN 60947-3
Certification Agency:
EN
IEC
EN
IEC

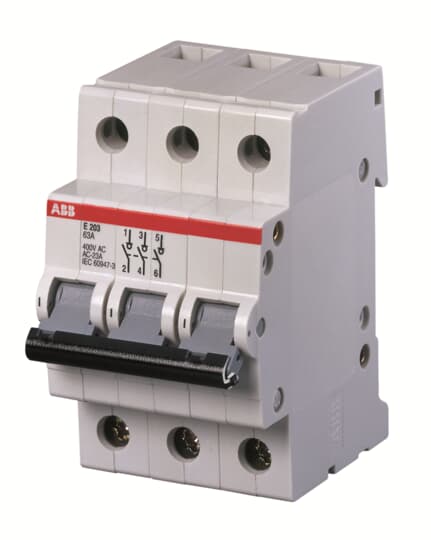

2CDE283001R1063 ABB - E203/63G
ABB 2CDE283001R1063 ABB - E203/63G
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 38.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Offered with Takeback Services:
Take Back for Recycling
End Of Life Disassembling Instructions:

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
25 kA
Number of Poles:
3P
Switch Type:
Off
Cover Color:
Grey

Electrical

Rated Voltage (Ur):
400 V
12 V Minimum
400 V
12 V Minimum
Input Voltage Type:
AC
Rated Current (In):
63 A
Rated Conditional Short-Circuit Current (Inc):
25 kA
Power Loss:
4.9 W
at Rated Operating Conditions per Pole 1.65 W
4.9 W
at Rated Operating Conditions per Pole 1.65 W
Number of Contacts CO:
0
Number of Contacts NC:
0
Number of Contacts NO:
3

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20240111
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP10

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
52.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.29 kg
Built-In Depth (t2):
70 mm

Ordering

Package Level 1 Units:
carton 3 piece
Package Level 1 Gross Weight:
0.915 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001545 - Main switch for distribution board
ETIM 10:
EC001545 - Main switch for distribution board
eClass:
V11.0 : 27142301
Standards:
IEC/EN 60947-3
Certification Agency:
EN
IEC
EN
IEC
2CDE284001R0063 ABB - E204/63R
ABB 2CDE284001R0063 ABB - E204/63R
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 38.1 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
Offered with Takeback Services:
Take Back for Recycling
End Of Life Disassembling Instructions:

Technical

Rated Service Short-Circuit Breaking Capacity (Ics):
25 kA
Number of Poles:
4P
Switch Type:
Off
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Cover Color:
Grey

Electrical

Rated Voltage (Ur):
400 V
12 V Minimum
400 V
12 V Minimum
Rated Operational Voltage:
230 / 400 V AC
Input Voltage Type:
AC
Rated Current (In):
63 A
Rated Conditional Short-Circuit Current (Inc):
25 kA
Power Loss:
6.55 W
at Rated Operating Conditions per Pole 1.65 W
6.55 W
at Rated Operating Conditions per Pole 1.65 W
Number of Contacts CO:
0
Number of Contacts NC:
0
Number of Contacts NO:
4

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20240111
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP10

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
70 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.39 kg
Built-In Depth (t2):
70 mm

Ordering

Package Level 1 Units:
carton 2 piece
Package Level 1 Gross Weight:
0.825 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001545 - Main switch for distribution board
ETIM 10:
EC001545 - Main switch for distribution board
eClass:
V11.0 : 27142301
Object Classification Code:
Q
Standards:
IEC/EN 60947-3
Certification Agency:
EN
IEC
EN
IEC

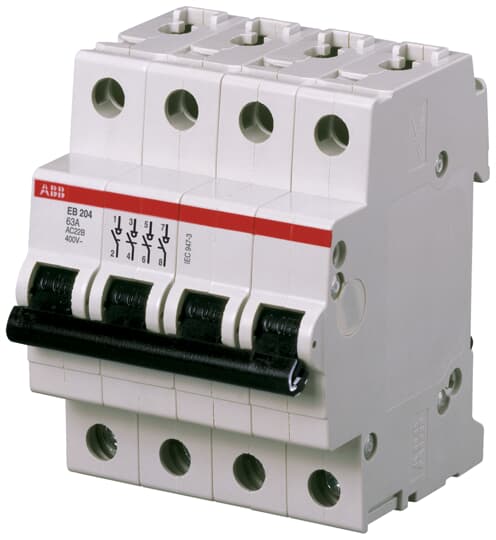

2CDE284789R2063 ABB - EB204-63A
ABB 2CDE284789R2063 ABB - EB204-63A
$0.00
Sold Out

EB204-63A Switch Disconnectors

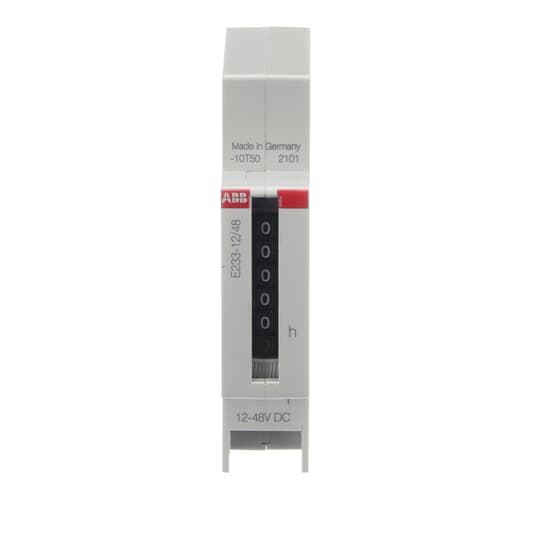

2CDE300010R1601 ABB - E233-12/48
ABB 2CDE300010R1601 ABB - E233-12/48
$0.00
Sold Out

Technical

Accuracy:
Reading Accuracy Class 0,01 h

Electrical

Rated Voltage (Ur):
12 ... 48 V DC
Rated Frequency (f):
50 / 60 Hz
Power Loss:
0.02 W

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
0046
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
SCIP:
25da42bc-9a61-4d82-a73c-72c54df7c78e Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1.0
Product Net Width:
17.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
58 mm
Product Net Weight:
0.05 kg

Ordering

Package Level 1 Units:
box 10 piece
Package Level 1 Gross Weight:
0.6 kg
E-Number (Finland):
6680131
E-Number (Norway):
8261091

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC001641 - Hour meter
ETIM 10:
EC001641 - Hour meter
UNSPSC:
41111901
eClass:
V11.0 : 27142313
IDEA Granular Category Code (IGCC):
6132 >> Counters
Object Classification Code:
P
2CDE601101R2002 ABB - EPD24-TB-101-2A
ABB 2CDE601101R2002 ABB - EPD24-TB-101-2A
$0.00
Sold Out

Technical

Product Compatibility:
Compatible with inductive load through suitable external free-wheeling circuit
Maximum Load Capacity:
20000 µF
Output Signal:
Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO:
1
Number of Channels:
1
Signal Indication Fault (LED):
Red
Tightening Torque:
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Trip Type:
Electronic
Status Indicator:
Yes
Additional Information:
Backup fuse for EPD24 not required
Recommended Screw Driver:
Screw Slot
Accessories Available:
Yes
Output:
Power MOSFET switching output (positive switching) without galvanic isolation
Remarks:
Parallel connection of outputs not permissible
Operating Humidity (RHamb):
96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Electrical

Rated Voltage (Ur):
24 V DC
Operational Voltage:
Maximum 18..32 V DC
Rated Current (In):
2 A
Power Loss:
0.98 W

Design

Housing Material:
Moulded
RAL Number:
RAL 7012 - Basalt Grey
Color:
dark grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20191001
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2

Dimensions

Product Net Width:
12.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
83 mm
Product Net Weight:
65 g

Ordering

Package Level 1 Units:
box 4 piece
Package Level 1 Gross Weight:
0.366 kg
E-Number (Norway):
1655082
E-Number (Sweden):
2063002

Certificates and Declarations

Installation

Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

External Classifications and Standards

ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA
2CDE601101R2004 ABB - EPD24-TB-101-4A
ABB 2CDE601101R2004 ABB - EPD24-TB-101-4A
$0.00
Sold Out

Technical

Product Compatibility:
Compatible with inductive load through suitable external free-wheeling circuit
Maximum Load Capacity:
20000 µF
Output Signal:
Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO:
1
Number of Channels:
1
Signal Indication Fault (LED):
Red
Tightening Torque:
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Trip Type:
Electronic
Status Indicator:
Yes
Additional Information:
Backup fuse for EPD24 not required
Recommended Screw Driver:
Screw Slot
Accessories Available:
Yes
Output:
Power MOSFET switching output (positive switching) without galvanic isolation
Remarks:
Parallel connection of outputs not permissible
Operating Humidity (RHamb):
96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Electrical

Rated Voltage (Ur):
24 V DC
Operational Voltage:
Maximum 18..32 V DC
Rated Current (In):
4 A
Power Loss:
1.12 W

Design

Housing Material:
Moulded
RAL Number:
RAL 7012 - Basalt Grey
Color:
dark grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20191001
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2

Dimensions

Product Net Width:
12.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
83 mm
Product Net Weight:
65 g

Ordering

Package Level 1 Units:
box 4 piece
Package Level 1 Gross Weight:
0.366 kg
E-Number (Norway):
1655084
E-Number (Sweden):
2063004

Certificates and Declarations

Installation

Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

External Classifications and Standards

ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA
2CDE601101R2010 ABB - EPD24-TB-101-10A
ABB 2CDE601101R2010 ABB - EPD24-TB-101-10A
$0.00
Sold Out

Technical

Product Compatibility:
Compatible with inductive load through suitable external free-wheeling circuit
Maximum Load Capacity:
20000 µF
Output Signal:
Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.
Number of Auxiliary Contacts NO:
1
Number of Channels:
1
Signal Indication Fault (LED):
Red
Tightening Torque:
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Auxiliary Circuit 0.5 N·m
L/N Terminals 1.5-1.8_NU N·m
Screw Terminal Type:
Cable Clamp
Trip Type:
Electronic
Status Indicator:
Yes
Additional Information:
Backup fuse for EPD24 not required
Recommended Screw Driver:
Screw Slot
Accessories Available:
Yes
Output:
Power MOSFET switching output (positive switching) without galvanic isolation
Remarks:
Parallel connection of outputs not permissible
Operating Humidity (RHamb):
96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Electrical

Rated Voltage (Ur):
24 V DC
Operational Voltage:
Maximum 18..32 V DC
Rated Current (In):
10 A
Power Loss:
2.22 W

Design

Housing Material:
Moulded
RAL Number:
RAL 7012 - Basalt Grey
Color:
dark grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20191001
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2

Dimensions

Product Net Width:
12.5 mm
Product Net Height:
80 mm
Product Net Depth / Length:
83 mm
Product Net Weight:
65 g

Ordering

Package Level 1 Units:
box 4 piece
Package Level 1 Gross Weight:
0.366 kg
E-Number (Norway):
1655087
E-Number (Sweden):
2063007

Certificates and Declarations

Installation

Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

External Classifications and Standards

ETIM 9:
EC003538 - Device circuit breaker
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121636
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4991 >> Current limiter
Object Classification Code:
F
Standards:
UL 2367 recognized
CSA 22.2
UL1604
UL 2367 recognized
CSA 22.2
UL1604
Certification Agency:
UKCA
Standardization Body:
CSA

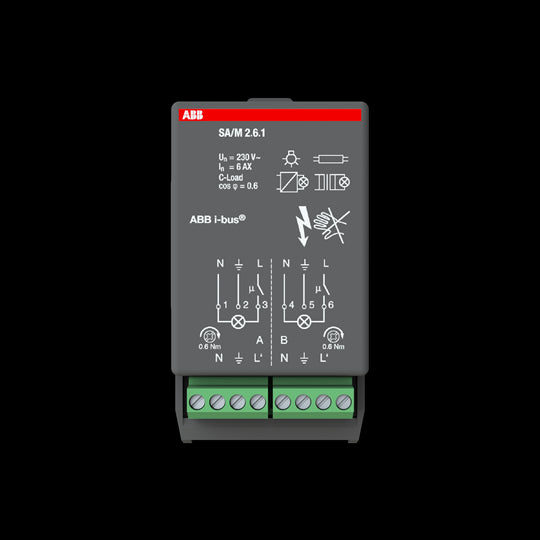

2CDG110002R0011 ABB - SA/M2.6.1
ABB 2CDG110002R0011 ABB - SA/M2.6.1
$0.00
Sold Out

Installation

Installing and Commissioning Manual:
Mounting Type:
Built-in

Environmental

Degree of Protection:
IP54

Technical

Number of Outputs:
2
Maximum Number of Switching Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Suitable for C-Load:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
230 V
Output Voltage (Uout):
230 V AC
Rated Current (In):
6 A
Maximum Switching Current:
6 A
Maximum Switching Power:
1380 W
Power Loss:
0 W

Design

Color:
anthracite

Dimensions

Product Net Width:
49 mm
Product Net Height:
42 mm
Product Net Depth / Length:
93 mm
Product Net Weight:
0.15 kg

Ordering

E-Number (Finland):
2815163
E-Number (Norway):
4544251
E-Number (Sweden):
1751420
E-Number (Switzerland):
405665005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
032d2485-0f28-4e60-b08f-ed8e6da853f2 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001097 - Switch actuator for bus system
ETIM 10:
EC001097 - Switch actuator for bus system
eClass:
V11.0 : 27143125
UNSPSC:
31251516
IDEA Granular Category Code (IGCC):
3268 >> Switch actuator
Object Classification Code:
A

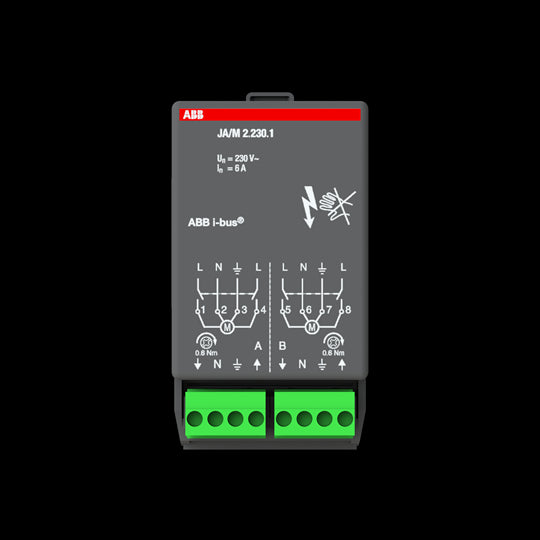

2CDG110003R0011 ABB - JA/M2.230.1
ABB 2CDG110003R0011 ABB - JA/M2.230.1
$0.00
Sold Out

Installation

Installing and Commissioning Manual:
Mounting Type:
Built-in

Environmental

Degree of Protection:
IP54

Technical

Data Sheet, Technical Information:
Number of Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
1380 A
Power Loss:
0 W

Design

Color:
anthracite

Dimensions

Product Net Width:
49 mm
Product Net Height:
42 mm
Product Net Depth / Length:
93 mm
Product Net Weight:
0.141 kg

Ordering

E-Number (Finland):
2815134
E-Number (Norway):
4544252
E-Number (Sweden):
1751424
E-Number (Switzerland):
405435005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
3ad98577-8882-4329-9b79-c4906f8be400 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

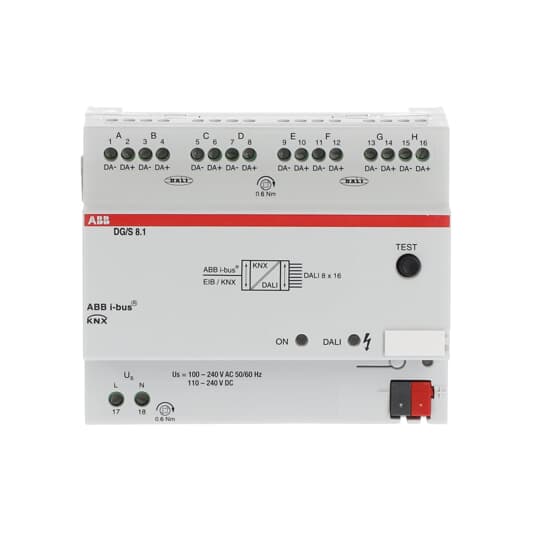

2CDG110025R0011 ABB - DG/S 8.1
ABB 2CDG110025R0011 ABB - DG/S 8.1
$0.00
Sold Out

Installation

Installing and Commissioning Manual:
Mounting Type:
DIN-Rail

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Communication Interface:
DALI
Number of Outputs:
8
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
DALI
KNX (TP)
DALI
Product Range:
KNX
Software Updateable:
Yes
Integrated Webserver:
No
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
110 ... 230 V AC
Input Voltage (Uin):
230 V AC
Power Loss:
6 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
108 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.266 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2815120
E-Number (Sweden):
1751084
E-Number (Switzerland):
405661005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001099 - System interface/media gateway for bus system
ETIM 10:
EC001099 - System interface/media gateway for bus system
eClass:
V11.0 : 27143136
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system
Object Classification Code:
A

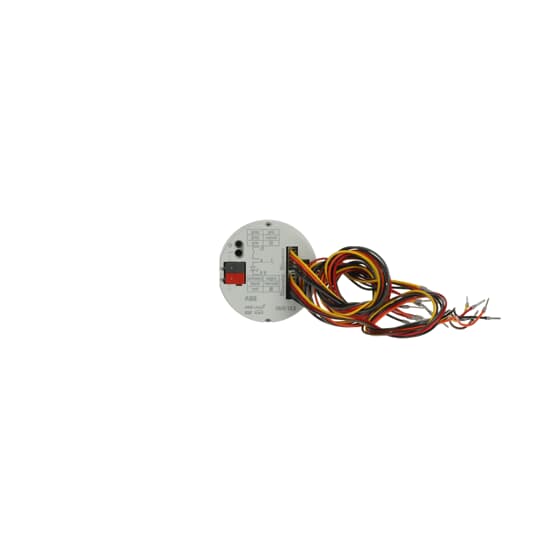

2CDG110065R0011 ABB - US/U12.2
ABB 2CDG110065R0011 ABB - US/U12.2
$0.00
Sold Out

Installation

Mounting Type:
Flush Mounted
Modular Components Included:
Complete Device

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Sub-Function:
LED controlling
Number of Outputs:
12
Maximum Number of Switching Outputs:
12
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 12
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Current Type:
DC
Input Voltage Type:
Pulsed
Power Loss:
0.25 W

Design

Color:
white

Dimensions

Product Net Width:
54 mm
Product Net Height:
54 mm
Product Net Depth / Length:
19 mm
Product Net Weight:
0.068 kg

Ordering

E-Number (Finland):
2815193
E-Number (Norway):
4544033
E-Number (Sweden):
1750127
E-Number (Switzerland):
305830105

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
3bc27e15-09a4-4851-8d8e-eaf639019c0e Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001584 - I/O device for bus system
ETIM 10:
EC001584 - I/O device for bus system
eClass:
V11.0 : 27143145
UNSPSC:
39122221
Object Classification Code:
A

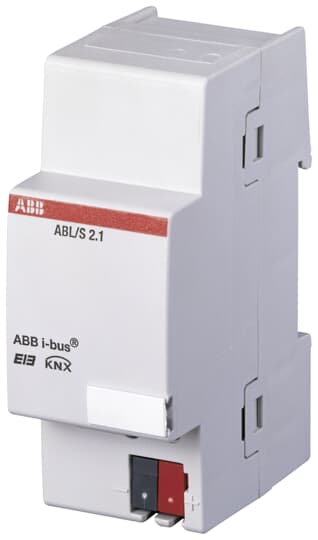

2CDG110073R0011 ABB - ABL/S 2.1
ABB 2CDG110073R0011 ABB - ABL/S 2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
KNX
Power Loss:
0.3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.1 kg

Ordering

E-Number (Finland):
2815104
E-Number (Norway):
4544171
E-Number (Sweden):
1750093
E-Number (Switzerland):
405670105

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000676 - Logic component for bus system
ETIM 10:
EC000676 - Logic component for bus system
eClass:
V11.0 : 27143103
UNSPSC:
32151705
IDEA Granular Category Code (IGCC):
3567 >> PLC function/technology module
Object Classification Code:
A

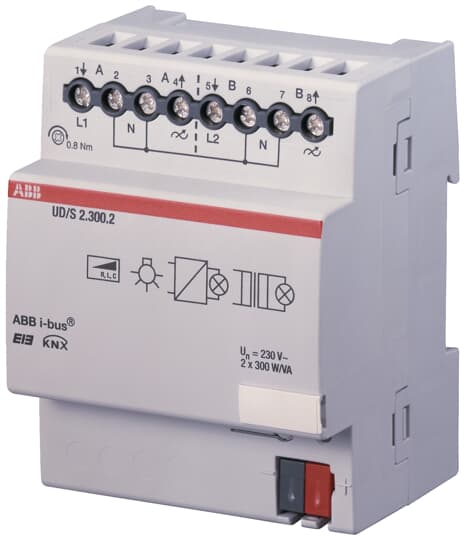

2CDG110074R0011 ABB - UD/S 2.300.2
ABB 2CDG110074R0011 ABB - UD/S 2.300.2
$0.00
Sold Out

Installation

Mounting Type:
DIN-Rail

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Outputs:
2
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Rated Operational Voltage:
110 ... 230 V AC
Auxiliary Voltage AC/DC:
230 V AC
Output Voltage (Uout):
230 V AC
Rated Frequency (f):
50 / 60 Hz
Load Type:
Universal and LED Retrofit
LEDi
Incandescent Lamp
Halogen Lamp, High Voltage
Halogen Lamp, Low Voltage
Universal and LED Retrofit
LEDi
Incandescent Lamp
Halogen Lamp, High Voltage
Halogen Lamp, Low Voltage
Power Loss:
4.5 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
60.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.225 kg
Built-In Depth (t2):
64.5 mm

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815190
E-Number (Sweden):
1751039
E-Number (Switzerland):
405449725

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC001094 - Dimming actuator for bus system
ETIM 10:
EC001094 - Dimming actuator for bus system
eClass:
V11.0 : 27143123
Object Classification Code:
A

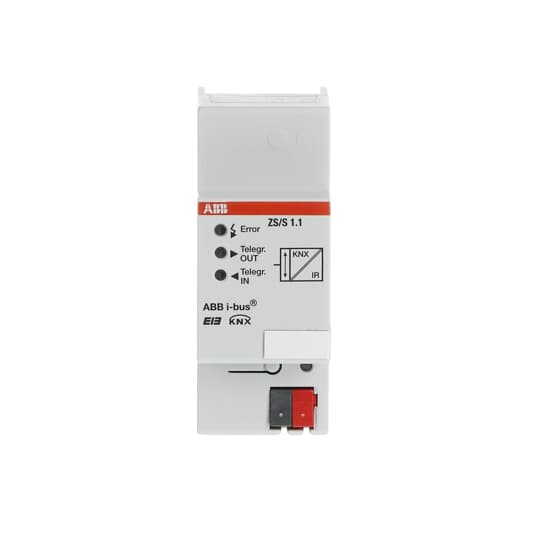

2CDG110083R0011 ABB - ZS/S 1.1
ABB 2CDG110083R0011 ABB - ZS/S 1.1
$0.00
Sold Out

Installation

Mounting Type:
DIN-Rail

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Maximum Number of Switching Outputs:
0
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Connection Type:
Direct
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
KNX
Auxiliary Voltage AC/DC:
KNX
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.1 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

E-Number (Finland):
2815203
E-Number (Norway):
4544643
E-Number (Sweden):
1750301
E-Number (Switzerland):
405830505

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC001102 - Energy management for bus system
ETIM 10:
EC001102 - Energy management for bus system
eClass:
V11.0 : 27143126
UNSPSC:
39121803
Object Classification Code:
A

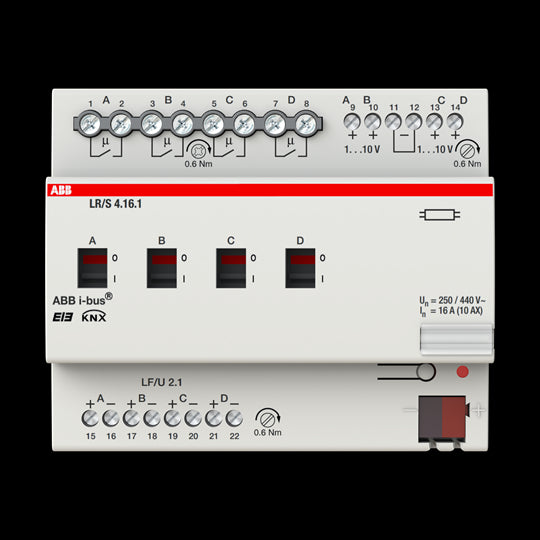

2CDG110088R0011 ABB - LR/S 4.16.1
ABB 2CDG110088R0011 ABB - LR/S 4.16.1
$491.29
Only 1 unit left

Installation

Mounting Type:
DIN-Rail

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Outputs:
4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Transmission Standard:
Twisted Pair Wiring
Manual Operation:
Yes
Number of Batteries:
0
Terminal Type:
Bus Connection

Electrical

Voltage Range:
110 ... 230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
16 A
Maximum Control Current DC:
100 mA
Maximum Switching Power:
2300 W
Load Type:
Electronic Ballast 1-10V
Universal
Fluorescent Lamp
Electronic Ballast 1-10V
Universal
Fluorescent Lamp
Power Loss:
5.2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
108 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.33 kg

Ordering

E-Number (Finland):
2815151
E-Number (Sweden):
1750189
E-Number (Switzerland):
405670215

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
f255ea10-7d41-4950-84c9-b5332c1ed234 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001095 - Light control unit for bus system
ETIM 10:
EC001095 - Light control unit for bus system
eClass:
V11.0 : 27143134
UNSPSC:
39121801
Object Classification Code:
A

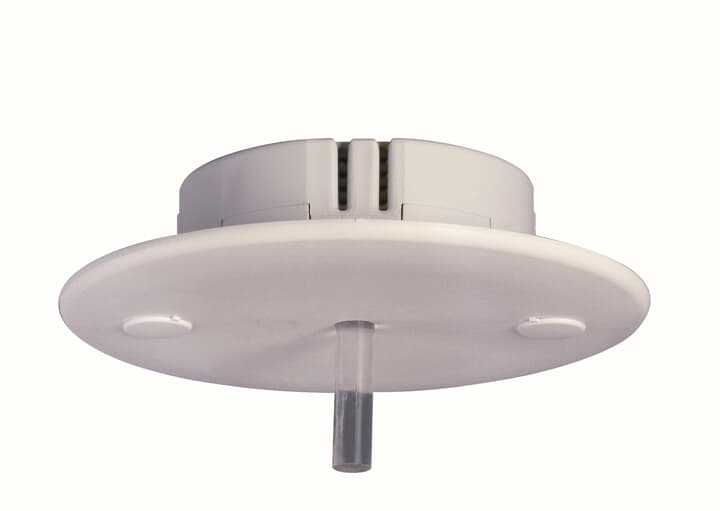

2CDG110089R0011 ABB - LF/U 2.1
ABB 2CDG110089R0011 ABB - LF/U 2.1
$0.00
Sold Out

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Sensor Type:
Separate light sensor
Manual Operation:
No
Illuminance:
200 ... 3000 lx
Number of Batteries:
0

Design

Color:
white

Dimensions

Product Net Width:
54 mm
Product Net Height:
20 mm
Product Net Depth / Length:
54 mm
Product Net Weight:
0.04 kg

Engineering

Building Information Modeling – BIM:

Ordering

E-Number (Finland):
2815144
E-Number (Norway):
4544249
E-Number (Sweden):
1750183
E-Number (Switzerland):
305390005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year
Declaration of Conformity - CE:

External Classifications and Standards

ETIM 9:
EC000927 - Brightness sensor for bus system
ETIM 10:
EC000927 - Brightness sensor for bus system
eClass:
V11.0 : 27143111
UNSPSC:
39121801
Object Classification Code:
A

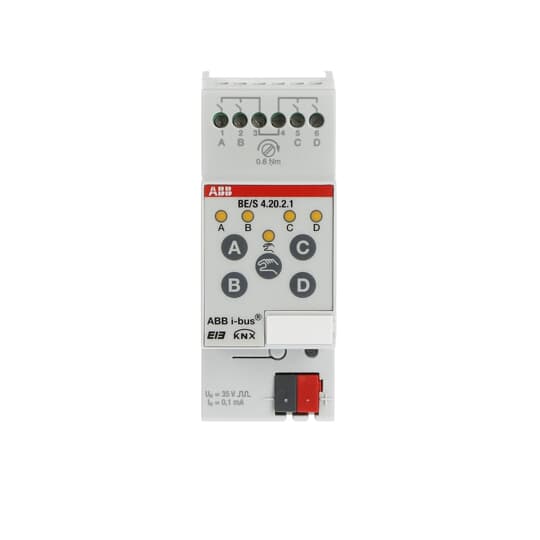

2CDG110090R0011 ABB - BE/S4.20.2.1
ABB 2CDG110090R0011 ABB - BE/S4.20.2.1
$438.75
Only 2 units left

Environmental

Degree of Protection:
IP20

Technical

Number of LEDs:
5
Number of Digital Inputs:
4
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Input Voltage (Uin):
35 V
Input Voltage Type:
Pulsed
Power Loss:
0.13 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.1 kg
Built-In Depth (t2):
64.5 mm

Ordering

Replacement Product ID (NEW):
2CDG119276R0011
E-Number (Finland):
2815304
E-Number (Norway):
4546696
E-Number (Switzerland):
405607305

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000688 - Binary input for bus system
ETIM 10:
EC000688 - Binary input for bus system
eClass:
V11.0 : 27143121
Object Classification Code:
A

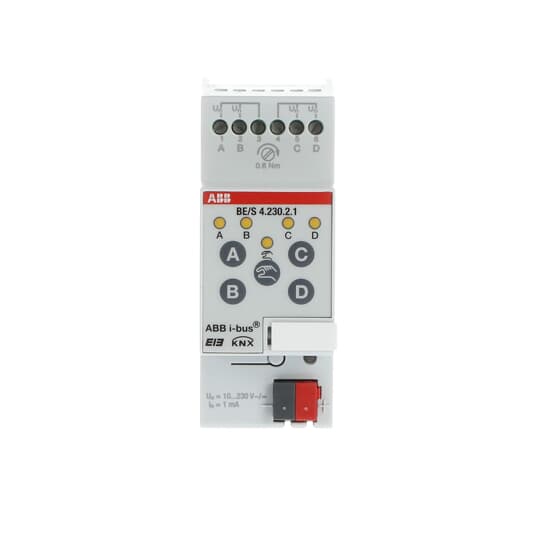

2CDG110091R0011 ABB - BE/S4.230.2.1
ABB 2CDG110091R0011 ABB - BE/S4.230.2.1
$403.65
Only 2 units left

Environmental

Degree of Protection:
IP20

Technical

Number of LEDs:
5
Number of Digital Inputs:
4
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
10 ... 230 V AC/DC
Input Voltage (Uin):
10 ... 230 V
Input Voltage Type:
AC/DC
Power Loss:
1.6 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
2.0
Product Net Width:
36 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.1 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815305
E-Number (Norway):
4546694
E-Number (Switzerland):
405607405

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000688 - Binary input for bus system
ETIM 10:
EC000688 - Binary input for bus system
eClass:
V11.0 : 27143121
Object Classification Code:
A

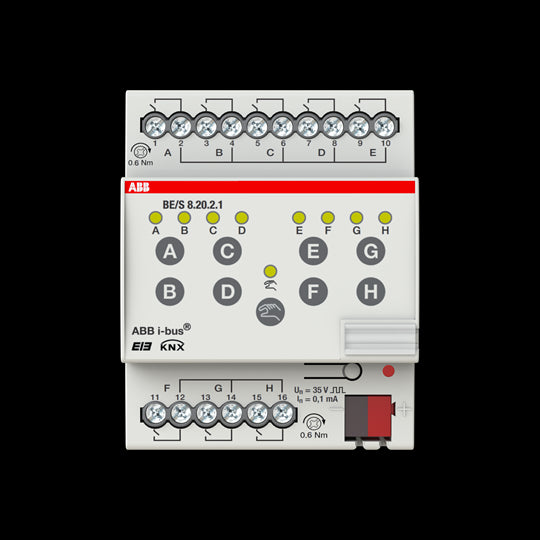

2CDG110092R0011 ABB - BE/S8.20.2.1
ABB 2CDG110092R0011 ABB - BE/S8.20.2.1
$506.59
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Number of LEDs:
9
Number of Digital Inputs:
8
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 8
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Input Voltage (Uin):
35 V
Input Voltage Type:
Pulsed
Power Loss:
0.15 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.2 kg
Built-In Depth (t2):
64.5 mm

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815306
E-Number (Norway):
4546697
E-Number (Switzerland):
405608305

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
2a962b7e-5849-48b8-9581-ba2ff7271970 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000688 - Binary input for bus system
ETIM 10:
EC000688 - Binary input for bus system
eClass:
V11.0 : 27143121
Object Classification Code:
A

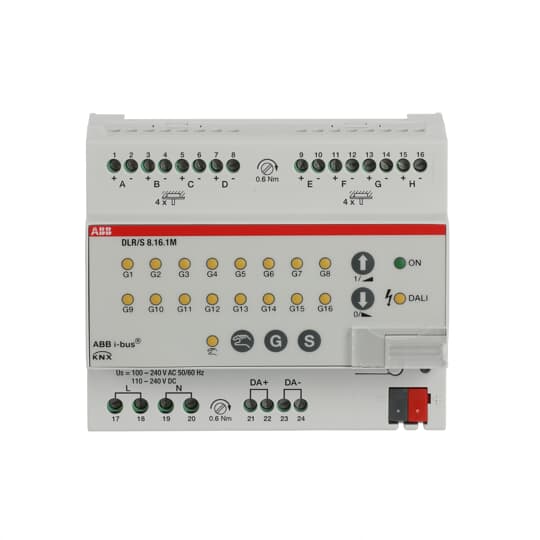

2CDG110101R0011 ABB - DLR/S8.16.1M
ABB 2CDG110101R0011 ABB - DLR/S8.16.1M
$403.99
Only 1 unit left

Environmental

Ambient Air Temperature:
Operation -5 ... +45 °C
Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Data Sheet, Technical Information (Part 2):
Communication Interface:
DALI
Number of Outputs:
1
Number of LEDs:
16
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 8
Compatible Bus Systems:
KNX (TP)
DALI
KNX (TP)
DALI
Product Range:
KNX
Software Updateable:
Yes
Integrated Webserver:
No
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Auxiliary Voltage AC/DC:
110 ... 230 V AC
Power Loss:
1.6 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
6.0
Product Net Width:
108 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.22 kg

Engineering

EPLAN Data:

Ordering

E-Number (Finland):
2815303
E-Number (Norway):
4546703
E-Number (Sweden):
1751083
E-Number (Switzerland):
405671805

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001099 - System interface/media gateway for bus system
ETIM 10:
EC001099 - System interface/media gateway for bus system
eClass:
V11.0 : 27143136
UNSPSC:
43222605
IDEA Granular Category Code (IGCC):
6809 >> System interface/media gateway for bus system
Object Classification Code:
A

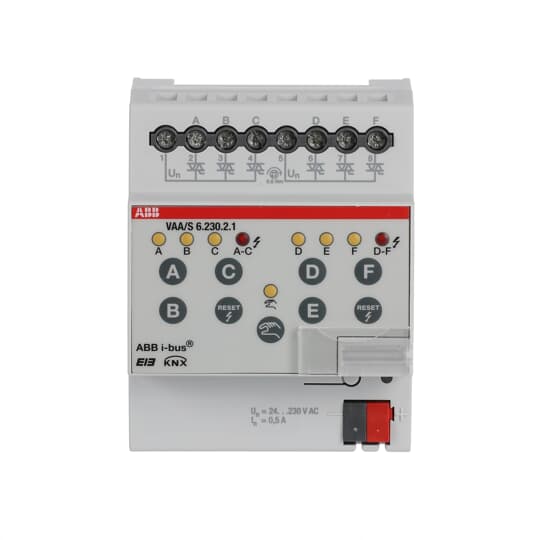

2CDG110116R0011 ABB - VAA/S 6.230.2.1
ABB 2CDG110116R0011 ABB - VAA/S 6.230.2.1
$472.50
Only 1 unit left

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Outputs:
6
Compatible Bus Systems:
KNX (TP)
Manipulated Variable:
Switching
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Voltage Range:
24 ... 230 V AC
Output Voltage (Uout):
24 ... 230 V AC
Maximum Switching Current:
0.3 A
Output Current Maximum (Iout):
0.16 A
Power Loss:
2 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.14 kg

Engineering

Ordering

E-Number (Finland):
2815418
E-Number (Norway):
4545165
E-Number (Sweden):
1756323
E-Number (Switzerland):
405710065

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
SCIP:
96a7f9e4-b6eb-4e31-9fad-e33496d3dd84 Germany
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001586 - Heating actuator for bus system
ETIM 10:
EC001586 - Heating actuator for bus system
eClass:
V11.0 : 27143147
UNSPSC:
39121801
Object Classification Code:
A

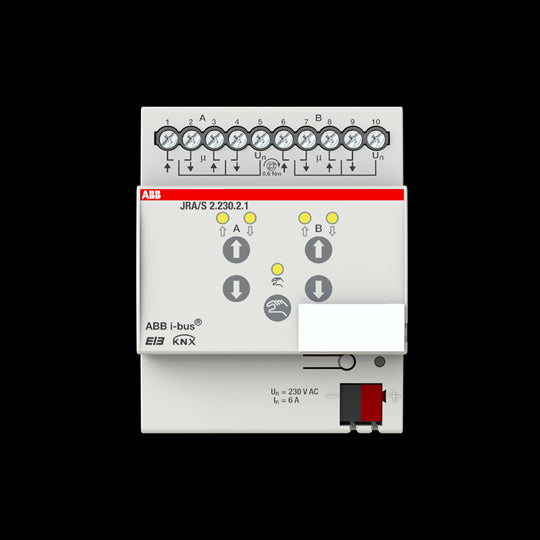

2CDG110120R0011 ABB - JRA/S 2.230.2.1
ABB 2CDG110120R0011 ABB - JRA/S 2.230.2.1
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Special Functions:
Switching
Number of Outputs:
2
Number of LEDs:
1
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
Yes
Number of Batteries:
0

Electrical

Current Type:
AC
Voltage Range:
230 V AC
Output Voltage (Uout):
230 V AC
Maximum Switching Current:
6 A
Maximum Switching Power:
2400 W
Power Loss:
0.25 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.205 kg
Built-In Depth (t2):
64.5 mm

Engineering

Ordering

Replacement Product ID (NEW):
E-Number (Finland):
2815403
E-Number (Norway):
4545172
E-Number (Switzerland):
405430225

Material Compliance

RoHS Information:
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC001330 - Shutting actuator for bus system
ETIM 10:
EC001330 - Shutting actuator for bus system
eClass:
V11.0 : 27143128
UNSPSC:
39121801
Object Classification Code:
A

Recently viewed
