Discrete input module, Modicon TM3, 16 inputs (spring) 24 VDC
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 16 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 5mA/35mA at 5V DC via bus connector. It can be used to create configurations with up to 16 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with HE-10 connector inputs for electrical connection. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.65kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete input module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 16 input IEC 61131-2 type 3 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 5 mA input |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state on) 0 mA 24 V DC via bus connector at state off) 35 mA 5 V DC via bus connector at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V input |
| Current state 1 guaranteed | >= 2.5 mA input) |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 0 guaranteed | <= 1 mA input) |
| Input impedance | 4.4 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Local signalling | 1 LED per channel (green) for input status |
| Electrical connection | HE-10 connector for inputs |
| Maximum cable distance between devices | Unshielded cable <164.04 ft (50 m) regular input |
| Insulation | Between input and internal logic 500 V AC Non-insulated between inputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.2 in (81.3 mm) |
| Width | 0.8 in (21.4 mm) |
| Product Weight | 1.43 lb(US) (0.65 kg) |
Discrete input module, Modicon TM3, 32 inputs (HE10) 24 VDC
module TM3 - 8 inputs
module TM3 - 8 inputs 120V AC
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.085kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete input module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 8 input IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA input |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 8 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state on) 0 mA 24 V DC via bus connector at state off) 24 mA 5 V DC via bus connector at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V input |
| Current state 1 guaranteed | >= 2.5 mA input) |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 0 guaranteed | <= 1 mA input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Local signalling | 1 LED per channel (green) for input status |
| Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for inputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input |
| Insulation | Between input and internal logic 500 V AC Non-insulated between inputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Product Weight | 0.187 lb(US) (0.085 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete I/O module provides 16 input channels, 8 relay output channels with sink or source (positive/negative) discrete logic. It is an I/O module with a relay output voltage of 24V DC, 240V AC, a current consumption of 65mA, 5mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC and non-insulated between inputs/outputs. It is furnished with removable screw terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.165kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete I/O module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 16 input IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA input |
| Discrete output type | Relay normally open |
| Discrete output number | 8 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC relay output 240 V AC relay output |
| Discrete output current | 2000 mA relay output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 24 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state on) 0 mA 24 V DC via bus connector at state off) 65 mA 5 V DC via bus connector at state on) |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V input |
| Current state 1 guaranteed | >= 2.5 mA input) |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 0 guaranteed | <= 1 mA input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) 4 ms (turn-off) |
| Maximum current per output common | 7 A |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA 5 V DC relay output |
| Local signalling | 1 LED per channel (green) for I/O state |
| Electrical connection | 17 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs 11 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input |
| Insulation | Between input and internal logic 500 V AC Non-insulated between inputs Between input groups and output groups 1500 V AC Between open contact 750 V AC Between output and internal logic 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.7 in (42.9 mm) |

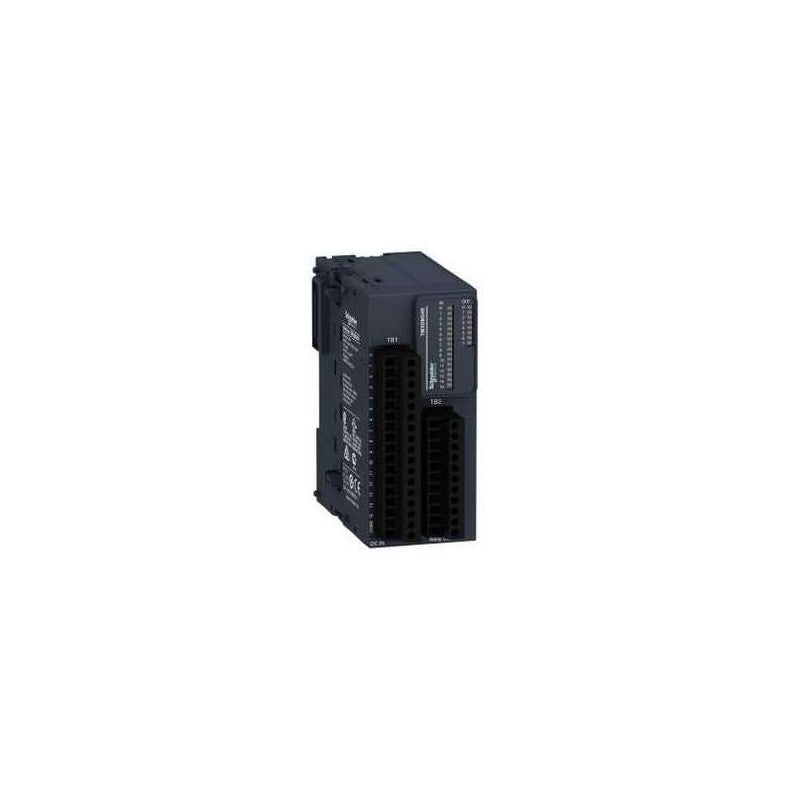

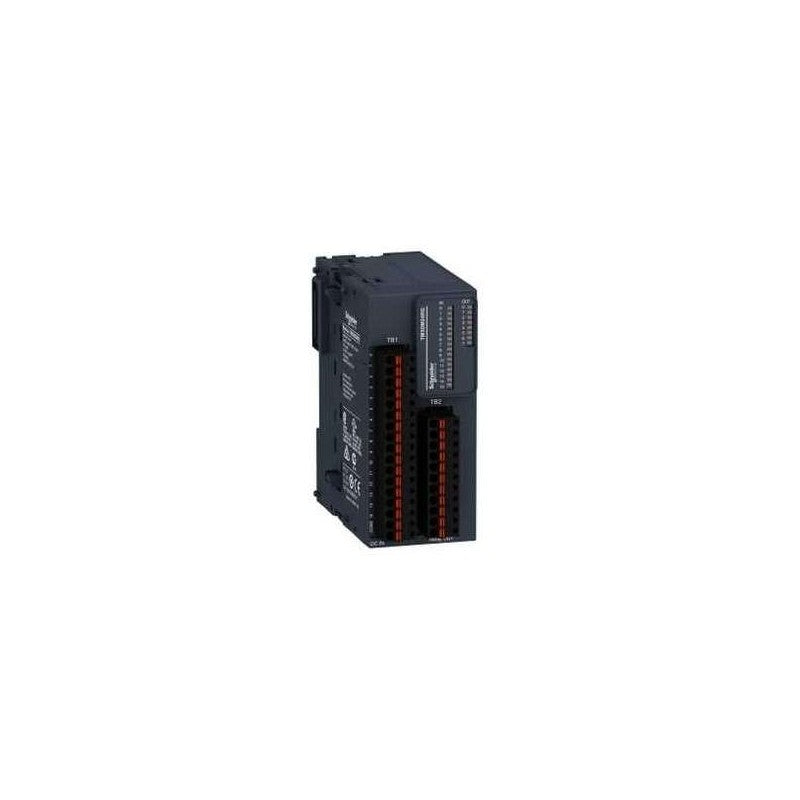

Discrete I/O module, Modicon TM3, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC

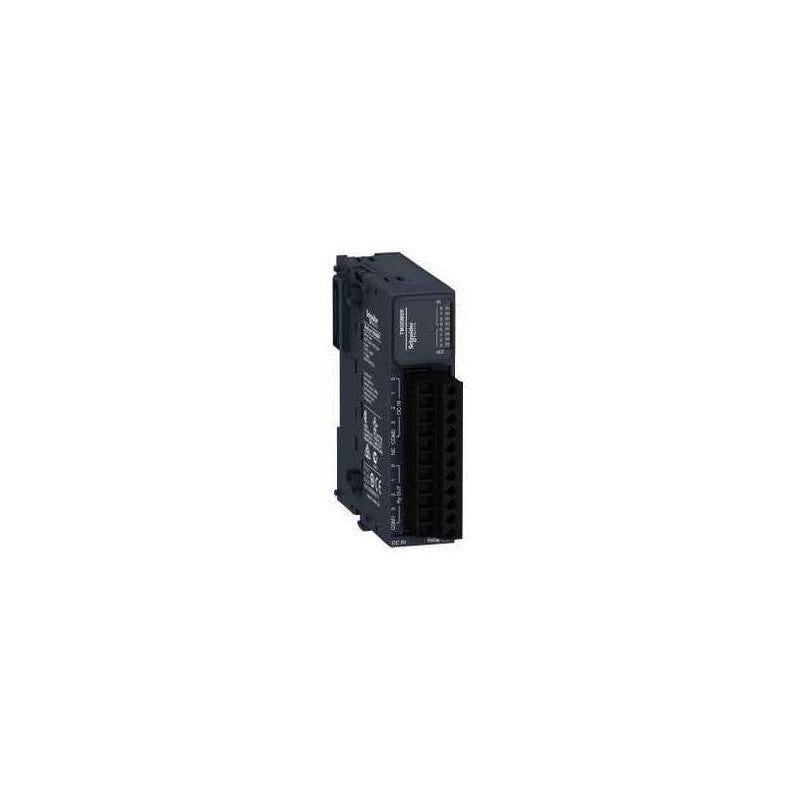

module TM3 - 8 IO relays
module TM3 - 8 IO relays spring
This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers It consists in 16 N/O relay outputs 2 A. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.14kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Relay normally open |
| Discrete output number | 16 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 240 V AC relay output 30 V DC relay output |
| Discrete output current | 2000 mA relay output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 0 mA 24 V DC via bus connector at state off) 75 mA 24 V DC via bus connector at state on) |
| Response time | 10 ms (turn-on) 5 ms (turn-off) |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA 5 V DC relay output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) relay output |
| Insulation | Between output and internal logic 2300 V AC Between outputs 750 V AC Between output groups 1500 V AC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Product Weight | 0.320 lb(US) (0.145 kg) |
Discrete output module, Modicon TM3, 16 relay outputs (spring) 24 VDC

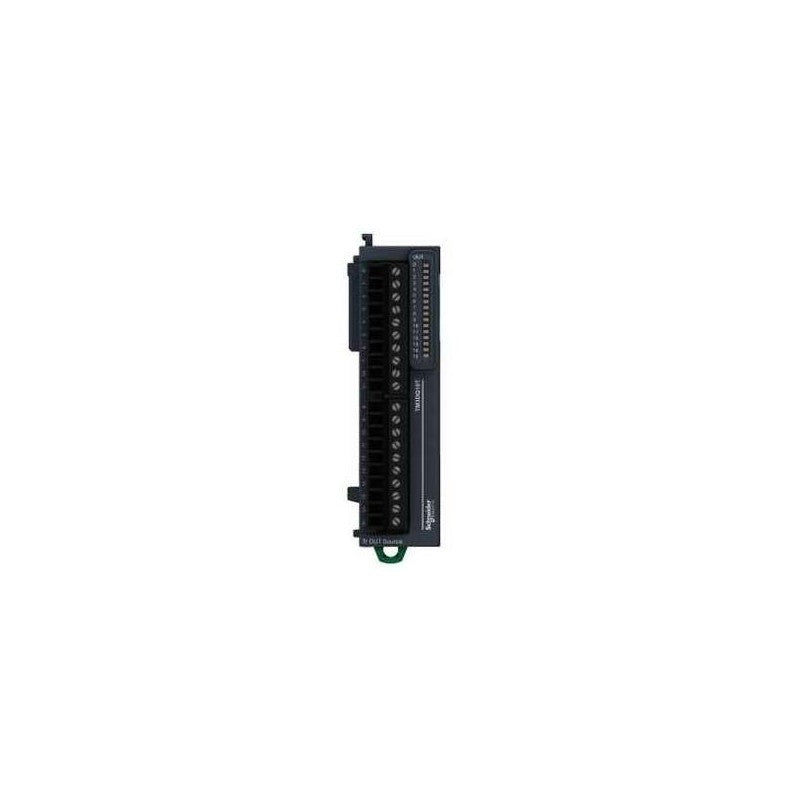

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Transistor |
| Discrete output number | 16 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 500 mA transistor output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 15 mA 5 V DC via bus connector at state on) 20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on) 450 µs (turn-off) |
| Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V |
| Maximum tungsten load | <3 W transistor output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output |
| Insulation | Non-insulated between outputs Between output and internal logic AC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |

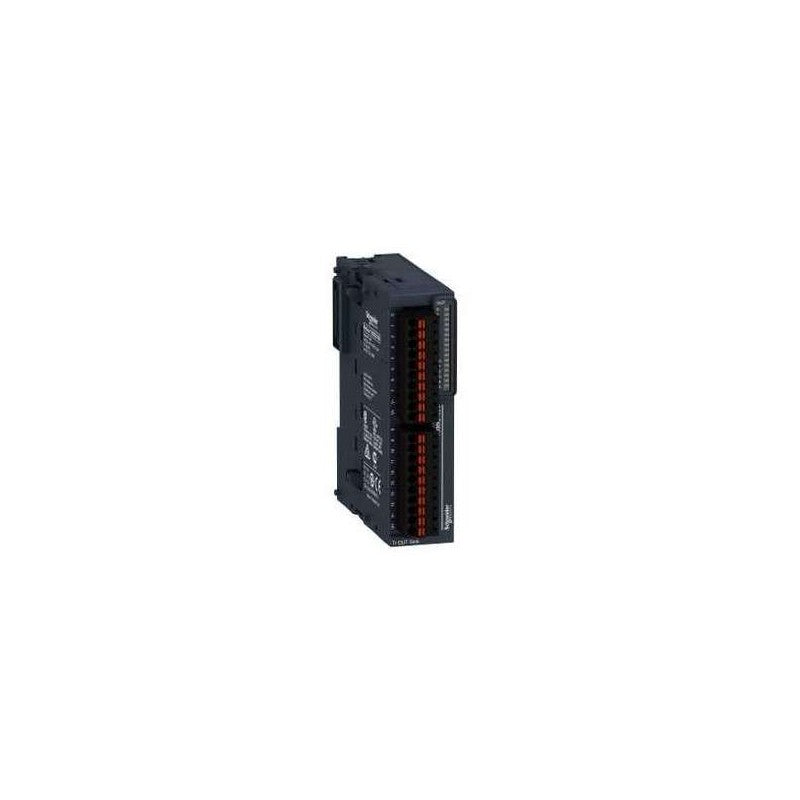

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.095kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Transistor |
| Discrete output number | 16 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 500 mA transistor output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 15 mA 5 V DC via bus connector at state on) 20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on) 450 µs (turn-off) |
| Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V |
| Maximum tungsten load | <3 W transistor output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output |
| Insulation | Between output and internal logic 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |

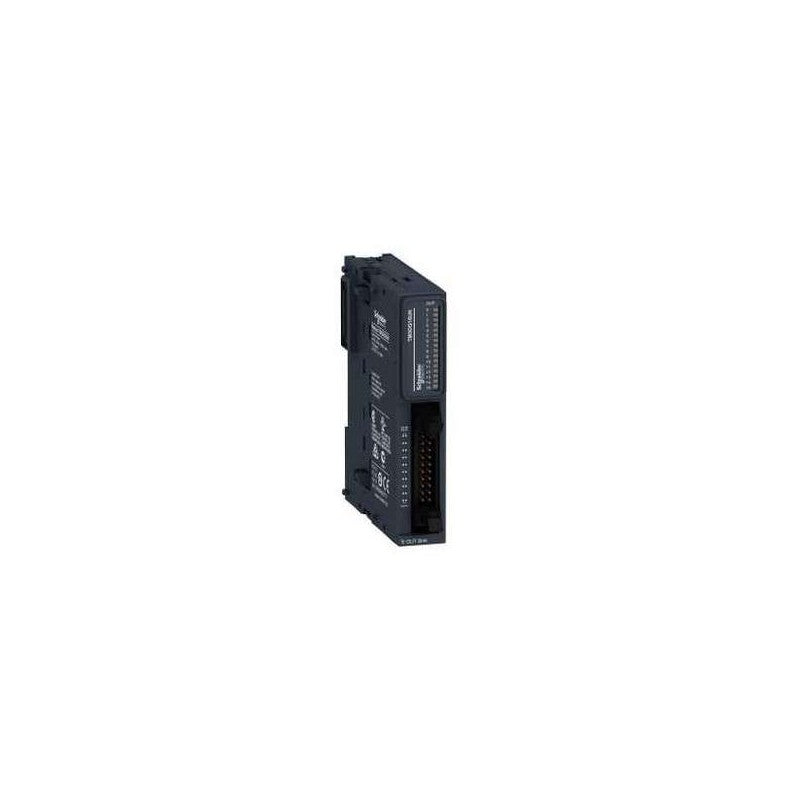

Discrete output module, Modicon TM3, 16 outputs transistor PNP (HE10)

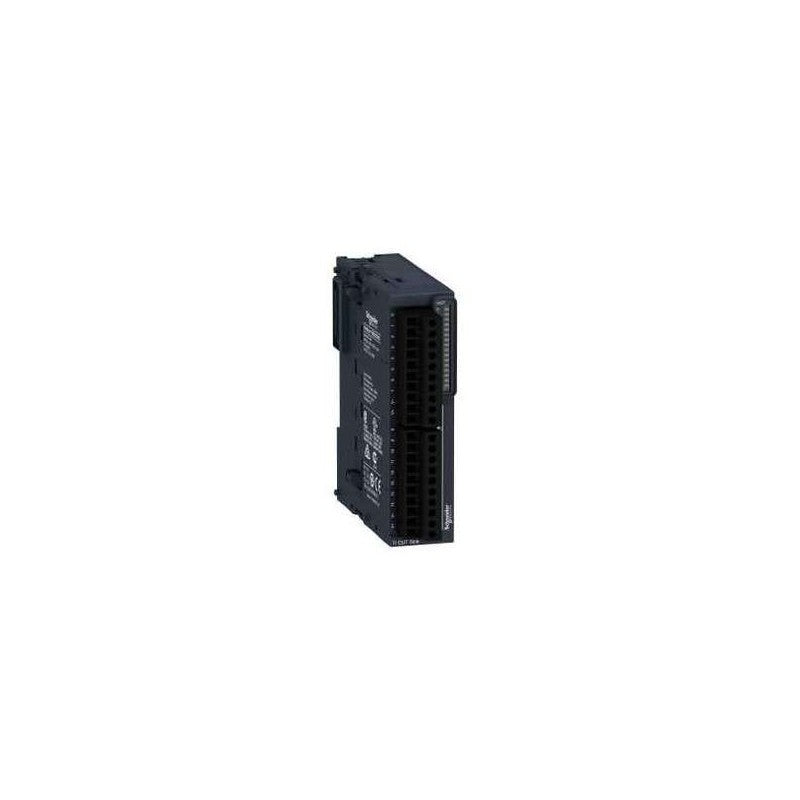

Discrete output module, Modicon TM3, 16 outputs transistor NPN (screw)
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Transistor |
| Discrete output number | 16 |
| Discrete output logic | Negative logic (sink) |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 300 mA transistor output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 15 mA 5 V DC via bus connector at state on) 20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on) 450 µs (turn-off) |
| Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output |
| Insulation | Between output and internal logic 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.2 in (81.3 mm) |
| Width | 0.8 in (21.4 mm) |
| Product Weight | 1.68 lb(US) (0.76 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Transistor |
| Discrete output number | 16 |
| Discrete output logic | Negative logic (sink) |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 100 mA transistor output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 16 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 15 mA 5 V DC via bus connector at state on) 20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on) 450 µs (turn-off) |
| Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | HE-10 connector for outputs |
| Maximum cable distance between devices | Unshielded cable <16.4 ft (5 m) transistor output |
| Insulation | Between output and internal logic 500 V AC Non-insulated between outputs |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.2 in (81.3 mm) |
| Width | 0.8 in (21.4 mm) |
| Product Weight | 0.245 lb(US) (0.111 kg) |
Discrete output module, Modicon TM3, 32 outputs transistor PNP (HE10)
Discrete output module, Modicon TM3, 32 outputs transistor NPN (HE10)

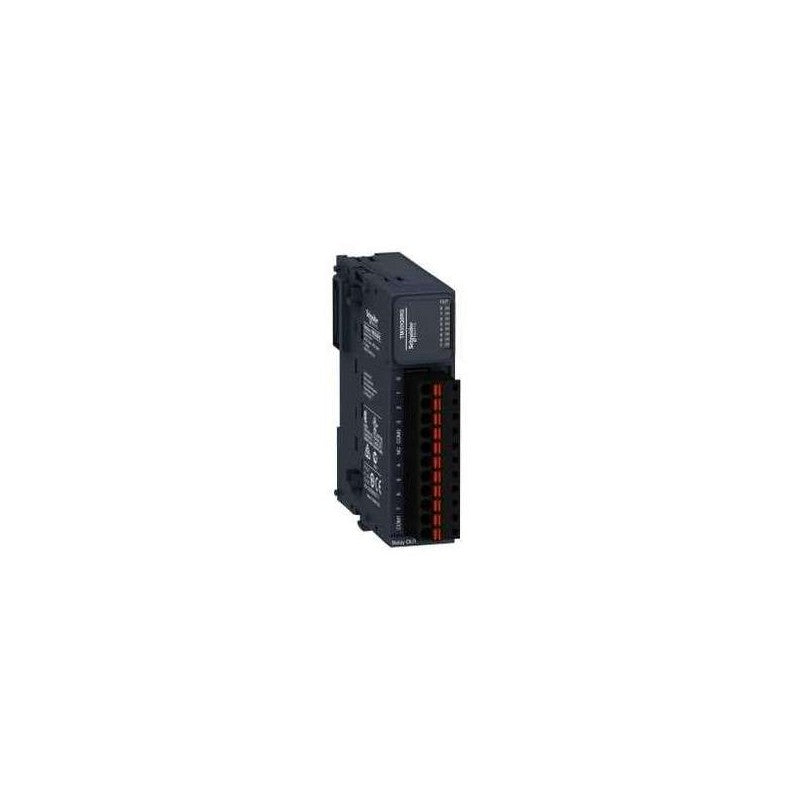

module TM3 - 8 outputs relays
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 relay outputs with sink or source (positive/negative) logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for outputs. It offers mechanical durability of 20 million cycles. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete output type | Relay normally open |
| Discrete output number | 8 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC relay output 240 V AC |
| Discrete output current | 2000 mA relay output |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete I/O number | 8 |
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 40 mA 24 V DC via bus connector at state on) 30 mA 5 V DC via bus connector at state on) |
| Response time | 10 ms (turn-on) 5 ms (turn-off) |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA 5 V DC relay output |
| Local signalling | 1 LED per channel (green) for output status |
| Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) relay output |
| Insulation | Between output and internal logic 2300 V AC Between outputs 750 V AC Between output groups 1500 V AC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |
module TM3 - 8 outputs transistor PNP
module TM3 - 8 outputs transistor PNP spring
Modules
