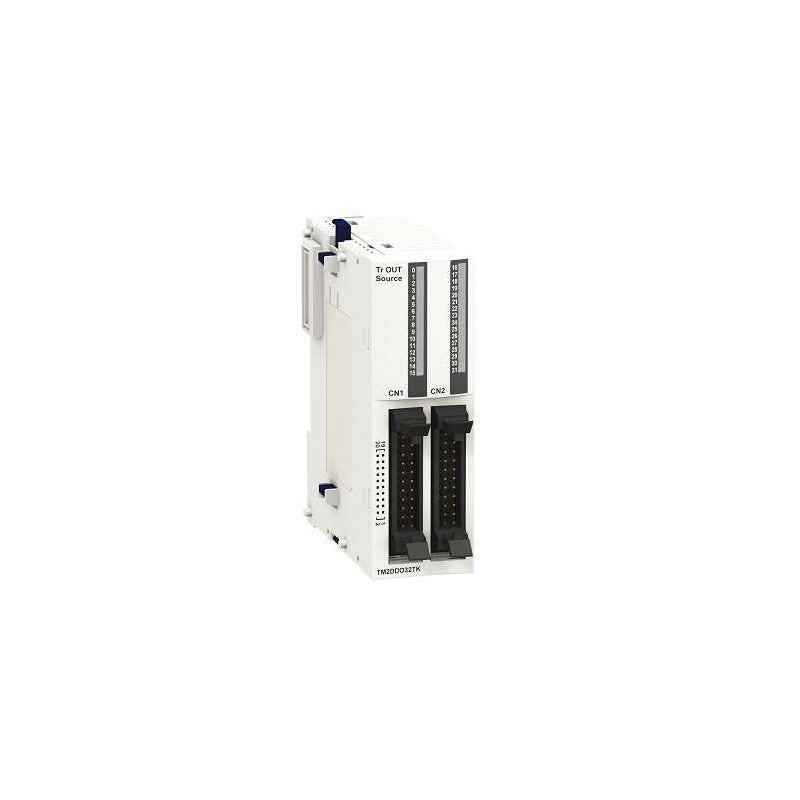

This product is part of the Modicon M238 range, an offer of compact logic controllers from 18 to 96 I/O. The discrete output module provides 32 transistor outputs with source (negative) logic. It is an output module with an output voltage of 24V, a current consumption of 40mA at 24V DC and an output current of 0.4mA. It is furnished with HE10 connector for electrical connection. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is compatible with Advantys OTB and Twido ranges. It supports 35mm symmetrical DIN rail mount. The Modicon M238 programmable controllers provide optimised solution to repetitive machines based on high speed counting and simple positioning features for 1 to 4 axis through PTO channels or CANopen. Modicon M238 programmable controllers (PLCs) provide simple and intelligent solutions to meet all your business needs, 20 to 248 I/O 0.3µs per instruction.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete output module |
| Discrete output number | 32 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.4 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Advantys OTB Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.48 A |
| Maximum current per output common | 2 A |
| Number of common point | 2 |
| Response time | 450 µs from state 0 to state 1 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 9.6 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 25 mA 5 V DC at state 1 for all output 40 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.231 lb(US) (0.105 kg) |

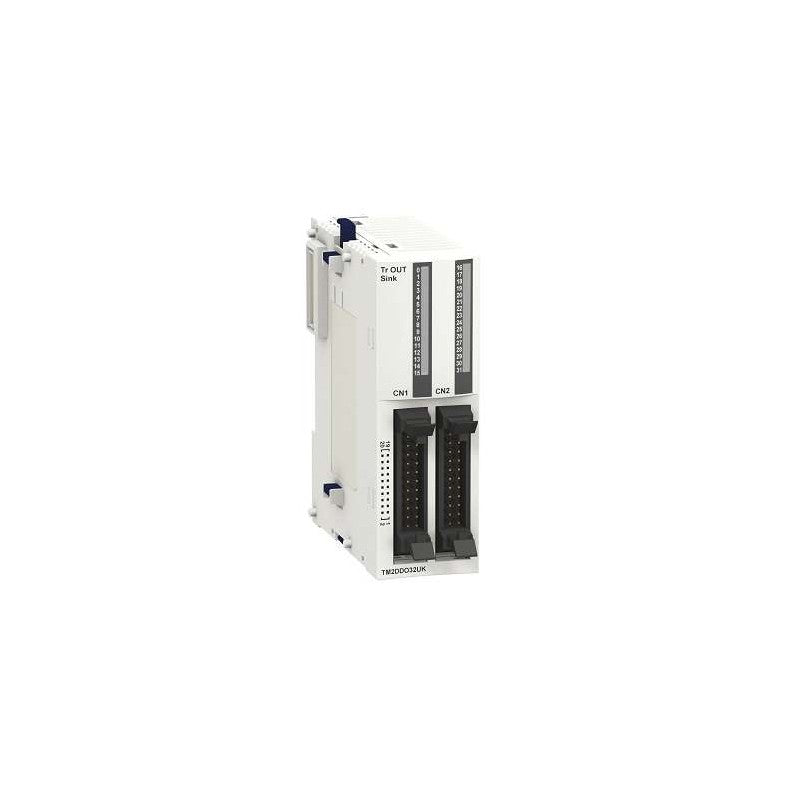

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete output module |
| Discrete output number | 32 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Sink |
| Discrete output current | 0.1 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Advantys OTB Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.12 A |
| Maximum current per output common | 1 A |
| Number of common point | 2 |
| Response time | 300 µs from state 0 to state 1 300 µs from state 1 to state 0 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum tungsten load | 8 W |
| Short-circuit protection | Without |
| Overload protection | Without |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 20 mA 5 V DC at state 1 for all output 70 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.231 lb(US) (0.105 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete output module |
| Discrete output number | 8 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Advantys OTB Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.6 A |
| Maximum current per output common | 4 A |
| Number of common point | 1 |
| Response time | 450 µs from state 0 to state 1 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 12 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 10 mA 5 V DC at state 1 for all output 20 mA 24 V DC at state 1 for all output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.187 lb(US) (0.085 kg) |

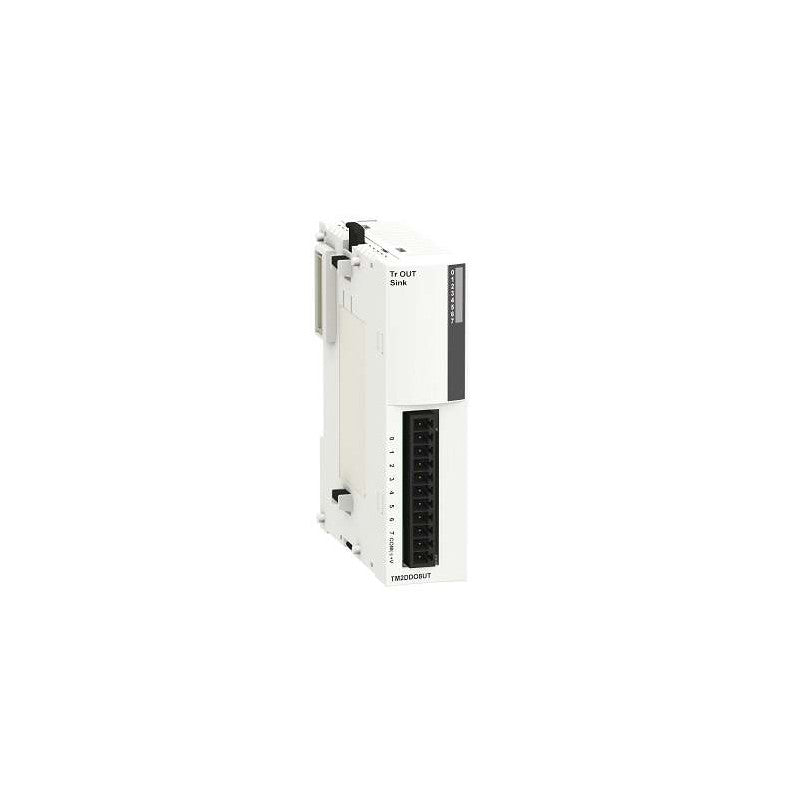

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete output module |
| Discrete output number | 8 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Sink |
| Discrete output current | 0.3 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Advantys OTB Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.36 A |
| Maximum current per output common | 3 A |
| Number of common point | 1 |
| Response time | 300 µs at state 0 300 µs at state 1 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum tungsten load | 8 W |
| Short-circuit protection | Without |
| Overload protection | Without |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 10 mA 5 V DC at state 1 for all output 20 mA 24 V DC at state 1 for all output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.187 lb(US) (0.085 kg) |

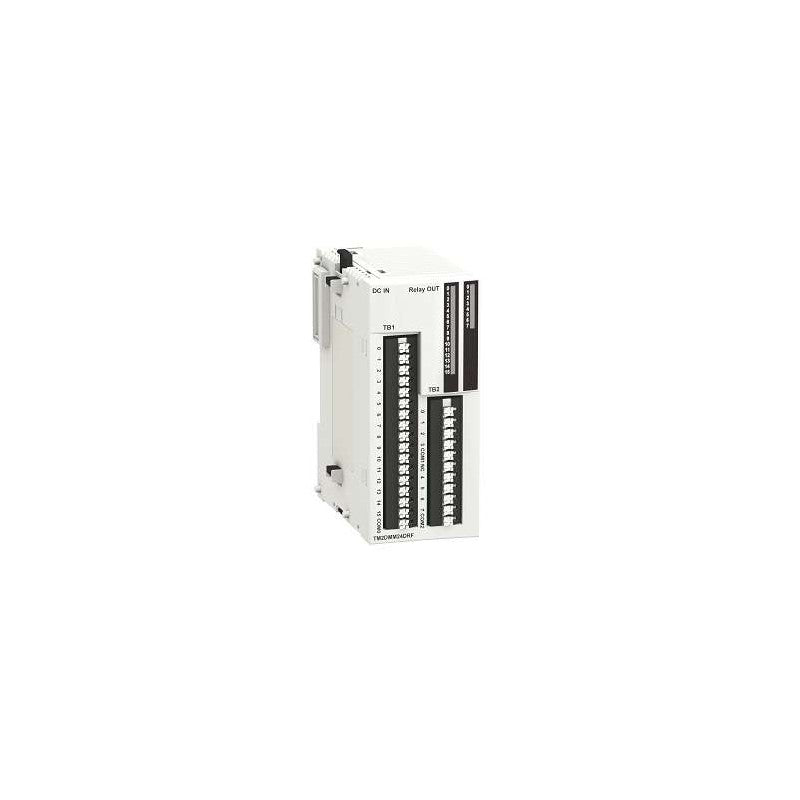

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete I/O module |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 8 |
| Discrete output type | Relay |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Twido Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 2 for output 1 for input |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 output <= 5 ms from state 1 to state 0 output 4 ms at state 0 input 4 ms at state 1 input |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output) 500 V for 1 minute (input) |
| Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 45 mA 24 V DC at state 1 for all input/output 65 mA 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block |
| Electrical connection | 1 spring terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.31 lb(US) (0.14 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Discrete I/O module |
| Discrete input number | 4 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 4 |
| Discrete output type | Relay |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Twido Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 1 for output 1 for input |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 output <= 5 ms from state 1 to state 0 output 4 ms at state 0 input 4 ms at state 1 input |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output) 500 V for 1 minute (input) |
| Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 20 mA 24 V DC at state 1 for all input/output 25 mA 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.209 lb(US) (0.095 kg) |

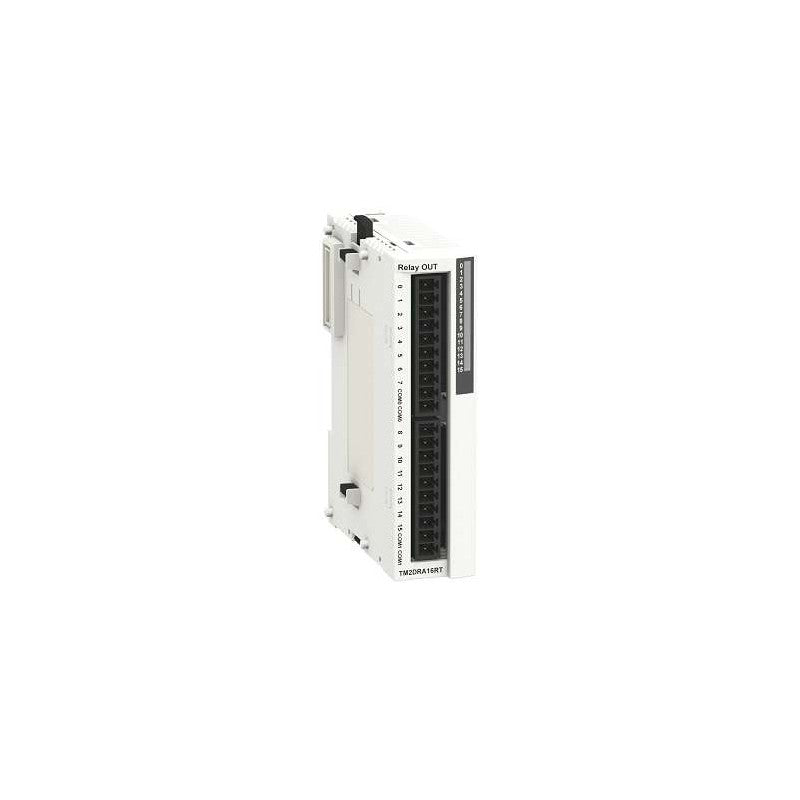

Discrete output module M238 - 16 outputs relay- 1 removable screw terminal block
This digital output module is part of the range Modicon TM2 expansion modules. It consists in 8 N/O relay outputs 230V ac / 30 V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. It is compatible with Modicon OTB interface modules, Magelis HMI controller XBTGC and Modicon / Twido controllers.

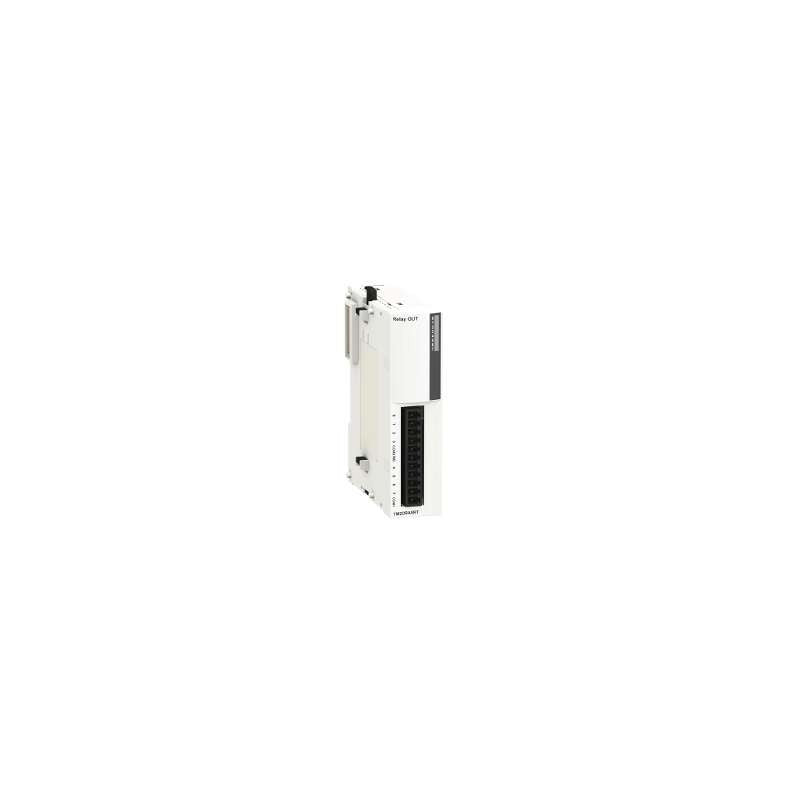

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M238 logic controller |
| Product or Component Type | I/O expansion module |
| Discrete output number | 8 |
| Discrete output type | Relay |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Twido Advantys OTB |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 2 |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 input <= 5 ms from state 1 to state 0 input |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Isolation between channels | 1500 V for 1 minute |
| Isolation between channels and internal logic | 2300 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 30 mA 5 V DC at state 1 for all output 40 mA 24 V DC at state 1 for all output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Weight | 0.24 lb(US) (0.11 kg) |

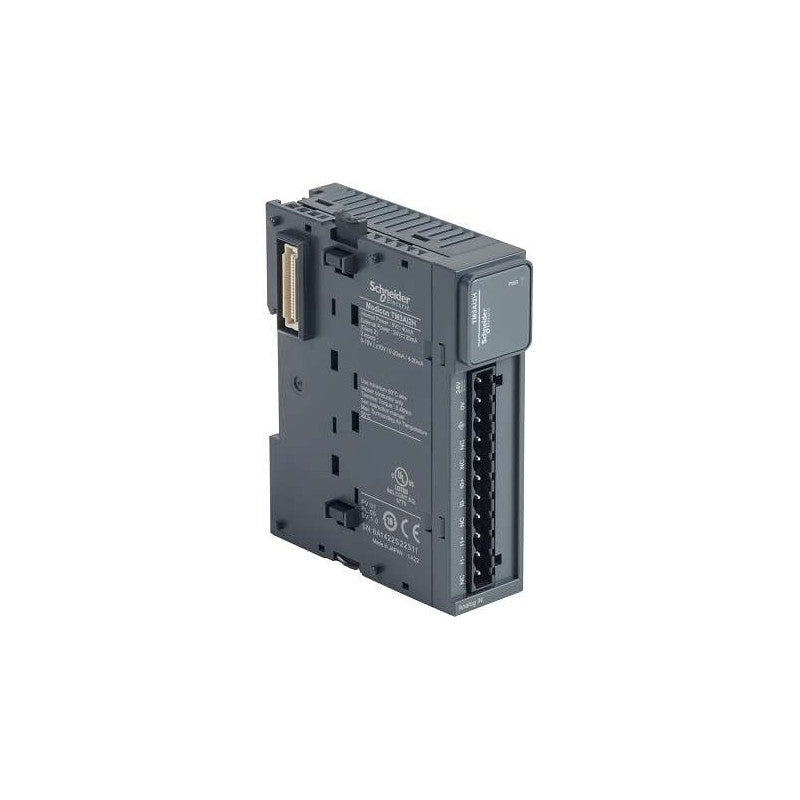

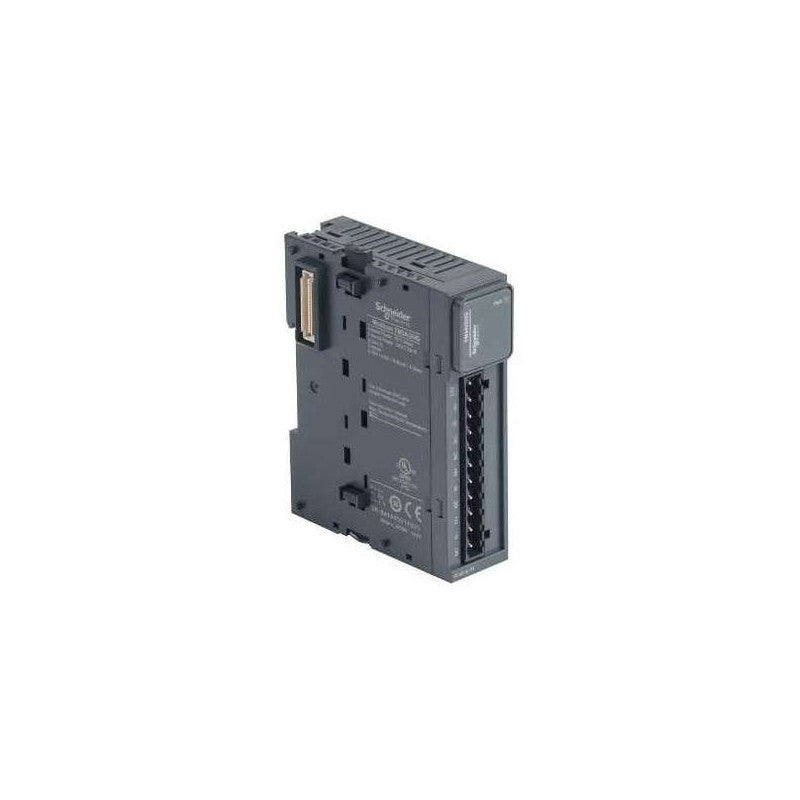

Analog input module, Modicon TM3, 2 inputs high resolution (screw) 24 VDC
Analog input module, Modicon TM3, 2 inputs high resolution (spring) 24 VDC

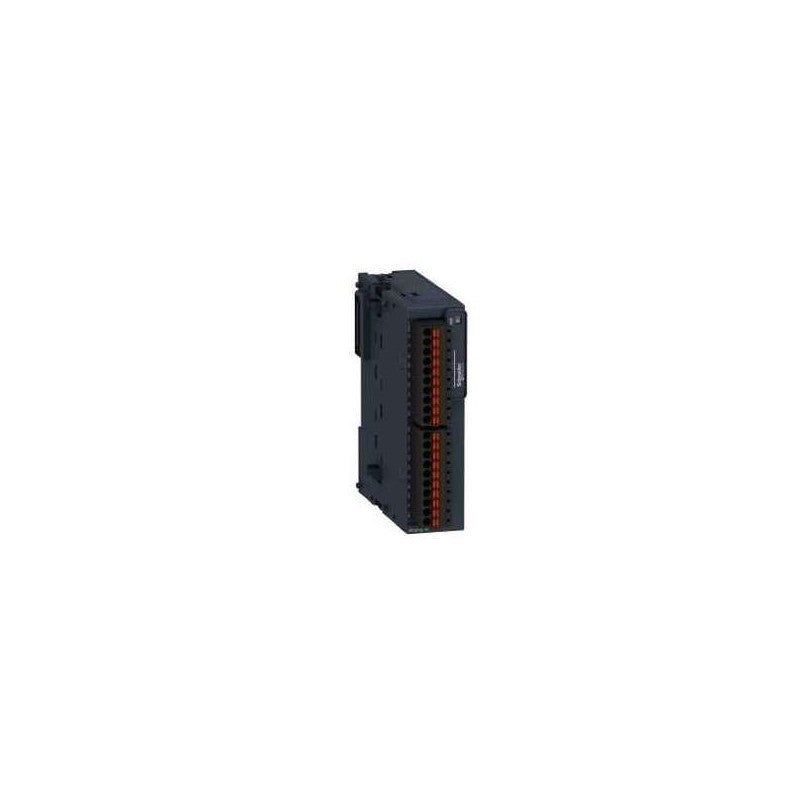

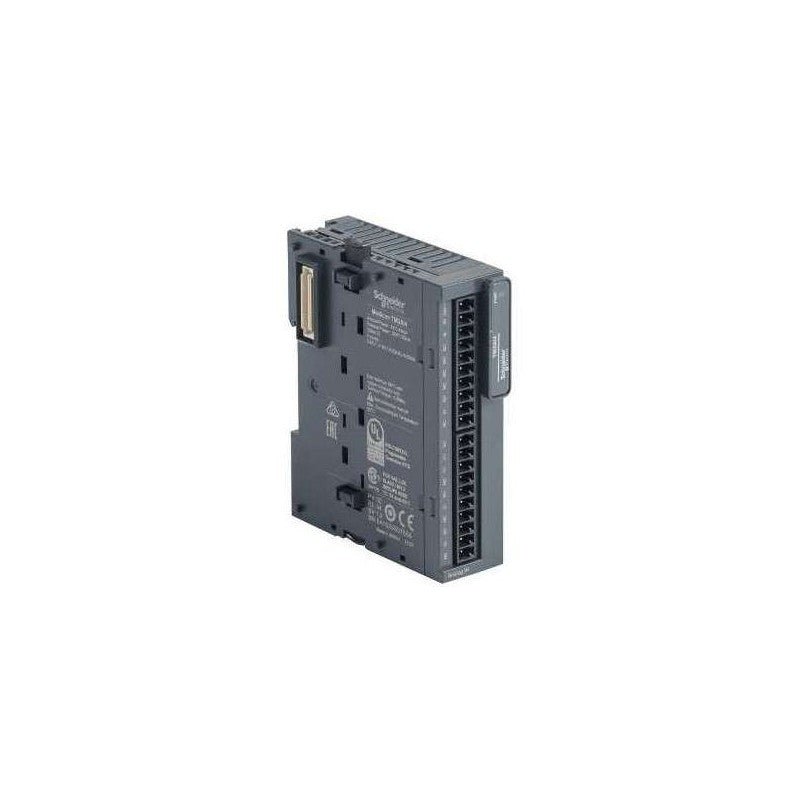

Analog input module, Modicon TM3, 4 inputs (screw) 24 VDC
Analog input module, Modicon TM3, 4 inputs (spring) 24 VDC

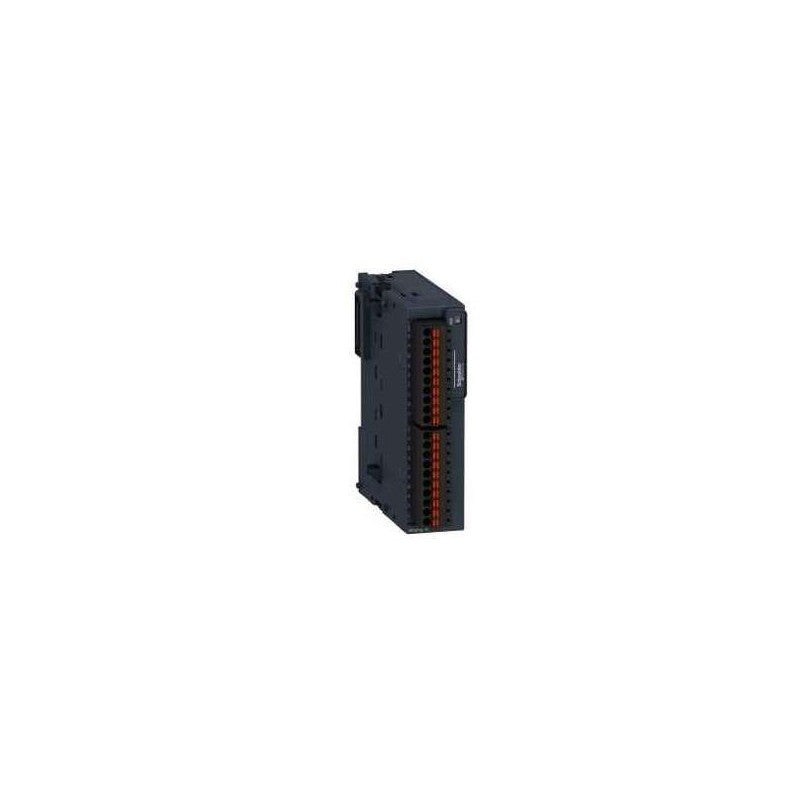

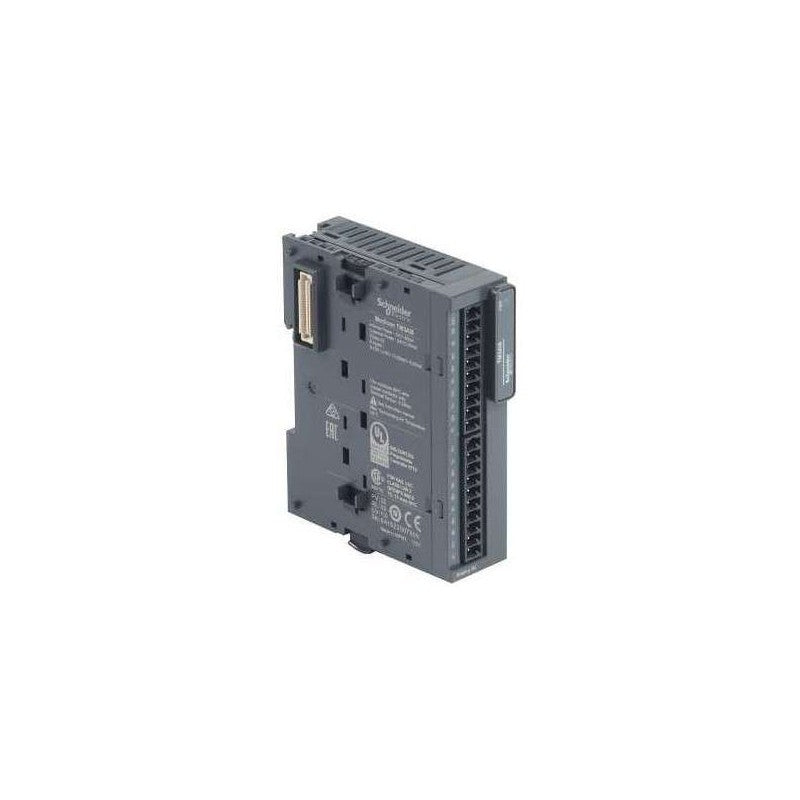

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Analog input module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Current consumption | 40 mA 5 V DC via bus connector full load 35 mA 5 V DC via bus connector no load 30 mA 24 V DC via external supply no load 40 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Analog input module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Current consumption | 40 mA 5 V DC via bus connector full load 35 mA 5 V DC via bus connector no load 30 mA 24 V DC via external supply no load 40 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs and supply 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.2 lb(US) (0.1 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

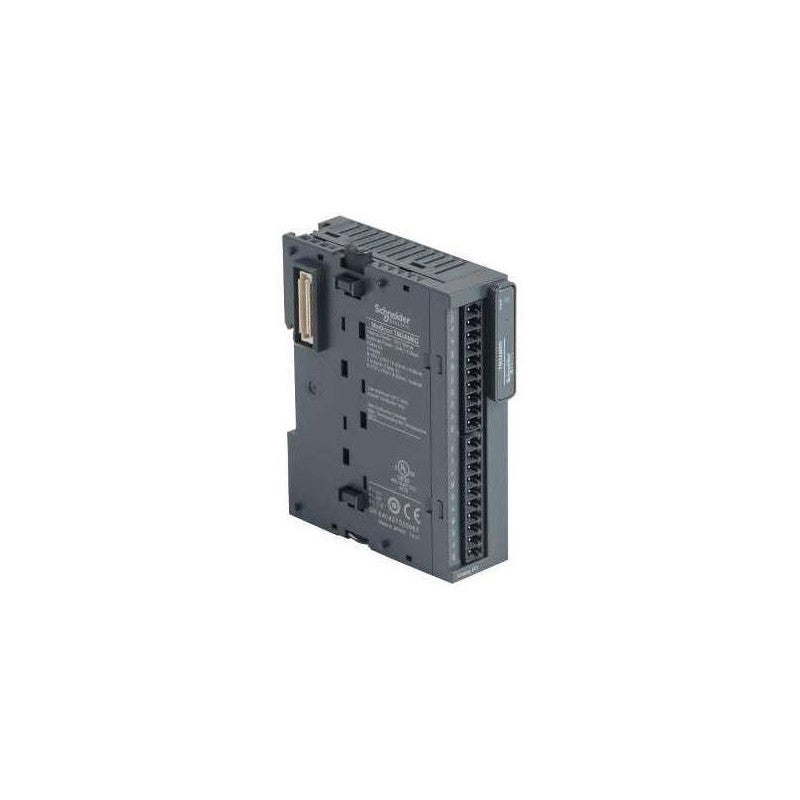

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Input/output analog module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| Analogue output number | 2 |
| Analogue output type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| Analogue output resolution | 12 bits 11 bits + sign |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Load type | Resistive |
| Load impedance ohmic | 1 kOhm voltage 300 Ohm current |
| Stabilisation time | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms 10 ms |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/-0.5 %FS input +/-0.5 %FS output |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input/output |
| Current consumption | 45 mA 5 V DC via bus connector no load 55 mA 5 V DC via bus connector full load 55 mA 24 V DC via external supply no load 100 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs, outputs and supply |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC Between output and supply 1500 V AC Between output and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 0.5 kV I/O differential mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

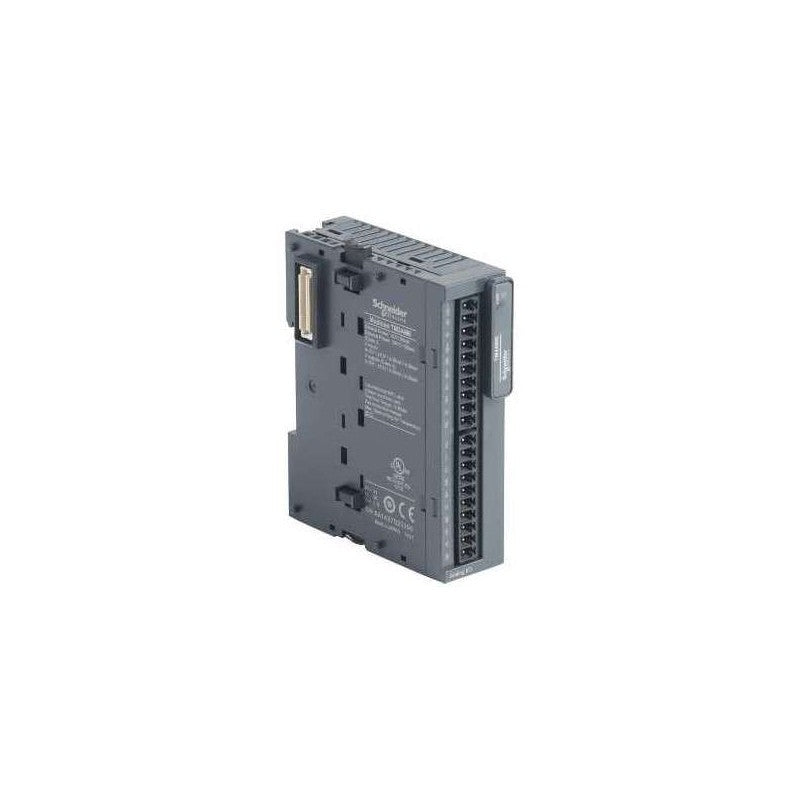

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Input/output analog module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| Analogue output number | 2 |
| Analogue output type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| Analogue output resolution | 12 bits 11 bits + sign |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Load type | Resistive |
| Load impedance ohmic | 1 kOhm voltage 300 Ohm current |
| Stabilisation time | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms 10 ms |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/-0.5 %FS input +/-0.5 %FS output |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input/output |
| Current consumption | 45 mA 5 V DC via bus connector no load 55 mA 5 V DC via bus connector full load 55 mA 24 V DC via external supply no load 100 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs, outputs and supply |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC Between output and supply 1500 V AC Between output and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 0.5 kV I/O differential mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.2 lb(US) (0.1 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

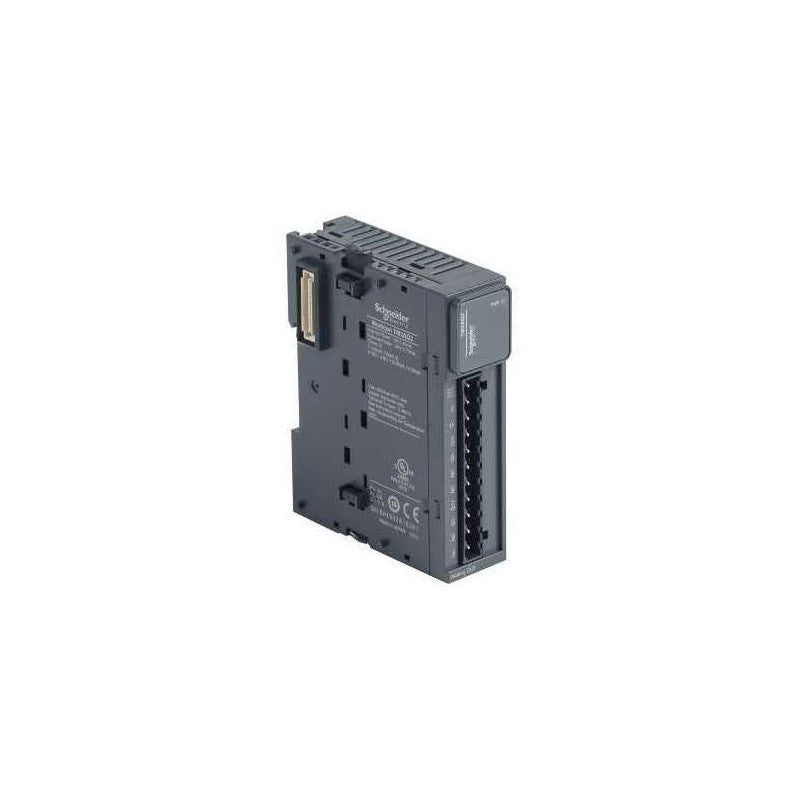

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Analog output module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue output number | 2 |
| Analogue output type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue output resolution | 11 bits + sign 12 bits |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Load type | Resistive |
| Load impedance ohmic | 1 kOhm voltage 300 Ohm current |
| Stabilisation time | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C) +/- 1 % of full scale |
| Temperature Drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) output |
| Current consumption | 40 mA 5 V DC via bus connector full load 35 mA 5 V DC via bus connector no load 30 mA 24 V DC via external supply no load 70 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs and supply |
| Insulation | Between output and supply 1500 V AC Between output and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV output common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.254 lb(US) (0.115 kg) |
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product or Component Type | Analog output module |
| Range Compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue output number | 2 |
| Analogue output type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input resolution | 12 bits 11 bits + sign |
| Analogue output resolution | 11 bits + sign 12 bits |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Load type | Resistive |
| Load impedance ohmic | 1 kOhm voltage 300 Ohm current |
| Stabilisation time | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C) +/- 1 % of full scale |
| Temperature Drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4â¦28.8 V |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) output |
| Current consumption | 40 mA 5 V DC via bus connector full load 35 mA 5 V DC via bus connector no load 30 mA 24 V DC via external supply no load 70 mA 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs and supply |
| Insulation | Between output and supply 1500 V AC Between output and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV output common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Product Weight | 0.2 lb(US) (0.1 kg) |

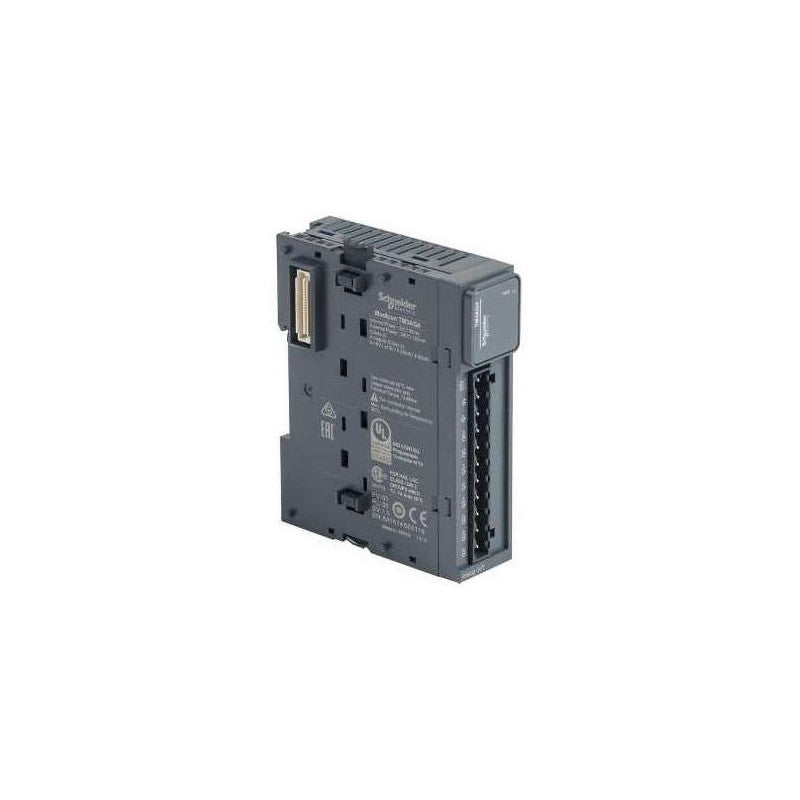

Analog output module, Modicon TM3, 4 outputs (screw) 24 VDC

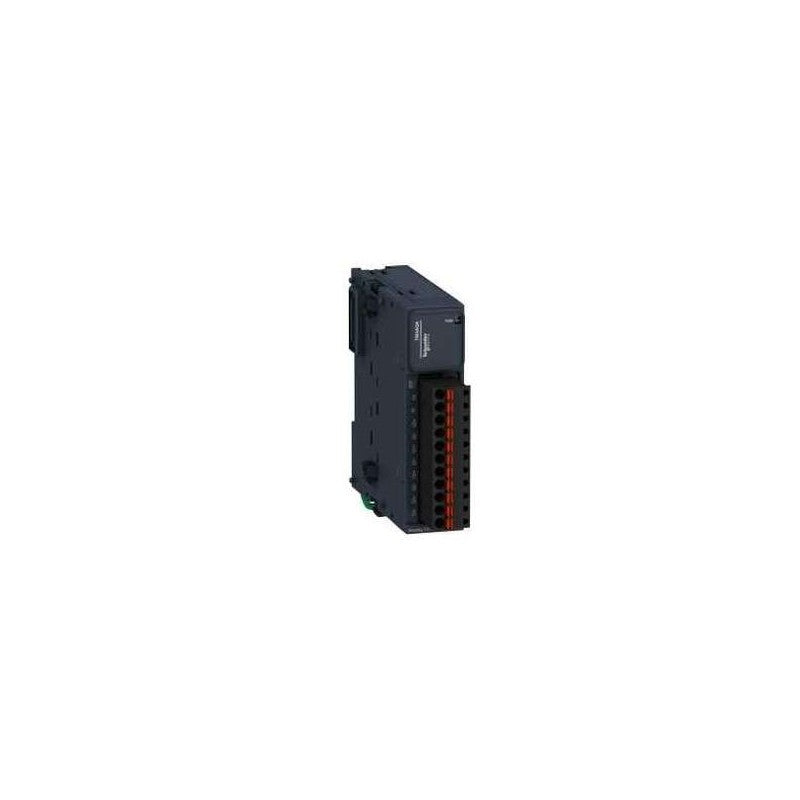

Analog output module, Modicon TM3, 4 outputs (spring) 24 VDC

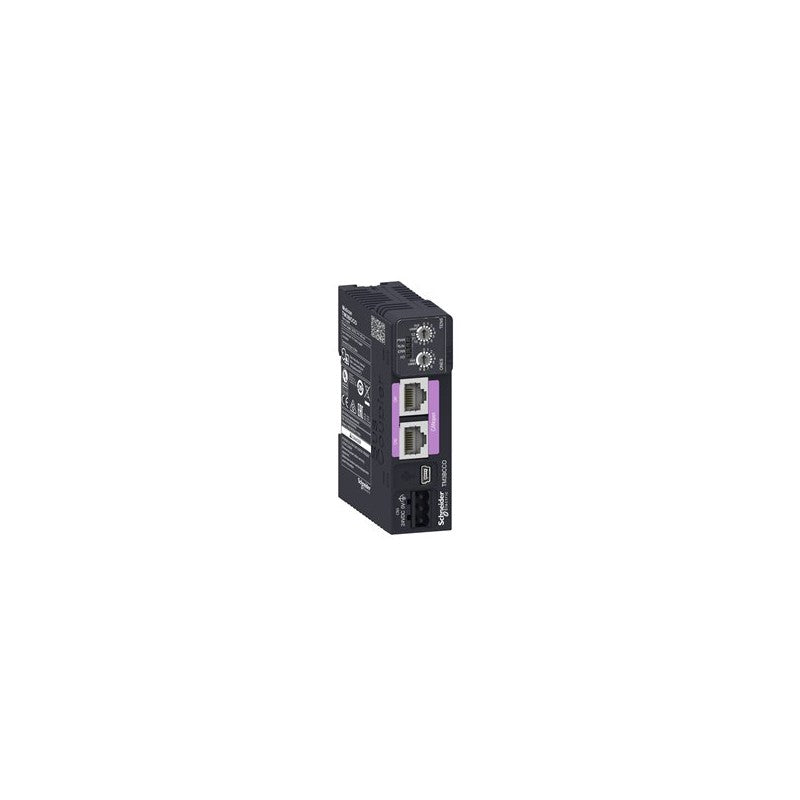

IP20 I/O Distributed Optimized TM3 Bus Coupler Module CANopen Interface
IP20 I/O Distributed Optimized TM3 Bus Coupler Module Ethernet Interface

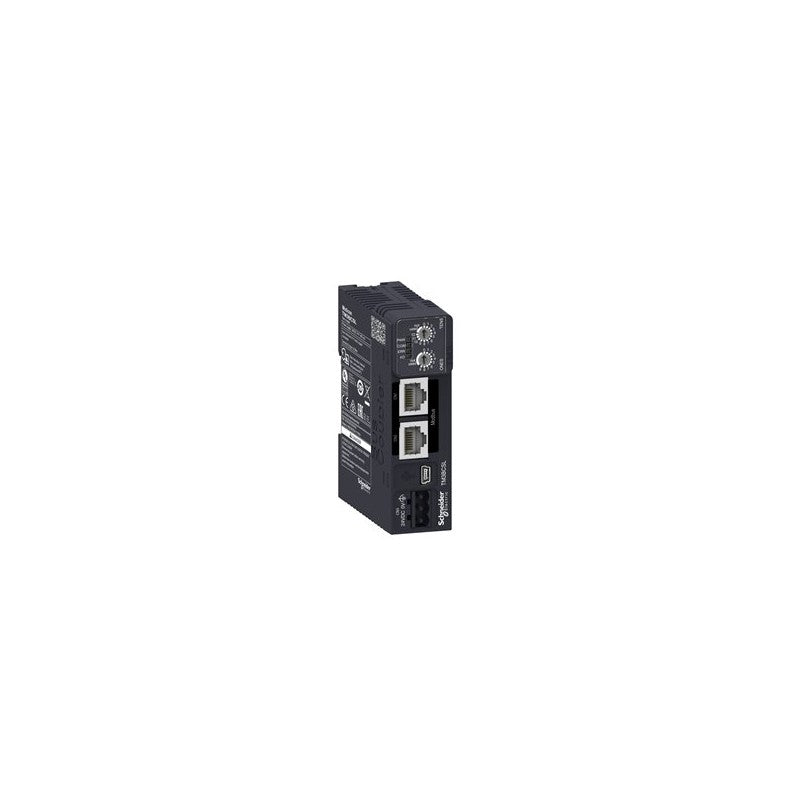

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon TM3 |
| Product Compatibility | Logic controller Motion controller |
| Product or Component Type | I/O distributed module |
| Product Specific Application | Bus coupler module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Communication Port Protocol | Modbus serial |
| Connector type | RJ45 2 serial link daisy chain isolated USB device port Mini-B |
| Exchange mode | Half duplex |
| Transmission Rate | 1.2...115.2 kbit/s |
| Topology | Daisy chain |
| Communication Network Type | Modbus |
| Communication Service | Modbus slave device profile |
| Web services | Web server, USB |
| Current consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Local signalling | 1 LED green/red PWR (System Status) 1 LED green/red COM (Run) 1 LED green/red ERR (Error) 1 LED green/red I/O status |
| Fixing mode | By clipping locks (rail) By screws (mounting plate) |
| Product Certifications | CE cULus EAC RCM UKCA EU-RO MR |
| Standards | IEC 61131-2 UL/CSA 61010-1 UL/CSA 61010-2-201 |
| Width | 1.06 in (27 mm) |
| Height | 3.8 in (96.5 mm) |
| Depth | 2.8 in (70 mm) |
| Product Weight | 0.22 lb(US) (0.10 kg) |

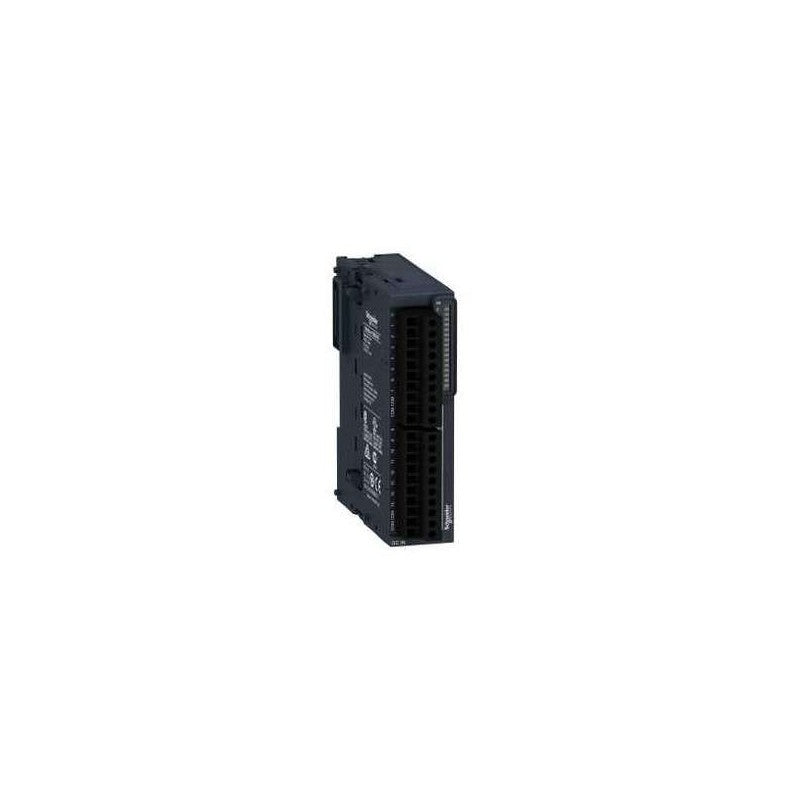

Discrete input module, Modicon TM3, 16 inputs (screw) 24 VDC
Modules
