Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

20 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

3.0 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275051R1205 ABB - DSE201 M B20 AC30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

20 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

3.0 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275051R1324 ABB - DSE201 M C32 AC30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

4.4 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275051R1325 ABB - DSE201 M B32 AC30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

4.4 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

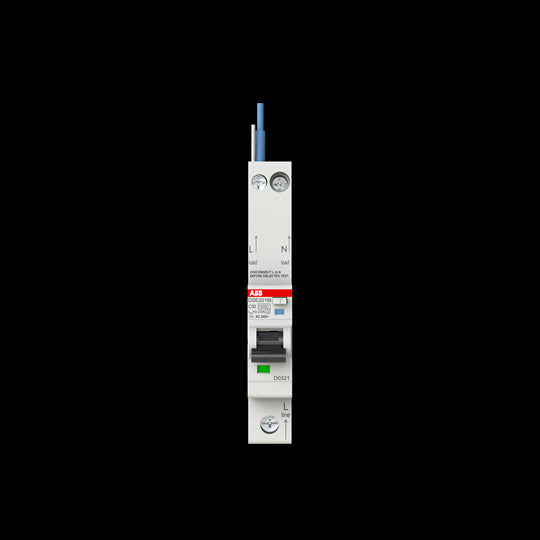

ABB 2CSR275051R1504 ABB - DSE201 M C50 AC30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

10 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

50 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

5.3 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

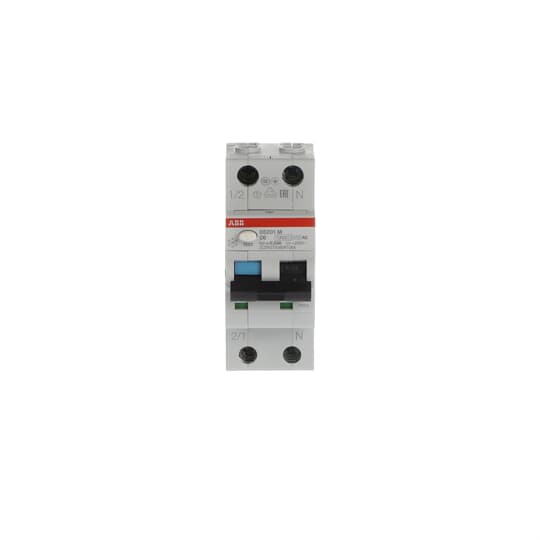

ABB 2CSR275080R1064 ABB - DS201 M C6 AC30

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

170 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 6000 A

EN 61009-1 6000 A

IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 1.3 W

Phase Pole 2.4 W

Neutral Pole 0.2 W

Total 2.6 W

Average per Pole 1.3 W

Phase Pole 2.4 W

Neutral Pole 0.2 W

Total 2.6 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

IMQ Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275080R1065 ABB - DS201 M B6 AC30

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

170 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 6000 A

EN 61009-1 6000 A

IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 1.3 W

Phase Pole 2.4 W

Neutral Pole 0.2 W

Total 2.6 W

Average per Pole 1.3 W

Phase Pole 2.4 W

Neutral Pole 0.2 W

Total 2.6 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

IMQ Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

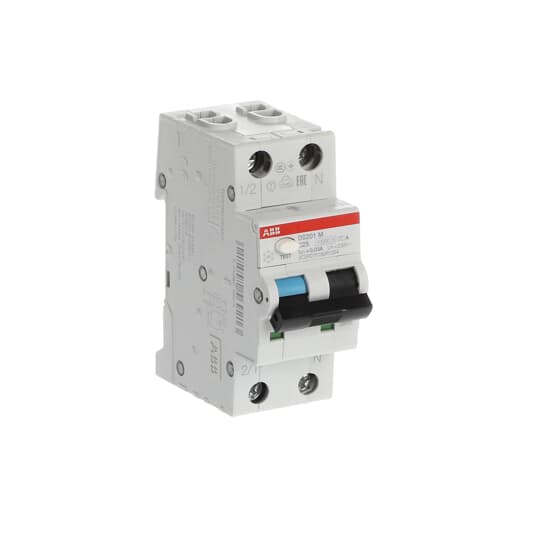

ABB 2CSR275080R1165 ABB - DS201 M B16 AC30

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

170 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 6000 A

EN 61009-1 6000 A

IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

16 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 2.3 W

Phase Pole 3.4 W

Neutral Pole 1.2 W

Total 4.5 W

Average per Pole 2.3 W

Phase Pole 3.4 W

Neutral Pole 1.2 W

Total 4.5 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

IMQ Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

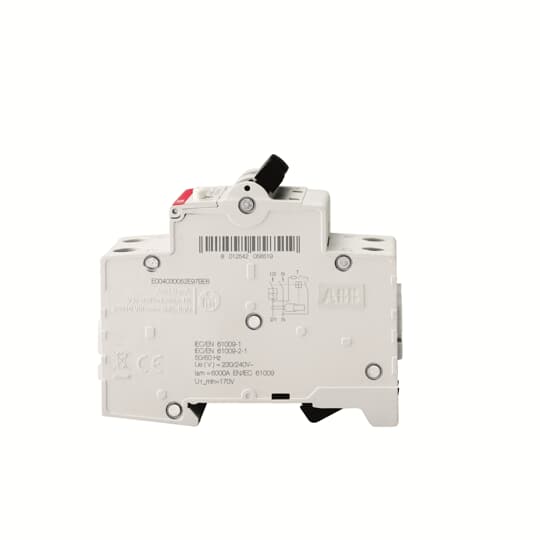

ABB 2CSR275080R1324 ABB - DS201 M C32 AC30

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

170 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 4500 A

EN 61009-1 6000 A

IEC 61009-1 4500 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 5.0 W

Phase Pole 6.4 W

Neutral Pole 3.5 W

Total 9.9 W

Average per Pole 5.0 W

Phase Pole 6.4 W

Neutral Pole 3.5 W

Total 9.9 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

IMQ Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275080R1404 ABB - DS201 M C40 AC30

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

170 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 4500 A

EN 61009-1 6000 A

IEC 61009-1 4500 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 4.6 W

Phase Pole 5.0 W

Neutral Pole 4.1 W

Total 9.1 W

Average per Pole 4.6 W

Phase Pole 5.0 W

Neutral Pole 4.1 W

Total 9.1 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

IMQ Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

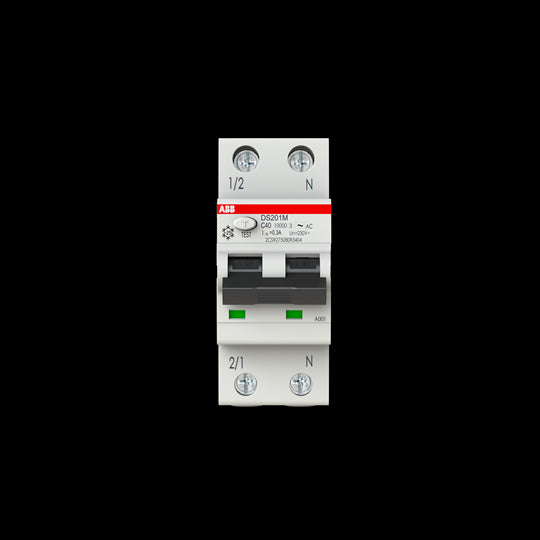

ABB 2CSR275080R3404 ABB - DS201 M C40 AC300

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  75.20 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Recycled Cardboard -  98 %

Recycled Paper -  00 %

Chemically Recycled Polymer -  00 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

DS201 RCBO 1P+N - Environmental Product Declaration EPD / PEP

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type AC

Test Voltage (Ut):

110 ... 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

EN 61009-1 6000 A

IEC 61009-1 4500 A

EN 61009-1 6000 A

IEC 61009-1 4500 A

Rated Service Short-Circuit Breaking Capacity (I_cs):

11.2 kA

Maximum Surge Current:

0 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

2

Fault Indication:

Blue Flag on Toggle

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Accessory Type:

Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator Type:

Toggle - Insulation group II, Black RAL 9005,
sealable in ON-OFF positions

Housing Type:

Insulation group I - II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Accessories Available:

Yes

Number of Batteries:

0

Connecting Capacity:

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Busbar 10 ... 10 mm²

Stranded 0.75 ... 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Wire Stripping Length:

12 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Residual Current:

300 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

15 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

Average per Pole 4.6 W

Phase Pole 5.0 W

Neutral Pole 4.1 W

Total 9.1 W

Average per Pole 4.6 W

Phase Pole 5.0 W

Neutral Pole 4.1 W

Total 9.1 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20211115

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

69 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

225 g

Certificates and Declarations

ABS Certificate:

CB Certificate:

CCC Certificate:

Declaration of Conformity - CE:

DS201 RCBO 1P+N - Mounting and operating instructions

DNV GL Certificate:

EAC Certificate:

GOST Certificate:

ÖVE Certificate:

RMRS Certificate:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

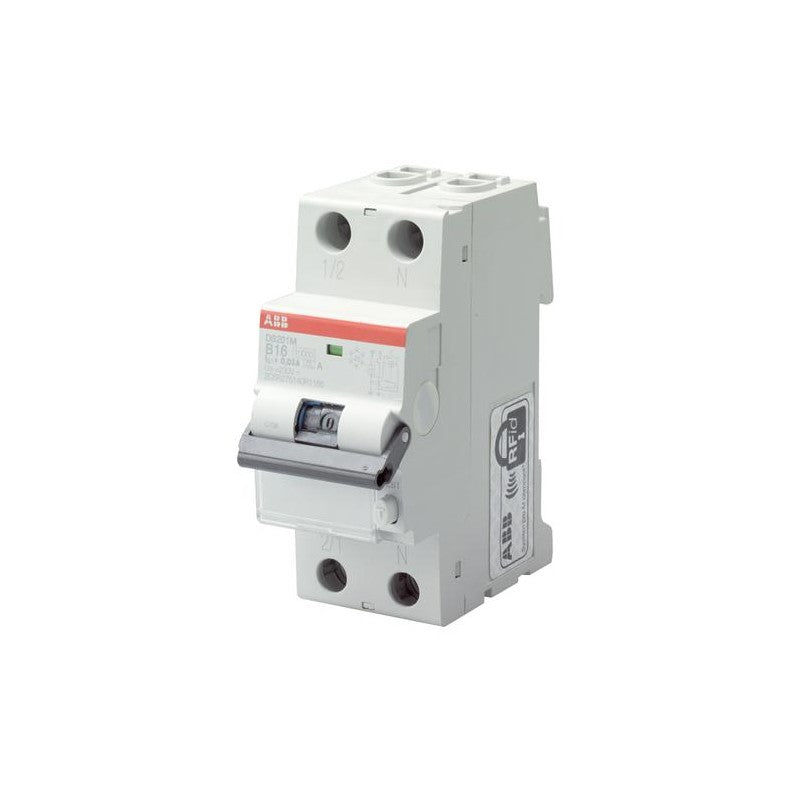

ABB 2CSR275140R3104 ABB - DS201MC10A300

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC/EN 61009-1, IEC/EN 61009-2-1

ABB 2CSR275140R1064 ABB

$0.00

Sold Out

DS201 Series: M DS201 C6 A30 Differential circuit breaker, 10kA, type A, curve C, 6A 30mA 1P + N

ABB 2CSR275140R1104 ABB

$0.00

Sold Out

DS201 Series: M DS201 C10 A30 differential circuit breaker, 10kA, type A, curve C, 10A 30mA 1P + N

ABB 2CSR275140R1164 ABB

$0.00

Sold Out

DS201 Series: M DS201 C16 A30 Differential circuit breaker, 10kA, type A, curve C, 16A 30mA 1P + N

ABB 2CSR275140R1254 ABB

$0.00

Sold Out

DS201 Series: M DS201 C25 A30 Differential circuit breaker, 10kA, type A, curve C, 25A 30mA 1P + N

ABB 2CSR275140R1324 ABB

$0.00

Sold Out

DS201 Series: M DS201 C32 A30 Differential circuit breaker, 10kA, type A, curve C, 32A 30mA 1P + N

$0.00

Sold Out

DS201 Series: M DS201 C10 A300 Differential circuit breaker, 10kA, type A, curve C, 10A 300mA 1P + N

ABB 2CSR275151R0405 ABB - DSE201 M B40 A10 - N Blue

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.01 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Residual Current:

10 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

5.5 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1064 ABB - DSE201 M C6 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

1.8 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1065 ABB - DSE201 M B6 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

1.8 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1104 ABB - DSE201 M C10 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

10 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

1.8 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1105 ABB - DSE201 M B10 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

10 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

1.8 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1164 ABB - DSE201 M C16 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

16 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

2.4 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

ABB 2CSR275151R1165 ABB - DSE201 M B16 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  83.2 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %):

Recycled Cardboard -  96.89 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

16 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

2.4 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:
