Technical

Type of Residual Current:

Type A

Maximum Operating Voltage:

264 V

Test Voltage (Ut):

195 … 264 V

Dielectric Test Voltage:

2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

15 kA

Rated Residual Breaking Capacity (IΔm):

10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (I_cs):

7.5 kA

Maximum Surge Current:

0.25 kA

Power Supply Connection:

Bottom

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Number of Modular Spacings per DIN Rail:

1

Fault Indication:

Blue Window

Operating Characteristic:

Instantaneous

Position of Neutral Terminals:

Right

Tightening Torque:

Top 1.2 N·m

Bottom 2.8 N·m

Top 1.2 N·m

Bottom 2.8 N·m

Accessory Type:

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Auxiliary contact

Auxiliary/Signal contact

Shunt trip

Undervoltage release

Overvoltage release

Bottom fitting auxiliary contact

Actuator Type:

Toggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch Type:

Undelayed

Housing Type:

Insulation group II, RAL 7035

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided:

None

Accessories Available:

Yes

Connecting Capacity:

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Busbar 10 mm²

Rigid  1…35 mm²

Flexible  1…16 mm²

Rated Cross-Section:

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

1 - Solid-Core 1…35 mm²

4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length:

Top 11 mm

Bottom 12.5 mm

Top 11 mm

Bottom 12.5 mm

Terminal Type:

Screw Terminals

Electrical

Short-Circuit Current Rating (SCCR):

0.03 A

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 240 V

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Input Voltage Type:

AC

Rated Current (I_n):

20 A

Rated Residual Current:

30 mA

Rated Short-Circuit Capacity:

10 kA

Rated Conditional Short-Circuit Current (I_nc):

10 kA

Rated Frequency (f):

50 … 60 Hz

Power Loss:

3.0 W

Overvoltage Category:

III

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20160829

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Consumer

Environmental

Ambient Air Temperature:

Operation -25 … 55 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

IP20

IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27:

30g / 2 shocks / 13 ms

Dimensions

Width in Number of Modular Spacings:

1

Product Net Width:

18 mm

Product Net Height:

115 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

200 g

Built-In Depth (t₂):

68.9 mm

Ordering

Package Level 1 Units:

box 1 piece

Package Level 1 Gross Weight:

0.220 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting Position:

Any

Popular Downloads

Data Sheet, Technical Information:

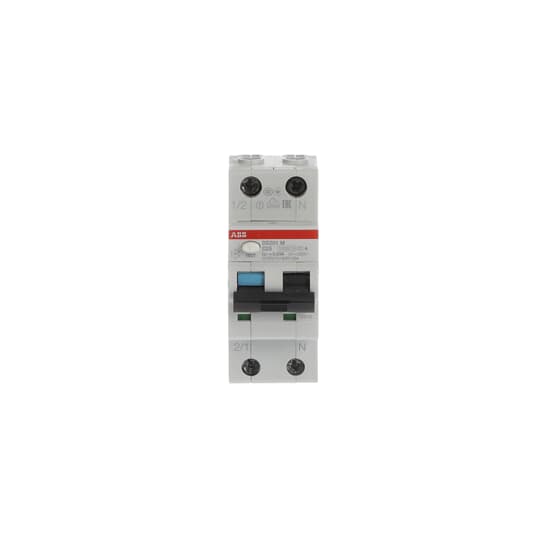

ABB 2CSR275151R1254 ABB - DSE201 M C25 A30 - N Blue

Mechanical Drawings:

External Classifications and Standards

ETIM 9:

EC000905 - Earth leakage circuit breaker

ETIM 10:

EC000905 - Earth leakage circuit breaker

eClass:

V11.0 : 27142207

Object Classification Code:

F

Standards:

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1

IEC 61009-1

IEC 61009-2-2

AS/NZS 61009.1

BS EN 61009-1
