14678 products

Showing 8713 - 8736 of 14678 products

Showing 8713 - 8736 of 14678 products
View

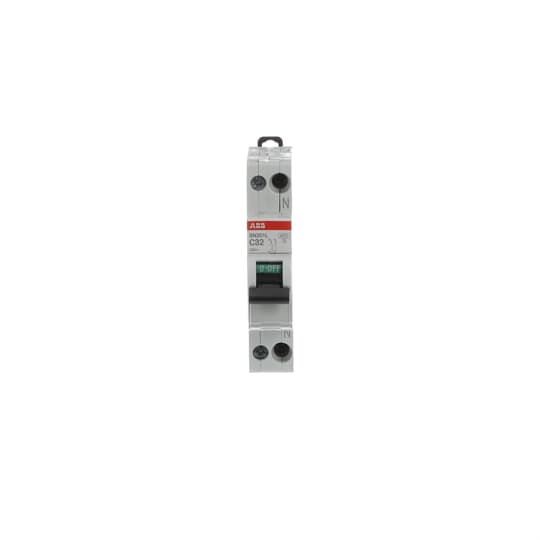

2CSS245101R0324 ABB - SN201 L-C32
ABB 2CSS245101R0324 ABB - SN201 L-C32
$87.39
In stock, 11 units

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
32 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
6.7 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Finland):
3217717

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

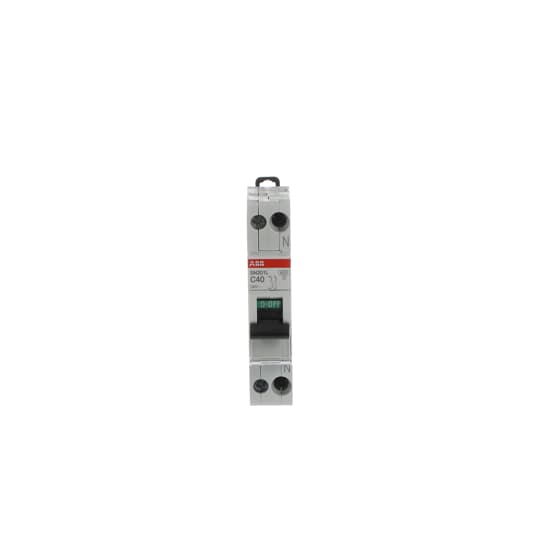

2CSS245101R0404 ABB - SN201 L-C40
ABB 2CSS245101R0404 ABB - SN201 L-C40
$88.33
In stock, 11 units

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
40 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
7.5 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Finland):
3217719

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS245102R0064 ABB - SN201 L-C6-L
ABB 2CSS245102R0064 ABB - SN201 L-C6-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
6 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2.3 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

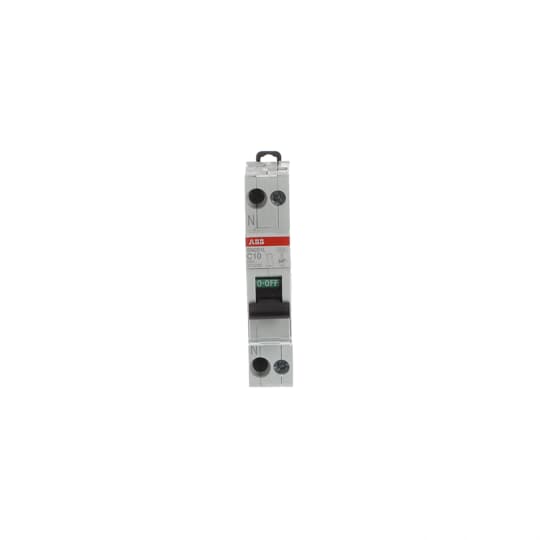

2CSS245102R0104 ABB - SN201 L-C10-L
ABB 2CSS245102R0104 ABB - SN201 L-C10-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
10 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
1.9 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

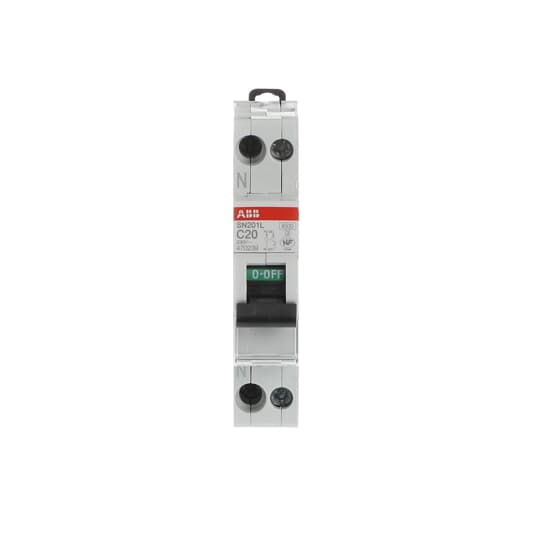

2CSS245102R0204 ABB - SN201 L-C20-L
ABB 2CSS245102R0204 ABB - SN201 L-C20-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
20 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
4.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS245102R0324 ABB - SN201 L-C32-L
ABB 2CSS245102R0324 ABB - SN201 L-C32-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
32 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
6.7 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

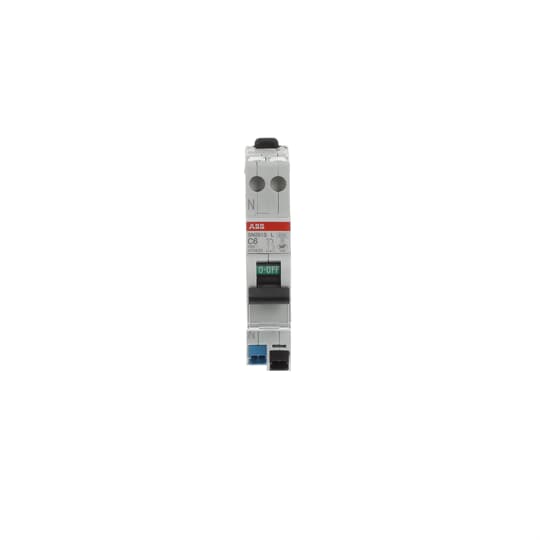

2CSS245202R0064 ABB - SN201S L-C6-L
ABB 2CSS245202R0064 ABB - SN201S L-C6-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Top
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Actuator Type:
Toggle
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
6 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2.3 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS245202R0104 ABB - SN201S L-C10-L
ABB 2CSS245202R0104 ABB - SN201S L-C10-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Top
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Actuator Type:
Toggle
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
10 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
1.9 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

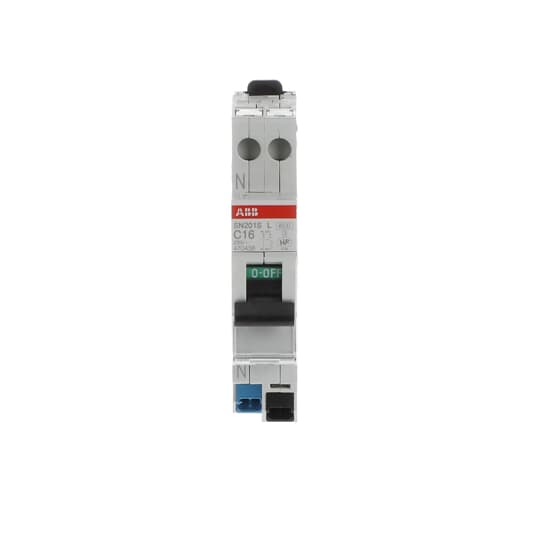

2CSS245202R0164 ABB - SN201S L-C16-L
ABB 2CSS245202R0164 ABB - SN201S L-C16-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Top
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Actuator Type:
Toggle
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
16 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
3.6 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS245202R0204 ABB - SN201S L-C20-L
ABB 2CSS245202R0204 ABB - SN201S L-C20-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Top
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Actuator Type:
Toggle
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
20 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
4.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1

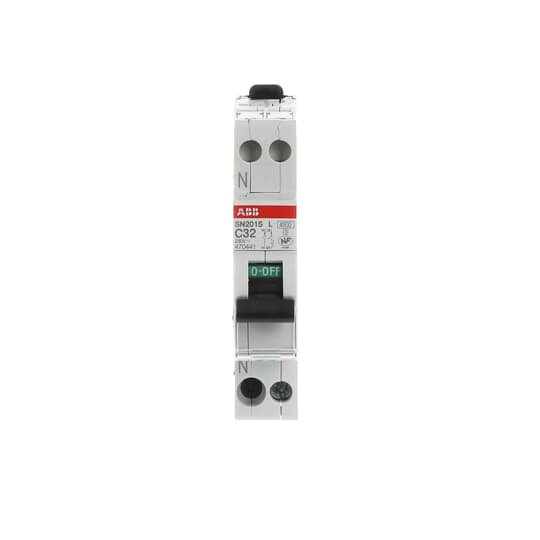

2CSS245202R0324 ABB - SN201S L-C32-L
ABB 2CSS245202R0324 ABB - SN201S L-C32-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 4.5 kA
Power Supply Connection:
Top
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Actuator Type:
Toggle
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
32 A
Rated Short-Circuit Capacity:
(230 V) 4.5 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
6.7 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS255101R0134 ABB - SN201-C13
ABB 2CSS255101R0134 ABB - SN201-C13
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 6 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
13 A
Rated Short-Circuit Capacity:
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
3.6 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Norway):
1630654
E-Number (Sweden):
2100318

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification Code:
F
Standards:
IEC/EN 60898-1

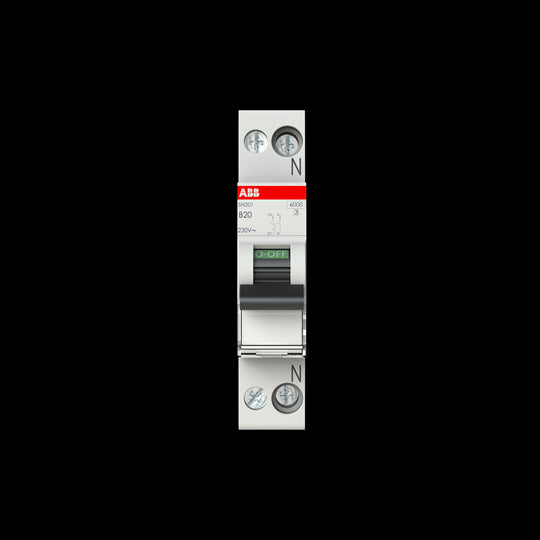

2CSS255101R0205 ABB - SN201-B20
ABB 2CSS255101R0205 ABB - SN201-B20
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 6 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
B
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
20 A
Rated Short-Circuit Capacity:
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
4.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Finland):
3217763
E-Number (Norway):
1630646

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS255102R0024 ABB - SN201-C2-L
ABB 2CSS255102R0024 ABB - SN201-C2-L
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 6 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
ON / OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Left
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
2 A
Rated Short-Circuit Capacity:
(230 V) 6 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2.1 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20190722
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
2CSS275101R0024 ABB - SN201 M-C2
ABB 2CSS275101R0024 ABB - SN201 M-C2
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 7.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
2 A
Rated Short-Circuit Capacity:
(230 V) 10 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2.1 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Norway):
1630680
E-Number (Sweden):
2100323

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CSS275101R0044 ABB - SN201 M-C4
ABB 2CSS275101R0044 ABB - SN201 M-C4
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 7.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
4 A
Rated Short-Circuit Capacity:
(230 V) 10 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
2.4 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Norway):
1630681
E-Number (Sweden):
2100324

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CSS275101R0105 ABB - SN201 M-B10
ABB 2CSS275101R0105 ABB - SN201 M-B10
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 7.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
B
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
10 A
Rated Short-Circuit Capacity:
(230 V) 10 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
1.9 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Norway):
1630673

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CSS275101R0164 ABB - SN201 M-C16
ABB 2CSS275101R0164 ABB - SN201 M-C16
$0.00
Sold Out

ABB EcoSolutions

ABB EcoSolutions:
Yes
EcoSolutions Profile:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 90.63 %
Sustainable Material Content in Packaging (wt. %):
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Recycled Paper - 00 %
Recycled Cardboard - 79 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage:
4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 7.5 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
1
Number of Poles:
1P+N
Number of Modular Spacings per DIN Rail:
1
Position of Neutral Terminals:
Right
Tightening Torque:
1.2 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Cage Terminal
Accessories Available:
Yes
Connecting Capacity:
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Flexible 1 … 10 mm²
Rigid 1 … 16 mm²
Wire Stripping Length:
11 mm
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Voltage (Ur):
230 V AC
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
16 A
Rated Short-Circuit Capacity:
(230 V) 10 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
3.6 W
Overvoltage Category:
III

Design

Housing Material:
Insulation group II, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
2
Environmental Conditions:
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
28 cycles
;with 55 °C / 90-96 %
;and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 2 shocks 13 ms
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
110 g
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
box 6 piece
Package Level 1 Gross Weight:
0.684 kg
E-Number (Norway):
1630685

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Mounting Position:
Any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
F
Standards:
IEC/EN 60898-1
Certification Agency:
EN
IEC
EN
IEC
2CSY232235R0002 ABB - KNXC0002
ABB 2CSY232235R0002 ABB - KNXC0002
$0.00
Sold Out

Installation

Technical

Data Sheet, Technical Information:
Product Range:
KNX

Dimensions

Product Net Width:
0.070 mm
Product Net Height:
0.280 mm
Product Net Depth / Length:
0.280 mm
Product Net Weight:
0.304 kg

Material Compliance

Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations
2CTB802341R0000 ABB - OVR T2 15-150 P U
ABB 2CTB802341R0000 ABB - OVR T2 15-150 P U
$0.00
Sold Out

Technical

Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
120 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 175 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 5 kA
I (max, 8 / 20 µs) 15 kA
Nominal (8 / 20 µs) 5 kA
I (max, 8 / 20 µs) 15 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
1
Number of Poles:
1P
Number of Conductors:
1
Transmission Standard:
Optic
Version:
Plug-in
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
1 modular spacing

Electrical

Short-Circuit Current Rating (SCCR):
200 kA
Rated Voltage (Ur):
120 V AC
Voltage Protection Level ( Up):
0.7 kV
(L-N) 0.7 kV
0.7 kV
(L-N) 0.7 kV

Technical UL/CSA

Maximum Continuous Operating Voltage UL/CSA (MCOV):
(L-PE) 175 V
(L-L) - V
(L-N) 175 V
(N-PE) - V
(L-PE) 175 V
(L-L) - V
(L-N) 175 V
(N-PE) - V
Maximum Operating Voltage UL/CSA:
175 V
Type of Low Voltage Distribution System UL/CSA:
Single Phase

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20220610
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20250225
Conflict Minerals Reporting Template (CMRT):
SCIP:
21369036-5835-4b17-8827-a831f2b9204c Bulgaria
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.8 mm
Product Net Height:
90.5 mm
Product Net Depth / Length:
64.8 mm
Product Net Weight:
0.12 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
150 g

Certificates and Declarations

Declaration:
Declaration of Conformity - CE:

Installation

Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
IDEA Granular Category Code (IGCC):
4906 >> Surge suppressers
Object Classification Code:
141DBC
Standards:
UL 1449 Ed3
2CTB802346R2500 ABB - OVR T2 3N 40-320 P TS U
ABB 2CTB802346R2500 ABB - OVR T2 3N 40-320 P TS U
$0.00
Sold Out

Technical

Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
277 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 320 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
4
Number of Auxiliary Contacts NC:
4
Number of Auxiliary Contacts NO:
4
Number of Poles:
4P
Number of Conductors:
4
Position of Neutral Terminals:
Right
Transmission Standard:
Optic
Version:
Plug-in
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
4 modular spacing

Electrical

Short-Circuit Current Rating (SCCR):
200 kA
Rated Voltage (Ur):
277 V AC
Voltage Protection Level ( Up):
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV

Technical UL/CSA

Maximum Continuous Operating Voltage UL/CSA (MCOV):
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
Maximum Operating Voltage UL/CSA:
320 V
Type of Low Voltage Distribution System UL/CSA:
Wye

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20220610
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20250225
Conflict Minerals Reporting Template (CMRT):
SCIP:
21369036-5835-4b17-8827-a831f2b9204c Bulgaria
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
4
Product Net Width:
71.2 mm
Product Net Height:
98.5 mm
Product Net Depth / Length:
64.8 mm
Product Net Weight:
0.48 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
540 g

Certificates and Declarations

Declaration:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
IDEA Granular Category Code (IGCC):
4906 >> Surge suppressers
Object Classification Code:
141DDC
Standards:
UL 1449 Ed3
2CTB802346R2900 ABB - OVR T2 3N 40-440 P TS U
ABB 2CTB802346R2900 ABB - OVR T2 3N 40-440 P TS U
$0.00
Sold Out

Technical

Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
347 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 880 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 10 kA
I (max, 8 / 20 µs) 40 kA
Nominal (8 / 20 µs) 10 kA
I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
4
Number of Auxiliary Contacts NC:
4
Number of Auxiliary Contacts NO:
4
Number of Poles:
4P
Number of Conductors:
4
Position of Neutral Terminals:
Right
Transmission Standard:
Optic
Version:
Plug-in
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
4 modular spacing

Electrical

Short-Circuit Current Rating (SCCR):
200 kA
Rated Voltage (Ur):
600 V AC
Voltage Protection Level ( Up):
1.5 kV
(L-N) 1.5 kV
(N-PE) 1.5 kV
1.5 kV
(L-N) 1.5 kV
(N-PE) 1.5 kV

Technical UL/CSA

Maximum Continuous Operating Voltage UL/CSA (MCOV):
(N-PE) 675 V
(N-PE) Lpe;840 V
(N-PE) Ll;420 V
(N-PE) Ln;255 V
(N-PE) 675 V
(N-PE) Lpe;840 V
(N-PE) Ll;420 V
(N-PE) Ln;255 V
Maximum Operating Voltage UL/CSA:
347 V
Type of Low Voltage Distribution System UL/CSA:
Wye

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20220610
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20250225
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
4
Product Net Width:
71.2 mm
Product Net Height:
98.5 mm
Product Net Depth / Length:
64.8 mm
Product Net Weight:
0.48 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
540 g

Certificates and Declarations

Declaration:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
IDEA Granular Category Code (IGCC):
4906 >> Surge suppressers
Object Classification Code:
141DEC
Standards:
UL 1449 Ed3
2CTB803853R2200 ABB - OVR023L40275S
ABB 2CTB803853R2200 ABB - OVR023L40275S
$0.00
Sold Out

SURGE PROTECTOR 3POLE 1.4KV W/INDICATOR
2CTB803871R1200 ABB - OVR T2 40-440 P QS
ABB 2CTB803871R1200 ABB - OVR T2 40-440 P QS
$0.00
Sold Out

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Type of Low Voltage Distribution System:
TT
TN-C
TN-S
IT
TT
TN-C
TN-S
IT
Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
400 / 690 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 440 V
Temporary Overvoltage Test Value (UT):
581 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Impulse Current:
I (imp, 10 / 350 µs) 2 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
1
Number of Poles:
1P
Number of Conductors:
1
Transmission Standard:
Optic
Version:
Plug-in
Product Type:
QS
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum -
Maximum -
Minimum -
Maximum -
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
1 modular spacing

Electrical

Rated Voltage (Ur):
230 V AC
Voltage Protection Level ( Up):
1.8 kV
(L-N) 1.8 kV
(N-PE) 1.8 kV
1.8 kV
(L-N) 1.8 kV
(N-PE) 1.8 kV

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230707
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.8 mm
Product Net Height:
88 mm
Product Net Depth / Length:
58 mm
Product Net Weight:
0.12 kg

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
145 g
E-Number (Norway):
1672331

Certificates and Declarations

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
eClass:
V11.0 : 27130805
Object Classification Code:
141DEC
Standards:
IEC 61643-11 / EN 61643-11

Recently viewed
