14678 products

Showing 8617 - 8640 of 14678 products

Showing 8617 - 8640 of 14678 products
View

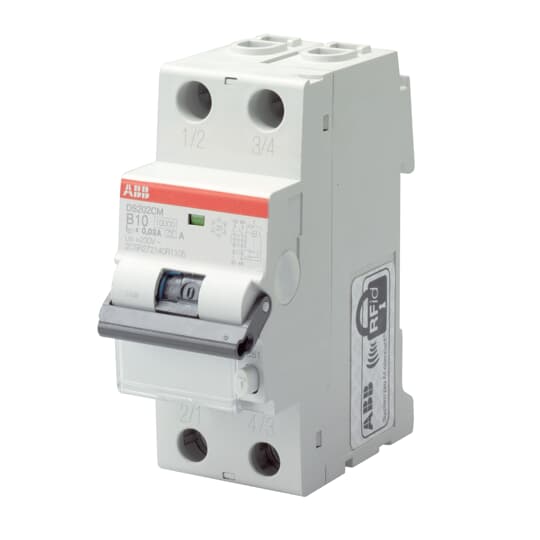

2CSR272140R0105 ABB - DS202C M B10 A10
ABB 2CSR272140R0105 ABB - DS202C M B10 A10
$0.00
Sold Out

DS202C M B10 A10 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140R0134 ABB - DS202C M C13 A10
ABB 2CSR272140R0134 ABB - DS202C M C13 A10
$0.00
Sold Out

DS202C M C13 A10 Residual Current Circuit Breaker with Overcurrent Protection

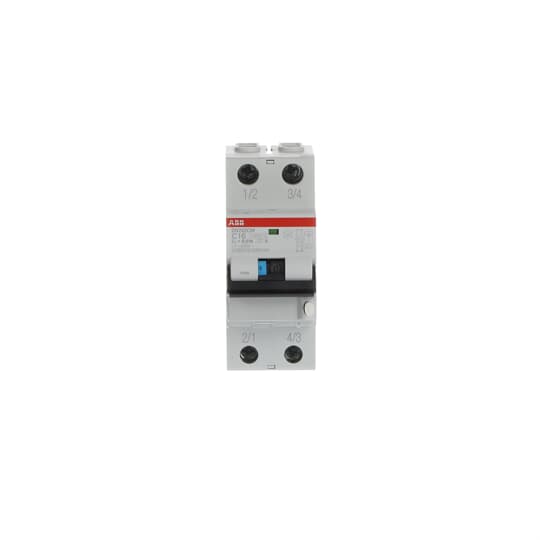

2CSR272140R0164 ABB - DS202C M C16 A10
ABB 2CSR272140R0164 ABB - DS202C M C16 A10
$0.00
Sold Out

DS202C M C16 A10 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140R0165 ABB - DS202C M B16 A10
ABB 2CSR272140R0165 ABB - DS202C M B16 A10
$0.00
Sold Out

DS202C M B16 A10 Residual Current Circuit Breaker with Overcurrent Protection

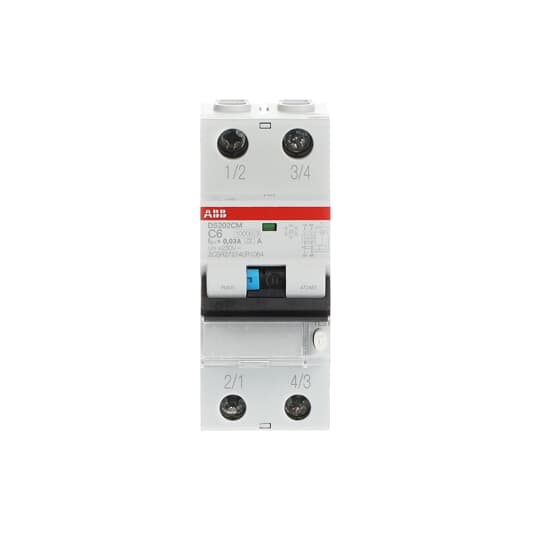

2CSR272140R1064 ABB - DS202C M C6 A30
ABB 2CSR272140R1064 ABB - DS202C M C6 A30
$0.00
Sold Out

DS202C M C6 A30 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140R1134 ABB - DS202C M C13 A30
ABB 2CSR272140R1134 ABB - DS202C M C13 A30
$0.00
Sold Out

DS202C M C13 A30 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140R1135 ABB - DS202C M B13 A30
ABB 2CSR272140R1135 ABB - DS202C M B13 A30
$0.00
Sold Out

DS202C M B13 A30 Residual Current Circuit Breaker with Overcurrent Protection

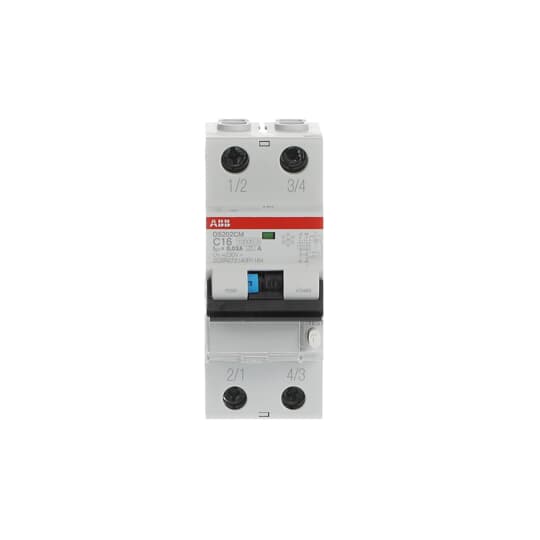

2CSR272140R1164 ABB - DS202C M C16 A30
ABB 2CSR272140R1164 ABB - DS202C M C16 A30
$0.00
Sold Out

DS202C M C16 A30 Residual Current Circuit Breaker with Overcurrent Protection. The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents.

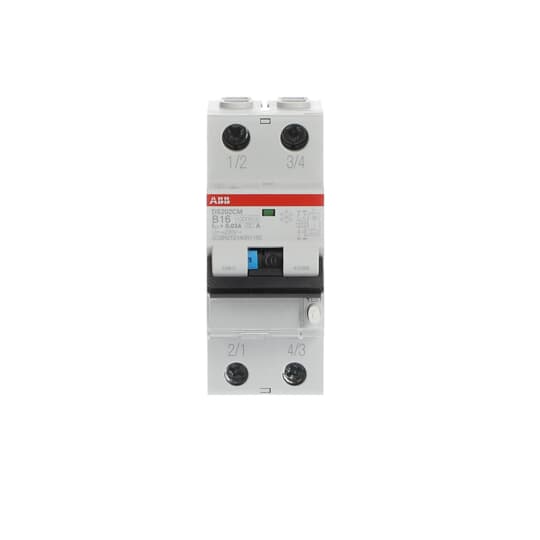

2CSR272140R1165 ABB - DS202C M B16 A30
ABB 2CSR272140R1165 ABB - DS202C M B16 A30
$0.00
Sold Out

DS202C M B16 A30 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140R1254 ABB - DS202C M C25 A30
ABB 2CSR272140R1254 ABB - DS202C M C25 A30
$0.00
Sold Out

DS202C M C25 A30 Residual Current Circuit Breaker with Overcurrent Protection. The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents.

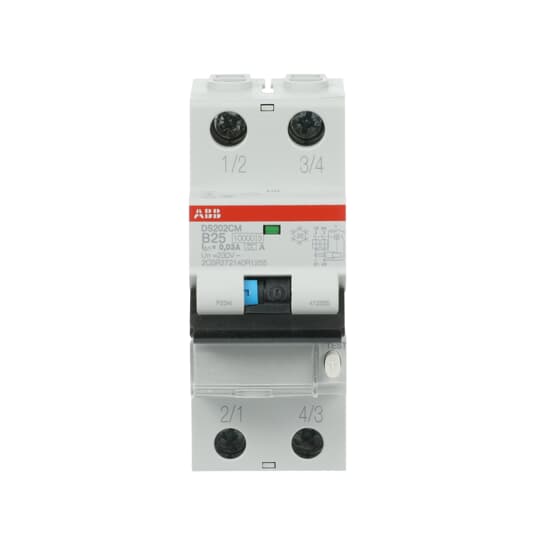

2CSR272140R1255 ABB - DS202C M B25 A30
ABB 2CSR272140R1255 ABB - DS202C M B25 A30
$0.00
Sold Out

DS202C M B25 A30 Residual Current Circuit Breaker with Overcurrent Protection

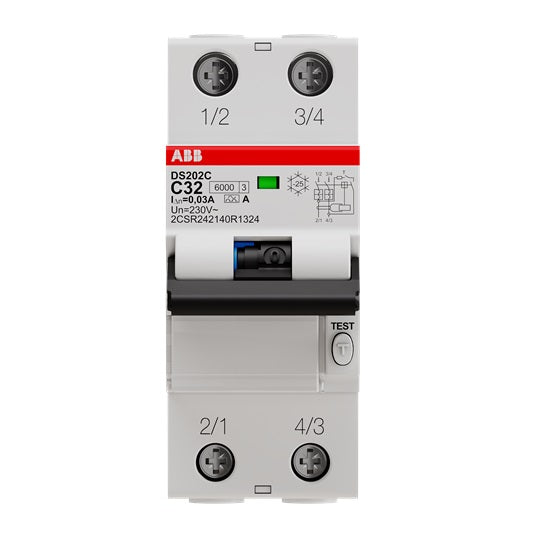

2CSR272140R1324 ABB - DS202C M C32 A30
ABB 2CSR272140R1324 ABB - DS202C M C32 A30
$0.00
Sold Out

DS202C M C32 A30 Residual Current Circuit Breaker with Overcurrent Protection. The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents.

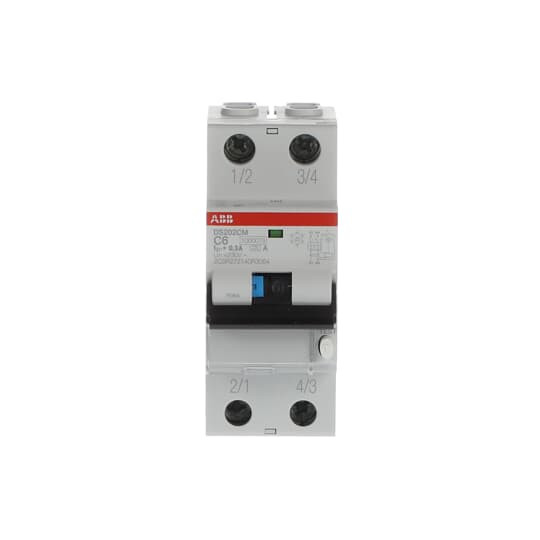

2CSR272140R3064 ABB - DS202C M C6 A300
ABB 2CSR272140R3064 ABB - DS202C M C6 A300
$0.00
Sold Out

DS202C M C6 A300 Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140U1105 ABB - DS202C M B10 A30 U
ABB 2CSR272140U1105 ABB - DS202C M B10 A30 U
$0.00
Sold Out

DS202C M B10 A30 U Residual Current Circuit Breaker with Overcurrent Protection
2CSR272140U1164 ABB - DS202C M C16 A30 U
ABB 2CSR272140U1164 ABB - DS202C M C16 A30 U
$0.00
Sold Out

DS202C M C16 A30 U Residual Current Circuit Breaker with Overcurrent Protection
2CSR272199R1064 ABB - DS202C M C6 A30 110V
ABB 2CSR272199R1064 ABB - DS202C M C6 A30 110V
$0.00
Sold Out

DS202C M C6 A30 110V Residual Current Circuit Breaker with Overcurrent Protection

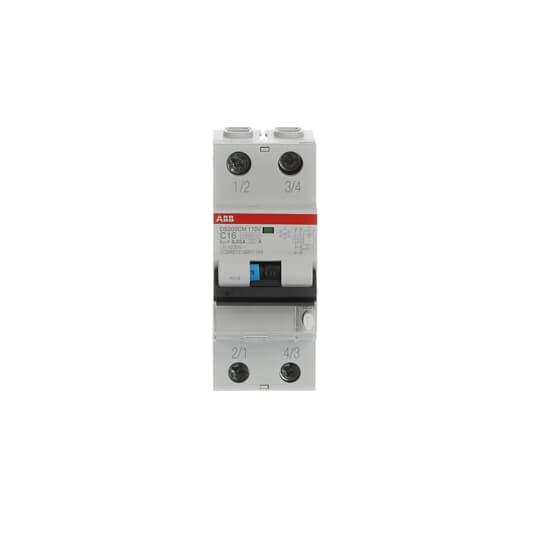

2CSR272199R1164 ABB - DS202C M C16 A30 110V
ABB 2CSR272199R1164 ABB - DS202C M C16 A30 110V
$0.00
Sold Out

DS202C M C16 A30 110V Residual Current Circuit Breaker with Overcurrent Protection
2CSR272440R1105 ABB - DS202C M B10 APR30
ABB 2CSR272440R1105 ABB - DS202C M B10 APR30
$0.00
Sold Out

DS202C M B10 APR30 Residual Current Circuit Breaker with Overcurrent Protection
2CSR273001R1065 ABB - DS203 M AC-B6/0.03
ABB 2CSR273001R1065 ABB - DS203 M AC-B6/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
B
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
B
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
6 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
6.2 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1
2CSR273001R1104 ABB - DS203 M AC-C10/0.03
ABB 2CSR273001R1104 ABB - DS203 M AC-C10/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
C
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
C
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
10 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
4.4 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
SCIP:
33e3f2dd-9733-418c-a8a6-443f1d04461c Italy
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1
2CSR273001R1105 ABB - DS203 M AC-B10/0.03
ABB 2CSR273001R1105 ABB - DS203 M AC-B10/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
B
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
B
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
10 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
4.4 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1

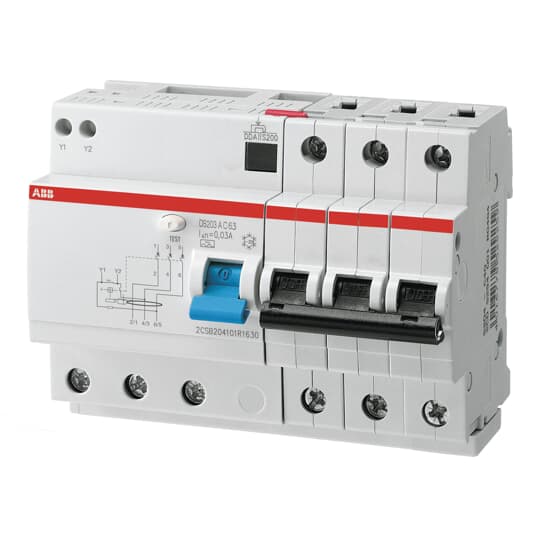

2CSR273001R1164 ABB - DS203 M AC-C16/0.03
ABB 2CSR273001R1164 ABB - DS203 M AC-C16/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
C
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
C
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
16 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
6.6 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
SCIP:
33e3f2dd-9733-418c-a8a6-443f1d04461c Italy
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1
2CSR273001R1165 ABB - DS203 M AC-B16/0.03
ABB 2CSR273001R1165 ABB - DS203 M AC-B16/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
B
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
B
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
16 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
6.6 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
SCIP:
33e3f2dd-9733-418c-a8a6-443f1d04461c Italy
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1
2CSR273001R1204 ABB - DS203 M AC-C20/0.03
ABB 2CSR273001R1204 ABB - DS203 M AC-C20/0.03
$0.00
Sold Out

Technical

Type of Residual Current:
Type AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 15 kA
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Number of Earth Leakage Circuit Breakers (ELCBs):
1
Operating Characteristic:
Instantaneous
Release Type:
C
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²

Electrical

Short-Circuit Current Rating (SCCR):
30 mA
Tripping Characteristic:
C
Rated Voltage (Ur):
400 V AC
Rated Operational Voltage:
400 V AC
Rated Current (In):
20 A
Rated Residual Current:
30 mA
Rated Short-Circuit Capacity:
(400 V AC) 10 kA
Maximum Breaking Capacity:
10 kA
Rated Frequency (f):
50 … 60 Hz
Power Loss:
9.3 W

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20211115
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
SCIP:
33e3f2dd-9733-418c-a8a6-443f1d04461c Italy
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms
Environmental Information:

Dimensions

Product Net Width:
87.5 mm
Product Net Height:
85 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
625 g

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.655 kg

Certificates and Declarations

Declaration of Conformity - CE:

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002281 - Distributor assembly with combination RCCB/MCB
ETIM 10:
EC002281 - Distributor assembly with combination RCCB/MCB
eClass:
V11.0 : 27400618
Object Classification Code:
F
Standards:
IEC/EN 60947-2
IEC/EN 61009-1
IEC/EN 60947-2
IEC/EN 61009-1

Recently viewed
