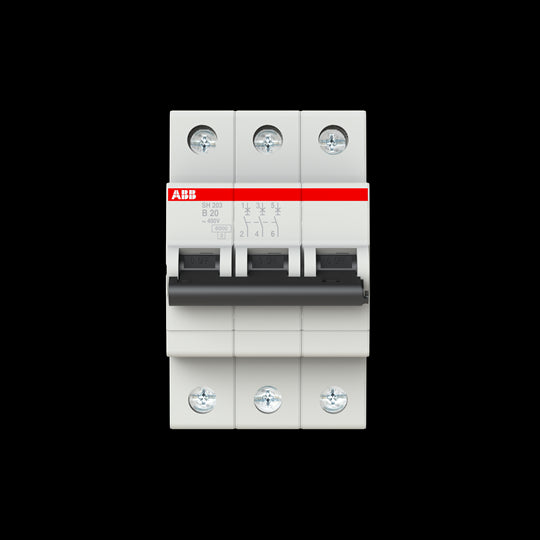

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

20 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

7.5 W

at Rated Operating Conditions per Pole 2.5 W

7.5 W

at Rated Operating Conditions per Pole 2.5 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210977

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0254 ABB - SH203-C25

$96.59

Only 9 units left

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

25 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

9.6 W

at Rated Operating Conditions per Pole 3.2 W

9.6 W

at Rated Operating Conditions per Pole 3.2 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210963

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0324 ABB - SH203-C32

$96.59

Only 9 units left

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

11.1 W

at Rated Operating Conditions per Pole 3.7 W

11.1 W

at Rated Operating Conditions per Pole 3.7 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210964

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0325 ABB - SH203-B32

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

11.1 W

at Rated Operating Conditions per Pole 3.7 W

11.1 W

at Rated Operating Conditions per Pole 3.7 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210979

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0404 ABB - SH203-C40

$81.14

In stock, 100 units

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

14.4 W

at Rated Operating Conditions per Pole 4.8 W

14.4 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210965

Replaced Product ID (OLD):

9PAA00000018391

9PAA00000018393

9PAA00000018397

9PAA00000018391

9PAA00000018393

9PAA00000018397

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0405 ABB - SH203-B40

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

(400 V) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

14.4 W

at Rated Operating Conditions per Pole 4.8 W

14.4 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

E-Number (Finland):

3210980

Replaced Product ID (OLD):

9PAA00000018387

9PAA00000018399

9PAA00000018405

9PAA00000018387

9PAA00000018399

9PAA00000018405

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0504 ABB - SH203-C50

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

50 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

9.75 W

at Rated Operating Conditions per Pole 3.25 W

9.75 W

at Rated Operating Conditions per Pole 3.25 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

ABB 2CDS213001R0634 ABB - SH203-C63

$103.67

Only 6 units left

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  92.1 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Cage Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

No

Connecting Capacity:

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

63 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(400 V AC) 6 kA

(AC) 6 kA

(400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

14.4 W

at Rated Operating Conditions per Pole 4.8 W

14.4 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

Design

Housing Material:

Insulation Group II, RAL 7035

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

Enclosure with Cover IP40

IP20

Enclosure with Cover IP40

Pollution Degree:

2

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

EU Declaration of Conformity SH200_SH200M_SH200T_SH200L

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.39 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Compact Home Protection and comfort system for your home

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

Certification Agency:

EN

IEC

EN

IEC

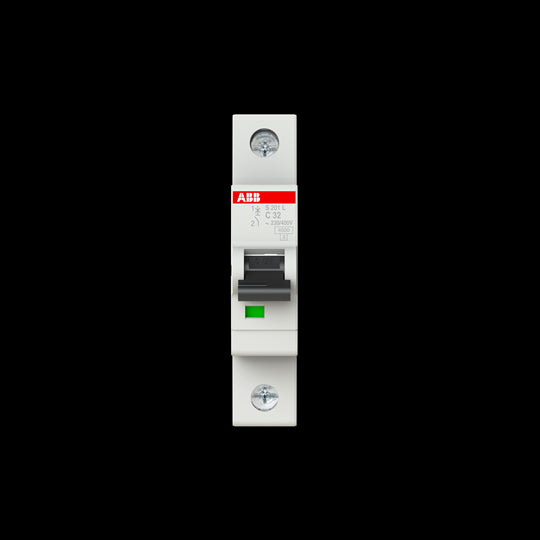

ABB 2CDS241701R0324 ABB - S201L-C32

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

32 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(230 / 400 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(230 / 400 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.7 W

at Rated Operating Conditions per Pole 3.7 W

3.7 W

at Rated Operating Conditions per Pole 3.7 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

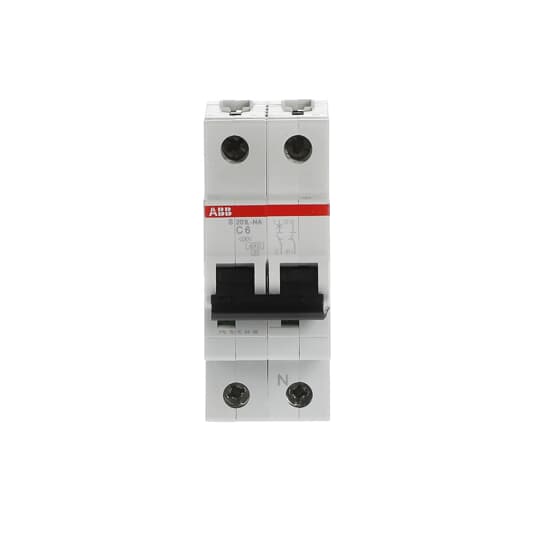

ABB 2CDS241801R0064 ABB - S201L-C6NA

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4 W

at Rated Operating Conditions per Pole 2 W

4 W

at Rated Operating Conditions per Pole 2 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2.0

Product Net Width:

35 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.25 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 5 piece

Package Level 1 Gross Weight:

1.3 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

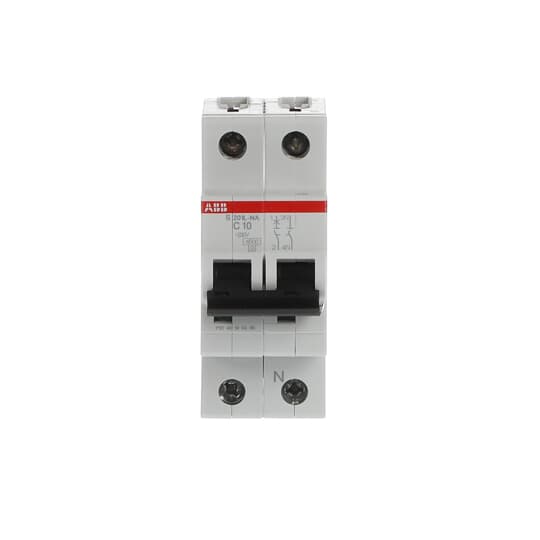

ABB 2CDS241801R0104 ABB - S201L-C10NA

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

10 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.2 W

at Rated Operating Conditions per Pole 2.1 W

4.2 W

at Rated Operating Conditions per Pole 2.1 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2.0

Product Net Width:

35 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.25 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 5 piece

Package Level 1 Gross Weight:

1.3 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

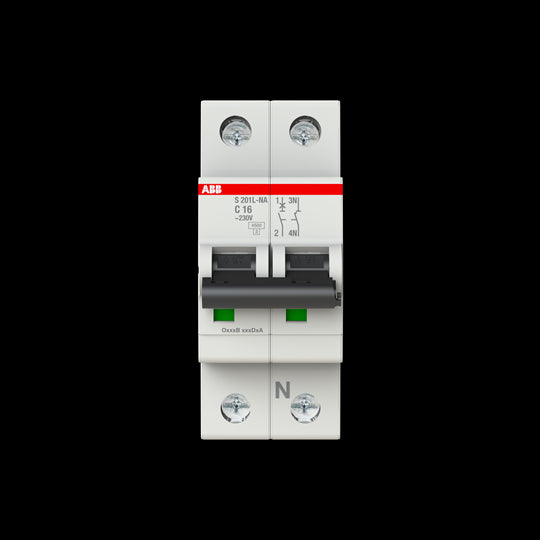

ABB 2CDS241801R0164 ABB - S201L-C16NA

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

16 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

5 W

at Rated Operating Conditions per Pole 2.5 W

5 W

at Rated Operating Conditions per Pole 2.5 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2.0

Product Net Width:

35 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.25 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 5 piece

Package Level 1 Gross Weight:

1.3 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

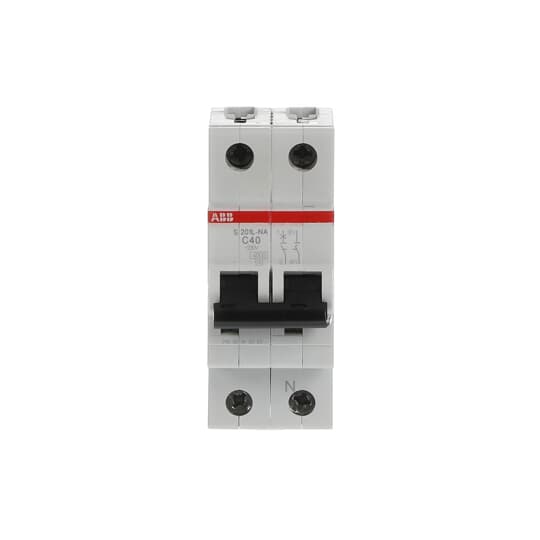

ABB 2CDS241801R0404 ABB - S201L-C40NA

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

(133 V AC) 10 kA

(230 V AC) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P+N

Position of Neutral Terminals:

Right

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60898-1 230 V

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(230 V AC) 4.5 kA

(230 V) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

(400 V) 6 kA

(230 V) 6 kA

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

9.6 W

at Rated Operating Conditions per Pole 4.8 W

9.6 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

2.0

Product Net Width:

35 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.25 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 5 piece

Package Level 1 Gross Weight:

1.3 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

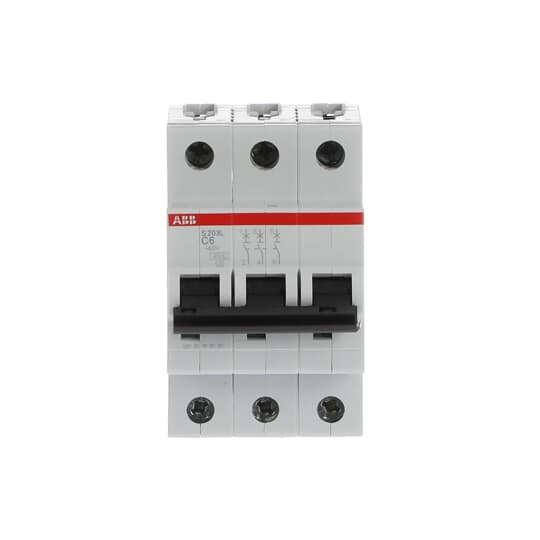

ABB 2CDS243701R0064 ABB - S203L-C6

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

6 W

at Rated Operating Conditions per Pole 2 W

6 W

at Rated Operating Conditions per Pole 2 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.4 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

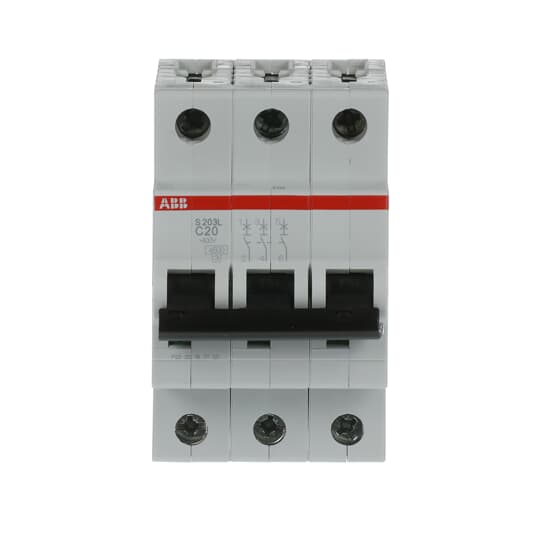

ABB 2CDS243701R0204 ABB - S203L-C20

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

20 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

7.5 W

at Rated Operating Conditions per Pole 2.5 W

7.5 W

at Rated Operating Conditions per Pole 2.5 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.4 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

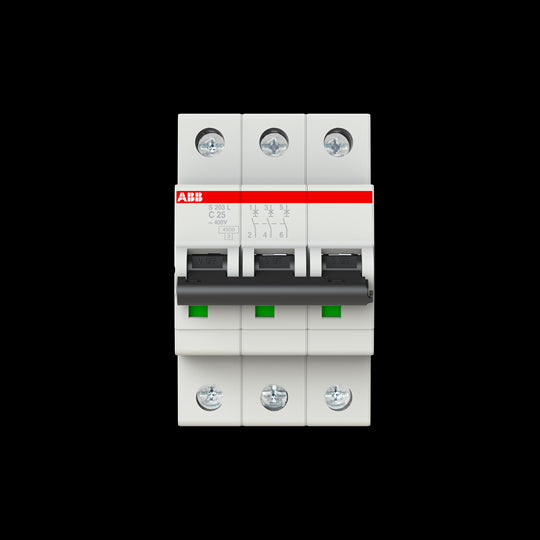

ABB 2CDS243701R0254 ABB - S203L-C25

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

3

Number of Poles:

3P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

25 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

9.6 W

at Rated Operating Conditions per Pole 3.2 W

9.6 W

at Rated Operating Conditions per Pole 3.2 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

3.0

Product Net Width:

52.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.375 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.4 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS244701R0064 ABB - S204L-C6

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  80.7 %

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions:

End of life instruction S200, S200L, SZ200, SC200, S200M

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

(230 V AC) 10 kA

(400 V AC) 6 kA

(230 V) 10 kA

(400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

(230 V AC) 7.5 kA

(400 V AC) 4.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

ON / OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

4

Number of Poles:

4P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

C

Rated Operational Voltage:

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

acc. to IEC 60898-1 400 V AC

acc. to IEC 60898-1 400 V

acc. to IEC 60947-2 400 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

(AC) 4.5 kA

(DC) 4.5 kA

(400 V AC) 4.5 kA

(400 V) 4.5 kA

Rated Conditional Short-Circuit Current (I_nc):

(400 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

8 W

at Rated Operating Conditions per Pole 2 W

8 W

at Rated Operating Conditions per Pole 2 W

Overvoltage Category:

III

I²t Characteristic:

RoHS declaration of conformity - S200L, S200, S200M

Design

Housing Material:

Insulation Group I, RAL 7035

Technical UL/CSA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20161001

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Environmental Information:

Dimensions

Width in Number of Modular Spacings:

4.0

Product Net Width:

70 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.5 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 1 piece

Package Level 1 Gross Weight:

0.51 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

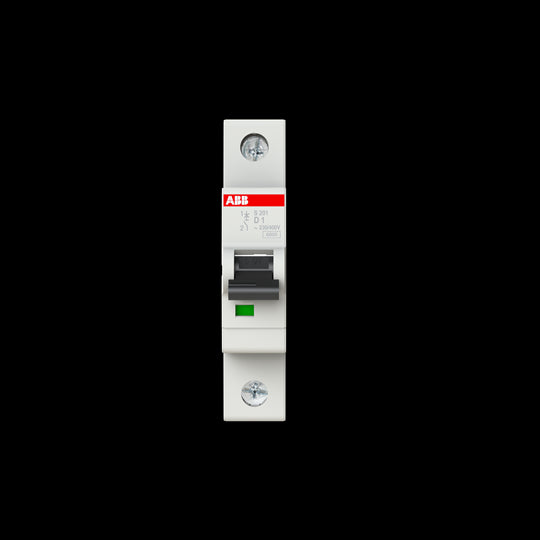

ABB 2CDS251001R0011 ABB - S201-D1

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

IEC/EN 60898-1

IEC/EN 60947-2

Certification Agency:

EN

IEC

EN

IEC

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

1 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.25 W

at Rated Operating Conditions per Pole 1.25 W

1.25 W

at Rated Operating Conditions per Pole 1.25 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664858

E-Number (Sweden):

2100625

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0021 ABB - S201-D2

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

2 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.65 W

at Rated Operating Conditions per Pole 1.65 W

1.65 W

at Rated Operating Conditions per Pole 1.65 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664863

E-Number (Sweden):

2100627

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

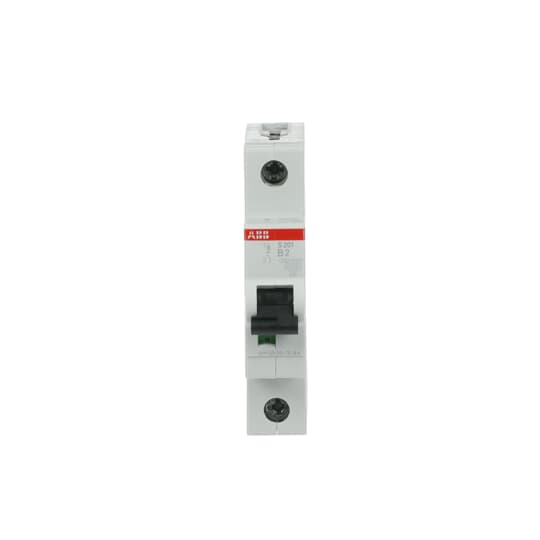

ABB 2CDS251001R0025 ABB - S201-B2

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

2 A

Rated Short-Circuit Capacity:

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

at Rated Operating Conditions per Pole 1.8 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(133 V AC) 6 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(133 V AC) 6 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3211129

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0031 ABB - S201-D3

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

3 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.2 W

at Rated Operating Conditions per Pole 1.2 W

1.2 W

at Rated Operating Conditions per Pole 1.2 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664865

E-Number (Sweden):

2100628

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0041 ABB - S201-D4

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

4 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.7 W

at Rated Operating Conditions per Pole 1.7 W

1.7 W

at Rated Operating Conditions per Pole 1.7 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664867

E-Number (Sweden):

2100629

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

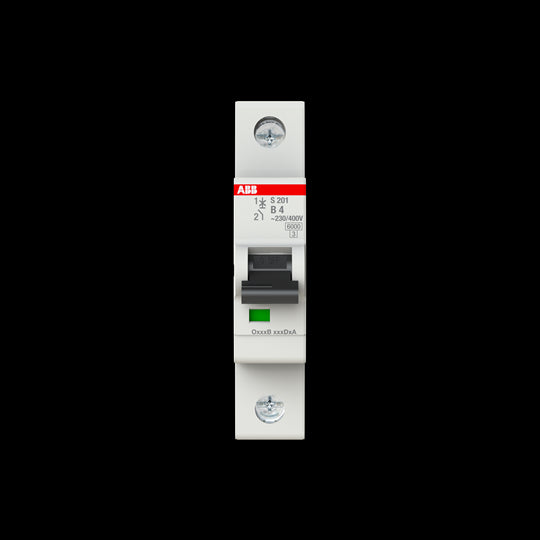

ABB 2CDS251001R0045 ABB - S201-B4

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC / 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC / 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

4 A

Rated Short-Circuit Capacity:

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 6 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

at Rated Operating Conditions per Pole 1.8 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

277 V AC

Interrupting Rating acc. to UL1077:

(133 V AC) 6 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(133 V AC) 6 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

2CDK400003K0201

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

0335

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

85 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.3 kg

E-Number (Finland):

3211130

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0061 ABB - S201-D6

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.9 W

at Rated Operating Conditions per Pole 1.9 W

1.9 W

at Rated Operating Conditions per Pole 1.9 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664869

E-Number (Sweden):

2100630

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:
