Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Preventa Safety automation |

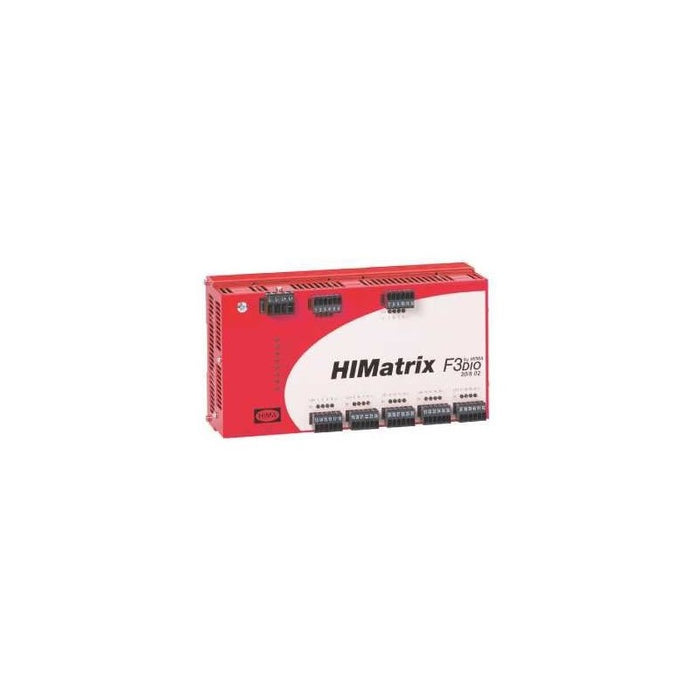

| Product or Component Type | Preventa safety remote mixed I/O module |
| Safety module name | XPSMF3 |
| Safety module application | Extension of I/O capacity |
| Safety use category | Category 4 maximum EN 954-1 Performance level e EN/ISO 13849-1 SIL 3 EN/IEC 61508 |
| Function of module | Monitoring safety actuators discrete input Monitoring safety actuators discrete output Monitoring safety detection discrete input Monitoring safety dialogue discrete input Monitoring safety dialogue discrete output Monitoring short-circuit and line break line control outputs |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Supply | SELV or PELV EN/IEC 60950 |
| Discrete input number | 16 not isolated |
| Number of outputs | 2 not isolated line control outputs |
| Discrete output number | 16, not isolated |
| Structure type | 10BASE-T/100BASE-TX |
Complementary
| Characteristic | Value(s) |
|---|---|
| Response Time | Depending on size of application |
| Associated fuse rating | 16 A, slow-blow |
| Voltage state 0 guaranteed | <= 5 V discrete input |
| Voltage state 1 guaranteed | 15...< 30 V discrete input |
| Current state 0 guaranteed | 1...1.5 mA discrete input) |
| Current state 1 guaranteed | <= 2 mA discrete input) |
| Discrete input voltage | 20 V |
| Discrete input current | 40 mA |
| Input protection type | Protected against short-circuit |
| Output voltage | 20 V line control outputs |
| Nominal output current | 60 mA line control outputs |
| Switching voltage | 7.5 V discrete input |
| Switching time | 250 µs |
| Discrete output voltage | 24 V DC |
| Output voltage tolerance | +/- 3 % |
| Discrete output current | > 10 mA 140 °F (60 °C) channels 1 to 3, 5 to 7, 4 and 8) 1 A 140 °F (60 °C) channels 1 to 3, 5 to 7, 4 and 8) 2 A 104 °F (40 °C) channels 1 to 3, 5 to 7, 4 and 8) <= 9 A all channels) |
| Inductive load | 500 mH discrete output |
| Maximum tungsten load | <25 W discrete output |
| Maximum line resistance | 5 kOhm discrete output |
| Minimum load | 2 mA per channel |
| Maximum leakage current | 1 mA 2 V at state 0 discrete output |
| Communication port protocol | Safe Ethernet 2 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Number of terminal blocks | 1 line control outputs 1 power supply 3 discrete output 4 discrete input |
| Current consumption | 14 A 24 V DC on power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 3.4 in (86.5 mm) |
| Height | 4.3 in (109 mm) |
| Width | 8.07 in (205 mm) |
| Product Weight | 2.9 lb(US) (1.3 kg) |
