Main
| Characteristic | Value(s) |
|---|---|

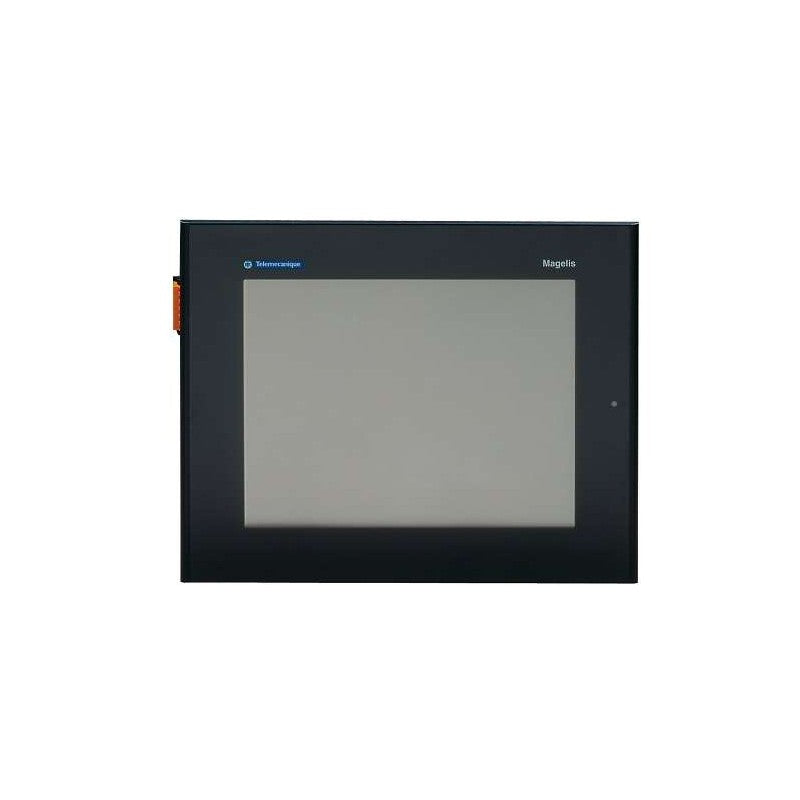

| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit colour TFT LCD |
| Display colour | 65536 colours |
| Display Resolution | 640 x 480 pixels VGA |
| Display size | 7.5 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 266 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery 32 MB flash EPROM application memory |
| Integrated connection type | RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s removable screw terminal block power supply RJ45 Ethernet TCP/IP 3 removable screw terminal block digital output removable screw terminal block audio output removable screw terminal block digital input USB type A master port (V1.1) |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm |
Complementary
| Characteristic | Value(s) |
|---|---|
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 54000 hours |
| Brightness | 8 levels via touch panel |
| Contrast | 8 levels via touch panel |
| Character font | Japanese (ANK, Kanji) Korean Chinese (simplified Chinese) ASCII (European characters) Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 30 A |
| Power Consumption in W | 28 W |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Data storage equipment | 1 Compact Flash card >= 1 GB |
| Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 screw clamps By 4 spring clips |
| Front material | Aluminium alloy |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 8.5 in (215 mm) |
| Height | 6.7 in (170 mm) |
| Depth | 2.4 in (60 mm) |
| Product Weight | 4.0 lb(US) (1.8 kg) |
