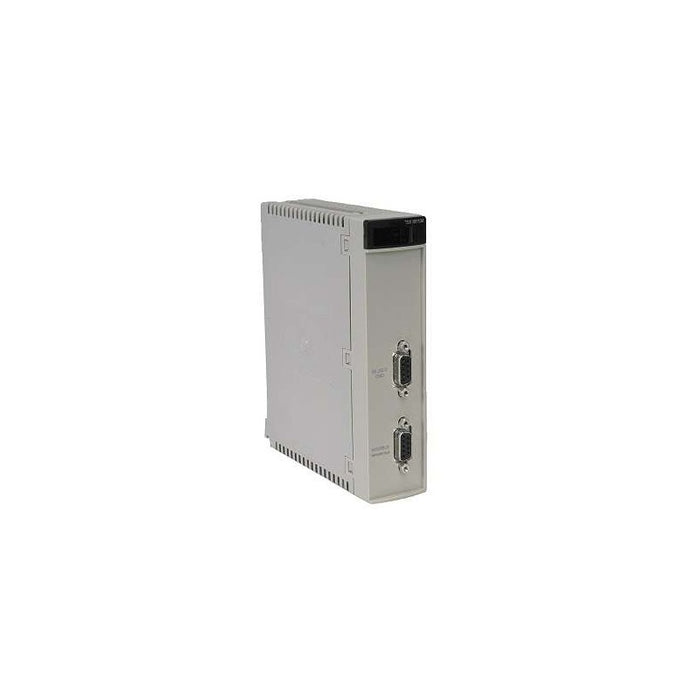

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | InterBus bus module |
| Product Specific Application | For Premium PLC |
| Structure type | Industrial bus |
| Number of tap-offs | <= 16 remote bus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Physical interface | Combined interface InterBus loop RS485 remote bus RS485 with 24 V DC in cable installation remote bus TTL local bus |
| Method of access | Master/slave generation 4 |
| Mode of Transmission | NRZ |
| Transmission Rate | 500 kbit/s |
| Transmission support medium | 2 x 1.5 mm² InterBus loop Fiber optic remote bus Infrared remote bus Rotating collector remote bus Twisted pair remote bus Wave guide rail remote bus |
| Maximum length of segment | 656.2 ft (200 m) InterBus loop 1312.3 ft (400 m) remote bus |
| Maximum cable distance between devices | 4.9 ft (1.5 m) local bus between 2 bus terminals modules 4.9 ft (1.5 m) local bus between bus terminal module and first module 32.8 ft (10 m) InterBus loop between 2 bus terminals modules 32.8 ft (10 m) local bus between bus terminal module and last module 328.08 ft (100 m) InterBus loop between bus terminal module and last module 41994.8 ft (12800 m) remote bus between module and last station on the remote bus 65.6 ft (20 m) InterBus loop between bus terminal module and first module 1312.3 ft (400 m) remote bus between 2 bus terminals modules 1312.3 ft (400 m) remote bus between module and the first bus terminal module 164.04 ft (50 m) installation remote bus between 2 bus terminals modules 164.04 ft (50 m) between bus terminal module and first module 164.04 ft (50 m) installation remote bus between bus terminal module and last module |
| Number of loops | 1 InterBus loop |
| Number of bus terminals module | 254 remote bus |
| Number of server device(s) | 512 remote bus 63 InterBus loop 8 local bus |
| Maximum input/output number | Remote bus 4096 3872 3872 |
| Communication service | Bus operating modes management Cyclical variable exchange Logical addressing PMS messaging Pre-processing Segmentation Implicit exchange of data process 242 %IW 242 %QW |
| Local signalling | 6 LEDs |
| Electrical connection | 1 connector female SUB-D 9 RS232 CMD tool software support 1 connector female SUB-D 9 RS485 Interbus link |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.71 lb(US) (0.32 kg) |
