This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This line terminator for rack end is a connection accessory of programmable automation controller modules. This product is composed with one 9-way SUB-D connector labelled A and one 9-way SUB-D connector labelled B. It weighs 0.05kg. It is suitable for process and machine safety functions like emergency shut down, fire and gas, burner or boiler management, control access for safety machines, material handling and turbo machinery. This product is compatible for use with TSXRKYxxEX rock end. The set includes 2 pieces. Reduces maintenance and training costs, same spare parts in stock, unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Line terminator |
| Accessory / separate part designation | Line terminators |
| Accessory / separate part destination | Rack end |
| Quantity per Set | Set of 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TSXRKY..EX. |
| Kit composition | 1 connector SUB-D 9 labelled A 1 connector SUB-D 9 labelled B |
| Product Weight | 0.11 lb(US) (0.05 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Communication module |
| Software Designation | Unity Pro |
| Structure type | Heterogeneous industrial bus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Premium Atrium |
| Method of access | Master/slave type |
| Integrated connection type | 1 serial link 1 SUB-D 25 1 slot for PCMCIA type III card |
| Communication Port Protocol | Multiprotocol |
| Communication port support | RS485 isolated |
| Mode of Transmission | Asynchronous in baseband |
| Transmission frame | RTU/ASCII |
| Transmission Rate | 1.2...19.2 kbit/s |
| Transmission support medium | 2 twisted shielded pairs cable |
| Number of devices | 28 |
| Number of addresses | 0â¦97 |
| Bus length | 0.0000000000â¦4265.09 ft (0â¦1300 m) Modbus |
| Maximum tap links length | 49.2 ft (15 m) |
| Requests | 120 words per request 1920 bits per request |
| Control parameter | One CRC 16 on each frame |
| Monitoring function | Event counters Diagnostic counters |
| Modbus funtions available | Event connection Modbus master 0C Event connection Modbus slave 0C Event counter Modbus master 0B Event counter Modbus slave 0B Identification Modbus slave 11 Slave identification Modbus master 11 Write n output bits Modbus slave 0F Write n output words Modbus slave 10 Diagnostic Modbus master 08 Diagnostic Modbus slave 08 Exceptional read status Modbus master 07 Exceptional read status Modbus slave 07 Read input words Modbus master 04 Read n input words Modbus slave 04 Write 1 bits or n bits Modbus master 05 Write 1 input word Modbus slave 06 Write 1 output bit Modbus slave 05 Write 1 word or n word Modbus master 06 |
| Local signalling | 1 LED for communication (CH0) 1 LED for internal fault, module failure (ERR) 1 LED for module operating (RUN) |
| Current consumption | 350 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.79 lb(US) (0.36 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | InterBus bus module |
| Product Specific Application | For Premium PLC |
| Structure type | Industrial bus |
| Number of tap-offs | <= 16 remote bus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Physical interface | Combined interface InterBus loop RS485 remote bus RS485 with 24 V DC in cable installation remote bus TTL local bus |
| Method of access | Master/slave generation 4 |
| Mode of Transmission | NRZ |
| Transmission Rate | 500 kbit/s |
| Transmission support medium | 2 x 1.5 mm² InterBus loop Fiber optic remote bus Infrared remote bus Rotating collector remote bus Twisted pair remote bus Wave guide rail remote bus |
| Maximum length of segment | 656.2 ft (200 m) InterBus loop 1312.3 ft (400 m) remote bus |
| Maximum cable distance between devices | 4.9 ft (1.5 m) local bus between 2 bus terminals modules 4.9 ft (1.5 m) local bus between bus terminal module and first module 32.8 ft (10 m) InterBus loop between 2 bus terminals modules 32.8 ft (10 m) local bus between bus terminal module and last module 328.08 ft (100 m) InterBus loop between bus terminal module and last module 41994.8 ft (12800 m) remote bus between module and last station on the remote bus 65.6 ft (20 m) InterBus loop between bus terminal module and first module 1312.3 ft (400 m) remote bus between 2 bus terminals modules 1312.3 ft (400 m) remote bus between module and the first bus terminal module 164.04 ft (50 m) installation remote bus between 2 bus terminals modules 164.04 ft (50 m) between bus terminal module and first module 164.04 ft (50 m) installation remote bus between bus terminal module and last module |
| Number of loops | 1 InterBus loop |
| Number of bus terminals module | 254 remote bus |
| Number of server device(s) | 512 remote bus 63 InterBus loop 8 local bus |
| Maximum input/output number | Remote bus 4096 3872 3872 |
| Communication service | Bus operating modes management Cyclical variable exchange Logical addressing PMS messaging Pre-processing Segmentation Implicit exchange of data process 242 %IW 242 %QW |
| Local signalling | 6 LEDs |
| Electrical connection | 1 connector female SUB-D 9 RS232 CMD tool software support 1 connector female SUB-D 9 RS485 Interbus link |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.71 lb(US) (0.32 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Ethernet TCP/IP module |
| Physical interface | AUI - 100BASE-5 1 AUI cable RJ45 - 10BASE-T 1 twisted pair |
| Transmission rate | 10 Mbit/s |
| Communication service | Modbus TCP messaging Optional TCP open SNMP agent Uni-TE messaging Common words, Ethway/X-Way Application to application, Ethway/X-Way |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED for collision detection (COL) 1 LED for Ethernet network status (RUN) 1 LED for Ethernet port fault (ERR) 1 LED for transmission/reception activity (TX/TR) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Communication Port Protocol | Ethway/X-Way Modbus TCP Uni-Telway |
| Maximum number of connections | 64 |
| Web server | Transparent ready class C10 |
| web feature | Data Editor (via PC terminal) Rack viewer FactoryCast configurable |
| Memory description | User web page size 1.4 MB |
| Marking | CE |
| Product compatibility | PL7 Pro |
| Current consumption | 1200 mA 5 V DC with remote power supply (AUI) 800 mA 5 V DC without remote power supply (RJ45) |
| Module format | Standard |
| Product Weight | 0.82 lb(US) (0.37 kg) |

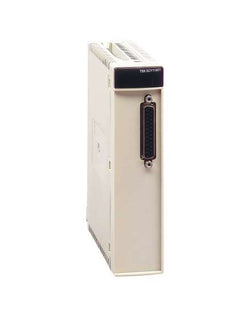

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Communication module |
| Software Designation | Unity Pro |
| Structure type | Heterogeneous industrial bus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Premium Atrium |
| Method of access | Master/slave type |
| Integrated connection type | 1 serial link 1 SUB-D 25 |
| Communication Port Protocol | Modbus |
| Communication port support | RS485 isolated |
| Mode of Transmission | Asynchronous in baseband |
| Transmission frame | RTU/ASCII Character mode Uni-Telway |
| Transmission Rate | 1.2...19.2 kbit/s |
| Transmission support medium | 2 twisted shielded pairs cable |
| Number of devices | 32 |
| Number of addresses | 0â¦247 |
| Bus length | 0.0000000000â¦4265.09 ft (0â¦1300 m) character mode 0.0000000000â¦4265.09 ft (0â¦1300 m) Modbus 0.0000000000â¦4265.09 ft (0â¦1300 m) Uni-Telway |
| Maximum tap links length | 49.2 ft (15 m) |
| Requests | 120 words per request 1920 bits per request |
| Control parameter | One CRC 16 on each frame |
| Monitoring function | Diagnostic counters Event counters |
| Modbus funtions available | Event connection Modbus master 0C Event connection Modbus slave 0C Event counter Modbus master 0B Event counter Modbus slave 0B Identification Modbus slave 11 Slave identification Modbus master 11 Write n output bits Modbus slave 0F Write n output words Modbus slave 10 Diagnostic Modbus master 08 Diagnostic Modbus slave 08 Exceptional read status Modbus master 07 Exceptional read status Modbus slave 07 Read bits Modbus master 01 Read input bits Modbus master 02 Read input bits Modbus master 04 Read n input bits Modbus slave 02 Read n input words Modbus slave 04 Read n output bits Modbus slave 01 Read n output words Modbus slave 03 Read words Modbus master 03 Write 1 bits or n bits Modbus master 05 Write 1 input word Modbus slave 06 Write 1 output bit Modbus slave 05 Write 1 word or n word Modbus master 06 |
| Local signalling | 1 LED for communication (CH0) 1 LED for internal fault, module failure (ERR) 1 LED for module operating (RUN) |
| Current consumption | 350 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.75 lb(US) (0.34 kg) |
