Main
| Characteristic | Value(s) |
|---|---|

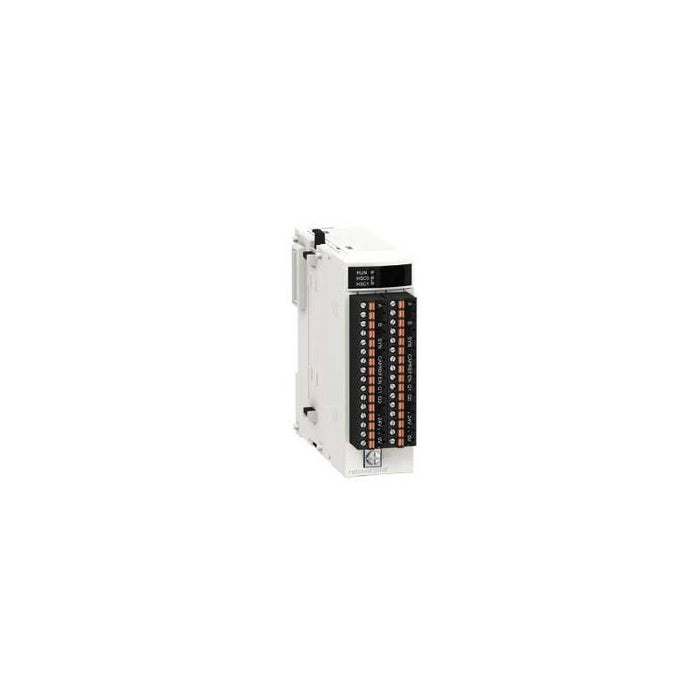

| Range of Product | Modicon M238 logic controller |
| Product or Component Type | Counter module |
| Electrical Connection | 2 spring terminal blocks |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of modules | 3 counter modules per TM238 base |
| Discrete input number | 12 EN/IEC 61131-2 type 1 |
| Discrete output number | 4 |
| Application specific I/O | Frequency generator Downcounting Frequency meter Upcounting Period measurement Axis following |
| Counting mode | 8 mode configurable |
| Counter inputs resolution | 31 bits + sign |
| Counting frequency | 60 kHz |
| Cycle time | 1 ms |
| Input compatibility | Incremental signal encoder with 15...30 V source outputs 2 and 3-wire sensors (24 V) |
| Type of cable | Shielded cable |
| Isolation between channels and internal logic | 1500 V for 1 minute |
| Discrete input type | Auxiliary input IN_CAP Auxiliary input IN_EN Auxiliary input IN_REF High-speed IN_A High-speed IN_B High-speed IN_SYNC |
| Discrete input logic | Positive logic (sink) |
| Discrete input voltage | 24 V DC |
| Voltage state 1 guaranteed | 15...30 V |
| Current state 1 guaranteed | 5 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 0.5 mA |
| Discrete input current | 2 mA 11 V |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC 19.2...30 V |
| Discrete output current | 0.5 A |
| Load current | 2 A per module 0.5 A per output |
| Response time on output | <= 200 µs energisation/de-energisation |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <3 V at state 1 |
| Short-circuit protection | Automatic reset after disappearance of fault |
| Output overload protection | 0.5...1.5 A trip current with automatic reset after fault disappearance, per o/p |
| Fallback status | Faulty channel set to 0 Each channel held at its last value or set to the predefined value (0 or 1) |
| Load inductance | L = 0.5/I²F |
| Load capacitance | 50 µF |
| Local signalling | 1 display block |
| Current consumption | <= 100 mA 24 V DC internal supply <= 100 mA 5 V DC internal supply <= 2 A 24 V DC external power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
