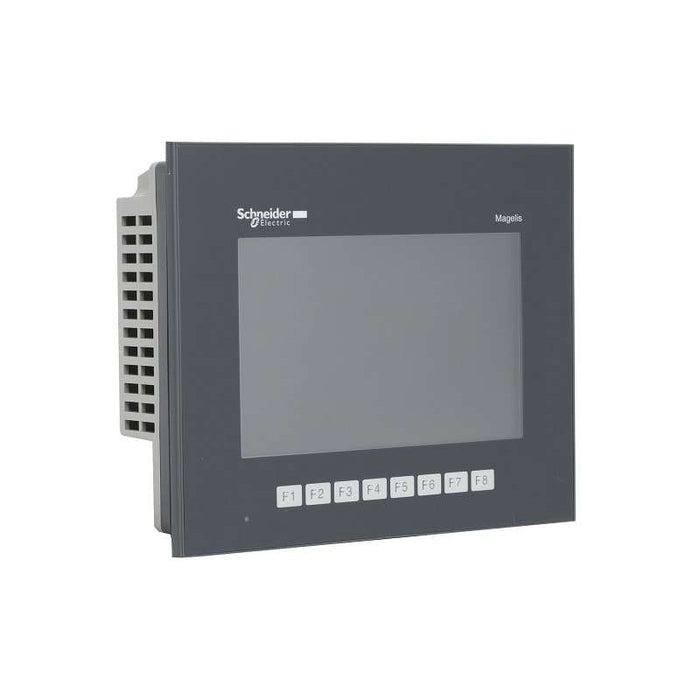

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7" color TFT LCD display, 800 x 480 pixels (WVGA), 8 function keys and 96MB EPROM. This touchscreen operator interface (HMI) is ideal for optimized information and communication. Ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. RS485 host port, ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony GTO |
| Product or Component Type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 7 inch |
| Supply | External source |
| Control Button Type | 8 operation defined using Vijeo Designer push-button key F1...F8 |
| Operating System | Harmony |
| Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal type | Touchscreen display |
| Display Type | Backlit colour TFT LCD |
| Display Resolution | 800 x 480 pixels WVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) |
| Brightness | 16 levels by touch panel 16 levels by software |
| Character font | Taiwanese (traditional Chinese) ASCII Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2â¦28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 8 W when power is not supplied to external devices 5 W when backlight is OFF 5.5 W when backlight is dimmed 12 W |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data is being transmitted COM2 LED yellow, faded no data transmission SD card LED green, steady card is inserted SD card LED green, faded card is not inserted or is not being accessed |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Memory description | Flash EPROM, 96 MB |
| Data backed up | 128 kB internal RAM SRAM) |
| Data storage equipment | SD card, <= 32 GB SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP |
| Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | by 4 screw clamps |
| Front material | PPT |
| Enclosure Material | PPT |
| type of cooling | Natural convection |
| Width | 8.6 in (218 mm) |
| Height | 6.8 in (173 mm) |
| Depth | 2.4 in (60 mm) |
| Product Weight | 2.6 lb(US) (1.2 kg) |
