Main
| Characteristic | Value(s) |
|---|---|

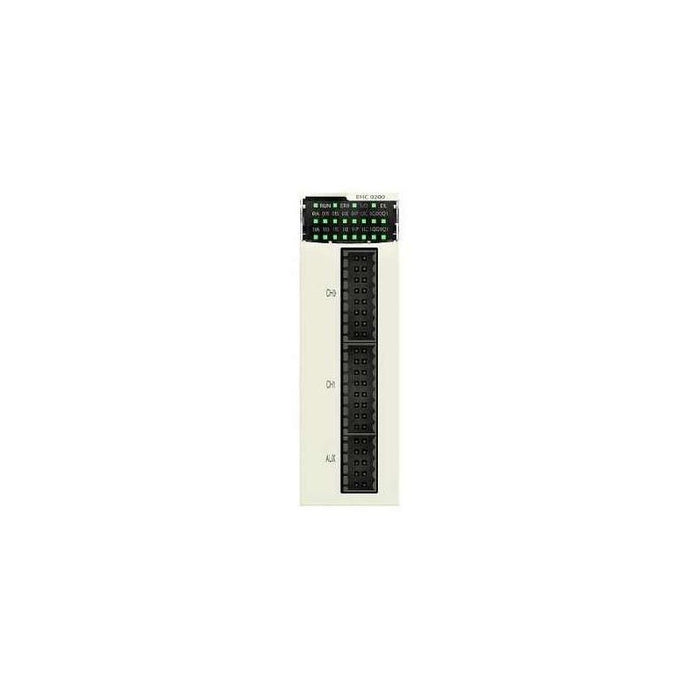

| Range of Product | Modicon M340 automation platform |
| Product or Component Type | Counter module |
| Product Specific Application | For severe environments |
| Number of channels | 2 |
| Maximum counting frequency | 60000 Hz |
| Number of inputs | 6 |
| Input compatibility | 19.2â¦30 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10...30 V totem pole |
| Input voltage | 24 V DC type 3 |
| Number of outputs | 2 |
| Output voltage | 24 V DC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Counter functions | Ratio count Frequency meter Down counting 32-bit counter counting Loop (modulo) counting Measure time periods Count events Width modulation |
| Cycle time | 1 ms |
| Isolation voltage | 1500 V 60 s |
| Input type | 3 auxiliary input 3 high speed |
| Input voltage limits | 19.2...30 V at 60 °C 26.4 V at 70 °C |
| Input current | 2 mA at 11 V |
| Voltage state 1 guaranteed | 11...30 V |
| Current state 1 guaranteed | >= 6 mA |
| Voltage state 0 guaranteed | < 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Discrete output logic | Positive or negative configurable |
| Maximum output current | 2 A per module 0.5 A per output |
| Output voltage limits | 19.2...30 V |
| Maximum load current | 1 A per module 0.5 A per output |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <3 V at state 1 |
| Output overload protection | Integrated |
| Output short-circuit protection | 1.5 A integrated |
| Overlap time | 0.2 ms |
| Electrical connection | 1 connector 10 pins for wiring auxiliary input and sensor power supply 1 connector 16 pins for wiring the sensors of counter 0 1 connector 16 pins for wiring the sensors of counter 1 |
| Current consumption | 200 mA 3.3 V DC bus 40 mA 24 V DC rack 80 mA 24 V DC sensor |
| Module format | Standard |
| Product Weight | 0.247 lb(US) (0.112 kg) |
