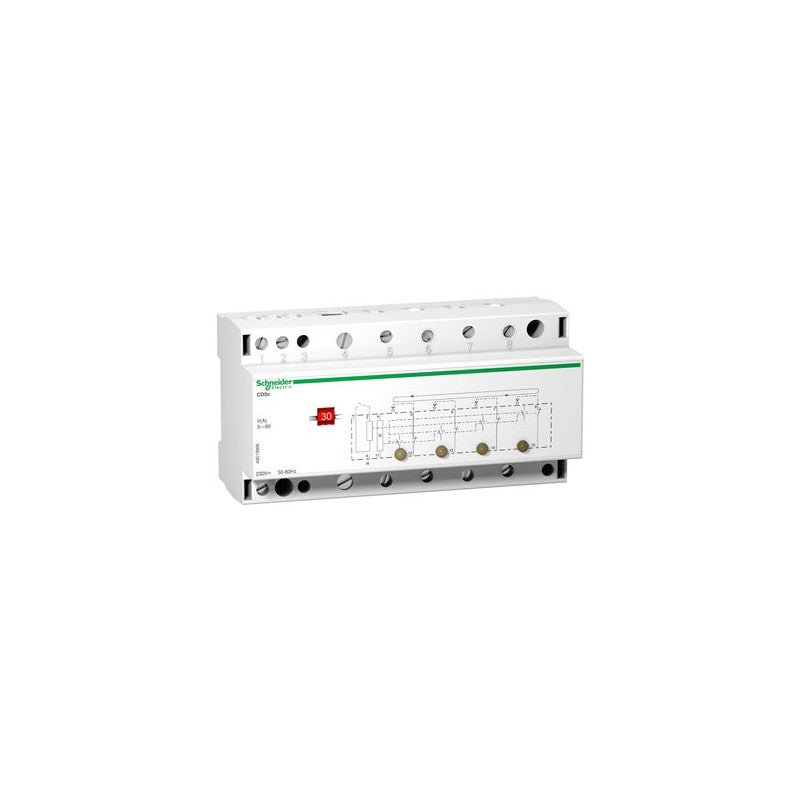

This Acti9 CDSc is single-phase load-shedder for 1 pole installation with 1 relay per phase. When the consumption exceeds the selected threshold, it temporarily cuts off the power supply to non-priority circuits. It increases the number of loads without modifying the installed power. The load-shedding and restoration in cascading configuration of 4 non-priority circuits via 4 relays with time-delayed action. This device reduces the installed power and prevents nuisance tripping of the upstream circuit breaker. The Iu Rated current is 5A to 90A. The Rated current (control contacts) is 1A. The Ui insulation voltage is 230VAC. The Ue operating voltage is 230VAC +/- 10%. The operating frequency is 50Hz or 60Hz. The power consumption is 12VA. The active power is 20kW maximum. The connection is done with rigid coper cables 10mm² to 50mm² or flexible or with ferrule copper cables 10mm² to 35mm². The dimensions are (W) 144mm x (H) 77mm x (D) 60mm. The width in 9mm pitches is 16. The weight is 600g. The degree of protection is IP20 and IP40 for a device in modular enclosure. The Operating temperature is -5°C to +50°C. The Storage temperature is -40°C to +70°C. It complies with NF C 61.750 and EN 500.81.1 standards.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| product name | Acti9 CDS |
| Product or component type | Load-shedding contactor |
| Device short name | CDSc |
| Number of channels | 4 |
| Control and monitoring type | Cascade |
| Poles description | 1P |
Complementary
| Characteristic | Value(s) |
|---|---|
| Setting | 40 10 90 30 5 45 75 15 50 20 25 60 |
| Power consumption in VA | 4 VA |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50/60 Hz |
| Rated current | 15 A for non-priority circuit Adjustable from 5 to 90 A for priority circuit |
| Local signalling | Load-shedding indication: 4 LEDs (yellow) |
| Mounting support | 35 mm symmetrical DIN rail Panel mounting Wall mounted |
| 9 mm pitches | 16 |
| Connections - terminals | Non-priority circuit: screw terminal2.5â¦10 mm² flexible Non-priority circuit: screw terminal2.5â¦10 mm² rigid Priority circuit: screw terminal10â¦35 mm² flexible Priority circuit: screw terminal10â¦50 mm² rigid |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Height | 77 mm |
| Width | 144 mm |
| Depth | 60 mm |
| Product weight | 0.6 kg |
| Colour | White (RAL 9003) |
| Tightening torque | Non-priority circuit: 2 N.m Priority circuit: 3.5 N.m |
| Wire stripping length | 12 mm 13 mm |
LIMIT SWITCH 600V 10AMP C +OPTIONS
LIMIT SWITCH 600VAC 12AMP T +OPTIONS

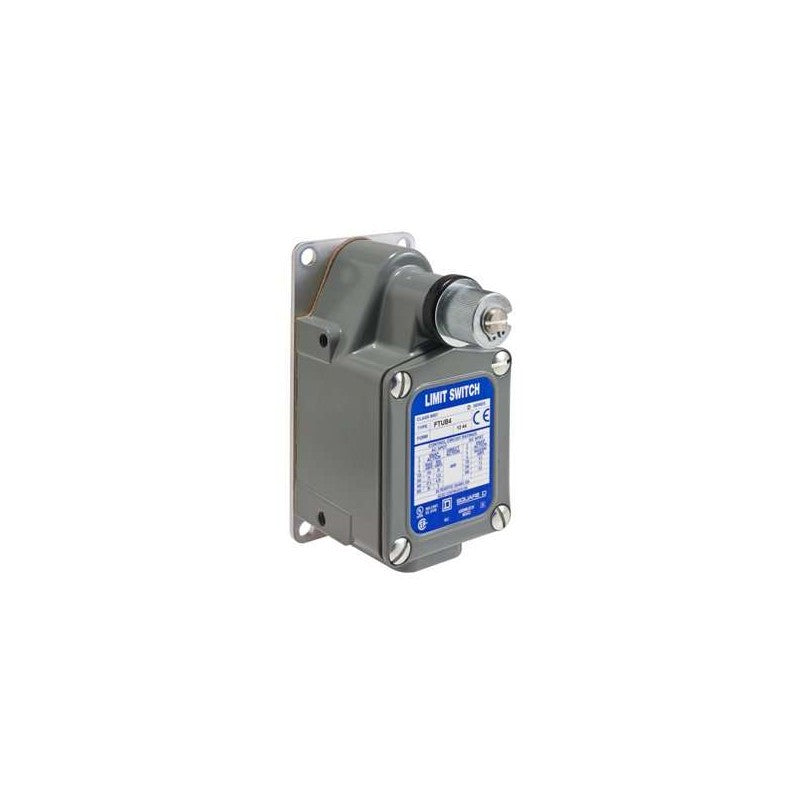

9007FT foundry limit switch - universal - spring return - CW+CCW - PG 13.5
LIMIT SWITCH LEVER ARM 21/2IN C
LIMIT SWITCH 600V 10AMP C +OPTIONS
LIMIT SWITCH LEVER ARM 21/2IN C
LIMIT SWITCH HEAD C
SNAP SWITCH 600V 10AMP C +OPTIONS
9007C limit switch - 1 NO/NC - wobble head - cat whisker
LIMIT SWITCH LEVER ARM 2IN C
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
LIMIT SWITCH LEVER ARM 2IN C
LIMIT SWITCH 600V 10AMP C +OPTIONS
LIMIT SWITCH LEVER ARM 3IN C
LIMIT SWITCH LEVER ARM 2IN C
LIMIT SWITCH LEVER ARM 3IN C
LIMIT SWITCH 600V 10AMP C +OPTIONS
9007C limit switch - 2 NO/NC neutral - rotary head - CW+CCW - standard

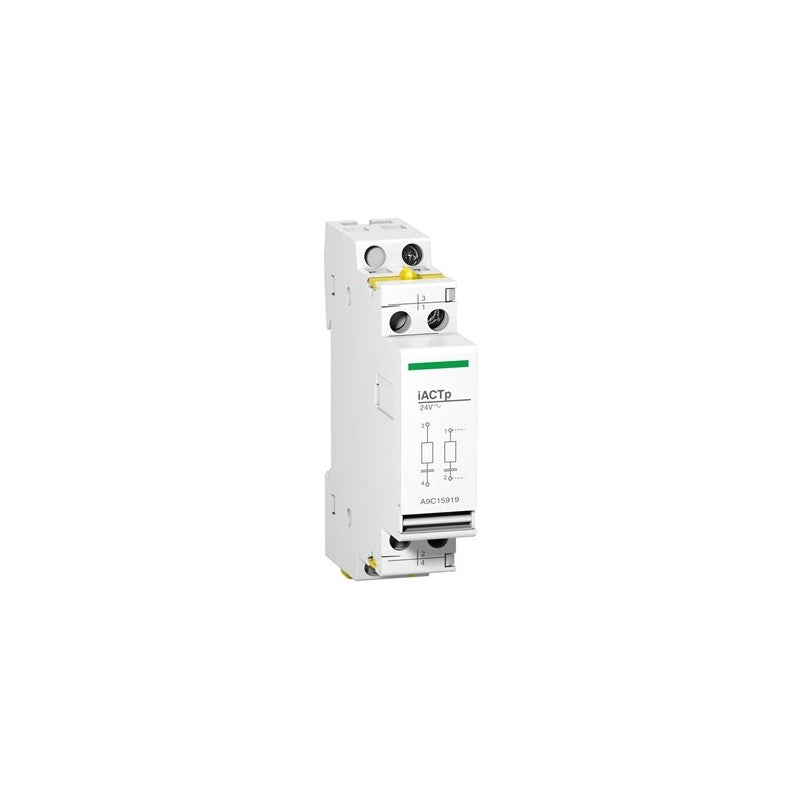

This Acti 9 iACTp is modular and reliable overvoltage protection auxiliary (2 circuits). It operates from 220VAC to 240VAC, at a frequency of 50/60 Hz. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. it si compatible only with Acti9 iCT greater or equal than 25A. This auxiliary is an interference suppressor which limits overvoltage on the control circuit. This product is compliant with IEC/EN 61095.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| Product or component type | Overvoltage protection auxiliary (2 circuits) |
| Device short name | iACTp |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Hold-in power consumption in VA | 3 VA |
| Mounting mode | Fixed, on the left of CT |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Colour | White |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 440 V |
| Standards | IEC/EN 61095 |
| Connections - terminals | Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5â¦2.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5â¦2.5 mm² flexible with ferrule Control circuit: yellow clips |
| Wire stripping length | 9 mm |
| Tightening torque | 0.8 N.m |
| Range compatibility | Acti9 iCT |
| Market segment | Small commercial Residential |
| Compatibility code | IACTp |
LIMIT SWITCH 600V 10AMP C +OPTIONS
9007CR limit switch - 2 NO/NC 2 stage - top push rod plunger - adjustable

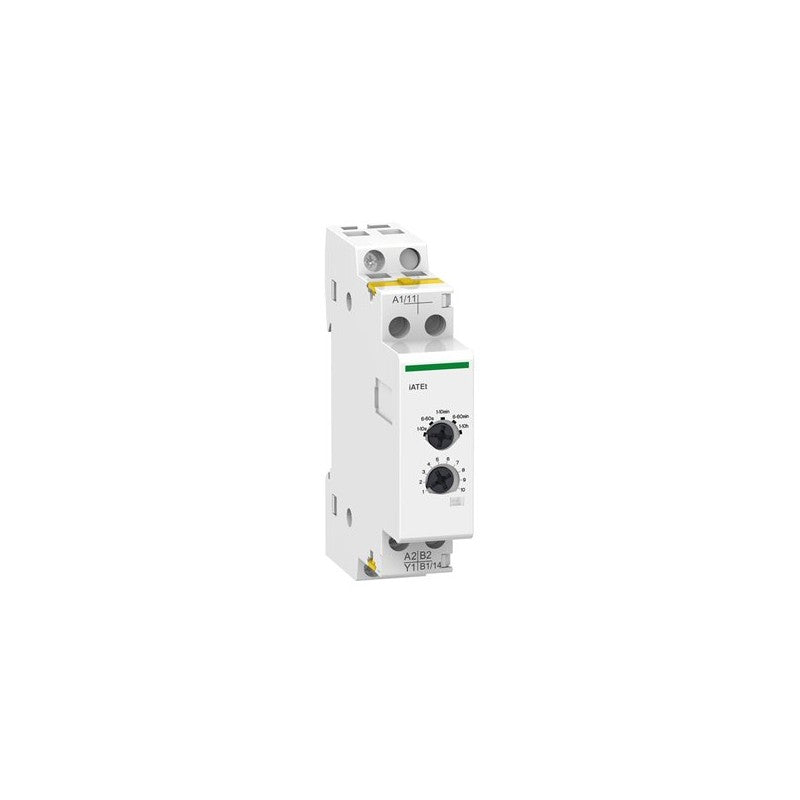

This Acti 9 iATEt is reliable time delay auxiliary. It operates from 24VAC to 240VAC and 24VDC to 110VDC control voltage. Mounting is performed on the left of iTL impulse relay or iCT contactor with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. 5 time delays are possible, 1 for iTL and 4 for iCT. This product is compliant with EN/IEC 60669-2-2.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| Product or component type | Time delay auxiliary |
| Device short name | iATEt |
| [Uc] control circuit voltage | 24...110 V DC impulse 24...240 V AC 50/60 Hz maintained |
Complementary
| Characteristic | Value(s) |
|---|---|
| Type of setting | Time delay configuration |
| Time delay range | 2 s...10 min 2 s...10 h 6...60 s 1...10 s 6 s...1 h |
| Maximum output current | 0.2 A holding 3 A inrush |
| Hold-in power consumption in VA | 5 VA |
| Mounting mode | Fixed, on the left of TL or CT |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Colour | White |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 440 V |
| Standards | EN/IEC 60669-2-2 |
| Connections - terminals | Output connection: yellow clips Input connection: tunnel type terminals 2 cable(s) 2.5 mm² flexible Input connection: tunnel type terminals 2 cable(s) 1.5 mm² rigid |
| Wire stripping length | 9 mm |
| Tightening torque | 0.8 N.m |
| Range compatibility | Acti9 iCT Acti9 iTL |
| Market segment | Small commercial Residential |
| Compatibility code | IATEt |
9007FT foundry limit switch - universal - maintained - CW+CCW - PG 13.5
