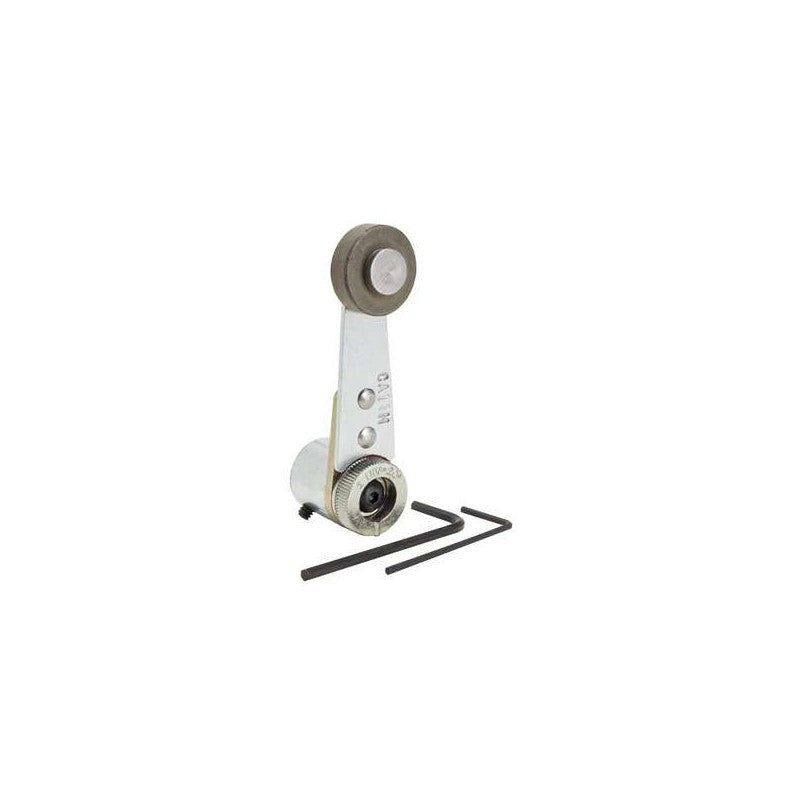

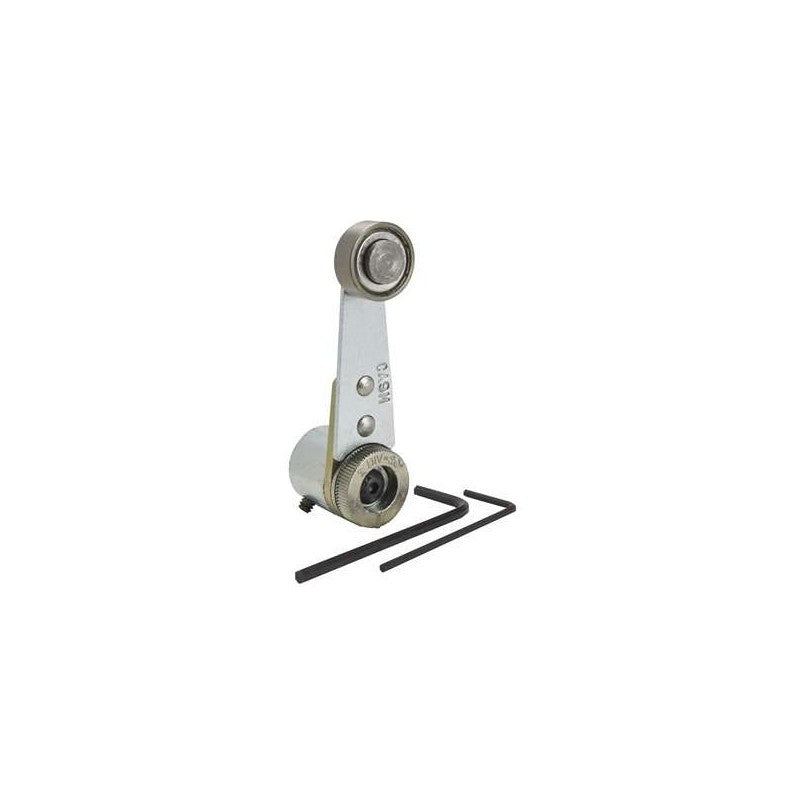

9007C limit switch lever - zinc - fixed length - outside steel roller

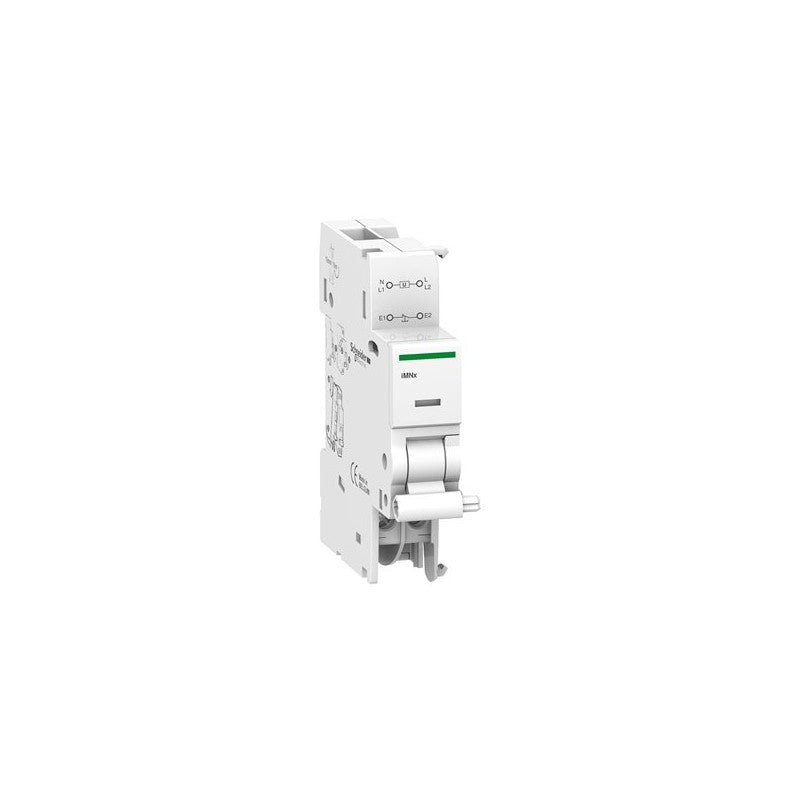

undervoltage release, Acti9, iMNx, voltage release, 380...415 V AC

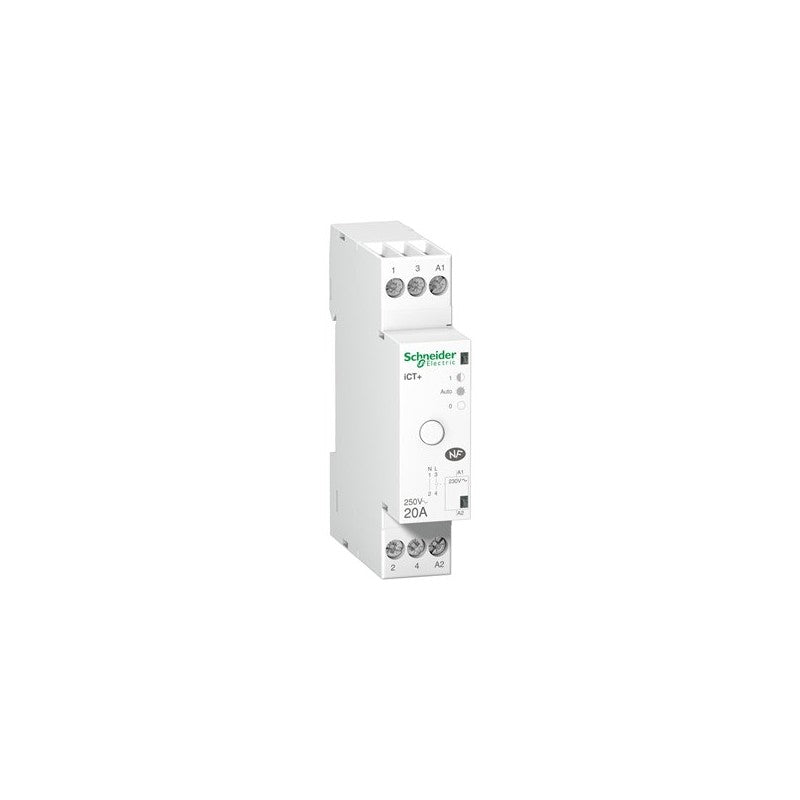

iCT plus HC 20A 1P Uc 230VAC

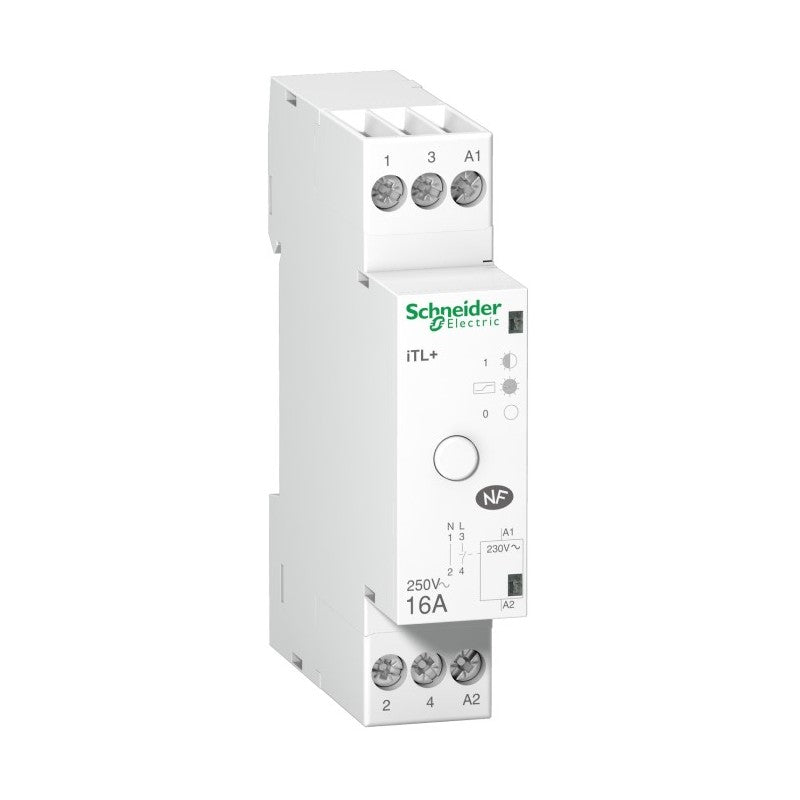

This Acti9 iTL+ is a silent modular impulse relay. This 1P+N device has 1 normally open contact. The rated current is 16A, 230VAC operating voltage and it operates with 230VAC control voltage. Electrical endurance goes up to 5000000 cycles for AC-21 or 5000000 cycles for AC-22. The switching frequency is 6 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The iTL+ high-performance impulse relay allows remote control of single-phase circuits. It is designed for demanding applications. It is mainly used for lighting control applications. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The product weight is 70g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C. This product is compliant with IEC/EN 60669-2-2 standard.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| product name | Acti9 iTL+ |
| Product or component type | Impulse relay |
| Device short name | iTL+ |
| Device application | Standard |
| Poles | 1P + N |
| Neutral position | Left |
| Pole contact composition | 1 NO |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage | 230 V AC 50 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| control type | Remote and manual control |
| Control signal type | Impulse |
| Switching frequency | 6 switching operation/minute |
| Impulse duration | 50 ms...1 s |
| Remote control type | Illuminated push-button 5 mA |
| Local signalling | ON/OFF indication |
| Hold-in power consumption in VA | 1.1 VA |
| Inrush power in VA | 11 VA |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Product weight | 70 g |
| Electrical durability | AC-21: 5000000 cycles AC-22: 5000000 cycles |
| Connections - terminals | Tunnel type terminals top or bottom 2 cable(s) 1.5 mm² rigid Tunnel type terminals top or bottom 2 cable(s) 1.5 mm² flexible with ferrule Tunnel type terminals top or bottom 2 cable(s) 2.5 mm² rigid Tunnel type terminals top or bottom 2 cable(s) 2.5 mm² flexible without cable end Tunnel type terminals top or bottom 1 cable(s) 4 mm² rigid Tunnel type terminals top or bottom 1 cable(s) 4 mm² flexible without cable end |
| Wire stripping length | 10 mm |
| Tightening torque | 1 N.m |
| Product compatibility | No auxiliary |

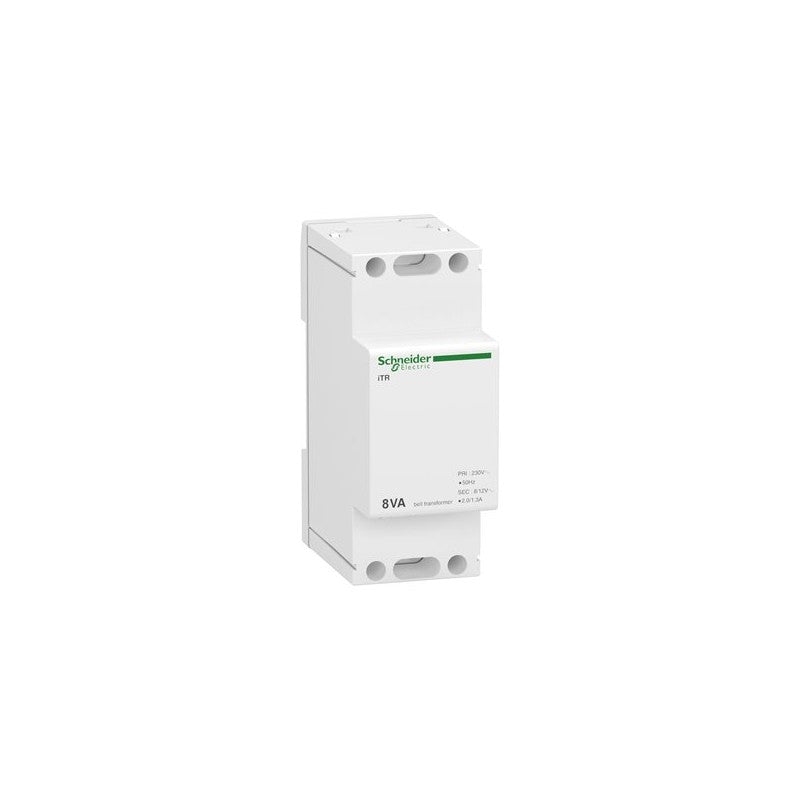

Acti 9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 8 VA

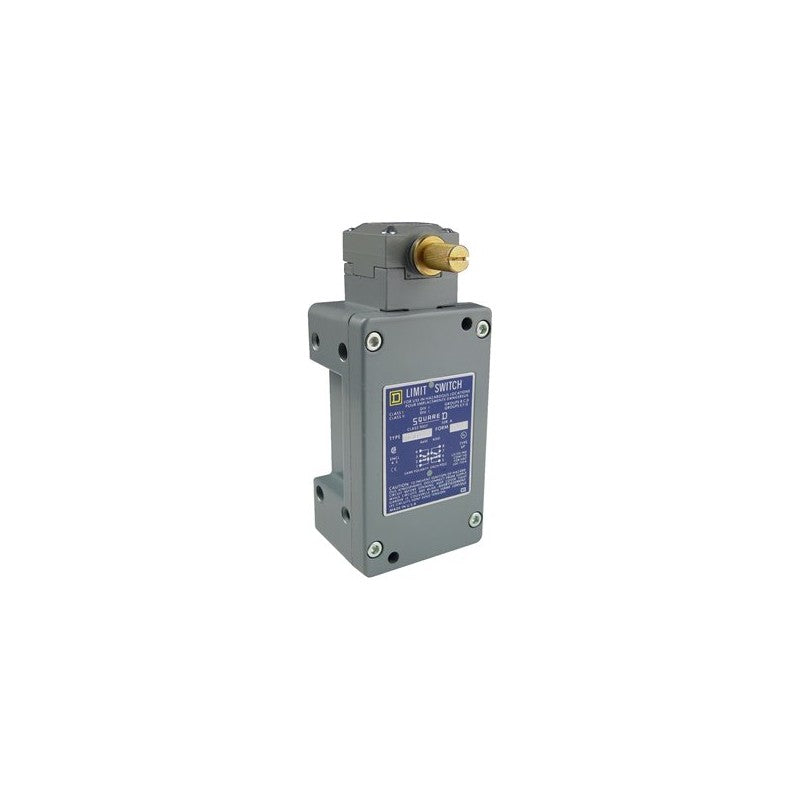

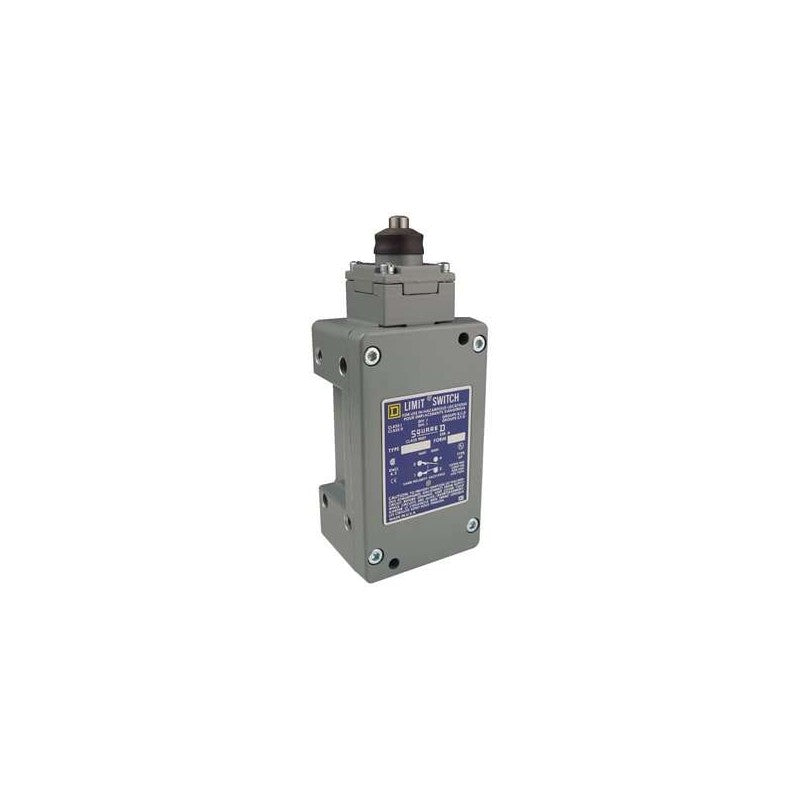

LIMIT SWITCH 600V 10AMP C +OPTIONS

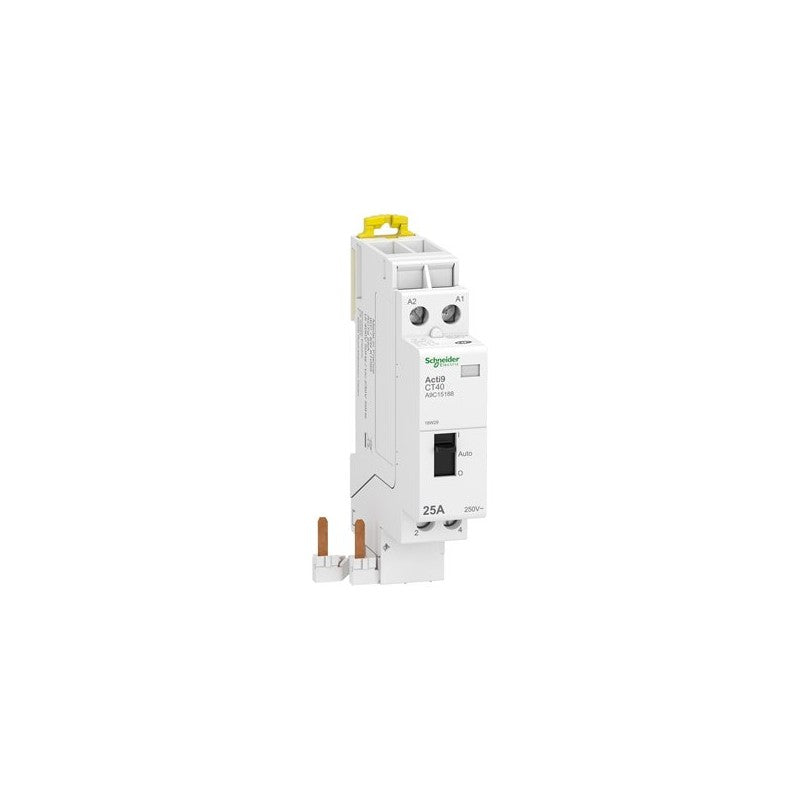

This Acti9 CT40 is a modular contactor. It is a 2P remote control device with 2 normally open contact. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. This device could be used for control circuits. This product is compliant with EN/IEC 61095 standard. The maximum switching operations is 100 per day and 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 2.5kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 87mm x (H) 18mm x (D) 66mm. The weight is 120g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 60°C.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| product name | Acti9 CT40 |
| Product or component type | Contactor |
| Device short name | CT40 |
| Device application | Control circuit |
| Poles | 2P |
| [Ie] rated operational current | 25 A AC-7A 8.5 A AC-7B |
| Pole contact composition | 2 NO |
| Network type | AC |
| Utilisation category | AC-1 conforming to IEC 60947-4 |
| control type | Remote and manual control |
| [Uc] control circuit voltage | 230 V AC 50 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Maximum power | 3 W at 250 V AC |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Control signal type | Maintained |
| Switching frequency | 6 switching operation/minute 100 switching operations/day |
| Local signalling | Color indicator |
| Hold-in power consumption in VA | 3.8 VA |
| Inrush power in VA | 15 VA |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| Height | 87 mm |
| Width | 18 mm |
| Depth | 66 mm |
| Product weight | 120 g |
| Colour | White |
| Electrical durability | 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b |
| Connections - terminals | Power circuit: tunnel type terminals2 cable(s) 2.5 mm² flexible Power circuit: tunnel type terminals1 cable(s) 6 mm² rigid Control circuit: tunnel type terminals2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid |
| Tightening torque | 0.8 N.m |
| Wire stripping length | 10 mm |
| Product compatibility | No auxiliary |
| Compatibility code | CT |
auxiliary contact, Acti9, iSD, 1OC, AC/DC

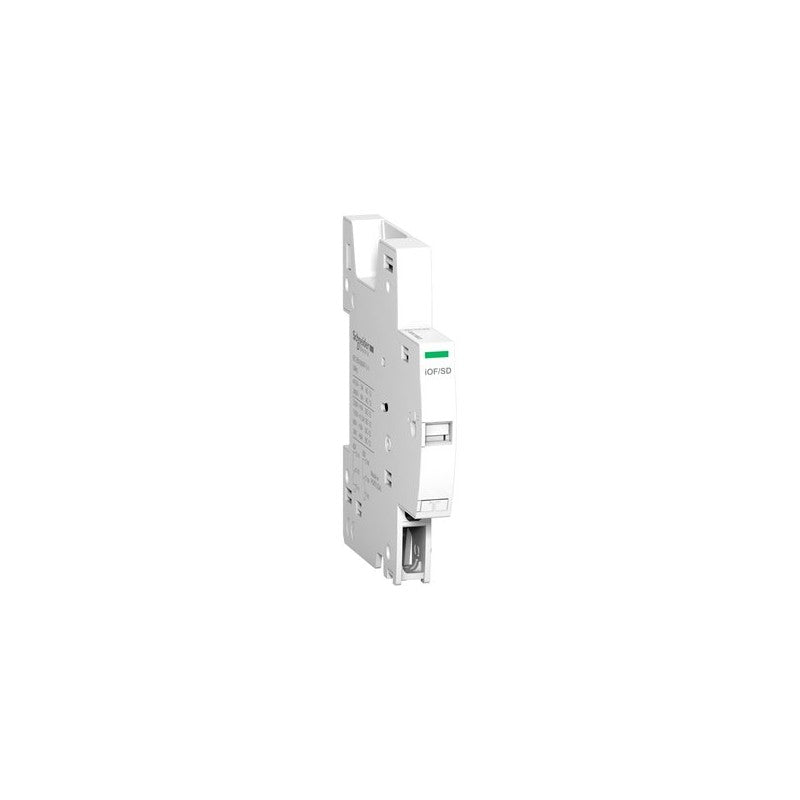

Acti9 IC60 RCBO - auxiliary contact - 1OF/SD - AC/DC

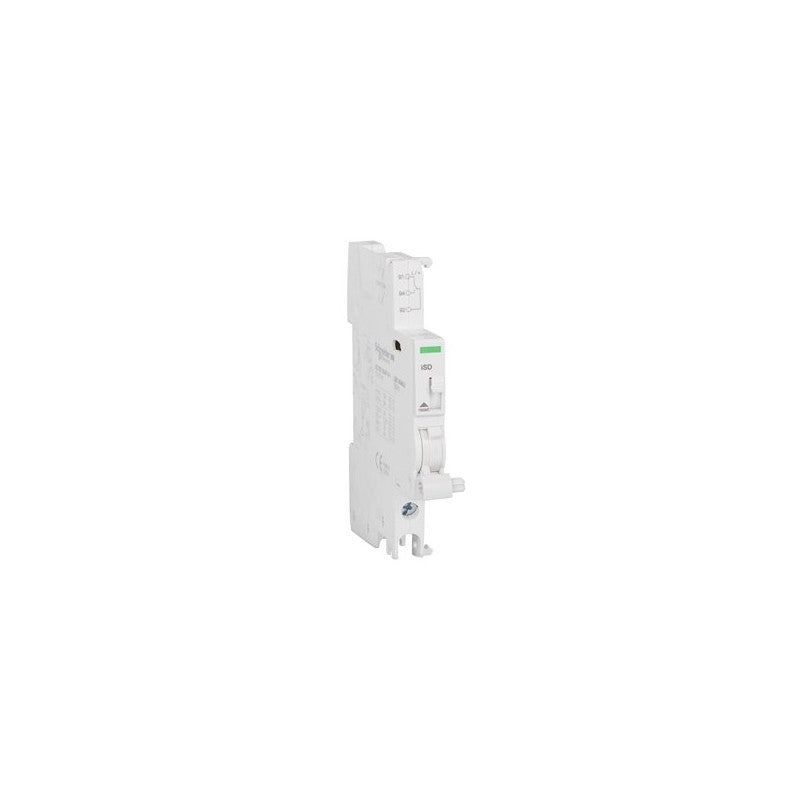

This Acti9 SD electrical auxiliary is a fault indicating contact. It is dedicated to iC60, RCBO 1SD iID products. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 86mm x (D) 71mm. Product weight is 35g. The degree of protection is IP20 at terminals and IP40 in enclosure. This product complies with EN/IEC 60947-5-1 standard.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Product or component type | Fault contact |
| Device short name | iSD |
| Signal contacts composition | 1 C/O |
| [In] rated current | 6 A at 24 V, DC 2 A at 60 V, DC 1.5 A at 110 V, DC 1 A at 250 V, DC 6 A at 24...230 V, AC 50 Hz 3 A at 415 V, AC 50 Hz |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Height | 86 mm |
| Width | 9 mm |
| Depth | 71 mm |
| Product weight | 35 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (bottom) 1 cable(s) 0.25â¦4 mm² - rigid Screw clamp terminal (bottom) 1 cable(s) 0.25â¦2.5 mm² - flexible Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 1 cable(s) 2.5 mm² - flexible with ferrule |
| Wire stripping length | 6 mm for bottom connection |
| Tightening torque | 0.6 N.m bottom |

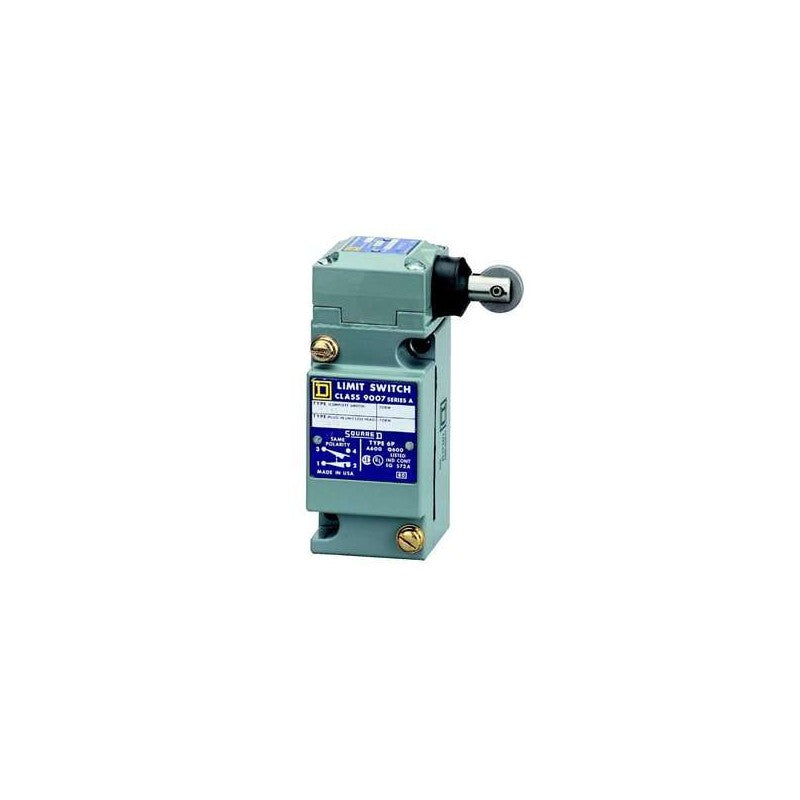

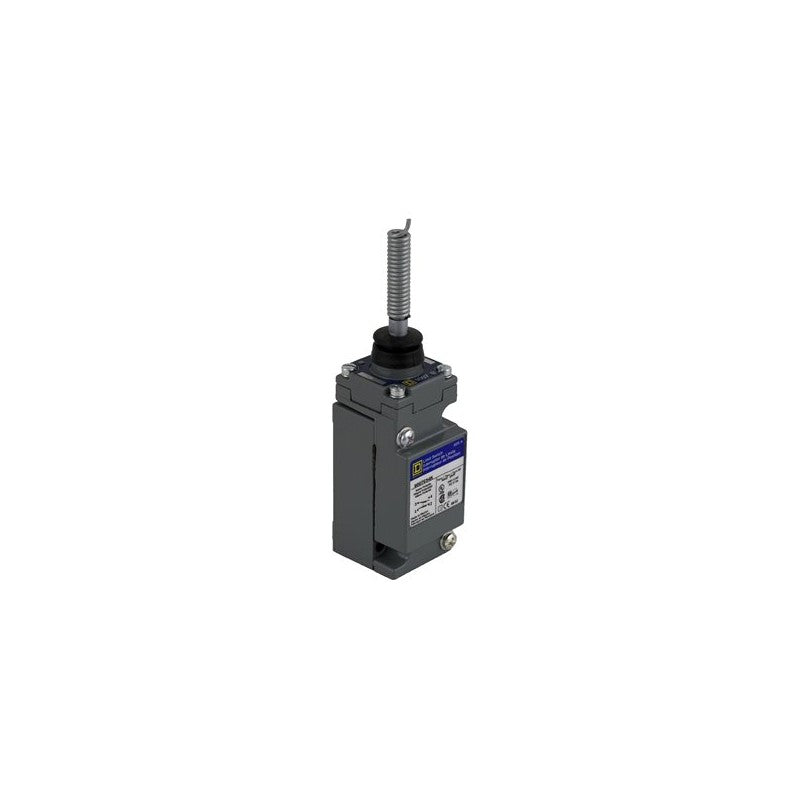

LIMIT SWITCH 600V 10AMP C +OPTIONS

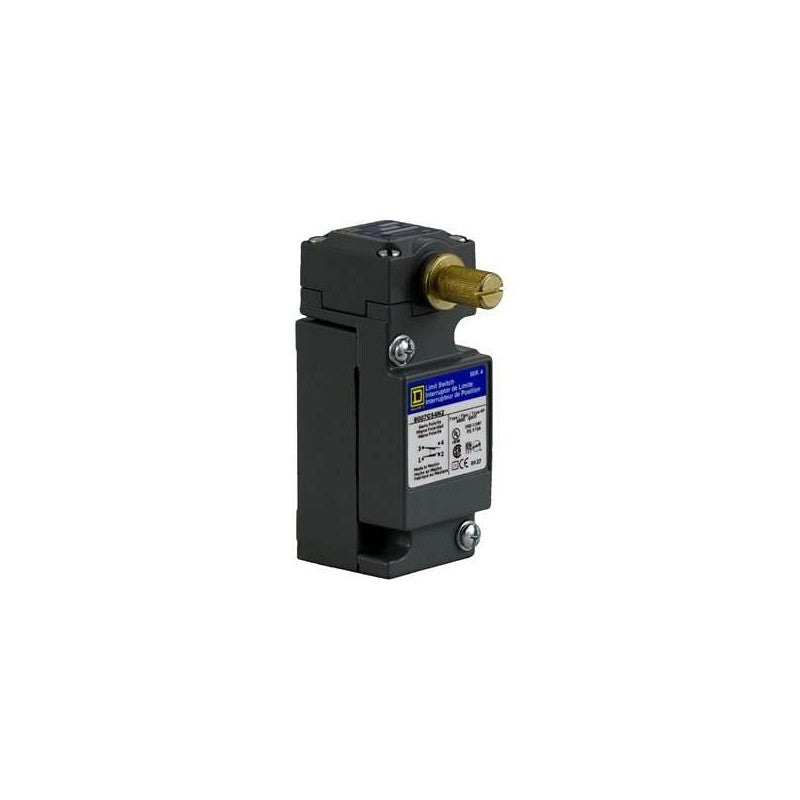

LIMIT SWITCH 600V 10AMP C +OPTIONS
LIMIT SWITCH 600V 10AMP C +OPTIONS

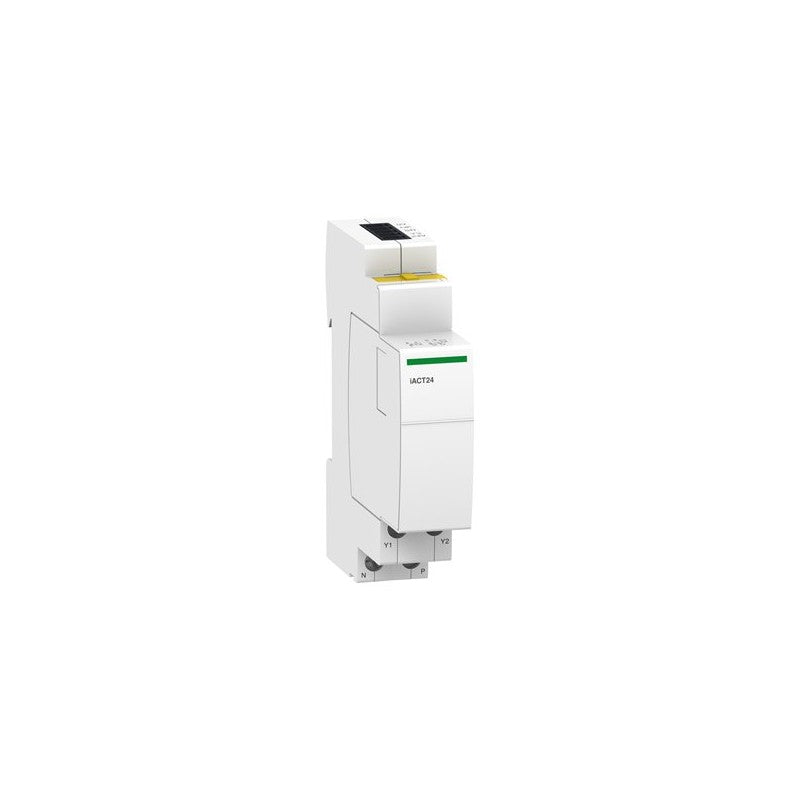

This Acti 9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Mechanical endurance goes up to 250000 cycles. This product is compliant with IEC/EN 60947-5-1.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| Product or component type | Control and indication auxiliary |
| Device short name | iACT24 |
| Signal contacts composition | 1 NO |
| Signalling circuit voltage | 24 V DC: - 20...20 % 0.002...0.1 A |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz maintained >= 200 ms 24 V DC falling edge 24 V DC rising edge |
| control type | Remote control |
| [Us] rated supply voltage | 230 V AC at 50/60 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Mounting mode | Fixed, on the left of CT |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Bottom: YES Top: NO |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 68 mm |
| Colour | White |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 440 V |
| Immunity to microbreaks | 10 ms |
| Undervoltage behaviour | No opening if loss of 24 V DC |
| Standards | IEC 60947-1 annex S |
| Quality labels | CE |
| Electrical durability | 250000 cycles conforming to IEC 60947-5-1 |
| Connections - terminals | Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Auxiliary supply: tunnel type terminals 2 cable(s) 2.5 mm² flexible Auxiliary supply: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25â¦0.75 mm² flexible Control circuit: spring-loaded terminal Ti24 1 cable(s) 0.5â¦1.5 mm² flexible |
| Wire stripping length | Control circuit: 10 mm for bottom connection Auxiliary supply: 10 mm for bottom connection Control circuit: 10 mm for top connection |
| Tightening torque | Control circuit: 1 N.m bottom Auxiliary supply: 1 N.m bottom |
| Product compatibility | ICT 230/240 V 50 Hz With PLC ICT 220 V 50 Hz Acti 9 Smartlink ICT 220/240 V 50 Hz |
| Market segment | Residential Small commercial |
| Compatibility code | IACT24 |

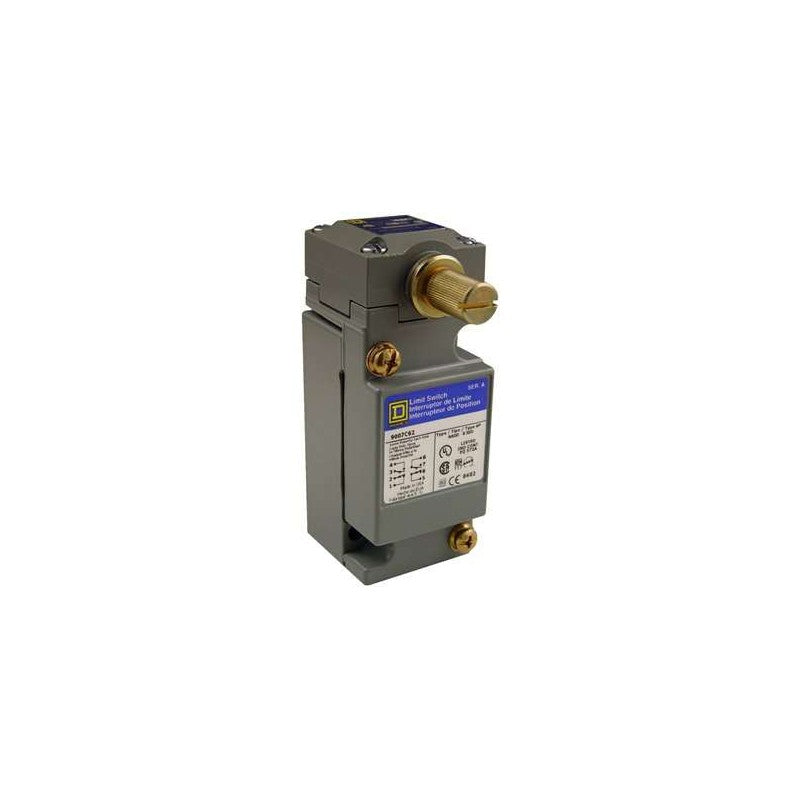

LIMIT SWITCH 600V 10AMP C +OPTIONS

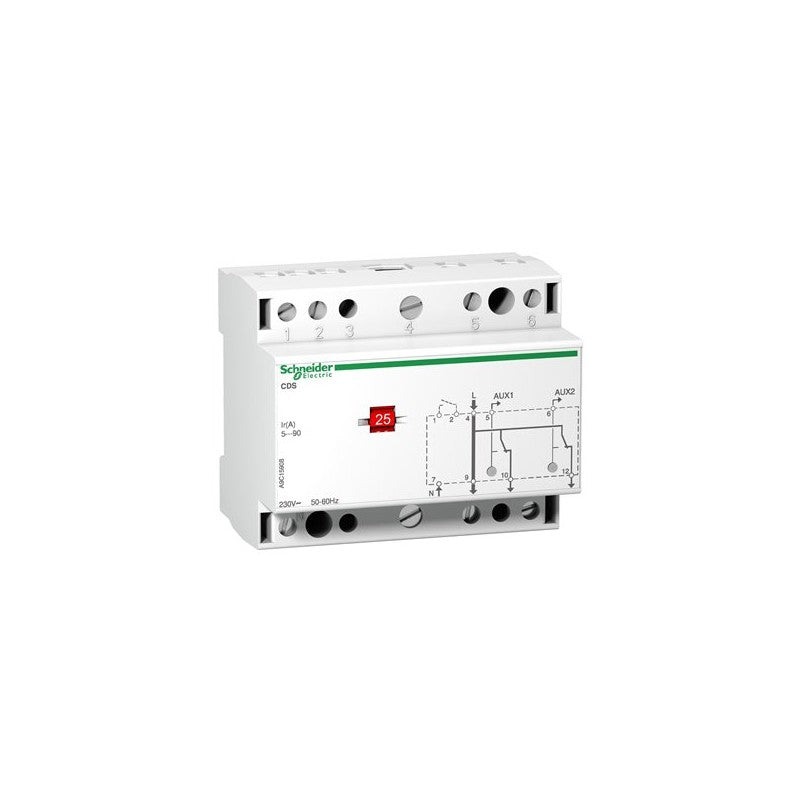

CDS - single phase load-shedding contactor - 2 channels

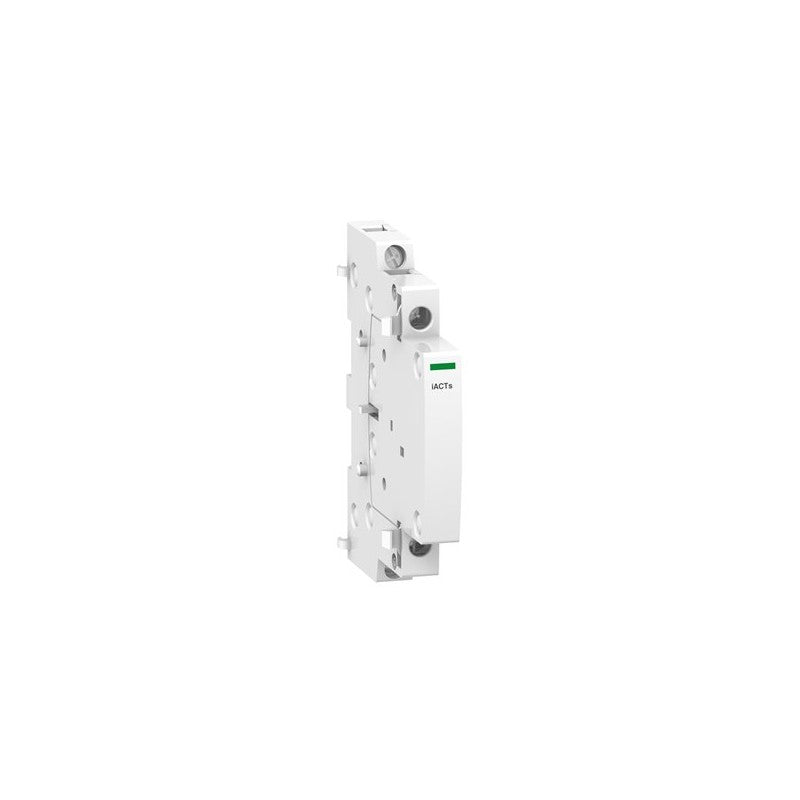

Remote indication auxiliary, Acti9 iACTs, 2 NO

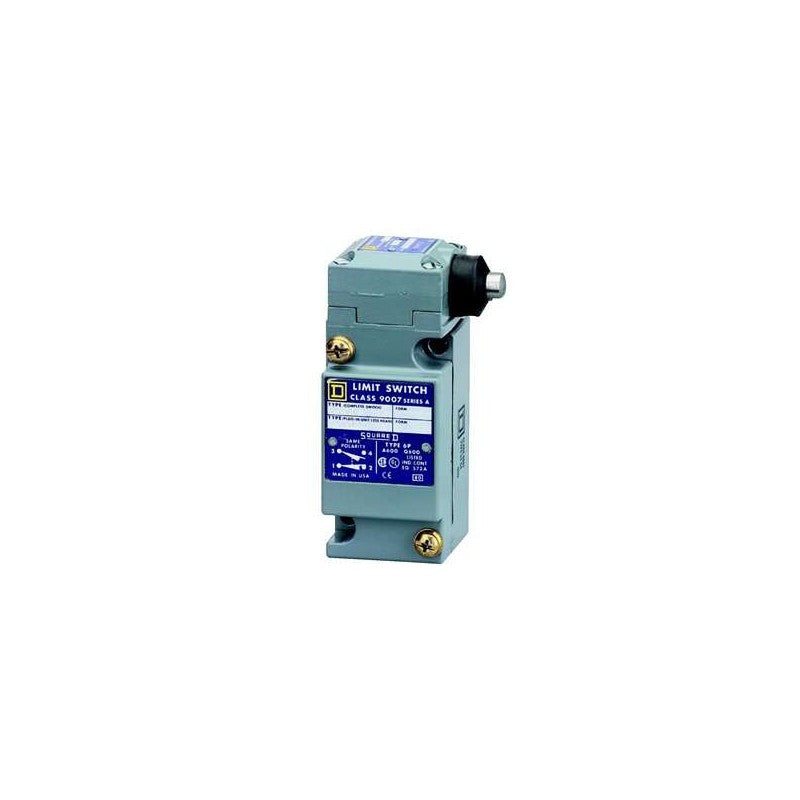

9007C limit switch - 1 NO/NC - side push rod plunger

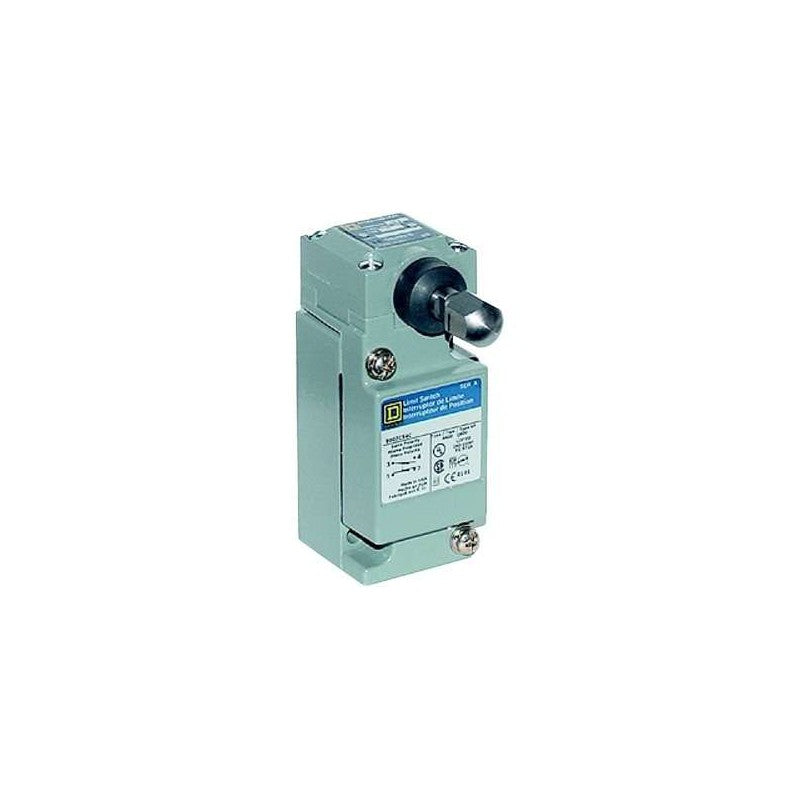

LIMIT SWITCH 600V 10AMP C +OPTIONS

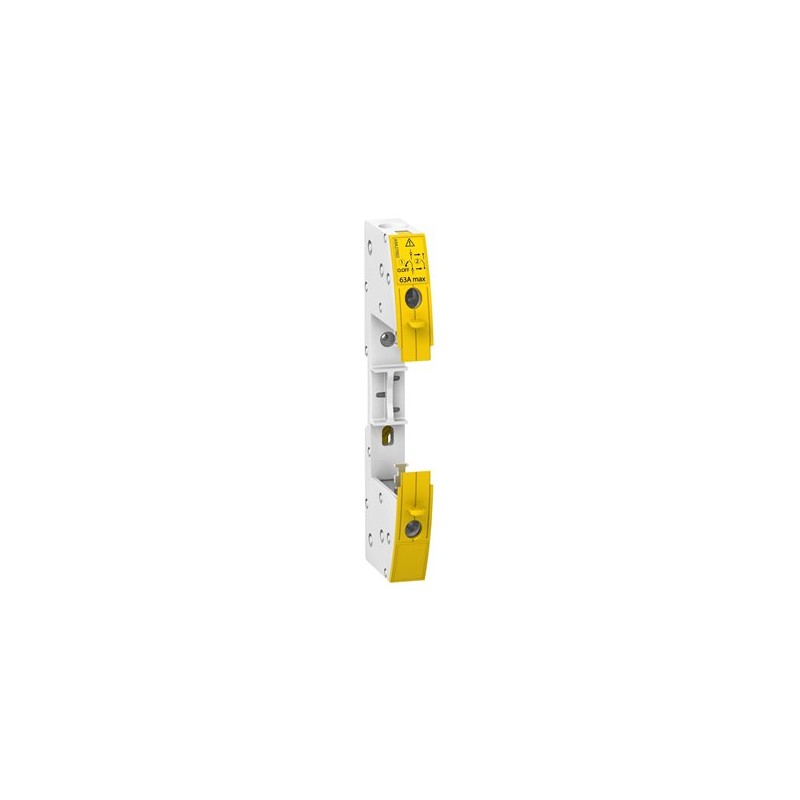

This Acti9 accessory is a plug in base for modular products. This accessory is compatible the Acti9 products like Acti9 iC60, Acti9 iID, Acti9 iSW and Acti9 iSW-NA. It is dedicated for 1 pole. The dimensions are (W) 19mm x (H) 177mm x (D) 70mm.
