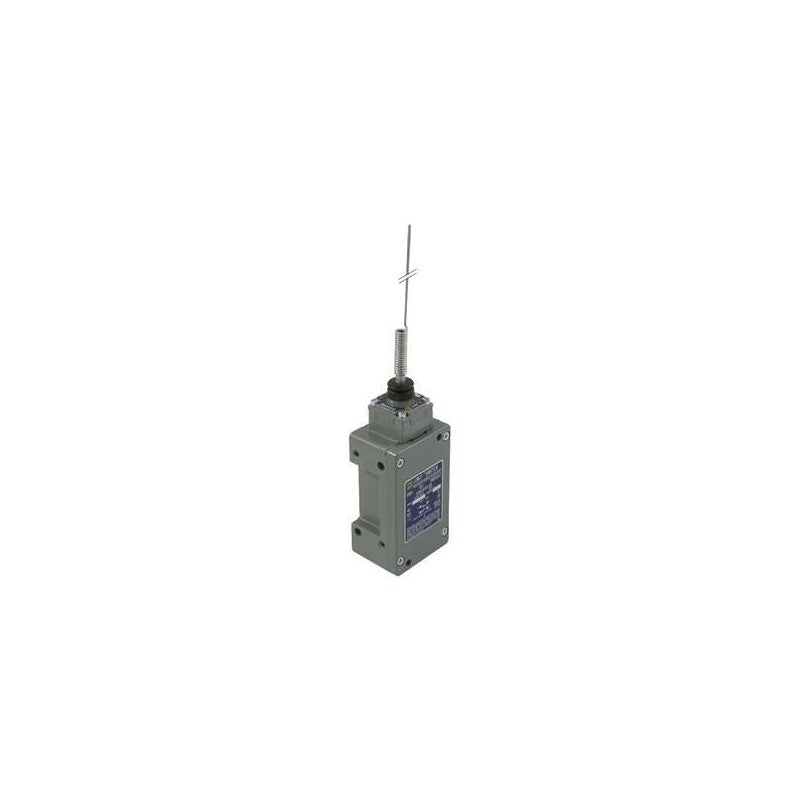

9007CR limit switch - 1 NO/NC - rotary head - CW+CCW - low differential
9007T mill limit switch - standard - spring return - CW+CCW - M20
9007FT foundry limit switch - standard - spring return - CW+CCW - PG 13.5
Reflex iC60N Ti24 40 A 3P curve C integrated control MCB
LIMIT SWITCH LEVER ARM AW+C +OPTIONS
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
DIN Rail Terminal Blocks 16 pt Out PCB mount
9007C limit switch lever - zinc - fixed length - outside steel roller
LIMIT SWITCH LEVER ARM 2IN C
LIMIT SWITCH 600V 10AMP C +OPTIONS
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
9007FT foundry limit switch - universal - spring return - CW only - PG 13.5
LIMIT SWITCH 240VAC 10AMP ML +OPTIONS
Reflex iC60H Ti24 16 A 2P curve B integrated control MCB
LIMIT SWITCH LEVER ARM AW+C +OPTIONS
Reflex iC60H Ti24 16 A 3P curve B integrated control MCB
LIMIT SWITCH 240VAC 10AMP ML +OPTIONS
LIMIT SWITCH LEVER ARM AW+C +OPTIONS
Acti9 iC60 RCBO - 2P - 10 A - C Curve - 10000A/15kA - 30 mA - A type

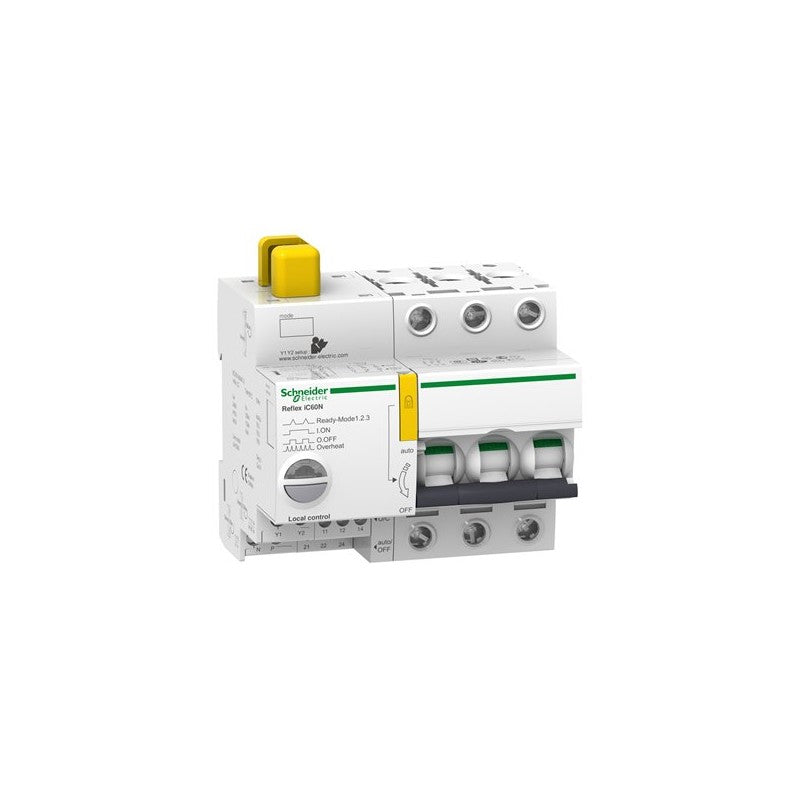

This Acti9 Reflex iC60N is a low voltage integrated control circuit breaker. It is a 3P circuit breaker with 3 protected poles, 25A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. Its width is 11 modules of 9mm. As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 220VAC to 240VAC, and 10kA at 380VAC to 415VAC. As circui-breaker, it protects circuits against short circuit and overload currents, disconnection in the industrial sector. It can control a device remotely by latched and/or impulse-type order according to the 3 operating modes to be chosen by the user. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. Resetting after a fault is performed manually by the resetting handle. The Ti24 interface allows direct interfacing of the Reflex iC60 with a PLC. It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smartlink thanks to the prefabricated cables.
Main
| Characteristic | Value(s) |
|---|---|
| Device application | Distribution Control |
| Range | Acti9 |
| product name | Reflex iC60 |
| Device short name | Reflex iC60N |
| Product or component type | Integrated control circuit breaker |
| Poles description | 3P |
| Number of protected poles | 3 |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
Complementary
| Characteristic | Value(s) |
|---|---|
| [In] rated current | 25 A |
| Network frequency | 50/60 Hz |
| Breaking capacity code | N |
| Breaking capacity | 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC |
| Contact position indicator | Yes |
| control type | ON/OFF button Remote control by pulse Remote control by continuous command Toggle |
| Control signal type | Maintained Impulse Maintained very low voltage |
| Local signalling | Flashing LED: device overheat Green LED: device ON Flashing LED: device tripped Flashing LED: device ready Red LED: fault |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC |
| [Us] rated supply voltage | 230 V AC at 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 11 |
| Height | 84 mm |
| Width | 99 mm |
| Depth | 77 mm |
| Colour | White |
| Mechanical durability | 50000 cycles |
| Electrical durability | AC-1: 50000 cycles AC 50 Hz |
| Provision for padlocking | Padlockable |
| Locking options description | Padlock in OFF position |
| Earth-leakage protection | Separate block |
| Product compatibility | With PLC |
