TSXDSZ08R5 Schneider Electric
Schneider TSXDSZ08R5 Schneider Electric
$292.22
Only 4 units left

TSX Micro�Relay discrete output module - 8 output relay

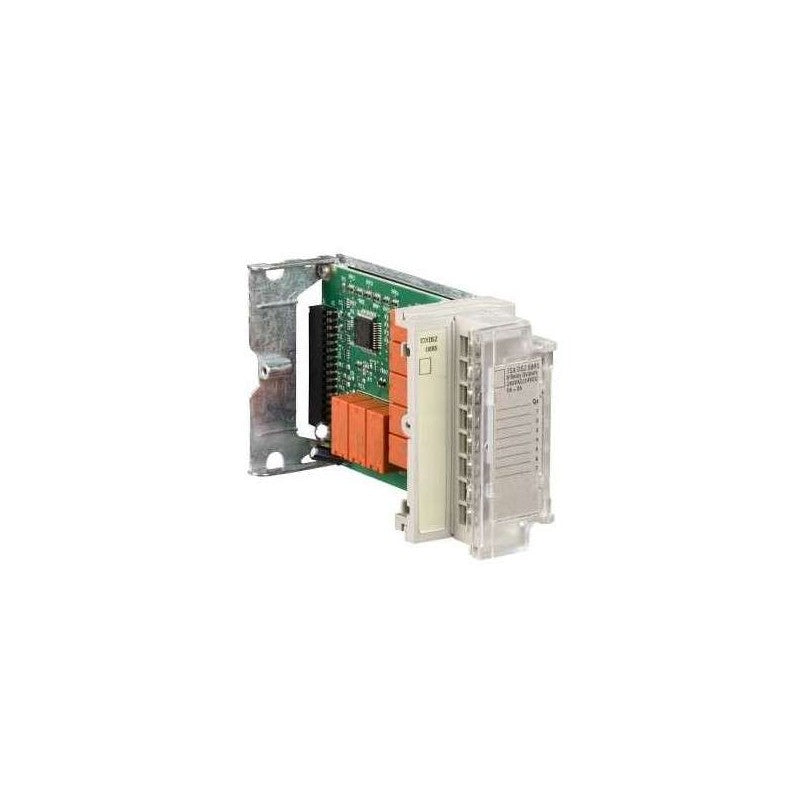

TSXDSZ08T2 Schneider Electric
Schneider TSXDSZ08T2 Schneider Electric
$480.01
Only 10 units left

Main

Characteristic Value(s)
Range of product Modicon TSX Micro automation platform
Product or component type Discrete output module
Discrete output number 8 screw terminal block
Discrete output voltage 24 V DC
Discrete output current 0.5 mA
Discrete output logic Positive

Complementary

Characteristic Value(s)
Output voltage limits 19...30 V
Output current limits 0.625 A
Maximum leakage current 0.5 mA at state 0
[Ures] residual voltage 0.3 V
Load impedance ohmic 48 Ohm
Response time < 0.5 ms at state 1
< 0.5 ms at state 0
Switching frequency < 0.6/LI² Hz
Output overvoltage protection By zener diode
Output short-circuit protection Thermal circuit breaker
Current limiter
Reverse polarity protection Reverse diode on power supply
Paralleling of outputs Yes : 2 maximum
Current consumption 38 mA
Power dissipation in W 3.5 W by module
0.15 W by channel
Isolation voltage 1500 V for 1 s
Product weight 0.24 kg
TSXDSZ08T2K Schneider
Schneider TSXDSZ08T2K Schneider
$833.94
Only 4 units left

Main

Characteristic Value(s)
Range of product Modicon TSX Micro automation platform
Product or component type Discrete output module
Discrete output number 8 1 HE-10 connector
Discrete output voltage 24 V DC
Discrete output current 0.5 mA
Discrete output logic Positive

Complementary

Characteristic Value(s)
Output voltage limits 19...30 V
Output current limits 0.625 A
Maximum leakage current 0.5 mA at state 0
[Ures] residual voltage 0.3 V
Load impedance ohmic 48 Ohm
Response time < 0.5 ms at state 1
< 0.5 ms at state 0
Switching frequency < 0.6/LI² Hz
Output overvoltage protection By zener diode
Output short-circuit protection Thermal circuit breaker
Current limiter
Reverse polarity protection Reverse diode on power supply
Paralleling of outputs Yes : 2 maximum
Current consumption 38 mA
Power dissipation in W 3.5 W by module
0.15 W by channel
Isolation voltage 1500 V for 1 s
Product weight 0.18 kg
TSXDSZ32R5 Schneider Electric
Schneider TSXDSZ32R5 Schneider Electric
$350.43
Only 4 units left

TSX Micro Relay discrete output module - 32 output relay
TSXDSZ32T2 Schneider Electric
Schneider TSXDSZ32T2 Schneider Electric
$353.57
Only 7 units left

TSX Micro�Discrete output module - 32 discret output DC

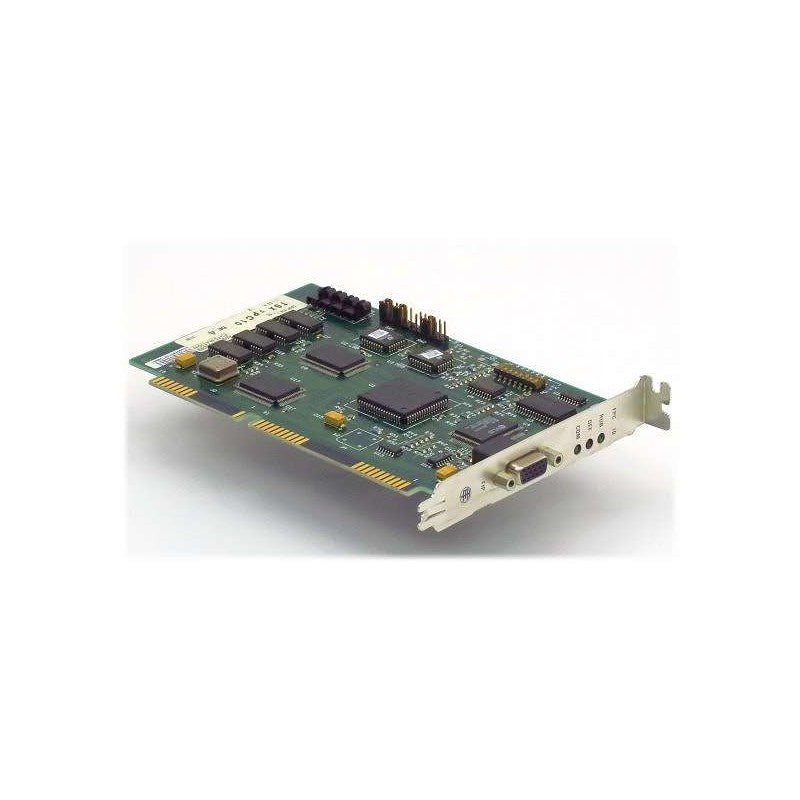

TSXFPC10 Schneider Electric
Schneider TSXFPC10 Schneider Electric
$1,608.81
Only 2 units left

PC FIP MODULE,�SCHNEIDER ELECTRIC TSX-FPC-10 / TSXFPC10
TSXFPC10M Schneider Electric
Schneider TSXFPC10M Schneider Electric
$437.87
Only 1 unit left
Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.5 cm Package 1 Width 23.5 cm Package 1 Length 26.5 cm Package 1 Weight 930 g

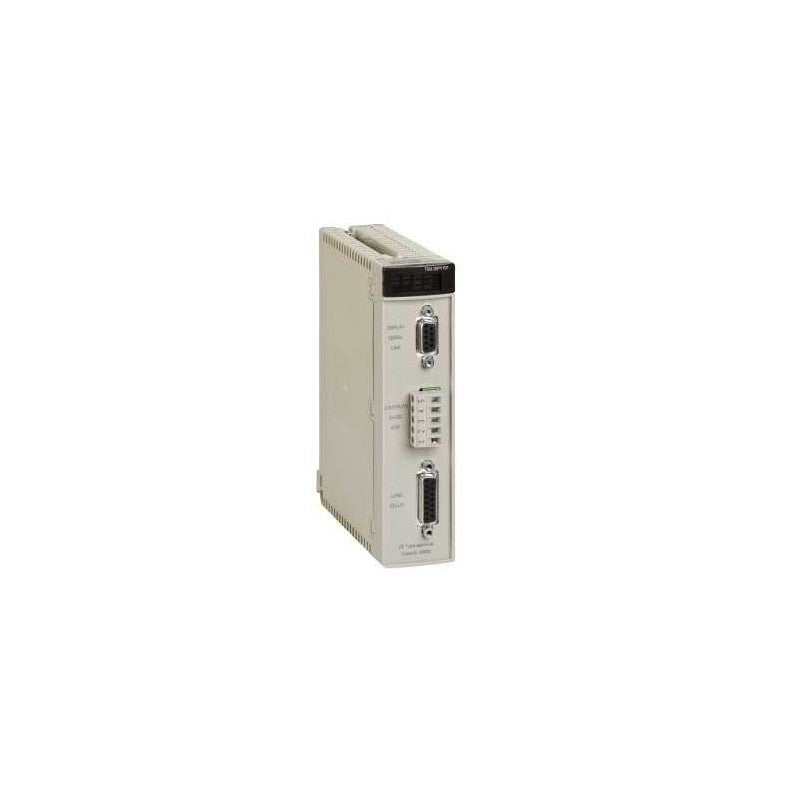

TSXISPY101C Schneider Electric
Schneider TSXISPY101C Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type ISP Plus weighing module

Complementary

Characteristic Value(s)
Number of measurement input 1
Resolution 1048576 points
Analogue input resolution 20 bits
Measuring rate 50 measurements per second
Input impedance > 1 MOhm
Input compatibility Load cell 1…8 350 Ohm yes <984.3 ft (300 m)
Sensor power supply 10 V DC
Output compatibility Discrete reflex 2 positive
Discrete output voltage 24 V DC
Discrete output current 500 mA
Response time on output 1 ms
Transmission rate 9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator
Voltage division 1 µV
Electrical connection 1 connector screw terminal block for connecting 2 discrete reflex
1 female connector SUB-D 15 for the indicator input
1 female connector SUB-D 9 for RS485 serial link to the weight indicator
Marking CE
Current consumption 145 mA 24 V rack
150 mA 5 V DC
Module format Standard
Product Weight 0.93 lb(US) (0.42 kg)
TSXISPY121 Schneider Electric
Schneider TSXISPY121 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type ISP Plus weighing module

Complementary

Characteristic Value(s)
Kit composition TSXISPY101 module
TSXXBTN410 weight indicator Magelis
Number of measurement input 1
Resolution 1048576 points
Analogue input resolution 20 bits
Measuring rate 50 measurements per second
Input impedance > 1 MOhm
Input compatibility Load cell 1…8 350 Ohm yes <984.3 ft (300 m)
Sensor power supply 10 V DC
Output compatibility Discrete reflex 2 positive
Discrete output voltage 24 V DC
Discrete output current 500 mA
Response time on output 1 ms
Transmission rate 9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator
Voltage division 1 µV
Maximum cable distance between devices 9.8 ft (3 m) for module/weight indicator
Electrical connection 1 connector screw terminal block for connecting 2 discrete reflex
1 female connector SUB-D 15 for the indicator input
1 female connector SUB-D 9 for RS485 serial link to the weight indicator
Marking CE
Current consumption 145 mA 24 V rack
150 mA 5 V DC
Module format Standard
Product Weight 2.25 lb(US) (1.02 kg)

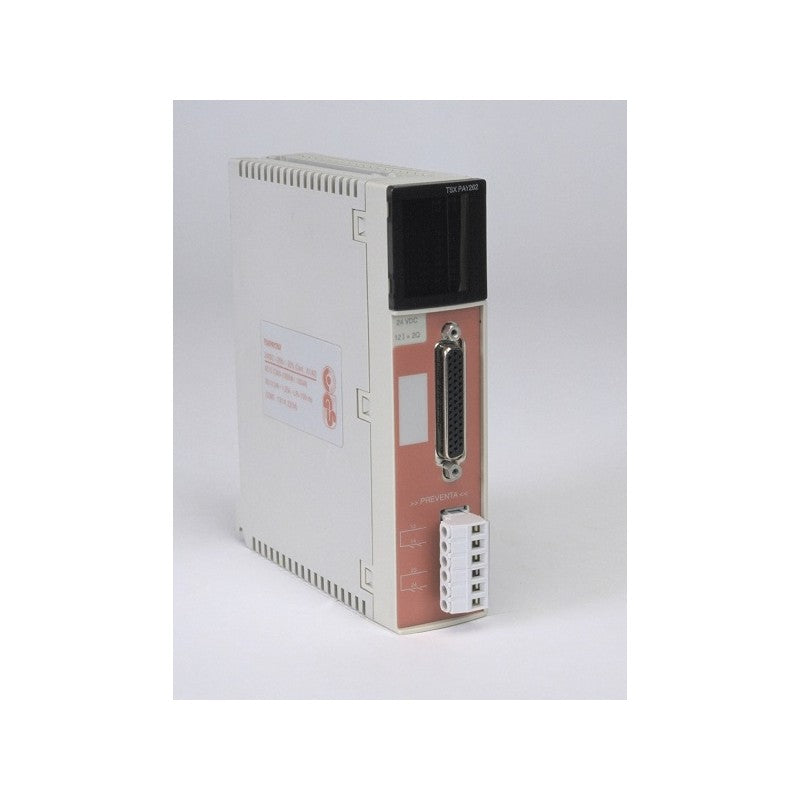

TSXPAY282 Schneider Electric
Schneider TSXPAY282 Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Preventa safety module

Complementary

Characteristic Value(s)
[Us] rated supply voltage 24 V DC
Supply voltage limits 19.2…30 V
Activation threshold < 20 V
Short-circuit protection 1 A gG external IEC 947-5-1 for F1 on power supply
4 A gG external IEC 947-5-1 for F2 on safety relay outputs
Isolation voltage 4000 V III 2
Discrete input number 1 double or single contact selection input IEC 1131 Type 1
1 feedback loop input IEC 1131 Type 1
1 reset PB input IEC 1131 Type 1
1 reset PB monitoring input IEC 1131 Type 1
12 emergency stop or limit switch discrete inputs IEC 1131 Type 1
Discrete input logic Positive
Inrush current 0.5 A
Isolation between input and earth 500 Vrms 50/60 Hz 60 s
Maximum power dissipation in W 5 W
Safety outputs 4 NO safety relay AGCDO gold plated volt free output
[Ue] rated operational voltage 17...127 V DC relay output
19...250 V AC relay output
Rated power in VA 120 VA 48 V AC-15 inductive
280 VA 110 V AC-15 inductive
550 VA 220 V AC-15 inductive
60 VA 24 V AC-15 inductive
Rated power in W 60 W 24 V DC-13 inductive 100 ms
[Ithe] conventional enclosed thermal current 2.5 A
Minimum output current 30 mA
Response time on output < 12 ms
Isolation between output and earth 300 V DIN VDE 0110 part 2
1500 Vrms 50/60 Hz 60 s
Safety acquisition Read feedback loop
Read enable inputs
Read the safety outputs control
Read status of the 24 inputs
Monitor external power supply of the module
Local signalling for diagnostic of safety system 28 LEDs
Electrical connection 1 connector removable screw terminal block 6 pins
1 connector SUB-D 44 pins for connecting the safety system
Cable cross section 0.0003…0.004 in² (0.2…2.5 mm²) without cable end safety output circuit
0.002 in² (1.5 mm²) with cable end safety output circuit
Current consumption < 150 mA 5 V DC
<= 200 mA 24 V DC
Module format Standard
Product Weight 1.08 lb(US) (0.49 kg)

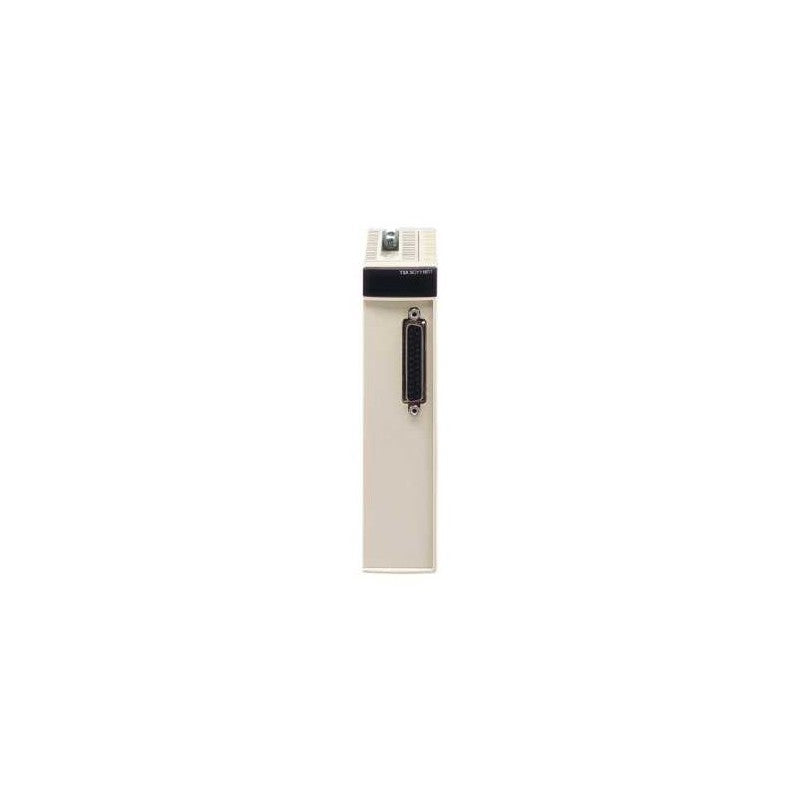

TSXSCY11601C Schneider Electric
Schneider TSXSCY11601C Schneider Electric
$0.00
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Communication module
Software Designation Unity Pro
Structure type Heterogeneous industrial bus

Complementary

Characteristic Value(s)
Product Compatibility Premium
Atrium
Method of access Master/slave type
Integrated connection type 1 serial link 1 SUB-D 25
Communication Port Protocol Modbus
Communication port support RS485 isolated
Mode of Transmission Asynchronous in baseband
Transmission frame Uni-Telway
Character mode
RTU/ASCII
Transmission Rate 1.2...19.2 kbit/s
Transmission support medium 2 twisted shielded pairs cable
Number of devices 32
Number of addresses 0…247
Bus length 0.0000000000…4265.09 ft (0…1300 m) character mode
0.0000000000…4265.09 ft (0…1300 m) Modbus
0.0000000000…4265.09 ft (0…1300 m) Uni-Telway
Maximum tap links length 49.2 ft (15 m)
Requests 1920 bits per request
120 words per request
Control parameter One CRC 16 on each frame
Monitoring function Event counters
Diagnostic counters
Modbus funtions available Event connection Modbus master 0C
Event connection Modbus slave 0C
Event counter Modbus master 0B
Event counter Modbus slave 0B
Identification Modbus slave 11
Slave identification Modbus master 11
Write n output bits Modbus slave 0F
Write n output words Modbus slave 10
Diagnostic Modbus master 08
Diagnostic Modbus slave 08
Exceptional read status Modbus master 07
Exceptional read status Modbus slave 07
Read bits Modbus master 01
Read input bits Modbus master 02
Read input bits Modbus slave 02
Read input words Modbus master 04
Read n input words Modbus slave 04
Read n output bits Modbus slave 01
Read n output words Modbus slave 03
Read words Modbus master 03
Write 1 bits or n bits Modbus master 05
Write 1 input word Modbus slave 06
Write 1 output bit Modbus slave 05
Write 1 word or n word Modbus master 06
Local signalling 1 LED for communication (CH0)
1 LED for internal fault, module failure (ERR)
1 LED for module operating (RUN)
Current consumption 350 mA 5 V DC
Module format Standard
Product Weight 0.75 lb(US) (0.34 kg)
TWD-DDI8DT Schneider Electric - Discrete input module Twido TWDDD18DT
Schneider TWD-DDI8DT Schneider Electric - Discrete input module Twido TWDDD18DT
$0.00
Sold Out

Discrete input module Twido - 8 inputs - 24 V DC

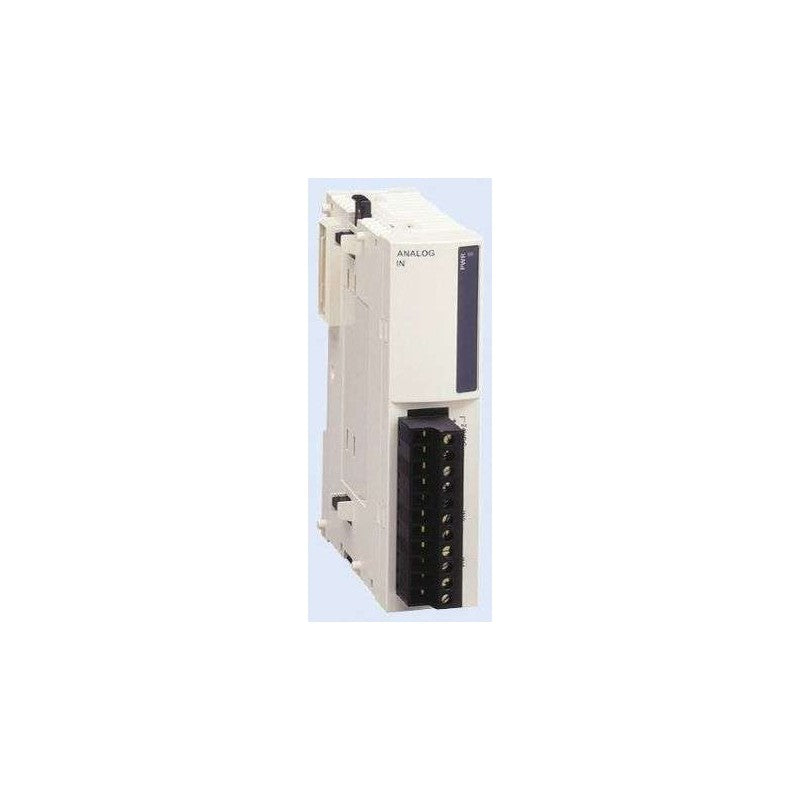

TWDAMI4LT Schneider
Schneider TWDAMI4LT Schneider
$550.21
Only 4 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Analogue input module
Analogue input number 4
Analogue input type Voltage 0...10 V non differential
Current 4...20 mA non differential
Temperature probe -100...+600 °C temperature probe: Ni 100 differential
Temperature probe -100...+600 °C temperature probe: Ni 1000 differential
Temperature probe -100...+600 °C temperature probe: Pt 100 differential
Temperature probe -100...+600 °C temperature probe: Pt 1000 differential
Analogue input resolution 12 bits
I/O connection Removable screw terminal block
Cross talk <= 1 LSB

Complementary

Characteristic Value(s)
LSB value 0.15 °K, analogue input type: temperature probe
2.5 mV, analogue input type: voltage
4.8 µA, analogue input type: current
Permissible continuous overload 13 V, analogue input type: voltage
40 mA, analogue input type: current
Input impedance >= 10000 Ohm temperature probe
1000000 Ohm voltage
470 Ohm current
Sampling duration 160 ms
Sampling repetition time 4 ms
Acquisition period 160 ms per channel + 1 controller cycle time
Measurement error +/- 0.5 % of full scale 0...10 V at 25 °C
+/- 0.5 % of full scale 4...20 mA at 25 °C
+/- 0.5 % of full scale Ni 100 at 25 °C
+/- 0.5 % of full scale Ni 1000 at 25 °C
+/- 0.5 % of full scale Pt 100 at 25 °C
+/- 0.5 % of full scale Pt 1000 at 25 °C
Temperature coefficient +/-0.005 %FS/°C, analogue input type: current
+/-0.005 %FS/°C, analogue input type: temperature probe
+/-0.005 %FS/°C, analogue input type: voltage
Repeat accuracy 2 LSB %FS
Non-linearity +/- 0.02 %FS, analogue input type: current
+/- 0.02 %FS, analogue input type: temperature probe
+/- 0.02 %FS, analogue input type: voltage
Total error +/-0.5 %FS, analogue input type: current
+/-0.5 %FS, analogue input type: temperature probe
+/-0.5 %FS, analogue input type: voltage
Common mode rejection - 90 dB
Type of cable Shielded twisted pair
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Current consumption 50 mA at 5 V DC
60 mA at 24 V DC
Marking CE
Product weight 0.085 kg
TWDAMI8HT Schneider
Schneider TWDAMI8HT Schneider
$511.65
Only 1 unit left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Analogue input module
Analogue input number 8
Analogue input type Voltage 0...10 V non differential
Current 0...20 mA non differential
Analogue input resolution 10 bits
I/O connection Removable screw terminal block
Cross talk <= 1 LSB

Complementary

Characteristic Value(s)
LSB value 19.5 µA, analogue input type: current
9.7 mV, analogue input type: voltage
Permissible continuous overload 13 V, analogue input type: voltage
40 mA, analogue input type: current
Input impedance >= 10000 Ohm voltage
470 Ohm current
Sampling duration 160 ms
Sampling repetition time 8 ms
Acquisition period 1280 ms + 1 controller cycle time
Measurement error +/- 1 % of full scale 0...10 V at 25 °C
+/- 1 % of full scale 0...20 mA at 25 °C
Temperature coefficient +/-0.005 %FS/°C, analogue input type: current
+/-0.005 %FS/°C, analogue input type: voltage
Repeat accuracy 2 LSB %FS
Non-linearity +/- 0.002 %FS, analogue input type: current
+/- 0.002 %FS, analogue input type: voltage
Total error +/-1 %FS, analogue input type: current
+/-1 %FS, analogue input type: voltage
Common mode rejection - 90 dB
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Current consumption 50 mA at 24 V DC
50 mA at 5 V DC
Marking CE
Product weight 0.085 kg
TWDAMM3HT Schneider
Schneider TWDAMM3HT Schneider
$307.08
Only 4 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Analogue I/O module
Analogue input number 2
Analogue input type Current 4...20 mA differential
Voltage 0...10 V non differential
Analogue input resolution 12 bits
Analogue output number 1
Analogue output type Current: 4...20 mA
Voltage: 0...10 V
Analogue output resolution 12 bits
I/O connection Removable screw terminal block
Cross talk <= 2 LSB

Complementary

Characteristic Value(s)
Input level High level
LSB value 2.5 mV voltage
4.8 µA current
2.5 mV, analogue input type: voltage
4.8 µA, analogue input type: current
Permissible continuous overload 13 V, analogue input type: voltage
40 mA, analogue input type: current
Input impedance >= 10 Ohm current
>= 1000000 Ohm voltage
Load type Resistive
Load impedance ohmic <= 300 Ohm current
>= 2000 Ohm voltage
Stabilisation time 20 ms
Conversion time 20 ms + 1 controller cycle time
Sampling duration 16 ms
Sampling repetition time 16 ms
Acquisition period 16 ms + 1 controller cycle time
Measurement error +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C
+/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C
Temperature coefficient +/-0.015 %FS/°C, analogue output type: current
+/-0.015 %FS/°C, analogue output type: voltage
+/-0.006 %FS/°C, analogue input type: current
+/-0.006 %FS/°C, analogue input type: voltage
Repeat accuracy +/-0.5 %FS
Non-linearity +/- 0.2 %FS, analogue output type: current
+/- 0.2 %FS, analogue output type: voltage
+/- 0.2 %FS, analogue input type: current
+/- 0.2 %FS, analogue input type: voltage
Output error +/- 1 %FS
Output ripple <= 1 LSB
Total error +/-1 %FS, analogue output type: current
+/-1 %FS, analogue output type: voltage
+/-1 %FS, analogue input type: current
+/-1 %FS, analogue input type: voltage
Common mode rejection - 50 dB
Type of cable Shielded twisted pair
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Current consumption 50 mA at 5 V DC
60 mA at 24 V DC
Marking CE
Product weight 0.085 kg
TWDAMO1HT Schneider
Schneider TWDAMO1HT Schneider
$589.59
Only 5 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Analogue output module
Analogue output number 1
Analogue output type Current: 4...20 mA
Voltage: 0...10 V
Analogue output resolution 12 bits
I/O connection Removable screw terminal block

Complementary

Characteristic Value(s)
LSB value 2.5 mV voltage
4 µA current
Load type Resistive
Load impedance ohmic <= 300 Ohm current
>= 2000 Ohm voltage
Stabilisation time 20 ms
Conversion time 20 ms + 1 controller cycle time
Measurement error +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C
+/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C
Temperature coefficient +/-0.015 %FS/°C, analogue output type: current
+/-0.015 %FS/°C, analogue output type: voltage
Repeat accuracy +/-0.5 %FS
Non-linearity +/- 0.2 %FS, analogue output type: current
+/- 0.2 %FS, analogue output type: voltage
Output error +/- 1 %FS
Output ripple <= 1 LSB
Total error +/-1 %FS, analogue output type: current
+/-1 %FS, analogue output type: voltage
Type of cable Shielded twisted pair
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Current consumption 40 mA at 24 V DC
50 mA at 5 V DC
Marking CE
Product weight 0.085 kg
TWDARI8HT Schneider
Schneider TWDARI8HT Schneider
$363.60
Only 1 unit left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Analogue input module
Analogue input number 8
Analogue input type Temperature probe 100...10000 Ohm temperature probe: PTC/NTC differential
Analogue input resolution 10 bits
I/O connection Removable screw terminal block
Cross talk <= 1 LSB

Complementary

Characteristic Value(s)
Input impedance >= 1000000 Ohm voltage
Sampling duration 160 ms
Sampling repetition time 8 ms
Acquisition period 1280 ms + 1 controller cycle time
Measurement error +/- 1 % of full scale PTC/NTC at 25 °C
Temperature coefficient +/-0.005 %FS/°C, analogue input type: temperature probe
Repeat accuracy 2 LSB %FS
Non-linearity +/- 0.002 %FS, analogue input type: temperature probe
Total error +/-1 %FS, analogue input type: temperature probe
Common mode rejection - 90 dB
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Current consumption 50 mA at 24 V DC
50 mA at 5 V DC
Marking CE
Product weight 0.085 kg
TWDDDI16DK Schneider
Schneider TWDDDI16DK Schneider
$494.10
Only 3 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete input module
Discrete input number 16
Discrete input voltage 24 V
Discrete input voltage type DC
I/O connection HE-10 connector
Number of common point 1

Complementary

Characteristic Value(s)
Input voltage limits 20.4...28.8 V
Discrete input logic Sink or source
Discrete input current 5 mA
Input impedance 4.4 kOhm
Filter time 8 ms at state 0
8 ms at state 1
Insulation between channel and internal logic 1500 Vrms for 1 min (by photocoupler)
Current consumption 35 mA at 5 V DC at state 1 for all inputs
5 mA at 5 V DC at state 0 for all inputs
Marking CE
Product weight 0.065 kg
TWDDDO16UK Schneider
Schneider TWDDDO16UK Schneider
$350.57
Only 1 unit left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete output module
Discrete output number 16
Discrete output type Transistor
Discrete output voltage 24 V
Discrete output logic Sink
I/O connection HE-10 connector
Number of common point 2

Complementary

Characteristic Value(s)
Output voltage limits 20.4...28.8 V
Discrete output current 0.1 A
Current per channel 0.12 A
Maximum current per output common 2 A
Response time 300 µs at state 0
300 µs at state 1
[Ures] residual voltage 1 V at state 1
Maximum tungsten load 8 W
Insulation between channel and internal logic 1500 Vrms for 1 min (by photocoupler)
Current consumption 10 mA at 5 V DC at state 1 for all outputs
40 mA at 24 V DC at state 1 for all outputs
5 mA at 5 V DC at state 0 for all outputs
Marking CE
Product weight 0.07 kg
TWDDDO32TK Schneider
Schneider TWDDDO32TK Schneider
$547.36
Only 2 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete output module
Discrete output number 32
Discrete output type Transistor
Discrete output voltage 24 V
Discrete output logic Source
I/O connection HE-10 connector
Number of common point 4

Complementary

Characteristic Value(s)
Output voltage limits 20.4...28.8 V
Discrete output current 500 mA
Current per channel 0.5 A
Maximum current per output common 2 A
Response time 300 µs at state 1
450 µs at state 0
[Ures] residual voltage 0.2 V at state 1
Maximum inductive load 2000 mH
Protection type Short-circuit protection
Overload protection
Maximum tungsten load 16 W
Insulation between channel and internal logic 1500 Vrms for 1 min (by photocoupler)
Current consumption 10 mA at 5 V DC at state 0 for all outputs
20 mA at 5 V DC at state 1 for all outputs
70 mA at 24 V DC at state 1 for all outputs
Marking CE
Product weight 0.105 kg
TWDDMM24DRF Schneider
Schneider TWDDMM24DRF Schneider
$445.12
Only 8 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete I/O module
Discrete input number 16
Discrete input voltage 24 V
Discrete input voltage type DC
Discrete output number 8
Discrete output type Relay
I/O connection Spring terminal block
Number of common point 1I/2O

Complementary

Characteristic Value(s)
Input voltage limits 20.4...28.8 V
Discrete input logic Sink or source
Discrete input current 7 mA
Input impedance 3.4 kOhm
Filter time 8 ms at state 0
8 ms at state 1
Discrete output function 8 NO
Current per channel 2 A
Maximum current per output common 7 A
Contact resistance 40000 µOhm
Response time <= 7 ms
Insulation between channel and internal logic 1500 Vrms for 1 min (by photocoupler)
Current consumption 10 mA at 5 V DC at state 0 for all inputs/outputs
45 mA at 24 V DC at state 1 for all inputs/outputs
65 mA at 5 V DC at state 1 for all inputs/outputs
Marking CE
Terminals description PLC n°1 (3)IN_DIS#3
TB_1
ALT
(15)IN_DIS#15
(8)IN_DIS#8
(6)IN_DIS#6
(2)IN_DIS#2
(10)IN_DIS#10
(12)IN_DIS#12
(4)IN_DIS#4
(11)IN_DIS#11
(14)IN_DIS#14
(13)IN_DIS#13
(1)IN_DIS#1
(0)IN_DIS#0
(5)IN_DIS#5
(7)IN_DIS#7
(9)IN_DIS#9
COM0_POS
Terminals description PLC n°2 (0)IN_DIS#0
(12)IN_DIS#12
(11)IN_DIS#11
(7)IN_DIS#7
(6)IN_DIS#6
TB_1
(3)IN_DIS#3
(10)IN_DIS#10
(14)IN_DIS#14
(8)IN_DIS#8
(15)IN_DIS#15
(1)IN_DIS#1
COM0_NEG
(9)IN_DIS#9
ALT_1
(4)IN_DIS#4
(13)IN_DIS#13
(5)IN_DIS#5
(2)IN_DIS#2
Terminals description PLC n°3 (COM1)COM1#0-3
(0)OUT_DIS#0
(5)OUT_DIS#5
TB_2
(NC)UNUSED
(3)OUT_DIS#3
(COM2)COM2#4-7
(7)OUT_DIS#7
(1)OUT_DIS#1
(4)OUT_DIS#4
(6)OUT_DIS#6
(2)OUT_DIS#2
Product weight 0.14 kg
TWDDMM8DRT Schneider
Schneider TWDDMM8DRT Schneider
$419.27
Only 1 unit left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete I/O module
Discrete input number 4
Discrete input voltage 24 V
Discrete input voltage type DC
Discrete output number 4
Discrete output type Relay
I/O connection Removable screw terminal block
Number of common point 1I/1O

Complementary

Characteristic Value(s)
Input voltage limits 20.4...28.8 V
Discrete input logic Sink or source
Discrete input current 7 mA
Input impedance 3.4 kOhm
Filter time 8 ms at state 0
8 ms at state 1
Discrete output function 4 NO
Current per channel 2 A
Maximum current per output common 7 A
Contact resistance 40000 µOhm
Response time <= 7 ms
Insulation between channel and internal logic 1500 Vrms for 1 min (by photocoupler)
Current consumption 20 mA at 24 V DC at state 1 for all inputs/outputs
25 mA at 5 V DC at state 1 for all inputs/outputs
5 mA at 5 V DC at state 0 for all inputs/outputs
Marking CE
Terminals description PLC n°1 (1)IN_DIS#1
ALT
(NC)UNUSED
(3)IN_DIS#3
TB_1
COM0_POS#0-3
(2)IN_DIS#2
(0)IN_DIS#0
Terminals description PLC n°2 TB_1
COM0_NEG#0-3
(2)IN_DIS#2
ALT_1
(3)IN_DIS#3
(NC)UNUSED
(0)IN_DIS#0
(1)IN_DIS#1
Terminals description PLC n°3 (2)OUT_DIS#2
TB_2
(COM1)COM1#0-3
(0)OUT_DIS#0
(3)OUT_DIS#3
(1)OUT_DIS#1
Product weight 0.095 kg
TWDDRA16RT Schneider
Schneider TWDDRA16RT Schneider
$279.45
Only 2 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete output module
Discrete output number 16
Discrete output type Relay
I/O connection Removable screw terminal block
Number of common point 2

Complementary

Characteristic Value(s)
Discrete output function 16 NO
Current per channel 2 A
Maximum current per output common 8 A
Contact resistance 40000 µOhm
Response time <= 7 ms
Insulation between channel and internal logic 1500 Vrms for 1 minute
Current consumption 45 mA at 5 V DC at state 1 for all inputs/outputs
5 mA at 5 V DC at state 0 for all inputs/outputs
75 mA at 24 V DC at state 1 for all inputs/outputs
Marking CE
Terminals description PLC n°1 (8)OUT_DIS#8
(3)OUT_DIS#3
(12)OUT_DIS#12
(13)OUT_DIS#13
COM0_POS
COM0_POS#0-7
(11)OUT_DIS#11
(4)OUT_DIS#4
(14)OUT_DIS#14
(10)OUT_DIS#10
(0)OUT_DIS#0
(9)OUT_DIS#9
(2)OUT_DIS#2
(15)OUT_DIS#15
(5)OUT_DIS#5
(1)OUT_DIS#1
ALT
COM1
TB
(6)OUT_DIS#6
(7)OUT_DIS#7
COM1_POS#8-15
Terminals description PLC n°2 (4)OUT_DIS#4
(10)OUT_DIS#10
(12)OUT_DIS#12
(1)OUT_DIS#1
ALT_1
(15)OUT_DIS#15
COM1_NEG#8-15
(11)OUT_DIS#11
(7)OUT_DIS#7
COM0
COM1
(3)OUT_DIS#3
(14)OUT_DIS#14
TB
(8)OUT_DIS#8
(13)OUT_DIS#13
COM0_NEG#0-7
(2)OUT_DIS#2
(5)OUT_DIS#5
(0)OUT_DIS#0
(6)OUT_DIS#6
(9)OUT_DIS#9
Product weight 0.145 kg
TWDDRA8RT Schneider
Schneider TWDDRA8RT Schneider
$173.25
Only 8 units left

Main

Characteristic Value(s)
Range of product Twido
Product or component type Discrete output module
Discrete output number 8
Discrete output type Relay
I/O connection Removable screw terminal block
Number of common point 1

Complementary

Characteristic Value(s)
Discrete output function 8 NO
Current per channel 2 A
Maximum current per output common 7 A
Contact resistance 40000 µOhm
Response time <= 7 ms
Insulation between channel and internal logic 1500 Vrms for 1 minute
Current consumption 30 mA at 5 V DC at state 1 for all inputs/outputs
40 mA at 24 V DC at state 1 for all inputs/outputs
5 mA at 5 V DC at state 0 for all inputs/outputs
Marking CE
Terminals description PLC n°1 (1)OUT_DIS#1
(3)OUT_DIS#3
(2)OUT_DIS#2
(4)OUT_DIS#4
COM1_POS#4-7
TB
ALT
(6)OUT_DIS#6
(0)OUT_DIS#0
(7)OUT_DIS#7
(5)OUT_DIS#5
Terminals description PLC n°2 (NC)UNUSED
TB
COM0_NEG#0-3
(0)OUT_DIS#0
(5)OUT_DIS#5
(6)OUT_DIS#6
COM1_NEG#4-7
(1)OUT_DIS#1
ALT_1
(3)OUT_DIS#3
(7)OUT_DIS#7
(4)OUT_DIS#4
(2)OUT_DIS#2
Product weight 0.11 kg

Recently viewed
