ABB | Industrial Automation Systems | PLC Direct

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

4 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.7 W

at Rated Operating Conditions per Pole 1.7 W

1.7 W

at Rated Operating Conditions per Pole 1.7 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210684

E-Number (Norway):

1664947

E-Number (Sweden):

2100693

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0338 ABB - S201-Z4

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

Z

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

4 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.4 W

at Rated Operating Conditions per Pole 2.4 W

2.4 W

at Rated Operating Conditions per Pole 2.4 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210707

E-Number (Norway):

1665078

E-Number (Sweden):

2100747

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0377 ABB - S201-K6

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.9 W

at Rated Operating Conditions per Pole 1.9 W

1.9 W

at Rated Operating Conditions per Pole 1.9 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210685

E-Number (Norway):

1664961

E-Number (Sweden):

2100694

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

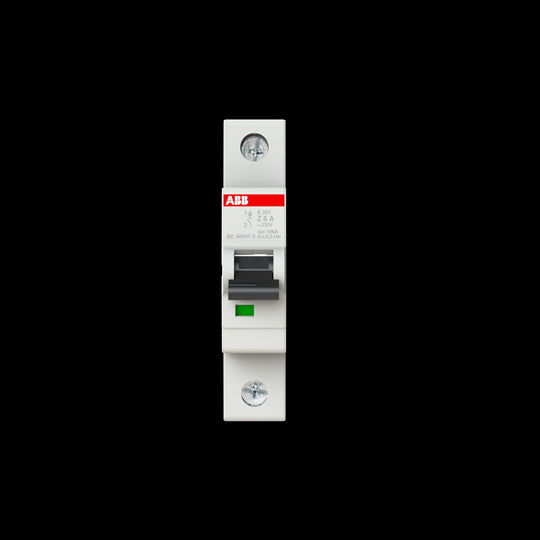

ABB 2CDS251001R0378 ABB - S201-Z6

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

Z

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

6 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.2 W

at Rated Operating Conditions per Pole 3.2 W

3.2 W

at Rated Operating Conditions per Pole 3.2 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210708

E-Number (Norway):

1665092

E-Number (Sweden):

2100748

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0401 ABB - S201-D40

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.2 W

at Rated Operating Conditions per Pole 4.2 W

4.2 W

at Rated Operating Conditions per Pole 4.2 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Norway):

1664889

E-Number (Sweden):

2100638

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

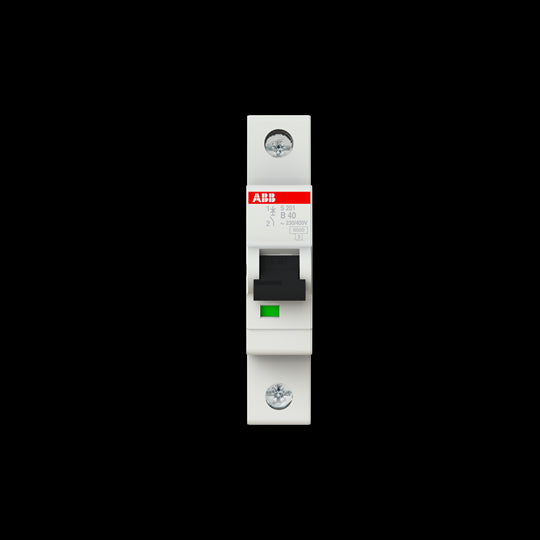

ABB 2CDS251001R0405 ABB - S201-B40

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.8 W

at Rated Operating Conditions per Pole 4.8 W

4.8 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210140

E-Number (Norway):

1664813

E-Number (Sweden):

2100414

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0407 ABB - S201-K8

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

8 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.5 W

at Rated Operating Conditions per Pole 1.5 W

1.5 W

at Rated Operating Conditions per Pole 1.5 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210579

E-Number (Norway):

1664972

E-Number (Sweden):

2100695

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0427 ABB - S201-K10

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

10 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.4 W

at Rated Operating Conditions per Pole 1.4 W

1.4 W

at Rated Operating Conditions per Pole 1.4 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210686

E-Number (Norway):

1664910

E-Number (Sweden):

2100696

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0428 ABB - S201-Z10

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

Z

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

10 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.7 W

at Rated Operating Conditions per Pole 2.7 W

2.7 W

at Rated Operating Conditions per Pole 2.7 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210709

E-Number (Norway):

1665045

E-Number (Sweden):

2100750

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

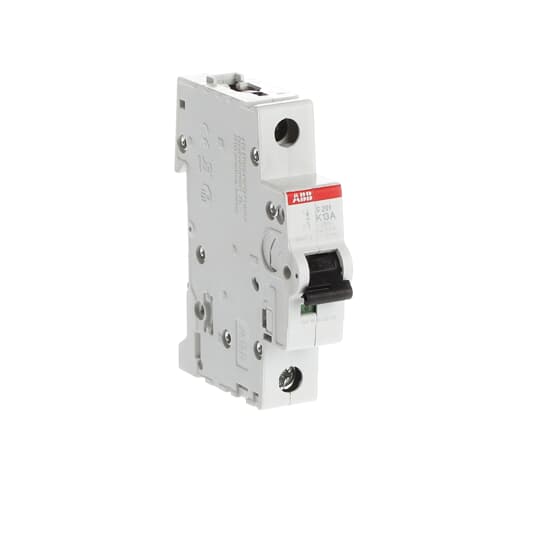

ABB 2CDS251001R0447 ABB - S201-K13

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

13 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.4 W

at Rated Operating Conditions per Pole 1.4 W

1.4 W

at Rated Operating Conditions per Pole 1.4 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210580

E-Number (Norway):

1664915

E-Number (Sweden):

2100697

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

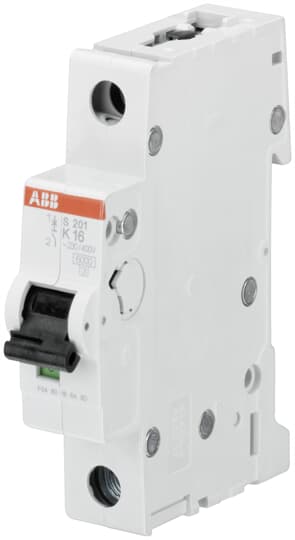

ABB 2CDS251001R0457 ABB - S201-K15

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

15 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

1.732 W

at Rated Operating Conditions per Pole 1.733 W

1.732 W

at Rated Operating Conditions per Pole 1.733 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0467 ABB - S201-K16

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

16 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2 W

at Rated Operating Conditions per Pole 2 W

2 W

at Rated Operating Conditions per Pole 2 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210687

E-Number (Norway):

1664919

E-Number (Sweden):

2100698

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0468 ABB - S201-Z16

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

Z

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

16 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.8 W

at Rated Operating Conditions per Pole 2.8 W

2.8 W

at Rated Operating Conditions per Pole 2.8 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210710

E-Number (Norway):

1665051

E-Number (Sweden):

2100751

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0487 ABB - S201-K20

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

20 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.7 W

at Rated Operating Conditions per Pole 2.7 W

2.7 W

at Rated Operating Conditions per Pole 2.7 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210688

E-Number (Norway):

1664929

E-Number (Sweden):

2100699

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0501 ABB - S201-D50

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

50 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.9 W

at Rated Operating Conditions per Pole 2.9 W

2.9 W

at Rated Operating Conditions per Pole 2.9 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Sweden):

2100639

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0505 ABB - S201-B50

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

B

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

50 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.25 W

at Rated Operating Conditions per Pole 3.25 W

3.25 W

at Rated Operating Conditions per Pole 3.25 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210150

E-Number (Norway):

1664815

E-Number (Sweden):

2100416

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0517 ABB - S201-K25

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

25 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

2.9 W

at Rated Operating Conditions per Pole 2.9 W

2.9 W

at Rated Operating Conditions per Pole 2.9 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210689

E-Number (Norway):

1664934

E-Number (Sweden):

2100700

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0527 ABB - S201-K30

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

20000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

30 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.15 W

at Rated Operating Conditions per Pole 3.15 W

3.15 W

at Rated Operating Conditions per Pole 3.15 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0537 ABB - S201-K32

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

32 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.6 W

at Rated Operating Conditions per Pole 3.6 W

3.6 W

at Rated Operating Conditions per Pole 3.6 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210690

E-Number (Norway):

1664942

E-Number (Sweden):

2100701

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0557 ABB - S201-K40

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

40 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.5 W

at Rated Operating Conditions per Pole 4.5 W

4.5 W

at Rated Operating Conditions per Pole 4.5 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210691

E-Number (Norway):

1664952

E-Number (Sweden):

2100702

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0577 ABB - S201-K50

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

50 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.1 W

at Rated Operating Conditions per Pole 3.1 W

3.1 W

at Rated Operating Conditions per Pole 3.1 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210692

E-Number (Norway):

1664956

E-Number (Sweden):

2100703

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

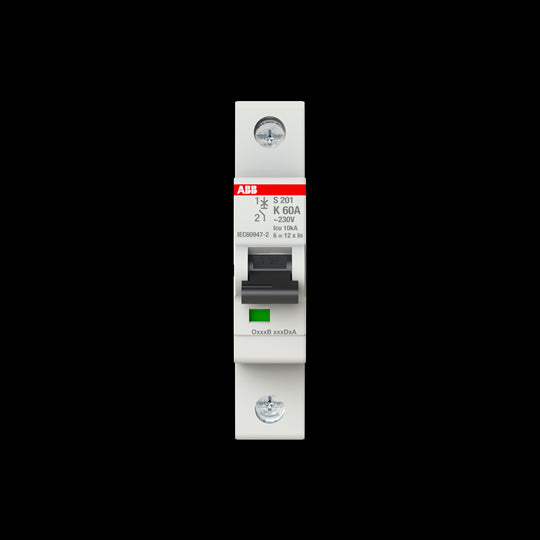

ABB 2CDS251001R0587 ABB - S201-K60

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

60 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

3.6 W

at Rated Operating Conditions per Pole 3.6 W

3.6 W

at Rated Operating Conditions per Pole 3.6 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0607 ABB - S201-K63

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

K

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

63 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Frequency (f):

50 Hz

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.4 W

at Rated Operating Conditions per Pole 4.4 W

4.4 W

at Rated Operating Conditions per Pole 4.4 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y / 277 V AC

60 V DC

480Y / 277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Finland):

3210693

E-Number (Norway):

1664966

E-Number (Sweden):

2100704

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:

ABB 2CDS251001R0631 ABB - S201-D63

External Classifications and Standards

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

ETIM 10:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

eClass:

V11.0 : 27141901

IDEA Granular Category Code (IGCC):

4897 >> Miniature circuit breakers

Object Classification Code:

F

Standards:

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Certification Agency:

EN

IEC

UL

EN

IEC

UL

Standardization Body:

EN

IEC

UL

EN

IEC

UL

$0.00

Sold Out

ABB EcoSolutions

ABB EcoSolutions:

Yes

EcoSolutions Profile:

End of life instruction S200, S200L, SZ200, SC200, S200M

Recyclability Rate of the Product acc. to EN45555:

Design for Closing Resource Loops - Standard EN45555 -  87.8 %

Extended Product Lifetime:

Product Durability

End Of Life Disassembling Instructions:

Environmental Product Declaration - EPD:

EPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) family

Technical

Dielectric Test Voltage:

50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

(133 V AC) 20 kA

(230 V AC) 10 kA

(24 V DC) 20 kA

(60 V DC) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (I_cs):

(133 V AC) 15 kA

(230 V AC) 7.5 kA

(133 V AC) 15 kA

(230 V AC) 7.5 kA

Power Supply Connection:

Arbitrary

Contact Position Indication:

Red ON / Green OFF

Energy Limiting Class:

3

Electrical Endurance:

10000 AC cycle

Mechanical Endurance:

20000 cycle

Number of Protected Poles:

1

Number of Poles:

1P

Tightening Torque:

2.8 N·m

Actuator Type:

Toggle

Screw Terminal Type:

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:

I  / O

Actuator Material:

Insulation Group II, Black, Sealable

Recommended Screw Driver:

Pozidriv 2

Accessories Available:

Yes

Connecting Capacity:

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:

acc. to DIN 43880 1

Wire Stripping Length:

12.5 mm

Terminal Type:

Screw Terminals

Electrical

Tripping Characteristic:

D

Rated Operational Voltage:

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

acc. to IEC 60898-1 230/400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Maximum (Incl. Tolerance) 253 V AC

Maximum (Incl. Tolerance) 72 V DC

Minimum 12 V AC

Minimum 12 V DC

Rated Insulation Voltage (U_i):

acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Input Voltage Type:

AC/DC

Rated Current (I_n):

63 A

Rated Short-Circuit Capacity:

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

(AC) 6 kA

(DC) 6 kA

(230 / 400 V AC) 6 kA

Rated Conditional Short-Circuit Current (I_nc):

(230 V) 10 kA

(400 V) 10 kA

(230 V) 10 kA

(400 V) 10 kA

Rated Frequency (f):

50 / 60 Hz

Power Loss:

4.8 W

at Rated Operating Conditions per Pole 4.8 W

4.8 W

at Rated Operating Conditions per Pole 4.8 W

Overvoltage Category:

III

I²t Characteristic:

Design

Housing Material:

Insulation Group II, RAL 7035

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

60 V DC

480Y/277 V AC

60 V DC

480Y/277 V AC

Interrupting Rating acc. to UL1077:

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

(277 V AC) 6 kA

(60 V DC) 10 kA

(120 V) 10 kA

Connecting Capacity UL/CSA:

Busbar 18-8 AWG

Conductor 18-4 AWG

Busbar 18-8 AWG

Conductor 18-4 AWG

Tightening Torque UL/CSA:

18 in·lb

Material Compliance

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

RoHS Date:

20240228

REACH Declaration:

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240821

Conflict Minerals Reporting Template (CMRT):

SCIP:

e6800e55-46b1-49a3-881b-0f66d0e903ad Germany

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:

30 °C

Degree of Protection:

IP20

IP40

Enclosure with Cover IP40

IP20

IP40

Enclosure with Cover IP40

Pollution Degree:

3

Environmental Conditions:

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Resistance to Vibrations:

20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-27:

25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:

1.0

Product Net Width:

17.5 mm

Product Net Height:

88 mm

Product Net Depth / Length:

69 mm

Product Net Weight:

0.125 kg

Pole Net Weight:

0.125 kg

Built-In Depth (t₂):

69 mm

Dimension Diagram:

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:

carton 10 piece

Package Level 1 Gross Weight:

1.295 kg

E-Number (Sweden):

2100640

Certificates and Declarations

Declaration of Conformity - CE:

Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:

A- Electrical installation solutions for buildings - part A - 1st edition 2025

Mounting Type:

DIN-Rail

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:

any

Popular Downloads

Data Sheet, Technical Information:

I²t Characteristic:
