Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |

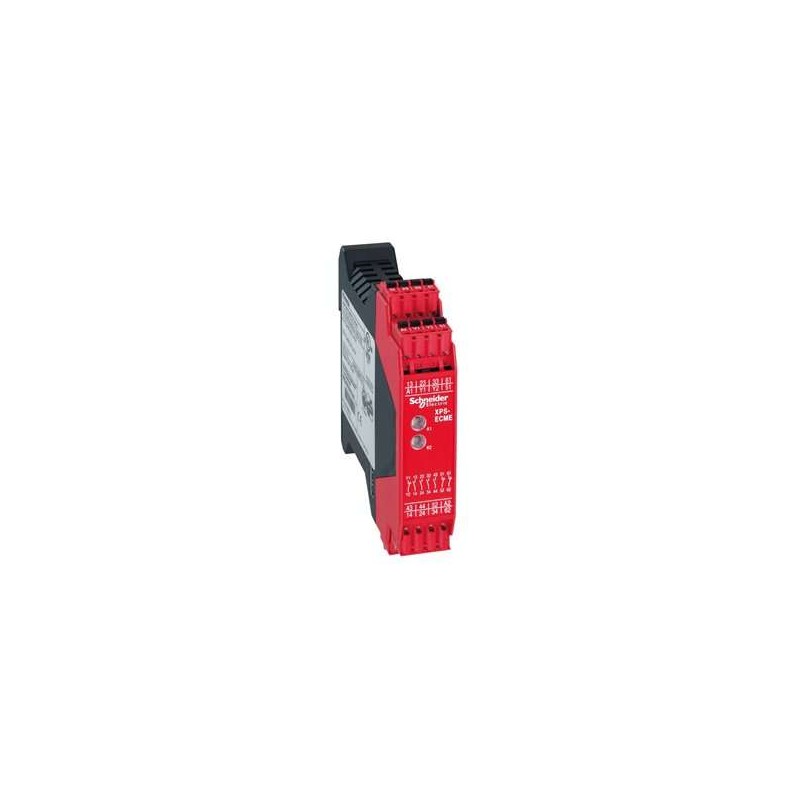

| Safety module name | XPSECME |
| Safety module application | Increasing the number of safety contacts |
| Function of module | Increasing the number of safety contacts |
| Safety level | Can reach PL e/category 4 can reach the maximum safety level of module base conforming to EN/ISO 13849-1 Can reach SILCL 3 can reach the maximum safety level of module base conforming to EN/IEC 62061 |
| Safety reliability data | MTTFd = 100 years conforming to EN/ISO 13849-1 DC = 60...90 % conforming to EN/ISO 13849-1 PFHd = 2E-7 1/h conforming to EN/IEC 62061 |
| Output type | Relay, 4 NO circuit(s), volt-free |
| [Us] rated supply voltage | 24 V AC/DC - 15...10 % |
| Number of additional circuits | 3 NC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Supply frequency | 50/60 Hz |
| Power consumption in VA | 5 VA |
| Input protection type | Internal, electronic |
| Breaking capacity | 360 VA holding AC-15 B300 relay output 3600 VA inrush AC-15 B300 relay output |
| Breaking capacity | 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output 20 mA at 24 V for solid state output circuit |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 12 A for relay output |
| Associated fuse rating | 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Local signalling | 2 LEDs |
| Connections - terminals | Spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end Spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end Spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel Spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel Spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel |
| Mounting support | 35 mm symmetrical DIN rail |
| Product weight | 0.27 kg |
