Main
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Altivar Machine ATV340 Altivar Process ATV900 |

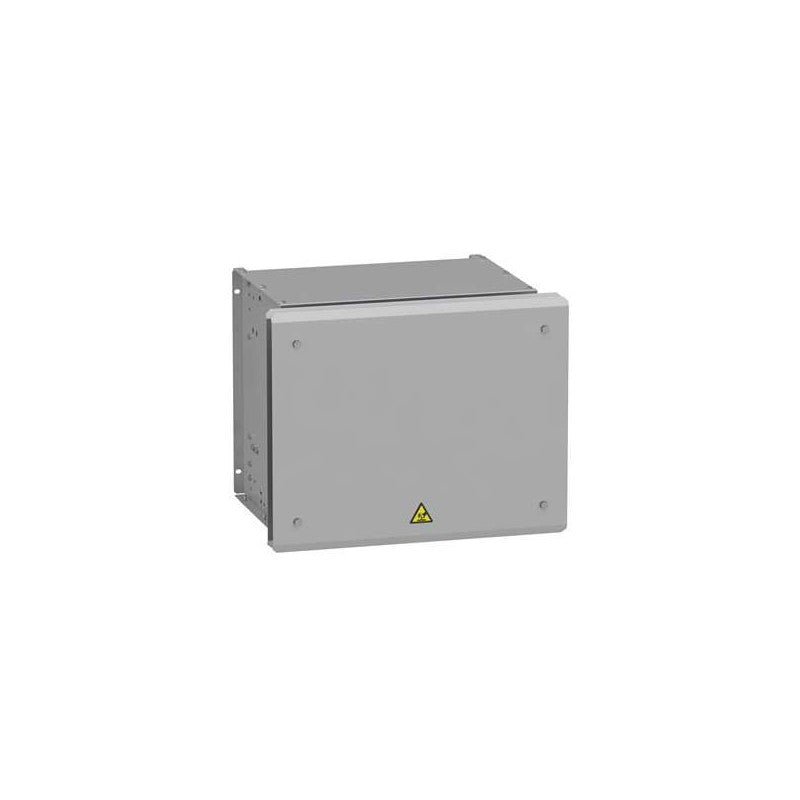

| Product or Component Type | Braking resistor |
| Ohmic value | 8 Ohm |
| [Ue] rated operational voltage | 24 V DC 250 V AC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product compatibility | Variable speed drive ATV930 wall mount 55 kW 380...480 V medium cycle Variable speed drive ATV950 wall mount 55 kW 380...480 V medium cycle Variable speed drive ATV340 45 kW 380...480 V medium cycle Variable speed drive ATV930 45 kW 500...690 V medium cycle Variable speed drive ATV930 55 kW 500...690 V medium cycle Variable speed drive ATV930 60 hp 600 V medium cycle Variable speed drive ATV930 75 hp 600 V medium cycle |
| Duty cycle | Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle |
| Average power available | 3.8 kW 122 °F (50 °C) |
| Electrical connection | terminal <= 2.5 mm² / AWG 12 temperature control switch M8 bar wire drive |
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Width | 21.3 in (540 mm) |
| Height | 19.09 in (485 mm) |
| Depth | 25.6 in (650 mm) |
| Product Weight | 56.2 lb(US) (25.5 kg) |
