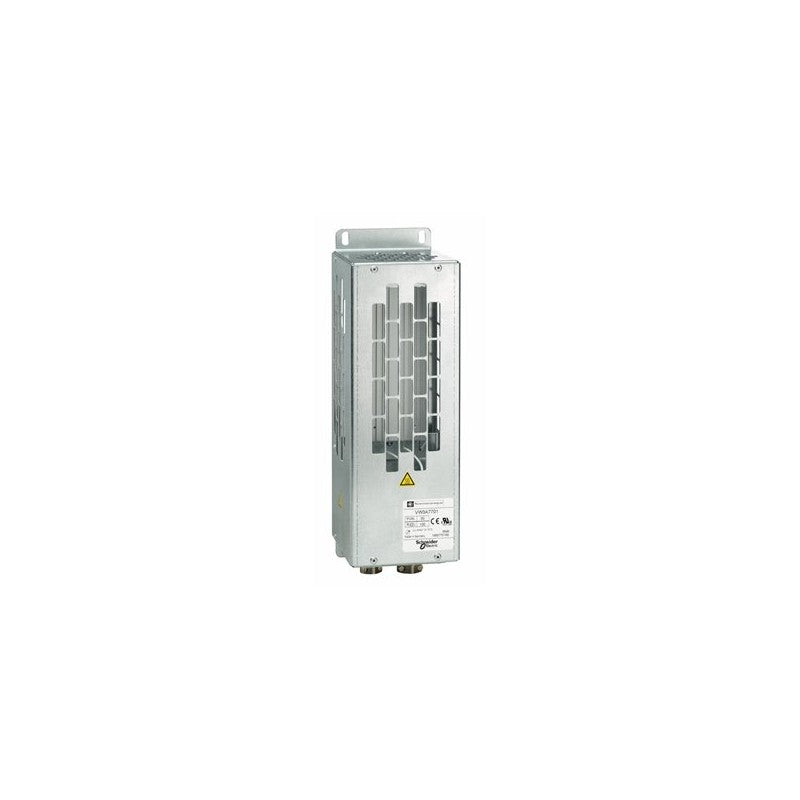

This braking resistor allows your drive to operate while braking to a standstill or during slowdown braking. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 15Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 61, Altivar 71, Lexium 32 / 32i and lexium 52.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar |
| Range Compatibility | Altivar 312 Solar Lexium 32 Altivar 61 Lexium 32i Altivar 312 Lexium 52 |
| Product compatibility | ATV312HU55M3 ATV312HU75M3 ATV61HD18N4 ATV61HD22N4 ATV61HD30N4 ATV61HD30Y ATV61HD37Y ATV61HD45Y ATV61HU55M3 ATV61HU75M3 ATV61WD22N4 ATV61WD22N4C ATV61WD30N4 ATV61WD30N4C ATV61WD37N4 ATV61WD37N4C ATV71HD18N4 ATV71HD22N4 ATV71HD22Y ATV71HD30N4 ATV71HD30Y ATV71HD37Y ATV71HU55M3 ATV71HU75M3 ATV71WD18N4 ATV71WD22N4 ATV71WD30N4 LXM32MC10N4 LXM32MD85N4 |
| Product or Component Type | Braking resistor |
| Ohmic value | 15 Ohm |
| Accessory / separate part category | Protection accessories |
| [Ue] rated operational voltage | 24 V DC 0.1 A 250 V AC 1 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Average power available | 1 kW 122 °F (50 °C) 1.154 kW 104 °F (40 °C) |
| Continuous power | 1000 W |
| Electrical connection | M6 bar wire drive terminal <= 2.5 mm² / AWG 14 temperature control switch |
| temperature controlled switch contact resistance | 60 µOhm |
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Width | 9.4 in (240 mm) |
| Height | 19.06 in (484 mm) |
| Depth | 11.9 in (301 mm) |
| Product Weight | 24.3 lb(US) (11 kg) |
