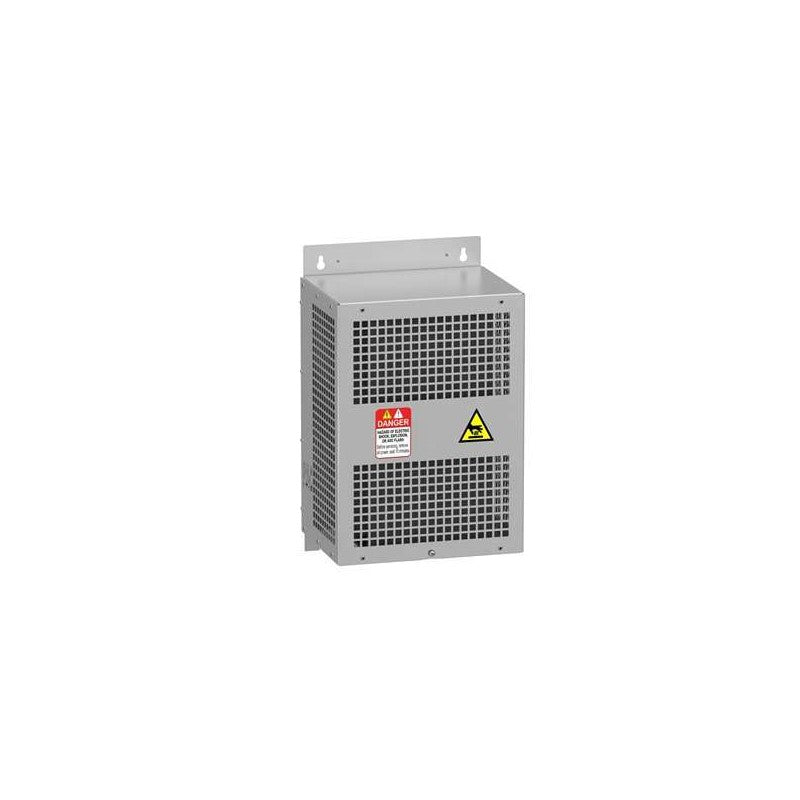

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 6A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 11kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Main
| Characteristic | Value(s) |
|---|---|
| Product or component type | Dv/dt filter |
| Range compatibility | Altivar Process ATV600 Altivar Process ATV900 Easy Altivar 610 Altivar Machine ATV340 |
| Product specific application | Output filter |
| [In] rated current | 6 A |
| Product compatibility | ATV630 variable speed drive wall mount - 0.75 kW, 380...480 V ATV630 variable speed drive wall mount - 1.5 kW, 380...480 V ATV630 variable speed drive wall mount - 2.2 kW, 380...480 V ATV630 variable speed drive wall mount - 0.75 kW, 200...240 V ATV650 variable speed drive wall mount - 0.75 kW, 380...480 V ATV650 variable speed drive wall mount - 1.5 kW, 380...480 V ATV650 variable speed drive wall mount - 2.2 kW, 380...480 V ATV610 variable speed drive - 0.75 kW, 380...415 V ATV610 variable speed drive - 1.5 kW, 380...415 V ATV610 variable speed drive - 2.2 kW, 380...415 V ATV930 variable speed drive wall mount - 0.75 kW, 380...480 V ATV930 variable speed drive wall mount - 1.5 kW, 380...480 V ATV930 variable speed drive wall mount - 2.2 kW, 380...480 V ATV930 variable speed drive wall mount - 0.75 kW, 200...240 V ATV950 variable speed drive wall mount - 0.75 kW, 380...480 V ATV950 variable speed drive wall mount - 1.5 kW, 380...480 V ATV950 variable speed drive wall mount - 2.2 kW, 380...480 V |
| nedded quantity | 1 |
| Electrical connection | Terminal block, connection capacity: 6 mm² / AWG 10 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Maximum motor cable length | 300 m unshielded cable 300 m shielded cable |
| dv/dt | 3000 V/µs max at 200...240 V 3000 V/µs max at 380...480 V |
| Thermal losses | 16 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10â¦50 °C (without current derating) 50â¦60 °C (with current derating 1.5 % per °C) |
| Operating altitude | 0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| Width | 295 mm |
| Height | 535 mm |
| Depth | 215 mm |
| Product weight | 11 kg |
