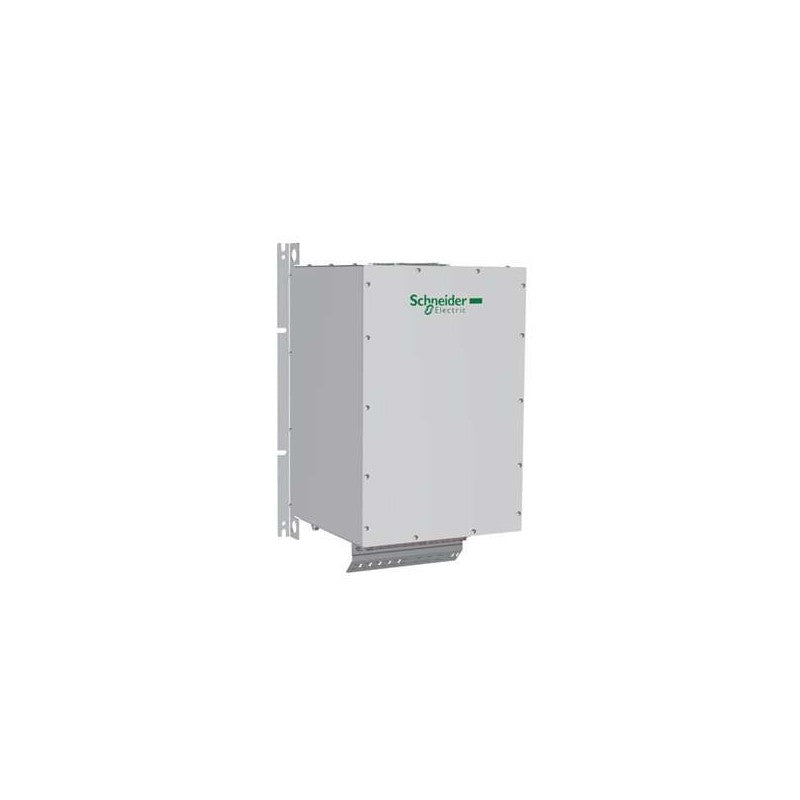

This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 76kg and its dimensions are, 378mm wide, 623.6mm high, 333mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Main
| Characteristic | Value(s) |
|---|---|
| Product or component type | Passive filter |
| Product specific application | Reduction of current harmonics |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range compatibility | Altivar 61 Altivar 71 Altivar Process ATV600 Altivar Process ATV900 |
| [Us] rated supply voltage | 400 V +/- 10 % |
| power supply frequency | 50 Hz +/- 2 % |
| Quantity per drive | 1 filter per drive for variable speed drive ATV650 wall mount, motor: 22 kW/30 hp 1 filter per drive for variable speed drive ATV630 wall mount, motor: 22 kW/30 hp 1 filter per drive for variable speed drive ATV950 wall mount, motor: 22 kW/30 hp 1 filter per drive for variable speed drive ATV930 wall mount, motor: 22 kW/30 hp 1 filter per drive for variable speed drive ATV61W motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV61H motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV71H motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV71W motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV650 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV630 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV950 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV930 wall mount, motor: 30 kW/40 hp |
| [In] rated current | 58 A for input 60 A for output |
| Network number of phases | 3 phases |
| THDI | 5 % for variable speed drive ATV650 motor: 22 kW/30 hp 5 % for variable speed drive ATV630 motor: 22 kW/30 hp 10 % for variable speed drive ATV61H motor: 30 kW/40 hp 10 % for variable speed drive ATV71H motor: 30 kW/40 hp 10 % for variable speed drive ATV71W motor: 30 kW/40 hp 5 % for variable speed drive ATV61W motor: 30 kW/40 hp 5 % for variable speed drive ATV650 motor: 30 kW/40 hp 5 % for variable speed drive ATV630 motor: 30 kW/40 hp 5 % for variable speed drive ATV950 motor: 22 kW/30 hp 5 % for variable speed drive ATV930 motor: 22 kW/30 hp 5 % for variable speed drive ATV950 motor: 30 kW/40 hp 5 % for variable speed drive ATV930 motor: 30 kW/40 hp |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Efficiency | 98 % |
| Thermal losses | 574 W |
| Cos phi | 1 (150 % of line current) 0.85 (75 % of line current) 0.99 (100 % of line current) |
| Electrical connection | A, B terminal, connection capacity: 2.5 mm² X1-1...X2-3 terminal, connection capacity: 2.5...50 mm² |
| Electrical insulation class | Class F |
| Product weight | 76 kg |
