Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar |

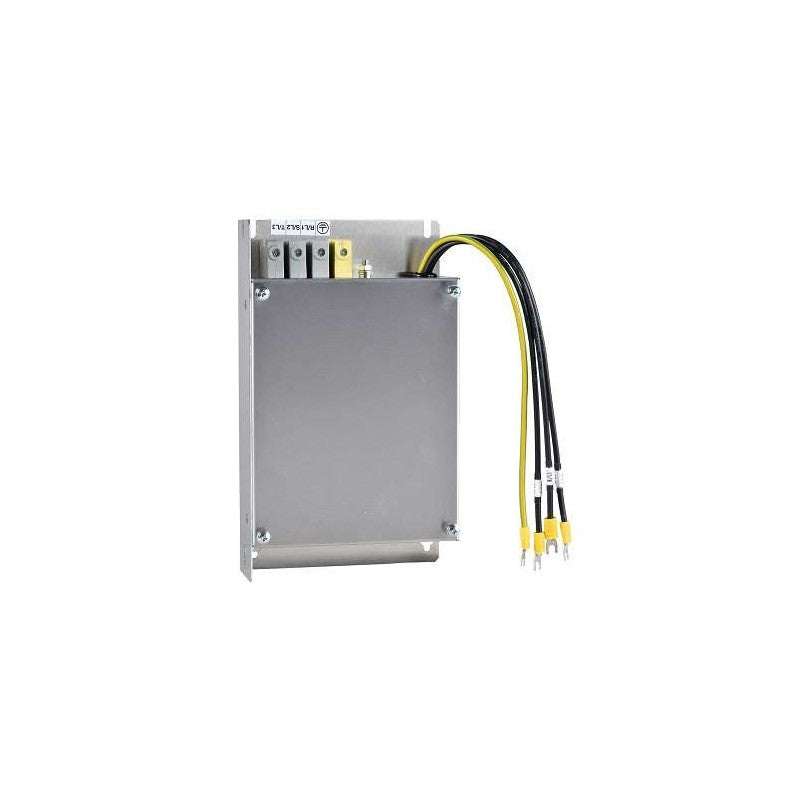

| Product or Component Type | EMC input filter |
| Range Compatibility | Lexium 05 Lexium 23 Plus Altivar Machine ATV320 Altivar 212 Altivar 312 Altivar 31C Altivar 312 Solar |
| Product compatibility | Servo drive LXM237.5 kW ATV212HD11N4 ATV212HU55M3X ATV212HU75M3X ATV212HU75N4 ATV31CU55N4 ATV31CU75N4 LXM05AD57N4 LXM05BD57N4 LXM05CD57N4 ATV312HU55M3 ATV312HU75M3 ATV312HU55N4 ATV312HU75N4 Variable speed drive ATV320...C5.5 kW, 200...240 V three phase Variable speed drive ATV320...C7.5 kW, 200...240 V three phase |
| Product Specific Application | Radio interference input filter |
| Line Rated Current | 47 A |
| Thermal losses | 1.9 W ATV21HU75N4 19.3 W ATV31CU55N4 3.7 W ATV21HU55M3X 3.9 W ATV21HD11N4 6.8 W ATV21HU75M3X |
| Phase | Three phase |
Complementary
| Characteristic | Value(s) |
|---|---|
| Electrical connection | Terminal 25 mm² AWG 2 |
| Tightening torque | 39.8 lbf.in (4.5 N.m) |
| maximum earth leakage current | 45 mA 50 Hz 20.6 mA 480 V 60 Hz 42.8 mA 480 V 60 Hz |
| power supply voltage | 200â¦240 V 380â¦500 V |
| Tolerance | 10 % |
| Product Weight | 6.94 lb(US) (3.15 kg) |
