Main
| Characteristic | Value(s) |
|---|---|

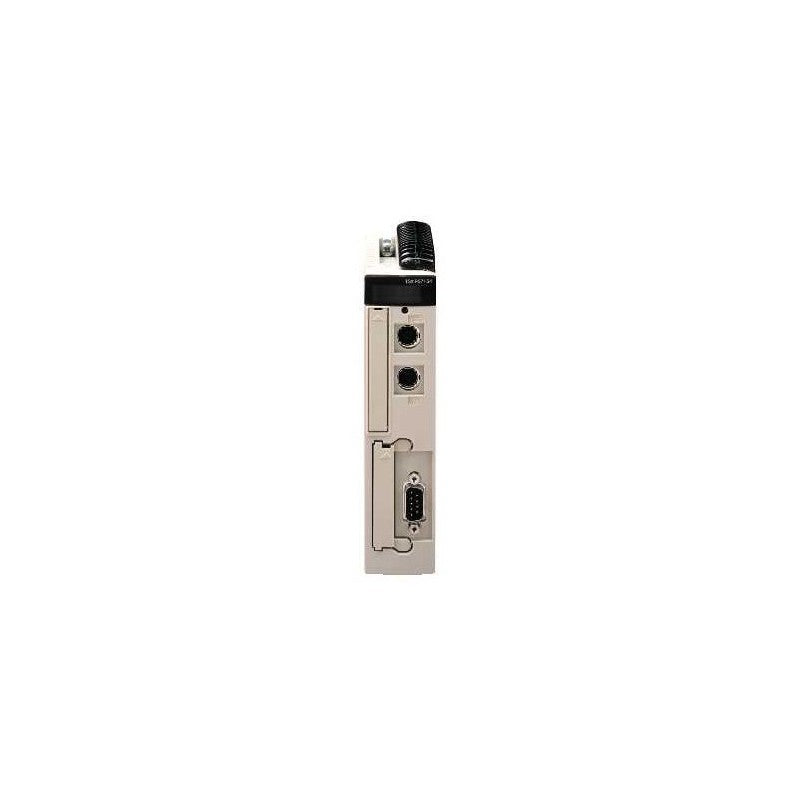

| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Single-format PL7 processor |
| Software Designation | PL7 Junior/Pro |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 128 96 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Fipio manager (127 agents) SUB-D 9 Non isolated serial link 2 female mini DIN19.2/115 kbit/s) |
| Communication module processor capacity | 2 fieldbus modules (1 if CANopen used) 8 AS-Interface bus modules 1 CANopen 3 network module |
| Memory description | Internal RAM (with PCMCIA card) 96 Kwords data Internal RAM (without PCMCIA card) 80 Kwords program and data PCMCIA card 2688 Kwords additional data storage PCMCIA card 384 Kwords program |
| Maximum size of object areas | 16384 %Mi located internal bits 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data |
| Application structure | 64 event tasks 1 fast task 1 master task |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card 0.21 µs Boolean with PCMCIA card 0.25 µs word or fixed-point arithmetic without PCMCIA card 0.42 µs word or fixed-point arithmetic with PCMCIA card 2.6 µs floating points with PCMCIA card 2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 3.7 Kinst/ms 100 % Boolean with PCMCIA card 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for activity on Fipio bus (FIP) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 1650 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.93 lb(US) (0.42 kg) |
