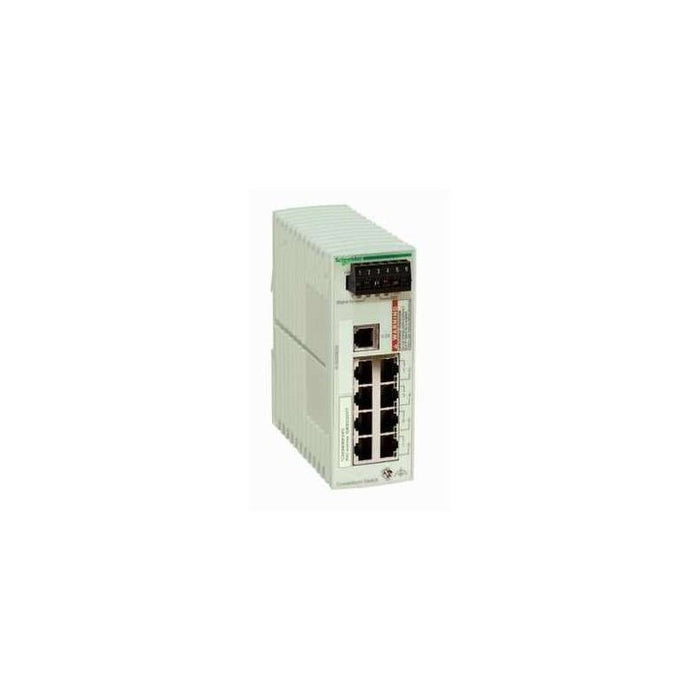

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | ConneXium |
| Product or Component Type | Ethernet TCP/IP managed switch |
| Concept | Transparent Ready |
| Communication Port Protocol | Ethernet TCP/IP HTTP HTTPS SNMP RS232 LLDP SNTP MRP (Media Redundancy Protocol) |
| Port Ethernet | 10/100BASE-TX - 8 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Role-based access control |
Complementary
| Characteristic | Value(s) |
|---|---|
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Ethernet service | Configuration via web server Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG |
| Communication Service | TFTP Quality of Service (QoS) Port monitoring Port mirroring |
| Diagnostics run time | Signal contact Self test |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring RSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6â¦32 V DC SELV |
| Power Consumption in W | 6 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE UL RCM |
| Function Available | System information |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies 1 LED (red) for fault 1 dual colour LED (green/yellow) for ring manager 1 LED (green) for stand-by 1 dual colour LED (green/yellow) for channel diagnostic Device status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault Data link status Switch fault Redundancy ring fault Switch fault Incorrect configuration Temperature threshold |
| Ethernet cabling system | TF switches |
| Width | 1.9 in (47 mm) |
| Height | 5.2 in (131 mm) |
| Depth | 4.4 in (111 mm) |
| Product Weight | 0.9 lb(US) (0.4 kg) |
