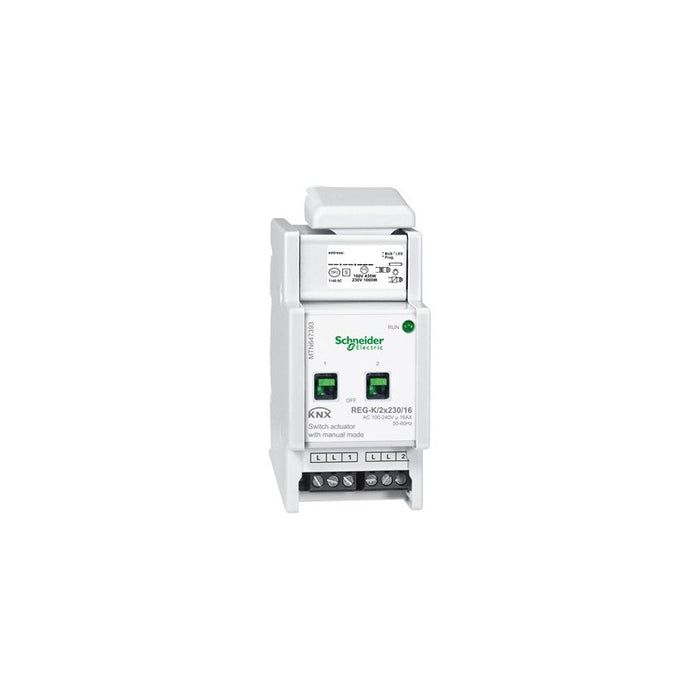

For independent switching of loads via make contacts. All 230 V switch outputs can be operated with manual switches. With integrated bus coupler. The device is connected to the mains via screw terminals. every second L connection is bridged internally. A green LED indicates readiness for operation after the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Operation as break or make contact, delay functions for each channel, staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function, blocking and additional logic operation or priority control, scenes, status feedback function per channel, central function. Comprehensive parameterisation for bus voltage failure and recovery, parameterisable download behaviour. Nominal voltage: AC 100-240 V ±10%. Operating voltage: min. AC 90 V - max. AC 265 V. Mains frequency: 50-60 Hz ±10%. For each switching contact: Switching current: 16 A, cos Phi 0.6. AC1 operation: max. 16 A. AC3 operation: max. 10 A. AC5 operation: max. 16 A. DC current switching capacity: max. 16 A/ 24 V DC. Output life endurance: Mechanical: >1000000. AC1/AC3/AC5 operation: >3x10000. 230V, 1A resistive: >8x100000. Nominal load. Incandescent lamps: AC 100 V, max. 1600 W. AC 230 V, max. 3600 W. AC 240 V, max. 3840 W. Halogen lamps: AC 100 V, max. 1086 W. AC 230 V, max. 2500 W. AC 240 V, max. 2608 W. Fluorescent lamps: AC 100 V, max. 1086 VA. AC 230 V, max. 2500 VA. AC 240 V, max. 2608 VA. parallel-compensated. Capacitive load: AC 230 V, 16 A, max. 200 µF. Minimum switching performance: 100 mA/12 V AC/DC. Maximum peak inrush-current: 150µs: 600 A. 250µs: 480 A. 600µs: 300 A. Device width: 2.5 modules, approx. 45 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey. 2 channel device
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | KNX |
| Product or component type | Switch actuator |
| Operating mode | Manual |
| Bus type | KNX |
| Modular device additional info | Connectable with different phases |
| Number of contacts | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Total number of 18 mm modules | 2.5 |
| Mounting support | DIN rail |
| [Ue] rated operational voltage | 100...240 V |
| Network frequency | 50...60 Hz |
| [In] rated current | 16 A |
| Load type | Incandescent lamps: <= 3600 W, 230 V AC Halogen lamps: <= 2500 W, 230 V AC Incandescent lamps: <= 1600 W, 100 V AC Incandescent lamps: <= 3840 W, 240 V AC Halogen lamps: <= 1086 W, 100 V AC Halogen lamps: <= 2608 W, 240 V AC Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC Capacitive: , 16 A, 200 µF, 100...240 V AC |
