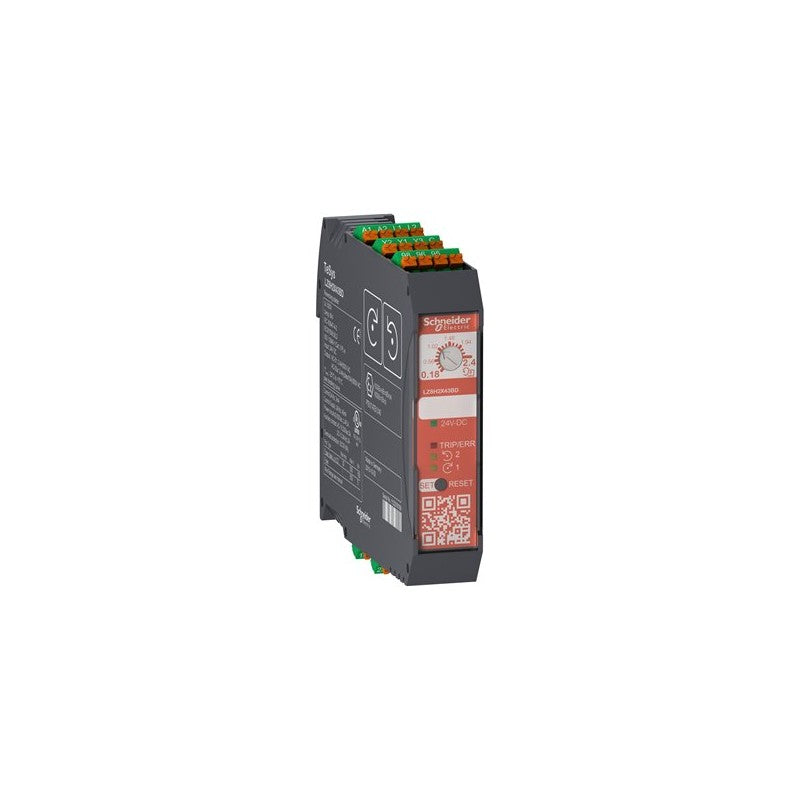

TeSys H ultra compact reverse safety starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
Main
| Characteristic | Value(s) |
|---|---|
| Range | TeSys |
| product name | TeSys Hybrid |
| Device short name | LZ8H |
| Product or Component Type | Reversing ultra-compact starter |
| Motor starter type | Direct on line |
| Poles description | 3P |
| [Ue] rated operational voltage | 500 V AC |
| [Ie] rated operational current | 6.5 A 500 V AC-53A 9 A 500 V AC-51 5 A 500 V AC-53A mounting side by side 7 A 500 V AC-51 mounting side by side |
| Thermal protection adjustment range | 1.5â¦9 A |
| Motor power kW | 1.5 kW 220 V AC 0.65 1.5 kW 230 V AC 0.65 2.2 kW 380 V AC 0.65 3 kW 400 V AC 0.65 3 kW 415 V AC 0.65 3 kW 440 V AC 0.65 3 kW 500 V AC 0.65 |
| Maximum Horse Power Rating | 1 hp 200 V AC 1.5 hp 230 V AC 3 hp 460 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Safety level | SIL 3 IEC 61508-1 stop function PL = e ISO 13849-1 stop function SIL 2 IEC 61508-1 motor protection |
| Safety reliability data | MTTFd = 517 years stop function PFHd = 2.67E-9 1/h stop function SFF = 99 % stop function SFF = 99 % motor protection MTTFd = 447 years motor protection |
| Thermal overload class | Class 10A IEC 60947-4-2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Auxiliary contact composition | 1 C/O fault signalling |
| Control circuit voltage limits | 19.2...30 V DC |
| Current consumption | <= 40 mA 24 V DC |
| Reset | Manual Electrical reset |
| Electrical durability | 30 Mcycles |
| Maximum operating rate | 120 cyc/mn AC-51 50 % 6 cyc/mn AC-53A 50 % |
| Mounting Mode | By clips |
| Mounting Support | DIN rail |
| Connections - terminals | spring clamp terminals 1 0.0003â¦0.004 in² (0.2â¦2.5 mm²) rigid spring clamp terminals 1 0.0004â¦0.004 in² (0.25â¦2.5 mm²) flexible - with cable end spring clamp terminals 1 0.0003â¦0.004 in² (0.2â¦2.5 mm²) flexible - without cable end |
| Certifications | CULus ATEX as associated device for motor protection in zones 1 and 21 CE |
| Standards | UL 60947-4-1 IEC 60947-4-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| pollution degree | 2 |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Depth | 4.5 in (114.5 mm) |
| Product Weight | 7.5 oz (212 g) |
