Main
| Characteristic | Value(s) |
|---|---|

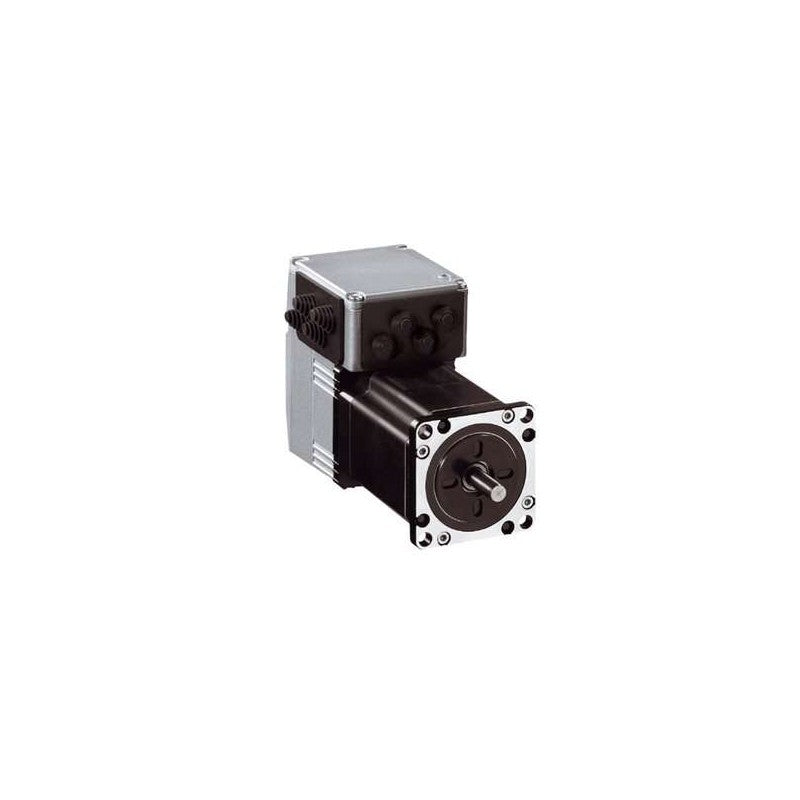

| Range of Product | Lexium integrated drive |
| Product or Component Type | Motion integrated drive |
| Device short name | ILS |
| Motor Type | 3-phase stepper motor |
| Number of motor poles | 6 |
| Phase | Single phase |
| [Us] rated supply voltage | 36 V 24 V |
| Network type | DC |
| Communication interface | Pulse/direction 5 V without RS422, Integrated |
| Length | 4.01 in (101.9 mm) |
| Winding type | Medium speed of rotation and medium torque |
| Electrical Connection | Printed circuit board connector |
| Holding brake | Without |
| Gear box type | Without |
| Nominal speed | 1000 rpm 36 V 500 rpm 24 V |
| Nominal torque | 3.98 lbf.in (0.45 N.m) |
| Holding torque | 4.51 lbf.in (0.51 N.m) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Mounting Support | Flange |
| Motor flange size | 2.2 in (57 mm) |
| Number of motor stacks | 1 |
| Centring collar diameter | 1.5 in (38.1 mm) |
| centring collar depth | 0.06 in (1.6 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.2 mm) |
| Circle diameter of the mounting holes | 2.6 in (66.6 mm) |
| Feedback type | Index pulse |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.25 in (6.35 mm) |
| Shaft length | 0.8 in (21 mm) |
| Supply voltage limits | 18â¦40 V |
| Current consumption | 3500 mA maximum continuous |
| Associated fuse rating | 10 A |
| Input/output type | 4 signals (each be used as input or output) |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Discrete input current | 10 mA at 24 V safety input |
| Discrete output voltage | 23...25 V |
| Maximum switching current | 100 mA per output 200 mA total |
| Protection Type | Safe torque off Overload of output voltage Short circuit of the output voltage |
| Peak stall torque | 3.98 lbf.in (0.45 N.m) |
| Continuous stall torque | 3.98 lbf.in (0.45 N.m) |
| Speed feedback resolution | 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps |
| Accuracy error | +/- 6 arc min |
| Rotor inertia | 0.1 kg.cm² |
| Maximum mechanical speed | 3000 rpm |
| Maximum radial force Fr | 24 N |
| Maximum axial force Fa | 100 N tensile force) 8.4 N force pressure) |
| Service life in hours | 20000 h bearing |
| Marking | CE |
| type of cooling | Natural convection |
| Product Weight | 2.9 lb(US) (1.3 kg) |
