Main
| Characteristic | Value(s) |
|---|---|

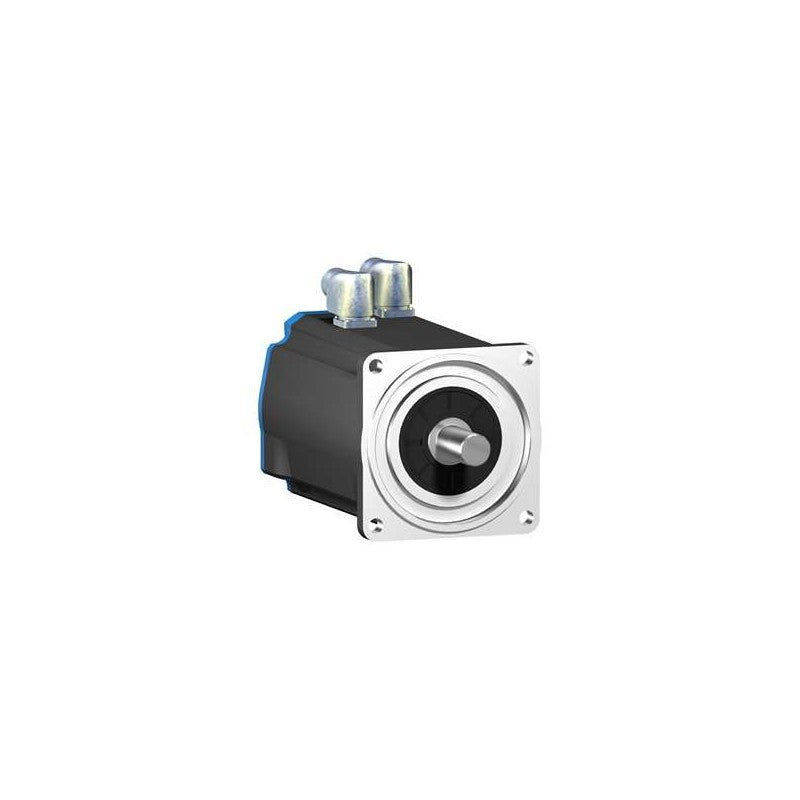

| Device short name | BSH |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| Continuous stall torque | 295.6 lbf.in (33.4 N.m) LXM32.D72N4 24 A, 400 V, three phase 295.6 lbf.in (33.4 N.m) LXM32.D72N4 24 A, 480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05AD57N4, 380...480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05BD57N4, 380...480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05CD57N4, 380...480 V, three phase |
| Peak stall torque | 916.9 lbf.in (103.6 N.m) LXM32.D72N4 24 A, 400 V, three phase 916.9 lbf.in (103.6 N.m) LXM32.D72N4 24 A, 480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05AD57N4, 380...480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05BD57N4, 380...480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05CD57N4, 380...480 V, three phase |
| Nominal output power | 5000 W LXM32.D72N4 24 A, 400 V, three phase 5000 W LXM32.D72N4 24 A, 480 V, three phase 3400 W LXM05AD57N4, 380...480 V, three phase 3400 W LXM05BD57N4, 380...480 V, three phase 3400 W LXM05CD57N4, 380...480 V, three phase |
| Nominal torque | 168.2 lbf.in (19 N.m) LXM32.D72N4 24 A, 400 V, three phase 168.2 lbf.in (19 N.m) LXM32.D72N4 24 A, 480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05AD57N4, 380...480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05BD57N4, 380...480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05CD57N4, 380...480 V, three phase |
| Nominal speed | 2500 rpm LXM32.D72N4 24 A, 400 V, three phase 2500 rpm LXM32.D72N4 24 A, 480 V, three phase 3000 rpm LXM05AD57N4, 380...480 V, three phase 3000 rpm LXM05BD57N4, 380...480 V, three phase 3000 rpm LXM05CD57N4, 380...480 V, three phase |
| Product compatibility | LXM05AD57N4 380...480 V three phase LXM05BD57N4 380...480 V three phase LXM05CD57N4 380...480 V three phase LXM32.D72N4 400 V three phase LXM32.D72N4 480 V three phase |
| Shaft end | Untapped |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 05 Lexium 32 |
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 21.3 A |
| maximum continuous power | 4.33 W |
| Maximum current Irms | 72 A LXM32.D72N4 95.6 A LXM05AD57N4 95.6 A LXM05BD57N4 95.6 A LXM05CD57N4 |
| Maximum permanent current | 95.6 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.9 in (24 mm) |
| Shaft length | 2.0 in (50 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 318.6 lbf.in (36 N.m) holding brake |
| Motor flange size | 5.5 in (140 mm) |
| Number of motor stacks | 4 |
| Torque constant | 1.57 N.m/A 248 °F (120 °C) |
| Back emf constant | 104 V/krpm 248 °F (120 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 29.2 kg.cm² |
| Stator resistance | 0.28 Ohm 68 °F (20 °C) |
| Stator inductance | 2.035 mH 68 °F (20 °C) |
| Stator electrical time constant | 13.93 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1840 N 3000 rpm 2110 N 2000 rpm 2660 N 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 26 W |
| type of cooling | Natural convection |
| Length | 16.6 in (420.5 mm) |
| Centring collar diameter | 5.1 in (130 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (11 mm) |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Product Weight | 61.3 lb(US) (27.8 kg) |
| Sizing reference | BSH1404P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
