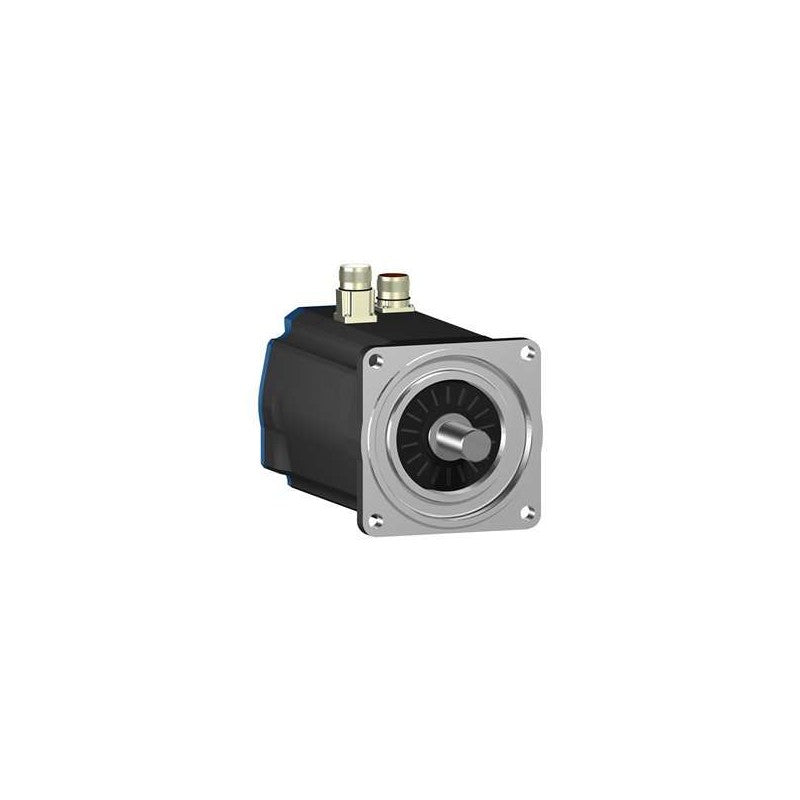

Main
| Characteristic | Value(s) |
|---|---|
| Device short name | BSH |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 4800 rpm |
| Continuous stall torque | 246.05 lbf.in (27.8 N.m) LXM32.D72N4 24 A, 400 V, three phase 246.05 lbf.in (27.8 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Peak stall torque | 798.3 lbf.in (90.2 N.m) LXM32.D72N4 24 A, 400 V, three phase 798.3 lbf.in (90.2 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Nominal output power | 4100 W LXM32.D72N4 24 A, 400 V, three phase 4100 W LXM32.D72N4 24 A, 480 V, three phase |
| Nominal torque | 114.2 lbf.in (12.9 N.m) LXM32.D72N4 24 A, 400 V, three phase 114.2 lbf.in (12.9 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Nominal speed | 3000 rpm LXM32.D72N4 24 A, 400 V, three phase 3000 rpm LXM32.D72N4 24 A, 480 V, three phase |
| Product compatibility | LXM32.D72N4 400 V three phase LXM32.D72N4 480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting Support | International standard |
| Electrical Connection | Straight connectors |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32 |
| supply voltage max | 480 V |
| Phase | Three phase |
| Continuous stall current | 22.3 A |
| maximum continuous power | 3.3 W |
| Maximum current Irms | 72 A LXM32.D72N4 |
| Maximum permanent current | 81.3 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.9 in (24 mm) |
| Shaft length | 2.0 in (50 mm) |
| key width | 1.6 in (40 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 5.5 in (140 mm) |
| Number of motor stacks | 3 |
| Torque constant | 1.58 N.m/A 248 °F (120 °C) |
| Back emf constant | 105 V/krpm 248 °F (120 °C) |
| Rotor inertia | 12.68 kg.cm² |
| Stator resistance | 0.4 Ohm 68 °F (20 °C) |
| Stator inductance | 5.1 mH 68 °F (20 °C) |
| Stator electrical time constant | 12.75 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1780 N 3000 rpm 2030 N 2000 rpm 2560 N 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| type of cooling | Natural convection |
| Length | 12.9 in (327.5 mm) |
| Centring collar diameter | 5.1 in (130 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (11 mm) |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Product Weight | 46.7 lb(US) (21.2 kg) |
| Sizing reference | BSH1403T |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
