Main
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32i |
| Device short name | BMI |

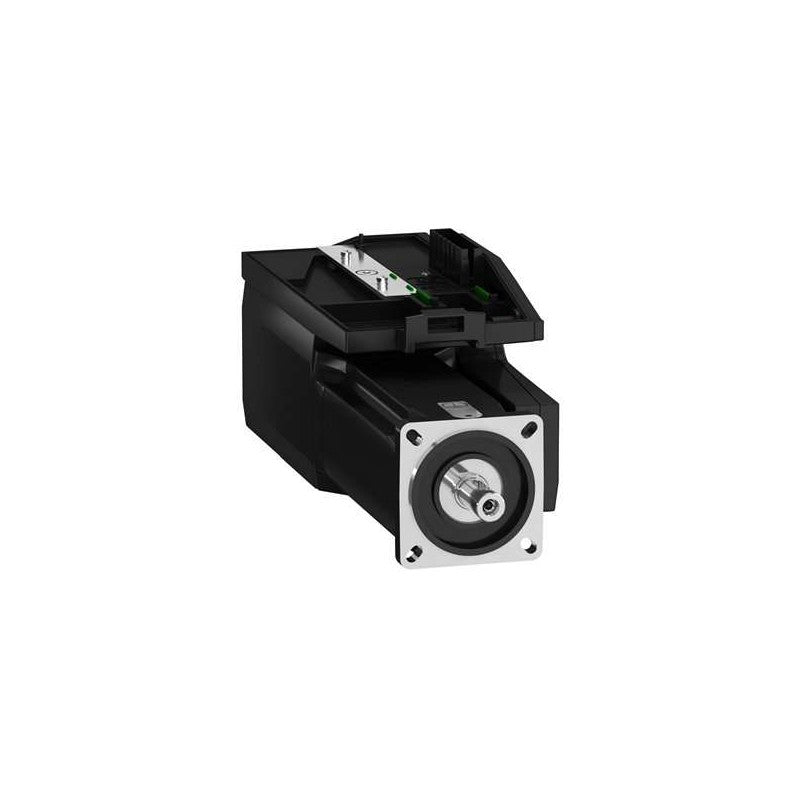

| Product or Component Type | Servo motor with power stage |
Complementary
| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 208...480 V - 15...10 % |
| Supply voltage limits | 208â¦480 V |
| Phase | Three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5â¦63 Hz |
| EMC filter | Integrated |
| Continuous output current | 2 A 8 kHz |
| Output current 3s peak | 6 A 400 V 3 s |
| Continuous stall current | 2 A |
| Continuous stall torque | 21.95 lbf.in (2.48 N.m) 208...480 V three phase |
| Peak stall torque | 60.2 lbf.in (6.8 N.m) 208 V three phase 60.2 lbf.in (6.8 N.m) 400 V three phase 60.2 lbf.in (6.8 N.m) 480 V three phase |
| Nominal output power | 400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase |
| Nominal torque | 21.2 lbf.in (2.4 N.m) 208 V three phase 19.5 lbf.in (2.2 N.m) 400 V three phase 17.7 lbf.in (2 N.m) 480 V three phase |
| Nominal speed | 1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase |
| Maximum current Irms | 9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase |
| Product compatibility | Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.4 in (11 mm) |
| Shaft length | 0.9 in (23 mm) |
| key width | 0.2 in (4 mm) |
| Feedback type | Absolute multiturn SinCos Hiperface |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Motor flange size | 2.8 in (70 mm) |
| Electrical Connection | Printed circuit board connector |
| Torque constant | 1.15 N.m/A 68 °F (20 °C) |
| Back emf constant | 77.18 V/krpm 68 °F (20 °C) |
| Number of motor poles | 10 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 8.89 Ohm 68 °F (20 °C) |
| Stator inductance | 25.75 mH 68 °F (20 °C) |
| Stator electrical time constant | 2.9 ms 68 °F (20 °C) |
| Maximum radial force Fr | 710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| type of cooling | Natural convection |
| Length | 10.6 in (268 mm) |
| Number of motor stacks | 2 |
| Centring collar diameter | 2.4 in (60 mm) |
| centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.0â¦3.2 in (75â¦82 mm) |
| Distance shaft shoulder-flange | 0.10 in (2.5 mm) |
