Main
| Characteristic | Value(s) |
|---|---|

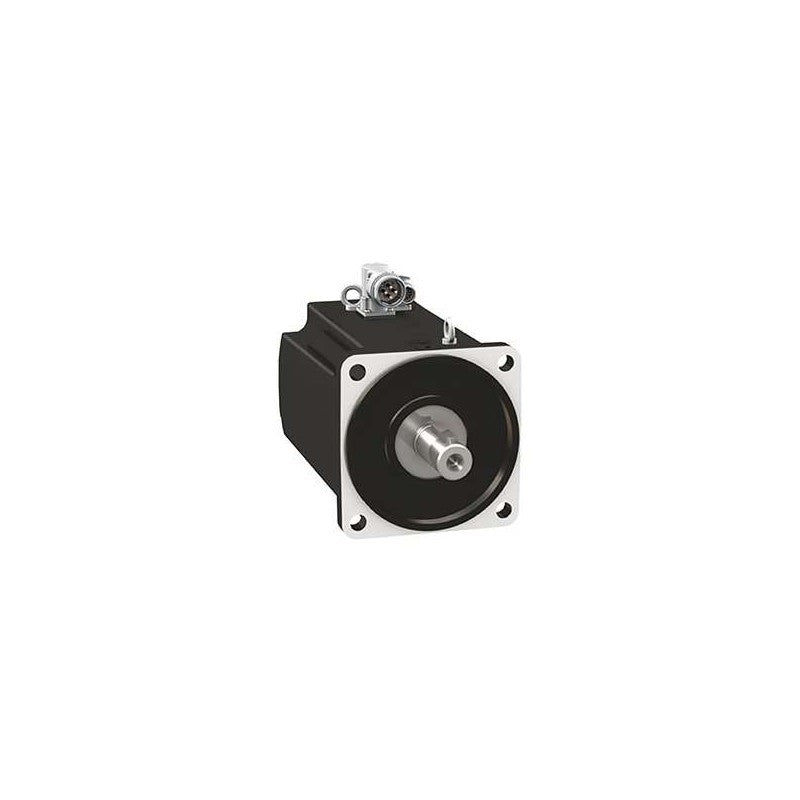

| Device short name | BMH |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 3800 rpm |
| Continuous stall torque | 743.5 lbf.in (84 N.m) LXM32.D72N4 24 A, 400 V, three phase 743.5 lbf.in (84 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Peak stall torque | 2053.4 lbf.in (232 N.m) LXM32.D72N4 24 A, 400 V, three phase 2053.4 lbf.in (232 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Nominal output power | 6500 W LXM32.D72N4 24 A, 400 V, three phase 6500 W LXM32.D72N4 24 A, 480 V, three phase |
| Nominal torque | 462.008 lbf.in (52.2 N.m) LXM32.D72N4 24 A, 400 V, three phase 462.008 lbf.in (52.2 N.m) LXM32.D72N4 24 A, 480 V, three phase |
| Nominal speed | 1200 rpm LXM32.D72N4 24 A, 400 V, three phase 1200 rpm LXM32.D72N4 24 A, 480 V, three phase |
| Product compatibility | LXM32.D72N4 400...480 V three phase |
| Shaft end | Keyed |
| IP Degree of Protection | IP54 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Phase | Three phase |
| Continuous stall current | 25.2 A |
| Continuous power | 9.6 W |
| Maximum current Irms | 72 A LXM32.D72N4 |
| Maximum permanent current | 107.4 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 1.5 in (38 mm) |
| Shaft length | 3.1 in (80 mm) |
| key width | 2.8 in (70 mm) |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 708.06 lbf.in (80 N.m) holding brake |
| Motor flange size | 8.07 in (205 mm) |
| Number of motor stacks | 3 |
| Torque constant | 3.5 N.m/A 248 °F (120 °C) |
| Back emf constant | 218 V/krpm 248 °F (120 °C) |
| Number of motor poles | 10 |
| Rotor inertia | 206 kg.cm² |
| Stator resistance | 0.32 Ohm 68 °F (20 °C) |
| Stator inductance | 6.9 mH 68 °F (20 °C) |
| Stator electrical time constant | 21.6 ms 68 °F (20 °C) |
| Maximum radial force Fr | 4500 N 1000 rpm 3570 N 2000 rpm 3120 N 3000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 40 W |
| type of cooling | Natural convection |
| Length | 21.2 in (538.5 mm) |
| Centring collar diameter | 7.09 in (180 mm) |
| centring collar depth | 0.2 in (4 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.6 in (14 mm) |
| Circle diameter of the mounting holes | 8.5 in (215 mm) |
| Product Weight | 158.5 lb(US) (71.9 kg) |
| Sizing reference | BMH2053P |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Coefficient 1_1 | -0.0215000000002362 N.m/rpm |
| Coefficient 1_2 | 0.0000000000000007126929575716 N.m/rpm² |
| Coefficient 1_3 | -0.0000000000000000007877844225 N.m/rpm3 |
| Coefficient 1_4 | 0.0000000000000000000003957464 N.m/rpm4 |
| Coefficient 1_5 | -0.0000000000000000000000000919815108 N.m/rpm5 |
| Coefficient 1_6 | 0.0000000000000000000000000000080361 N.m/rpm6 |
| Saturation coefficient 1 | 0.0000000000000000079974301663 |
| Saturation coefficient 2 | -0.00553939864261918 |
| Saturation coefficient 3 | -0.0000000000000000004492938295 |
| Coefficient 2_1 | 0 N.m/rpm |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Motor voltage drop coefficient | 1 |
