Main
| Characteristic | Value(s) |
|---|---|

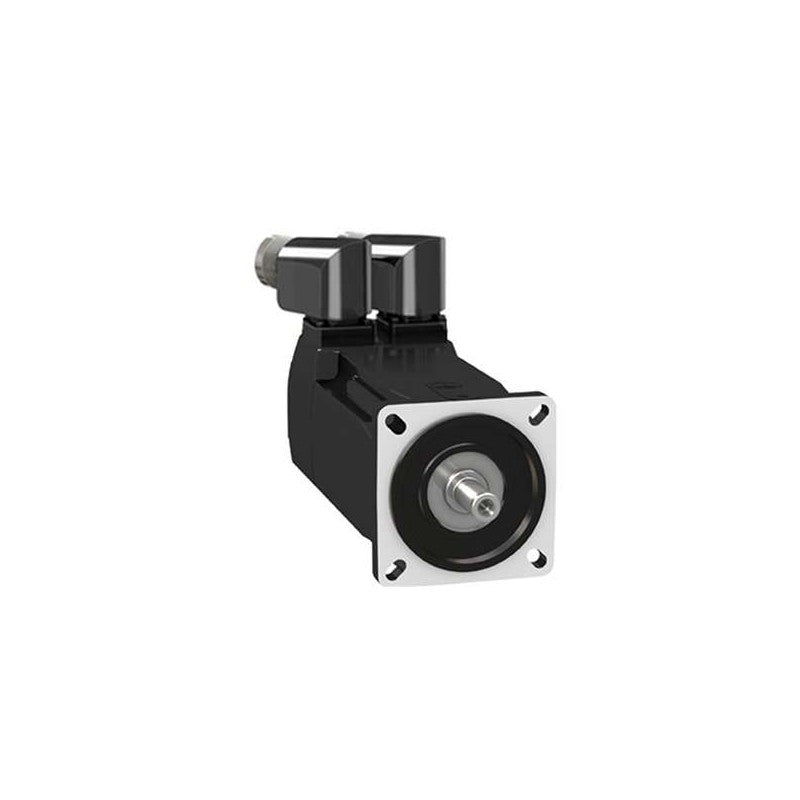

| Device short name | BMH |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 30.09 lbf.in (3.4 N.m) LXM32.D30M2 10 A, 115 V, single phase 30.09 lbf.in (3.4 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Peak stall torque | 77.001 lbf.in (8.7 N.m) LXM32.D30M2 10 A, 115 V, single phase 90.3 lbf.in (10.2 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Nominal output power | 650 W LXM32.D30M2 10 A, 115 V, single phase 900 W LXM32.D18M2 6 A, 230 V, single phase |
| Nominal torque | 27.4 lbf.in (3.1 N.m) LXM32.D30M2 10 A, 115 V, single phase 25.7 lbf.in (2.9 N.m) LXM32.D18M2 6 A, 230 V, single phase |
| Nominal speed | 2000 rpm LXM32.D30M2 10 A, 115 V, single phase 3000 rpm LXM32.D18M2 6 A, 230 V, single phase |
| Product compatibility | LXM32.D30M2 115 V single phase LXM32.D18M2 230 V single phase |
| Shaft end | Smooth shaft |
| IP Degree of Protection | IP54 standard |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | With |
| Mounting Support | International standard flange |
| Electrical Connection | Rotatable right-angled connectors |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 32 |
| [Us] rated supply voltage | 240 V |
| Phase | Three phase |
| Continuous stall current | 5.55 A |
| Continuous power | 1.68 W |
| Maximum current Irms | 17.84 A LXM32.D30M2 17.8 A LXM32.D18M2 |
| Maximum permanent current | 17.84 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.6 in (14 mm) |
| Shaft length | 1.2 in (30 mm) |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 26.6 lbf.in (3 N.m) holding brake |
| Motor flange size | 2.8 in (70 mm) |
| Number of motor stacks | 3 |
| Torque constant | 0.61 N.m/A 248 °F (120 °C) |
| Back emf constant | 39.3 V/krpm 248 °F (120 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.78 kg.cm² |
| Stator resistance | 1.32 Ohm 68 °F (20 °C) |
| Stator inductance | 2.07 mH 68 °F (20 °C) |
| Stator electrical time constant | 3.3 ms 68 °F (20 °C) |
| Maximum radial force Fr | 730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| type of cooling | Natural convection |
| Length | 8.9 in (225 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
| centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Product Weight | 8.8 lb(US) (4 kg) |
| Sizing reference | BMH0703T |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
