ABB

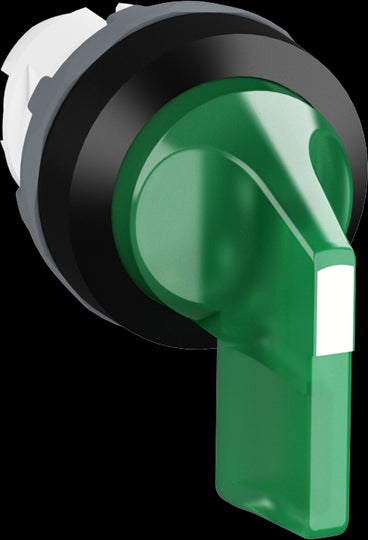

1SFA611214R1102 ABB - M3SS5-11G

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536501999

Dimensions

Product Net Width:
0.048 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.05 m
Product Net Weight:
0.025 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Green
Actuator Type:
Long handle
Bezel Material:
Black Plastic
Illumination:
Illuminated
Function:
Momentary
Sub-Function:
3-position
Spring Return From:
A and C to B
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Mechanical Durability:
0.5 million

Environmental

Degree of Protection:
Front IP66

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category:
Product Not in WEEE Scope

Certificates and Declarations

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.11 m
Package Level 1 Depth / Length:
0.15 m
Package Level 1 Height:
0.03 m
Package Level 1 Gross Weight:
0.025 kg
Package Level 1 EAN:
7320500298213

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC000222 - Front element for selector switch
ETIM 7:
EC000222 - Front element for selector switch
ETIM 8:
EC000222 - Front element for selector switch
eClass:
V11.0 : 27371213
UNSPSC:
39122217
IDEA Granular Category Code (IGCC):
5215 >> Selector Switch Complete Assemblies
E-Number (Finland):
2338393
E-Number (Norway):
4372512

Description
