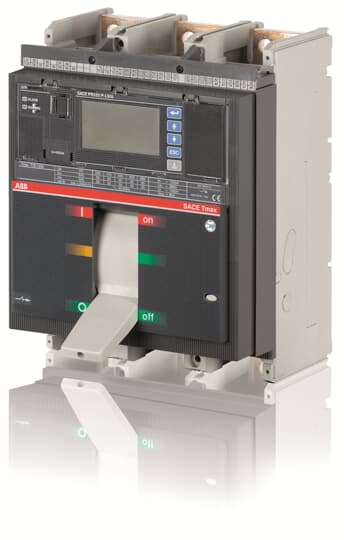

1SDA063061R1 ABB - T7L 1600 PR332/P LI In=1600A 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
75f52f0e-2e91-45cd-a1ec-1a410f006eb0 Italy
Simplified SCIP:
dca5b8db-01bd-4ee8-b177-229fdd25df69 Germany
51bd3c36-3ea6-4d1e-84aa-3577ecf856bc France
88a4d980-11fb-41d2-8392-ec2af5fdae15 Netherlands
39367825-19ae-4c9f-be1c-b59acd669522 Spain
bf9f0da3-dd49-473f-8491-042fbf3d0bd8 Netherlands
9654b2d5-66d5-4c08-8e49-a9db931ffbf4 Sweden
5ef799f7-b885-43ba-b599-74e3853ec044 Germany
6d5ef058-f3a9-4914-914f-f7a3affe5a2b Germany
83027cfb-492a-4461-b1c8-ef0de5587b2b Sweden
b4fa05b8-a2c6-47c1-84aa-f5c1131e3705 Poland
b9ad9e1c-1f1c-48e4-b377-b1437578e817 France
e3eb2310-cbc1-48d6-bd14-c69e0076951a Greece
59a70c83-b9f8-4853-8103-8492ddb20c65 Portugal
7c191431-e0ab-4f74-9f51-044977c4e794 Bulgaria
f5b33b5c-b21e-4e13-8ea5-507df5e4f2f1 Croatia
92089d1d-a595-4674-8d16-597d193f643e Czech Republic
1bfca021-dbec-42c1-aad7-9e82d9a46b20 Poland
a05ee92c-1f5b-4885-a173-b9c19ff625fa Netherlands
d6976f0f-2055-40ca-84f7-2c778089b083 Netherlands
b1c1fd38-79b0-48e9-9618-3995f5de6e2f Estonia
06b8c7ac-e066-4b74-9a7e-08b2ae7c5b73 Poland
b20ff909-c2f0-49db-838e-a7d24c7e7e4f Norway
877172e3-c318-4788-ab0c-cd46fb2e3b03 Finland
d3a42fb7-10c3-416d-9836-a08737fa6168 Netherlands
027cb3e7-9b03-4a6d-a188-016740a6bc25 Germany
1574f954-ca4e-416f-9518-19076de69eaf Denmark
9f89ccef-8104-4276-848b-26dab87e75c3 Germany
dca5b8db-01bd-4ee8-b177-229fdd25df69 Germany
51bd3c36-3ea6-4d1e-84aa-3577ecf856bc France
88a4d980-11fb-41d2-8392-ec2af5fdae15 Netherlands
39367825-19ae-4c9f-be1c-b59acd669522 Spain
bf9f0da3-dd49-473f-8491-042fbf3d0bd8 Netherlands
9654b2d5-66d5-4c08-8e49-a9db931ffbf4 Sweden
5ef799f7-b885-43ba-b599-74e3853ec044 Germany
6d5ef058-f3a9-4914-914f-f7a3affe5a2b Germany
83027cfb-492a-4461-b1c8-ef0de5587b2b Sweden
b4fa05b8-a2c6-47c1-84aa-f5c1131e3705 Poland

Ordering

EAN:
8015644656102
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
154 mm
Product Net Weight:
9.7 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
11.2 kg
Package Level 1 EAN:
8015644656102

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T7
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
2000 cycle
60 cycles per hour
2000 cycle
60 cycles per hour
Mechanical Durability:
10000 cycle
60 cycles per hour
10000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 77 W
Rated Current (In):
1600 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 64 kA
(690 V AC) 37.5 kA
(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 64 kA
(690 V AC) 37.5 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 50 kA
(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1600 A
Release:
PR332/P LI
Release Type:
EL
Short-Circuit Performance Level:
L
Standards:
IEC
Sub-type:
T7
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
