Main
| Characteristic | Value(s) |
|---|---|

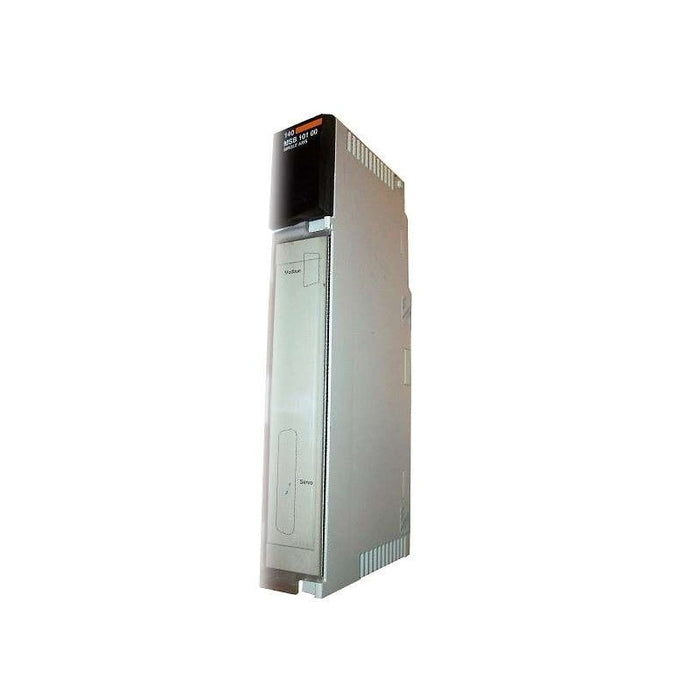

| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Single axis motion module |
| Encoder type | Differential |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of axis | 1 real 1 remote |
| Axis function | Synchronization of master/slave speed and position Automatic control of linear, rotary, or continuous axes |
| Axis positioning range | 4294967296 points |
| Axis positioning range units | Mm Other units Inches |
| Acquisition speed | 1...4294967296 points |
| Axis speed units | Mm/s Counts/s Rpm Inches/s |
| Axis update | 1 ms position loop 0.5 ms speed loop |
| Maximum system accuracy | 0.5 arc/min encoder dependant |
| Axis motion | Homing movement 28 traversing programs Relative movement Continuous movement Absolute movement 650 flash memory commands |
| Checks | Logical stops Loop position control Position captures (stops) Point window Encoder interface |
| Register words | 3 input words 4 output words |
| Encoder voltage | 5 V +/- 20 % |
| Encoder impedance | 500 Ohm |
| Incremental encoder frequency x1 | 500 kHz |
| Incremental encoder frequency x 4 | 2000 kHz |
| Analogue output type | Bipolar output +/- 10...24 V 11 bits + sign servo interface |
| Discrete output type | drive enable output <= 30 V 3 auxiliary output 24 V (150 mA) drive enable output 24 V (500 mA) for servo interface |
| Discrete Input Type | 7 auxiliary input 24 V drive fault input servo interface 5 V TTL) dry contact OT input |
| Analogue input range | +/- 10...24 V 30000 Ohm auxiliary input |
| Analogue output range | +/- 10...24 V 11 bits + sign 0.003 A auxiliary output |
| Position capture time | 250 ms high speed input |
| Impulse duration | 25 ms high speed input |
| Time between capture | >= 20 ms high speed input |
| Communication port protocol | Modbus Serial line slave RS232D 300..9600 bit/s |
| Local signalling | for Modbus plus status 1 digital indicator for output status 3 LEDs for input status 7 LEDs |
| Electrical connection | 1 connector SUB-D 9 RS232D Modbus link 1 connector SUB-D 50 connection to servo drive |
| Current consumption | 1000 mA 5 V DC rack 500 mA 24 V DC external power supply |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
