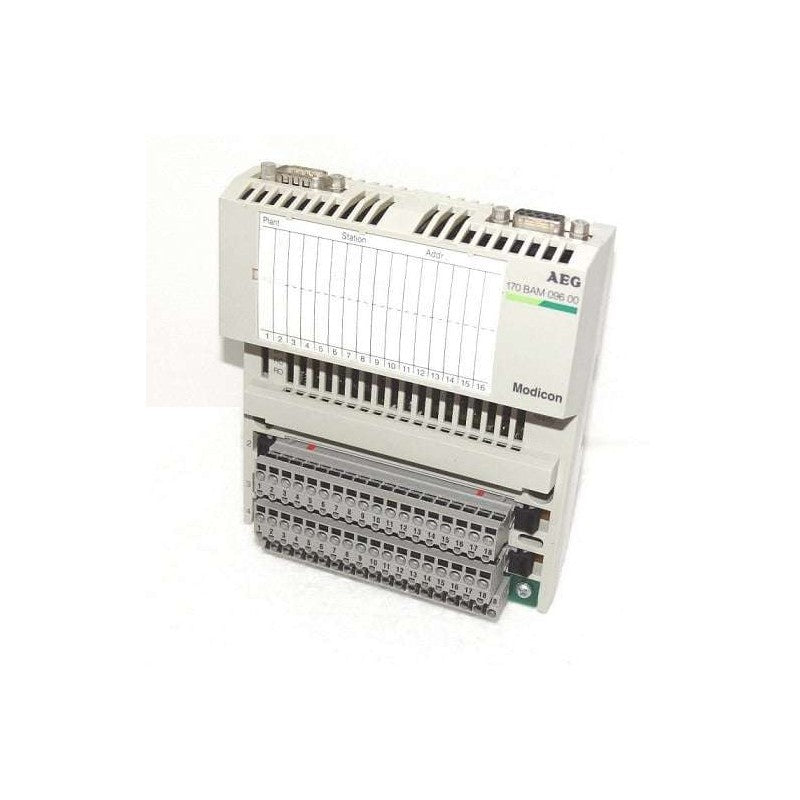

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Momentum automation platform |
| Product or Component Type | Discrete output base DC |
| Group of channels | 2 groups of 16 outputs |
| Discrete output number | 32 |
| Discrete output type | Solid state switch |
| Discrete output voltage | 24 V DC |
| Current per channel | 0.5 A |
| Short-circuit protection | Outputs electronically protected |
| Protective treatment | Conformal coating Humiseal 1A33 TC |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 24 V DC |
| Discrete output current | 16 A per module 8 A per group |
| Maximum leakage current | 1 mA 24 V DC |
| Surge current | 5 A 1 ms |
| Maximum voltage drop | <0.5 V 0.5 A at state 1 |
| Output overload protection | Outputs electronically protected |
| Response time | 0.1 ms from state 0 to state 1 0.1 ms from state 1 to state 0 |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 7.5 W maximum 6 W typical |
| Marking | CE |
| Local signalling | 32 LEDs for channel status |
| Current consumption | 250 mA 24 V DC |
| Terminals description PLC n°1 | (8)OUT_DIS#8 (13)OUT_DIS#13 (9)OUT_DIS#9 (10)OUT_DIS#10 (2)OUT_DIS#2 TB (16)OUT_DIS#16 (6)OUT_DIS#6 (7)OUT_DIS#7 (11)OUT_DIS#11 (M-)PW_NEG (15)OUT_DIS#15 (4)OUT_DIS#4 (12)OUT_DIS#12 (3)OUT_DIS#3 (L+)PW_POS (5)OUT_DIS#5 (14)OUT_DIS#14 (1)OUT_DIS#1 |
| Terminals description PLC n°2 | (11)OUT_DIS#27 (2)OUT_DIS#18 (4)OUT_DIS#20 (10)OUT_DIS#26 (1L+)PW_POS (9)OUT_DIS#25 (15)OUT_DIS#31 (16)IN_DIS#32 (5)OUT_DIS#21 (14)OUT_DIS#30 (3)OUT_DIS#19 (7)OUT_DIS#23 (6)OUT_DIS#22 (1)OUT_DIS#17 TB_1 (2L+)PW_POS (12)OUT_DIS#28 (13)OUT_DIS#29 (8)OUT_DIS#24 |
| Depth | 1.9 in (47.5 mm) |
| Height | 5.6 in (141.5 mm) |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.46 lb(US) (0.21 kg) |
Modicon Momentum - high speed counter module base - 6 I / 4 O
distributed analog/discrete I/O Modicon Momentum
distributed analog/discrete I/O Modicon Momentum
MB+ PCMCIA Type 3 PNO with 32 Bit Drivers 416NHM21234 416-NHM-212-34
Main
| Characteristic | Value(s) |
|---|---|
| Accessory / separate part designation | Redundant output sub-base |
| Accessory / separate part destination | PLC |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Splitter sub-base |
| Range of Product | Modicon ABE7 |
| Sub-base type | Redundant output sub-base |
| Number of channels | 16 |
| Quantity per Set | Set of 1 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Channel splitting | 2 x 16 |
| Product Weight | 0.165 lb(US) (0.075 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Accessory / separate part designation | Redundant input sub-base |
| Accessory / separate part destination | PLC |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Splitter sub-base |
| Range of Product | Modicon ABE7 |
| Sub-base type | Redundant input sub-base |
| Number of channels | 16 |
| Quantity per Set | Set of 1 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Channel splitting | 2 x 16 |
| Product Weight | 0.165 lb(US) (0.075 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Connection sub-base for counter and analogue channels |
| Number of channels | 2 8 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Counting and analogue TSX Micro Counting, axis control, position control Premium |
| Product compatibility | TSX Micro TSX3722 Premium TSXCAY21 Premium TSXCAY41 Premium TSXCTY2A Premium TSXCTY4A TSX Micro TSXCTZ1A TSX Micro TSXCTZ2A |
| [Uc] control circuit voltage | 24 V DC |
| Connection to PLC | SUB-D 15 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Connection sub-base ABE7 - for passive distribution of 8 channels
Connection sub-base ABE7 - for distribution of 8 analog channels
connection sub-base ABE7 - for distribution of 4 analog output channels
This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 4 analogue channels protected. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXAMI0410 analogue input module. It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Connection sub-base for analogue channels |
| Number of channels | 4 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Distribution of supply and 4 analogue channels protected isolated Modicon M340 |
| Product compatibility | Modicon M340 BMXAMI0410 |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.40 lb(US) (0.18 kg) |
This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Connection sub-base for analogue channels |
| Number of channels | 4 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Distribution of 4 thermocouples Modicon M340 |
| Product compatibility | Modicon M340 BMXART0414 Modicon M340 BMXART0814 |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.40 lb(US) (0.18 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| [Us] rated supply voltage | 24 V DC controller side 24 V DC sensor/controller side |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid |
| Connector destination | Twido programmable controller |
Complementary
| Characteristic | Value(s) |
|---|---|
| Supply voltage limits | 19â¦30 V DC controller side)IEC 61131-2 20.4â¦26.4 V DC sensor/controller side)IEC 61131-2 |
| Discrete input number | 16 |
| Discrete input logic | Sink |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
| Product Compatibility | TWDDDI16DK TWDDDI32DK |
| Status LED | 1 LED power ON |
| Polarity distribution | 1 common/16 channels input |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow controller side) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips 35 mm symmetrical DIN rail IEC 60715 By screws |
| Maximum supply current | 2 A |
| Switched current | 15 mA input circuit |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Overvoltage category | II conforming to IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.95 lb(US) (0.43 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| [Us] rated supply voltage | 24 V DC controller side 24 V DC sensor/controller side |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid |
| Connector destination | Twido programmable controller |
Complementary
| Characteristic | Value(s) |
|---|---|
| Supply voltage limits | 19â¦30 V DC controller side)IEC 61131-2 20.4â¦28.8 V DC sensor/controller side)IEC 61131-2 |
| Discrete output number | 16 |
| Discrete output logic | Source |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
| Product Compatibility | TWDDDO32TK TWDDDO16TK |
| Status LED | 1 LED power ON |
| Polarity distribution | 1 common/16 channels output |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow controller side) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips 35 mm symmetrical DIN rail IEC 60715 By screws |
| Maximum supply current | 2 A |
| Switched current | 100 mA output circuit |
| Maximum current per output common | 1.6 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Overvoltage category | II conforming to IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.99 lb(US) (0.45 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 8 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 6.3 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 4.1 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 4.1 A |
| Voltage drop on power supply fuse | 0.2 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 3.3 in (84 mm) |
| Product Weight | 0.412 lb(US) (0.187 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 8 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | 0 V or 24 V |
| Short-circuit protection | 6.3 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 4.1 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 4.1 A |
| Voltage drop on power supply fuse | 0.2 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 3.3 in (84 mm) |
| Product Weight | 0.481 lb(US) (0.218 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Miniature sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.0001â¦0.002 in² (0.09â¦1.5 mm²) AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.0001â¦0.001 in² (0.09â¦0.75 mm²) AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.0003â¦0.004 in² (0.2â¦2.5 mm²) AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.35 lb(US) (0.16 kg) |
passive connection sub-base ABE7 - 16 inputs or outputs - Led
passive connection sub-base ABE7 - 16 inputs or outputs - Led
passive connection sub-base ABE7 - 16 inputs or outputs - Led
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (Green) channel status 1 LED per channel (Red) blown fuse indication 1 LED (Green) power ON |
| Polarity distribution | 0 V |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) 0.125 A fuse per channel, 5 x 20 mm, fast blow output circuit) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.125 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum voltage drop per channel | 2 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 8.1 in (206 mm) |
| Product Weight | 1.41 lb(US) (0.64 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.604 lb(US) (0.274 kg) |
Modules
