Modules

822 products

Showing 73 - 96 of 822 products

Showing 73 - 96 of 822 products
View
140XBE10000 Schneider
Schneider 140XBE10000 Schneider
4 910 kr
In stock, 11 units

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Backplane expander
Accessory / Separate Part Type Backplane expander
Accessory / separate part category Extension accessories
Accessory / separate part destination For Modicon Quantum backplanes 12...16 slots

Complementary

Characteristic Value(s)
Product Compatibility 140XBP01600
140XBP00300 Schneider
Schneider 140XBP00300 Schneider
5 179 kr
Only 2 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Product or Component Type Racks backplanes
Product Specific Application For remote I/O modules
For distributed I/O modules
For local I/O modules

Complementary

Characteristic Value(s)
Free slots 3
Mounting Support Mounting plate
Fixing Mode By screw
Product Weight 0.75 lb(US) (0.34 kg)
140XBP00400 Schneider
Schneider 140XBP00400 Schneider
5 502 kr
In stock, 16 units

Modicon Quantum - racks backplanes - 4 slots
140XCP50000 Schneider
Schneider 140XCP50000 Schneider
0 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Dummy module without terminal block
Accessory / Separate Part Type Dummy module
Accessory / separate part destination Quantum discrete I/O module
140XCP51000 Schneider
Schneider 140XCP51000 Schneider
0 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Dummy module with cover
Accessory / Separate Part Type Dummy module
Accessory / separate part destination Quantum discrete I/O module
140XCP90000 Schneider
Schneider 140XCP90000 Schneider
6 131 kr
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Backup battery holder module
Accessory / Separate Part Type Battery
Accessory / separate part category Separate parts
Accessory / separate part destination Multifunction input module

Complementary

Characteristic Value(s)
Product Compatibility 140ERT85410
Product Specific Application For standard applications
140XSM00200 Schneider
Schneider 140XSM00200 Schneider
6 083 kr
Only 3 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Discrete input simulator 16 switches
Accessory / Separate Part Type Discrete input simulator
Accessory / separate part destination Quantum discrete I/O module

Complementary

Characteristic Value(s)
Product Compatibility 140DAI74000
140DAI54000
Discrete input number 16
Input type Switch
140XSM01000 Schneider
Schneider 140XSM01000 Schneider
23 367 kr
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Quantum automation platform
Accessory / separate part designation Analog I/O simulator
Accessory / Separate Part Type Simulator
Accessory / separate part destination I/O module

Complementary

Characteristic Value(s)
Product Compatibility 140AVI03000
140AVO02000
140ACO02000
140ATI03000
140ACI03000
140AMM09000
Kit composition Two 10-turn potentiometers
One 0...5 V meter
170AAI03000 Schneider
Schneider 170AAI03000 Schneider
7 953 kr
In stock, 18 units

distributed analog input Modicon Momentum - 8 Input
170AAI03000C Schneider
Schneider 170AAI03000C Schneider
5 030 kr
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Analogue input base
Analogue input number 8
Analogue Input Type Differential
Analogue Input Range +/- 20 mA 14 bits + sign 250 kOhm
4...20 mA 15 bits + sign 250 kOhm
+/- 10 V 14 bits + sign > 0.1 kOhm
+/- 5 V 14 bits + sign > 0.1 kOhm
1...5 V 15 bits + sign > 0.1 kOhm

Complementary

Characteristic Value(s)
Data format Full 16 bits signed
Absolute accuracy error +/- 0.13 % full scale 77 °F (25 °C) +/- 20 mA
+/- 0.19 % full scale 140 °F (60 °C) +/- 20 mA
+/- 0.21 % full scale 77 °F (25 °C) +/- 5 V
+/- 0.26 % full scale 140 °F (60 °C) +/- 5 V
+/- 0.27 % full scale 77 °F (25 °C) +/- 10 V
+/- 0.27 % full scale 77 °F (25 °C) 1...5 V
+/- 0.32 % full scale 77 °F (25 °C) 4...20 mA
+/- 0.32 % full scale 140 °F (60 °C) +/- 10 V
+/- 0.38 % full scale 140 °F (60 °C) 1...5 V
+/- 0.41 % full scale 140 °F (60 °C) 4...20 mA
Conversion time 12 ms 8
Isolation between channels +/- 200 V DC for 1 minute
Isolation between channels and ground 500 V AC for 1 minute
Isolation between channels and bus 500 V for 1 minute
Permissible common mode voltage 100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground
Common mode rejection > 80 dB between channels to ground
External power requirement < 382 mA DC
20.4...28.8 V DC
24 V DC
Reverse polarity protection Internal
Marking CE
Local signalling 8 LEDs for channel status
Electrical connection 2 connectors for removable terminal blocks
Depth 1.9 in (47.5 mm)
Height 4.9 in (125 mm)
Width 5.6 in (141.5 mm)
Product Weight 0.474 lb(US) (0.215 kg)

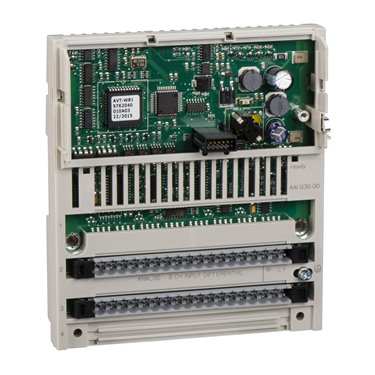

170AAI14000 Schneider
Schneider 170AAI14000 Schneider
5 699 kr
Only 6 units left

This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Analogue input base
Analogue input number 16
Analogue Input Type Single ended
Analogue Input Range 4...20 mA 12 bits < 0.25 Ohm
+/- 10 V 12 bits + sign > 2200 kOhm
+/- 5 V 12 bits + sign > 2200 kOhm
Type of filter Low pass input filter 10 kHz

Complementary

Characteristic Value(s)
Data format Full 16 bits signed
Absolute accuracy error +/- 0.15 % of full scale 77 °F (25 °C) +/- 10 V
+/- 0.15 % of full scale 77 °F (25 °C) +/- 5 V
+/- 0.25 % full scale 77 °F (25 °C) 4...20 mA
+/- 0.25 % full scale 140 °F (60 °C) +/- 10 V
+/- 0.25 % full scale 140 °F (60 °C) +/- 5 V
+/- 0.45 % full scale 140 °F (60 °C) 4...20 mA
Temperature drift 30 %oFS/°C +/- 10 V 140 °F (60 °C)
30 %oFS/°C +/- 5 V 140 °F (60 °C)
60 %oFS/°C 4...20 mA 140 °F (60 °C)
Full scale 10 V +/- 10 V
16 mA 4...20 mA
5 V +/- 5 V
Update time 25 ms
Isolation between channels and ground 1780 V AC for 1 minute
Isolation between supply and ground 500 V for 1 minute
Permissible common mode voltage 100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground
External power requirement +/- 30 V DC
Maximum power dissipation in W 5.55 W
Reverse polarity protection Internal
Protection type Internal 2 A slow-blow
Associated fuse rating 500 mA, fast blow
Marking CE
Local signalling 16 LEDs for channel status
Electrical connection 2 connectors for removable terminal blocks
Current consumption 305 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 4.9 in (125 mm)
Width 5.6 in (141.5 mm)
Product Weight 0.474 lb(US) (0.215 kg)

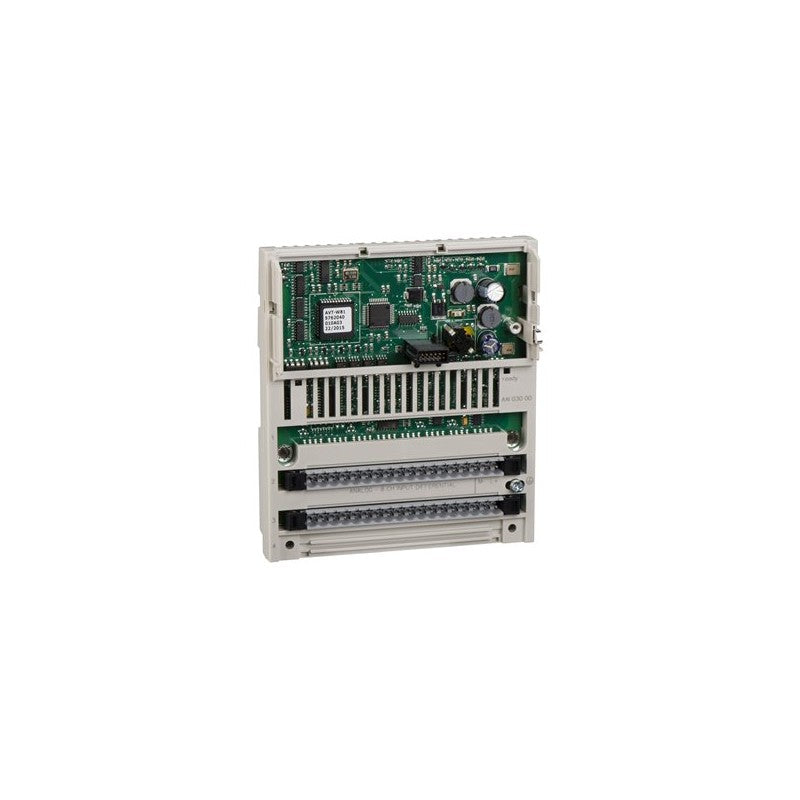

170AAI52040 Schneider
Schneider 170AAI52040 Schneider
5 434 kr
Only 4 units left

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±100mV, ±25mV. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Analogue input base
Analogue input number 4
Analogue Input Type Differential
Analogue Input Range +/- 100 mV 15 bits + sign > 10000 kOhm
+/- 25 mV 15 bits + sign > 10000 kOhm
Thermocouple type Thermocouple E
Thermocouple S
Thermocouple K
Thermocouple N
Thermocouple B
Thermocouple R
Thermocouple J
Thermocouple T

Complementary

Characteristic Value(s)
Data format Full 16 bits signed
Absolute accuracy error +/- 21 µV 77 °F (25 °C) +/- 25 mV
+/- 27 µV 77 °F (25 °C) +/- 100 mV
+/- 46 µV 140 °F (60 °C) +/- 25 mV
+/- 94 µV 140 °F (60 °C) +/- 100 mV
Temperature probe type Ni 100 0.125 mA +/- 25 mV
Ni 1000 0.125 mA +/- 100 mV
Pt 100 0.125 mA +/- 25 mV
Pt 1000 0.125 mA +/- 100 mV
Update time 500 ms
Isolation between channels 400 V DC
Isolation between channels and ground 500 V AC for 1 minute
Isolation between supply and ground 500 V for 1 minute
Permissible common mode voltage 100 V DC between channels to ground
115 V AC single or three phases between channels
200 V DC between channels
250 V AC between channels to ground
250 V AC single phase between channels
Common mode rejection 120 dB DC between channels
130 dB 50 Hz AC between channels
135 dB DC between channels to ground
140 dB 60 Hz AC between channels
145 dB 50 Hz AC between channels to ground
155 dB 60 Hz AC between channels to ground
Serial mode rejection 35 dB 50 Hz AC
45 dB 60 Hz AC
External power requirement +/- 30 V DC
Maximum power dissipation in W 5.5 W
Reverse polarity protection Internal
Protection type Internal 2 A slow-blow
Associated fuse rating 500 mA, fast blow
Marking CE
Local signalling 4 LEDs for channel status
Electrical connection 2 connectors for removable terminal blocks
Current consumption 305 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 4.9 in (125 mm)
Width 5.6 in (141.5 mm)
Product Weight 0.474 lb(US) (0.215 kg)
170AAO12000 Schneider
Schneider 170AAO12000 Schneider
28 127 kr
Only 5 units left

distributed analog output Modicon Momentum - 4 Output - 0..20 mA

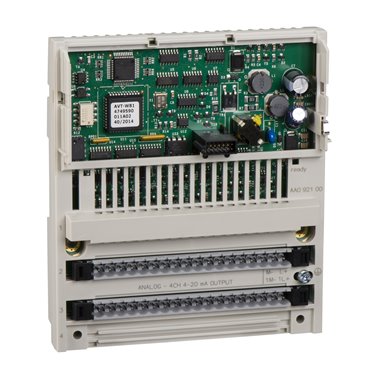

170AAO92100 Schneider
Schneider 170AAO92100 Schneider
4 547 kr
Only 6 units left

distributed analog output Modicon Momentum - 4 Output - 4..20 mA
170AAO92100C Schneider
Schneider 170AAO92100C Schneider
0 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Analogue output base

Complementary

Characteristic Value(s)
Analogue output number 4
Data format Full 16 bits signed
Analogue output range +/- 10 V 12 bits + sign >= 1 kOhm
4...20 mA 12 bits + sign <= 0.6 kOhm
Maximum load capacitance 1 µF
Absolute accuracy error +/- 0.2 % of full scale +/- 10 V 77 °F (25 °C)
+/- 0.25 % full scale 4...20 mA 140 °F (60 °C)
+/- 0.4 % of full scale +/- 10 V 77 °F (25 °C)
+/- 0.5 % of full scale 4...20 mA 140 °F (60 °C)
Temperature drift 10 % full scale/°C +/- 10 V 140 °F (60 °C)
30 % full scale/°C 4...20 mA 140 °F (60 °C)
Update time 2 ms
Full scale 10 V +/- 10 V
2 mA 4...20 mA
Fail state Reset to zero
Hold
Reset to full scale
Isolation between channels and ground 500 V AC for 1 minute
Maximum power dissipation in W 8.5 W
Protection type Internal 2 A slow-blow
Output short-circuit protection With in voltage circuit
External power requirement +/- 30 V DC
24 V DC
Permissible common mode voltage 250 V 47...63 Hz AC between channels to ground
250 V 47...63 Hz DC
Reverse polarity protection Internal
Marking CE
Local signalling 4 LEDs for channel status
Current consumption 150 mA 24 V DC actuator
530 mA 24 V DC base
Module format Standard
Height 4.9 in (125 mm)
Depth 1.9 in (47.5 mm)
Width 5.6 in (141.5 mm)
Product Weight 0.474 lb(US) (0.215 kg)

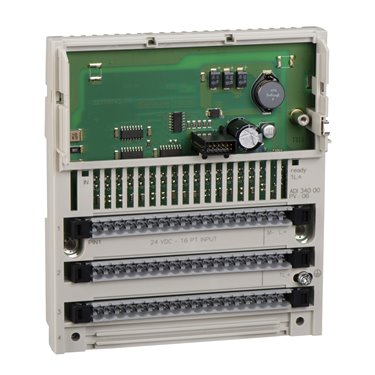

170ADI34000 Schneider
Schneider 170ADI34000 Schneider
2 912 kr
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete inputs base DC
Group of channels 1 group of 16 inputs
Discrete input number 16 IEC 1131-2 Type 1
Discrete input voltage 24 V DC
Protective treatment TC

Complementary

Characteristic Value(s)
Discrete input logic Positive
Input voltage limits 24 V
Voltage range - 3...30 V
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 11...30 V
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Input resistance 4 kOhm
Response time 2.2 ms from state 0 to state 1
3.3 ms from state 1 to state 0
Isolation between channels and bus 500 V AC
Power dissipation 5 W maximum
3 W typical
Terminals description PLC n°1 (8)IN_DIS#8
(5)IN_DIS#5
(16)IN_DIS#16
(4)IN_DIS#4
(3)IN_DIS#3
(13)IN_DIS#13
(14)IN_DIS#14
(10)IN_DIS#10
(L+)PW_POS
(M-)PW_NEG
(6)IN_DIS#6
(7)IN_DIS#7
(1)IN_DIS#1
(11)IN_DIS#11
(9)IN_DIS#9
(15)IN_DIS#15
(12)IN_DIS#12
TB
(2)IN_DIS#2
Marking CE
Local signalling 16 LEDs for channel status
Current consumption <= 250 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.42 lb(US) (0.19 kg)

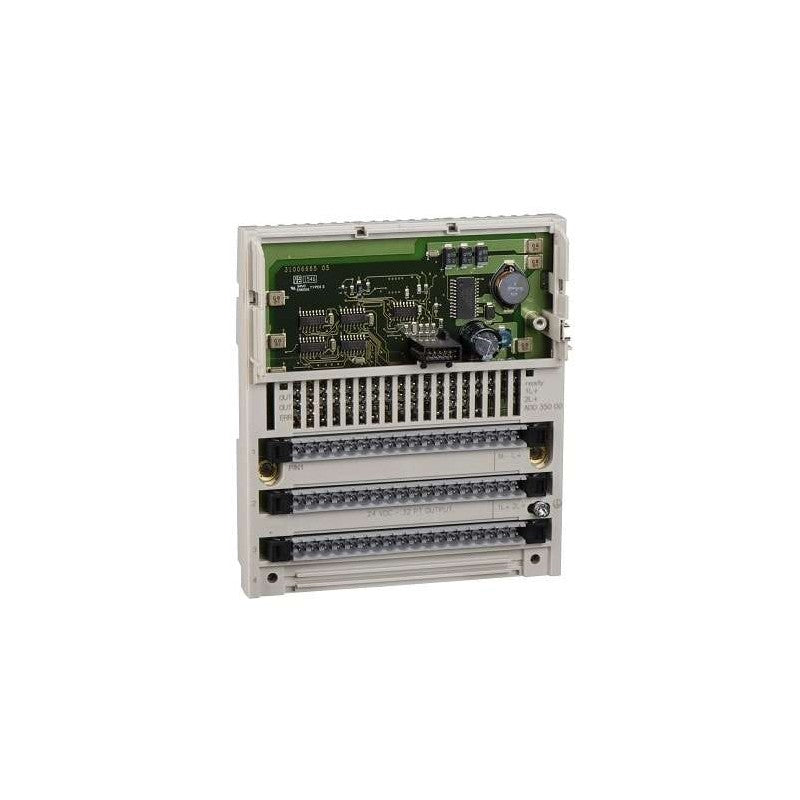

170ADI35000 Schneider
Schneider 170ADI35000 Schneider
4 516 kr
In stock, 14 units

Discrete input module Modicon Momentum - 32 Input 24 V DC

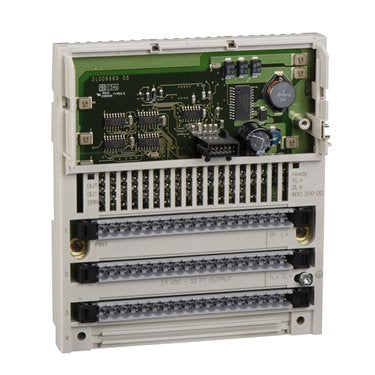

170ADI35000C Schneider
Schneider 170ADI35000C Schneider
0 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete inputs base DC
Group of channels 2 groups of 16 inputs
Discrete input number 32 IEC 1131-2 Type 1
Discrete input voltage 24 V DC
Protective treatment Conformal coating Humiseal 1A33
TC

Complementary

Characteristic Value(s)
Discrete input logic Positive
Input voltage limits 24 V
Voltage range - 3...30 V
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 11...30 V
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Input resistance 4 kOhm
Response time 2.2 ms from state 0 to state 1
3.3 ms from state 1 to state 0
Isolation between channels and bus 500 V AC
Power dissipation 5.5 W typical
8.5 W maximum
Marking CE
Local signalling 32 LEDs for channel status
Current consumption <= 250 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.4 lb(US) (0.2 kg)
170ADM35010 Schneider
Schneider 170ADM35010 Schneider
2 984 kr
Only 5 units left

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete solid state I/O base DC
Group of channels 2 groups of 8 outputs
1 group of 16 inputs
Discrete input number 16 IEC 1131-2 Type 1
Discrete input logic Positive
Discrete input voltage 24 V DC
Discrete output number 16
Discrete output type Solid state switch
Discrete output voltage <= 30 V DC
24 V DC
Discrete output logic Positive
Protective treatment TC

Complementary

Characteristic Value(s)
[Us] rated supply voltage 24 V DC
Input voltage limits - 3...30 V
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 11...30 V
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Input resistance 4 kOhm
Discrete output current 4 A per group
8 A per module
0.5 A per point
Maximum leakage current 1 mA 24 V output circuit)
Peak output current 5 A
Maximum voltage drop <0.5 V 0.5 A at state 1 output circuit
Fault type Overload on output
Response time < 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
Isolation between channels and bus 500 V AC
Power dissipation 6 W
<= 8 W
Marking CE
Terminals description PLC n°1 (L+)PW_POS
(8)IN_DIS#8
(6)IN_DIS#6
(5)IN_DIS#5
TB
(2)IN_DIS#2
(12)IN_DIS#12
(M-)PW_NEG
(15)IN_DIS#15
(13)IN_DIS#13
(10)IN_DIS#10
(3)IN_DIS#3
(9)IN_DIS#9
(7)IN_DIS#7
(1)IN_DIS#1
(11)IN_DIS#11
(14)IN_DIS#14
(16)IN_DIS#16
(4)IN_DIS#4
Terminals description PLC n°2 (10)OUT_DIS#10
(6)OUT_DIS#6
(8)OUT_DIS#8
(1)OUT_DIS#1
(11)OUT_DIS#11
(4)OUT_DIS#4
(5)OUT_DIS#5
(15)OUT_DIS#15
(2L+)PW_POS
TB_1
(7)OUT_DIS#7
(2)OUT_DIS#2
(14)OUT_DIS#14
(9)OUT_DIS#9
(13)OUT_DIS#13
(3)OUT_DIS#3
(1L+)PW_POS
(12)OUT_DIS#12
Local signalling 16 LEDs for channel status
Current consumption 250 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.4 lb(US) (0.2 kg)

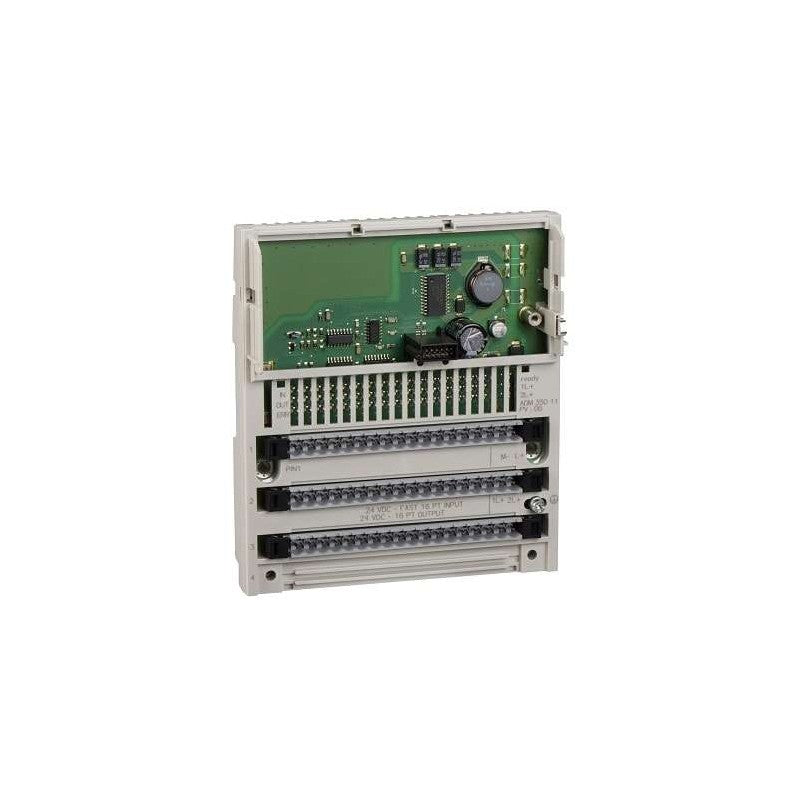

170ADM35011 Schneider
Schneider 170ADM35011 Schneider
9 212 kr
Only 6 units left

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete solid state I/O base DC
Group of channels 2 groups of 8 outputs
1 group of 16 inputs
Discrete input number 16 IEC 1131-2 Type 1
Discrete input logic Positive
Discrete input voltage 24 V DC
Discrete output number 16
Discrete output type Solid state switch
Discrete output voltage <= 30 V DC
24 V DC
Discrete output logic Positive
Protective treatment TC

Complementary

Characteristic Value(s)
[Us] rated supply voltage 24 V DC
Input voltage limits - 3...30 V
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 11...30 V
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Input resistance 4 kOhm
Discrete output current 4 A per group
8 A per module
0.5 A per point
Maximum leakage current 1 mA 24 V output circuit)
Peak output current 5 A
Maximum voltage drop <0.5 V 0.5 A at state 1 output circuit
Fault type Overload on output
Response time < 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
0.06 ms from state 0 to state 1 on input
0.08 ms from state 1 to state 0 on input
Isolation between channels and bus 500 V AC
Power dissipation <= 8 W
6 W
Marking CE
Terminals description PLC n°1 (6)IN_DIS#6
(1)IN_DIS#1
(4)IN_DIS#4
(8)IN_DIS#8
(14)IN_DIS#14
(L+)PW_POS
(10)IN_DIS#10
(3)IN_DIS#3
(M-)PW_NEG
(12)IN_DIS#12
(16)IN_DIS#16
(9)IN_DIS#9
(11)IN_DIS#11
(5)IN_DIS#5
TB
(2)IN_DIS#2
(15)IN_DIS#15
(7)IN_DIS#7
(13)IN_DIS#13
Terminals description PLC n°2 (16)OUT_DIS#16
TB_1
(12)OUT_DIS#12
(13)OUT_DIS#13
(4)OUT_DIS#4
(2)OUT_DIS#2
(10)OUT_DIS#10
(15)OUT_DIS#15
(5)OUT_DIS#5
(6)OUT_DIS#6
(11)OUT_DIS#11
(1L+)PW_POS
(9)OUT_DIS#9
(1)OUT_DIS#1
(14)OUT_DIS#14
(2L+)PW_POS
(7)OUT_DIS#7
(8)OUT_DIS#8
(3)OUT_DIS#3
Current consumption 250 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.4 lb(US) (0.2 kg)

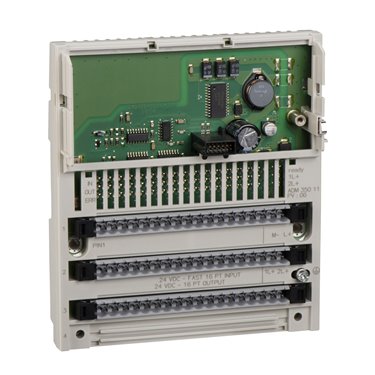

170ADM37010 Schneider
Schneider 170ADM37010 Schneider
5 179 kr
Only 5 units left

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete solid state I/O base DC
Group of channels 4 groups of 4 inputs
2 groups of 4 outputs
Discrete input number 16 IEC 1131-2 Type 1
Discrete input logic Positive
Discrete input voltage 24 V DC
Discrete output number 8
Discrete output type Solid state switch
Discrete output voltage <= 30 V DC
24 V DC
Discrete output logic Positive
Protective treatment TC

Complementary

Characteristic Value(s)
[Us] rated supply voltage 24 V DC
Input voltage limits - 3...30 V
Voltage state 0 guaranteed -3...5 V
Voltage state 1 guaranteed 11...30 V
Current state 0 guaranteed <= 1.2 mA
Current state 1 guaranteed >= 2.5 mA
Input resistance 4 kOhm
Discrete output current 16 A per module
2 A per point
8 A per group
Maximum leakage current 1 mA 24 V output circuit)
Peak output current 2.8 A
Fault type Short circuit on output
Overload on output
Response time < 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
Isolation between channels and bus 500 V AC
Power dissipation 6.5 W
<= 10 W
Marking CE
Terminals description PLC n°1 (11)IN_DIS#11
(M-)PW_NEG
(L+)PW_POS
(7)IN_DIS#7
(15)IN_DIS#15
(16)IN_DIS#16
(1)IN_DIS#1
(4)IN_DIS#4
(6)IN_DIS#6
(14)IN_DIS#14
(13)IN_DIS#13
(5)IN_DIS#5
TB
(12)IN_DIS#12
(10)IN_DIS#10
(8)IN_DIS#8
(2)IN_DIS#2
(3)IN_DIS#3
(9)IN_DIS#9
Terminals description PLC n°2 (5)OUT_DIS#5
(1)OUT_DIS#1
(2)OUT_DIS#2
(4)OUT_DIS#4
(6)OUT_DIS#6
(8)OUT_DIS#8
(7)OUT_DIS#7
(3)OUT_DIS#3
(1L+)PW_POS
(2L+)PW_POS
TB_1
Current consumption 250 mA 24 V DC
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.49 lb(US) (0.22 kg)
170ADM39030 Schneider
Schneider 170ADM39030 Schneider
4 580 kr
In stock, 11 units

discrete I/O module Modicon Momentum - 10I / 8O relay
170ADO34000 Schneider
Schneider 170ADO34000 Schneider
3 333 kr
In stock, 15 units

This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs with solid state switch type. It offers discrete output voltage of 24V DC. There is an isolation between channels and bus at 500V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete output base DC
Group of channels 2 groups of 8 outputs
Discrete output number 16
Discrete output type Solid state switch
Discrete output voltage 24 V DC
Current per channel 0.5 A
Short-circuit protection Outputs electronically protected
Protective treatment TC

Complementary

Characteristic Value(s)
[Ue] rated operational voltage 24 V DC
Discrete output current 4 A per group
8 A per module
Maximum leakage current 1 mA 24 V DC
Surge current 5 A 1 ms
Maximum voltage drop <0.5 V 0.5 A at state 1
Output overload protection Outputs electronically protected
Response time 0.1 ms from state 0 to state 1
0.1 ms from state 1 to state 0
Isolation between channels and bus 500 V AC
Power dissipation 3.5 W typical
4.5 W maximum
Marking CE
Local signalling 16 LEDs for channel status
Current consumption 250 mA 24 V DC
Terminals description PLC n°1 (14)OUT_DIS#14
(2L+)PW_POS
(L+)PW_POS
(5)OUT_DIS#5
(1)OUT_DIS#1
(15)OUT_DIS#15
(M-)PW_NEG
(12)OUT_DIS#12
(8)OUT_DIS#8
(4)OUT_DIS#4
(16)OUT_DIS#16
(6)OUT_DIS#6
(2)OUT_DIS#2
(10)OUT_DIS#10
(11)OUT_DIS#11
TB
(13)OUT_DIS#13
(7)OUT_DIS#7
(9)OUT_DIS#9
(3)OUT_DIS#3
(1L+)PW_POS
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.46 lb(US) (0.21 kg)

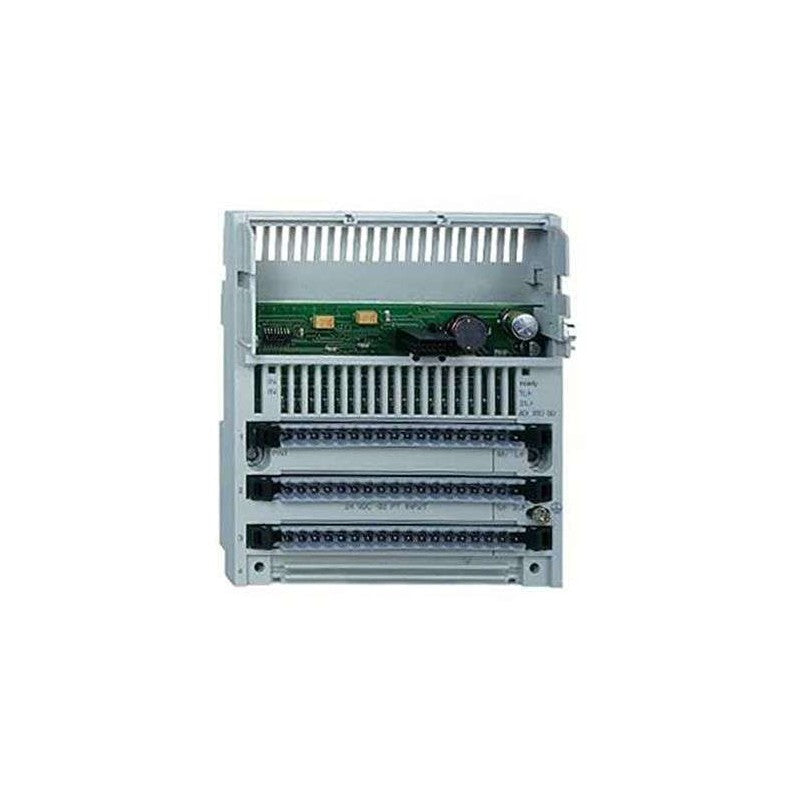

170ADO35000 Schneider
Schneider 170ADO35000 Schneider
4 516 kr
In stock, 13 units

Main

Characteristic Value(s)
Range of Product Modicon Momentum automation platform
Product or Component Type Discrete output base DC
Group of channels 2 groups of 16 outputs
Discrete output number 32
Discrete output type Solid state switch
Discrete output voltage 24 V DC
Current per channel 0.5 A
Short-circuit protection Outputs electronically protected
Protective treatment TC

Complementary

Characteristic Value(s)
[Ue] rated operational voltage 24 V DC
Discrete output current 16 A per module
8 A per group
Maximum leakage current 1 mA 24 V DC
Surge current 5 A 1 ms
Maximum voltage drop <0.5 V 0.5 A at state 1
Output overload protection Outputs electronically protected
Response time 0.1 ms from state 0 to state 1
0.1 ms from state 1 to state 0
Isolation between channels and bus 500 V AC
Power dissipation 6 W typical
7.5 W maximum
Marking CE
Local signalling 32 LEDs for channel status
Current consumption 250 mA 24 V DC
Terminals description PLC n°1 (15)OUT_DIS#15
TB
(2)OUT_DIS#2
(8)OUT_DIS#8
(L+)PW_POS
(16)OUT_DIS#16
(7)OUT_DIS#7
(M-)PW_NEG
(12)OUT_DIS#12
(9)OUT_DIS#9
(11)OUT_DIS#11
(14)OUT_DIS#14
(1)OUT_DIS#1
(5)OUT_DIS#5
(10)OUT_DIS#10
(13)OUT_DIS#13
(3)OUT_DIS#3
(4)OUT_DIS#4
(6)OUT_DIS#6
Terminals description PLC n°2 (6)OUT_DIS#22
(4)OUT_DIS#20
(7)OUT_DIS#23
(2L+)PW_POS
(3)OUT_DIS#19
TB_1
(8)OUT_DIS#24
(10)OUT_DIS#26
(12)OUT_DIS#28
(2)OUT_DIS#18
(13)OUT_DIS#29
(16)IN_DIS#32
(11)OUT_DIS#27
(14)OUT_DIS#30
(15)OUT_DIS#31
(5)OUT_DIS#21
(9)OUT_DIS#25
(1)OUT_DIS#17
(1L+)PW_POS
Depth 1.9 in (47.5 mm)
Height 5.6 in (141.5 mm)
Width 4.9 in (125 mm)
Product Weight 0.46 lb(US) (0.21 kg)

Recently viewed
