Main
| Characteristic | Value(s) |
|---|---|

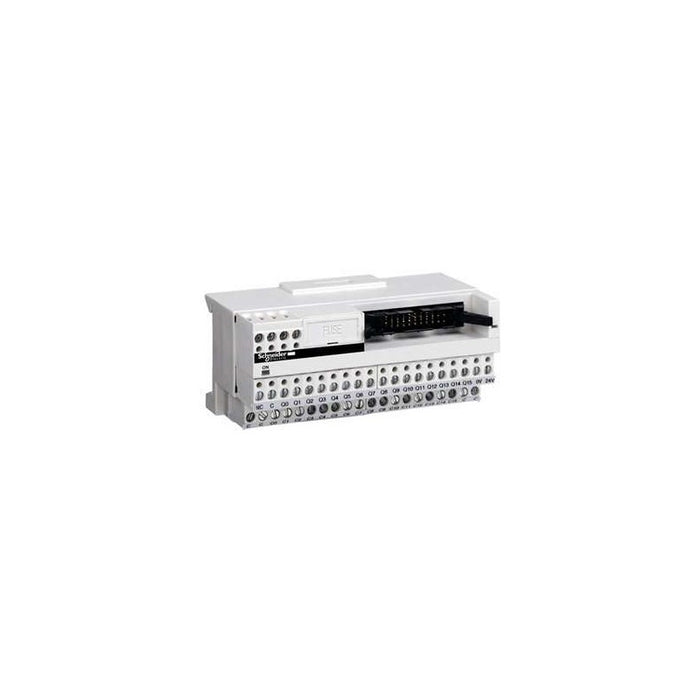

| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| [Us] rated supply voltage | 24 V DC controller side 24 V DC sensor/controller side |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid |
| Connector destination | Twido programmable controller |
Complementary
| Characteristic | Value(s) |
|---|---|
| Supply voltage limits | 19â¦30 V DC controller side)IEC 61131-2 20.4â¦26.4 V DC sensor/controller side)IEC 61131-2 |
| Discrete input number | 16 |
| Discrete input logic | Sink |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
| Product Compatibility | TWDDDI16DK TWDDDI32DK |
| Status LED | 1 LED power ON |
| Polarity distribution | 1 common/16 channels input |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow controller side) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips 35 mm symmetrical DIN rail IEC 60715 By screws |
| Maximum supply current | 2 A |
| Switched current | 15 mA input circuit |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Overvoltage category | II conforming to IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.95 lb(US) (0.43 kg) |
