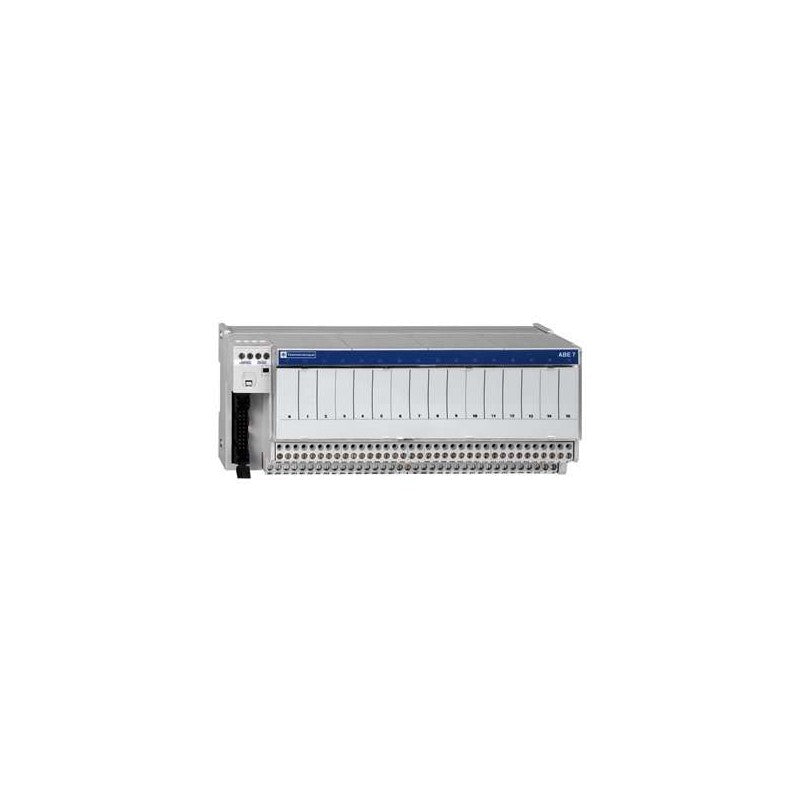

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base with plug-in electromechanical relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABR7S21 |
| Contacts type and composition | 1 NO |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Polarity distribution contact common per 2 groups of 8 channels |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.61 lb(US) (0.73 kg) |
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has change over contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.775kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S23 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

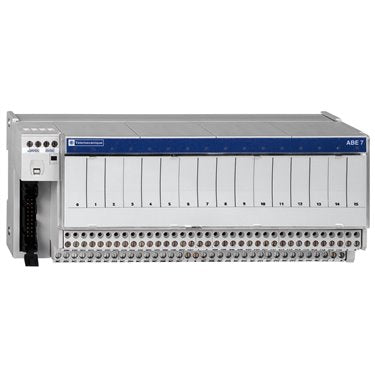

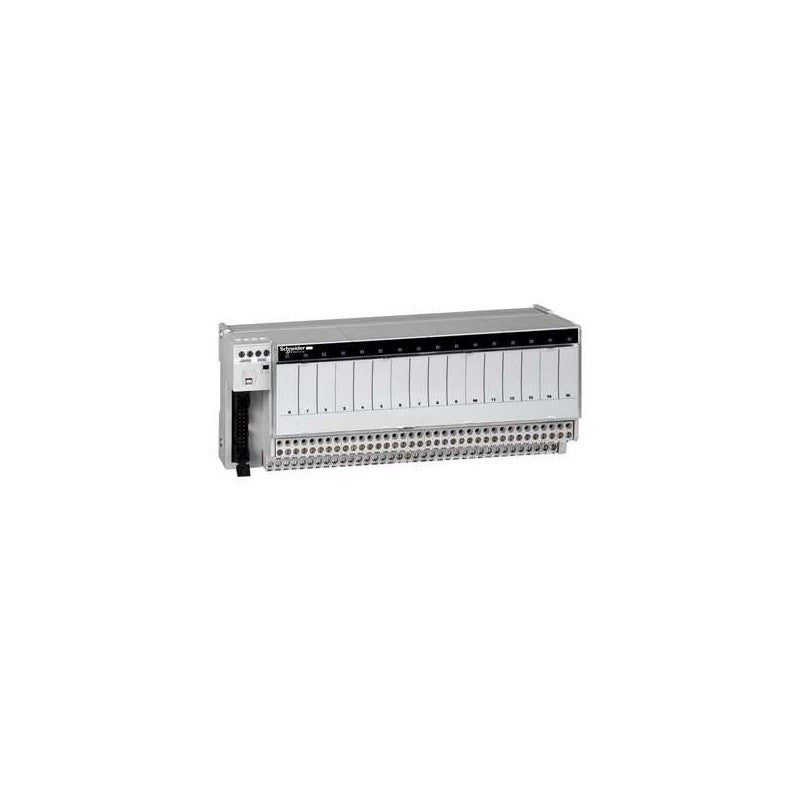

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base with plug-in electromechanical relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABR7S23 |
| Contacts type and composition | 1 C/O |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.709 lb(US) (0.775 kg) |
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

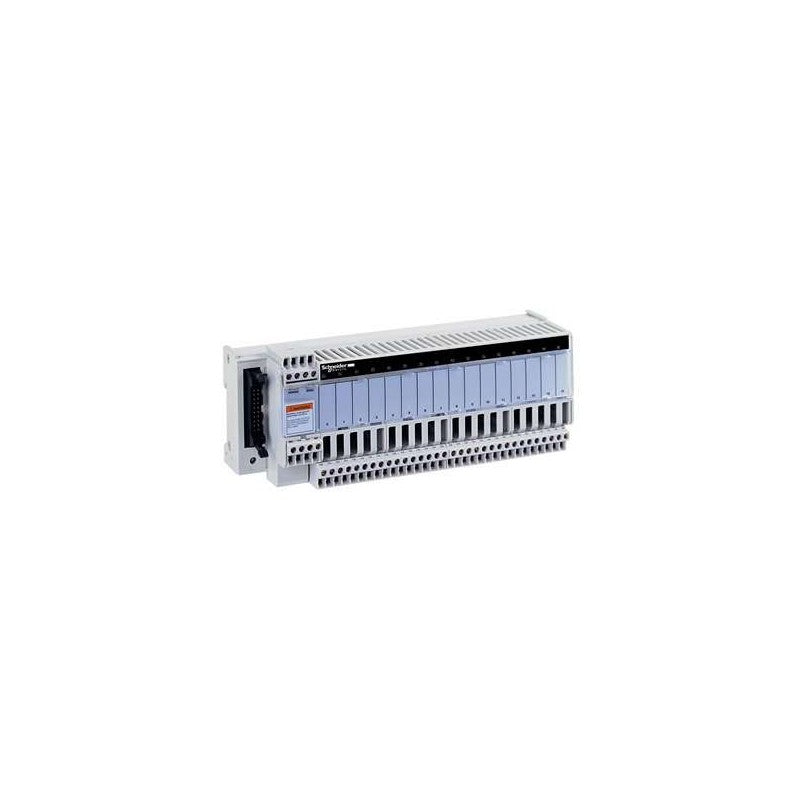

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Solid state input relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end) 24 V DC sensor end) |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.0001â¦0.002 in² (0.09â¦1.5 mm²) AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.0001â¦0.001 in² (0.09â¦0.75 mm²) AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.0003â¦0.004 in² (0.2â¦2.5 mm²) AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Supply voltage limits | 19â¦30 V DC PLC end)IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse fast blow sensor end |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Current per channel | 0.012 A |
| Current state 1 guaranteed | >= 2 mA sensor end) |
| Voltage state 1 guaranteed | >= 15 V sensor end |
| Maximum switching current | 15 mA PLC end) |
| Minimum switching current | 1 mA for PLC end |
| Response time | <= 0.05 ms from state 0 to 1 <= 0.4 ms from state 1 to 0 |
| Switching frequency | <= 1000 Hz 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.82 lb(US) (0.37 kg) |

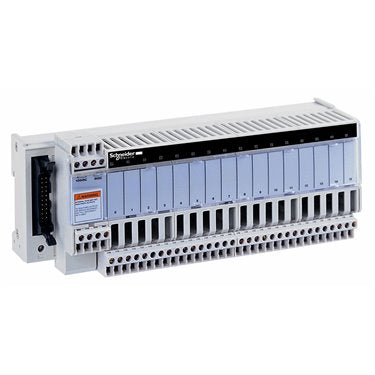

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Solid state input relay sub-base |
| [Us] rated supply voltage | 230/240 V AC 50/60 Hz sensor end) 24 V DC PLC end) |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.0001â¦0.002 in² (0.09â¦1.5 mm²) AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002â¦0.004 in² (0.14â¦2.5 mm²) AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.0001â¦0.001 in² (0.09â¦0.75 mm²) AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.0003â¦0.004 in² (0.2â¦2.5 mm²) AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Supply voltage limits | 19â¦30 V DC PLC end)IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse fast blow sensor end |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Current per channel | 0.008 A |
| Current state 1 guaranteed | >= 4.5 mA sensor end) |
| Voltage state 1 guaranteed | >= 164 V sensor end |
| Maximum switching current | 15 mA PLC end) |
| Minimum switching current | 1 mA for PLC end |
| Response time | <= 20 ms from state 0 to 1 <= 20 ms from state 1 to 0 |
| Switching frequency | <= 25 Hz 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.897 lb(US) (0.407 kg) |

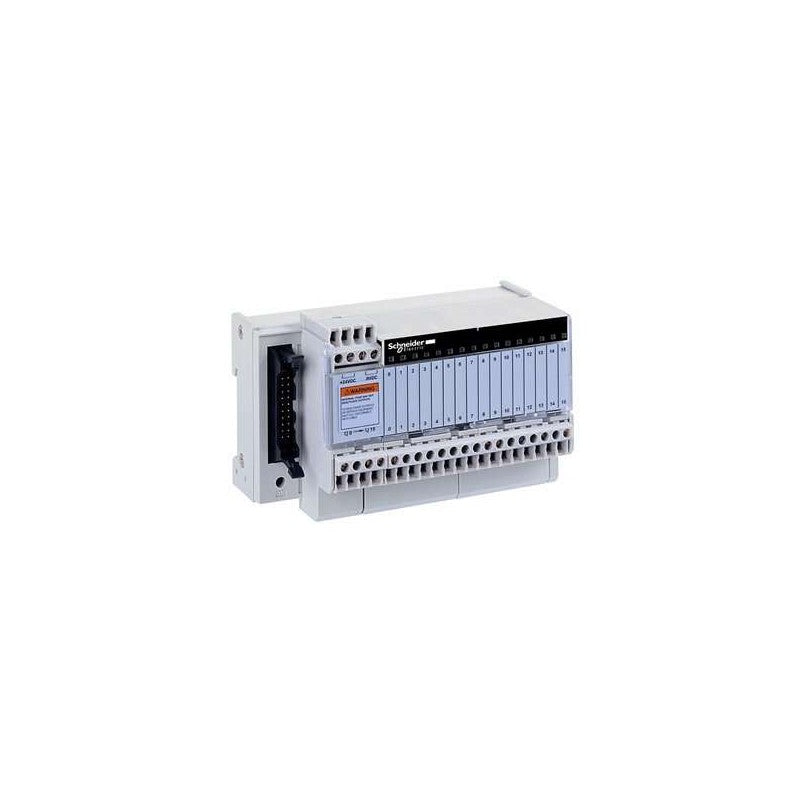

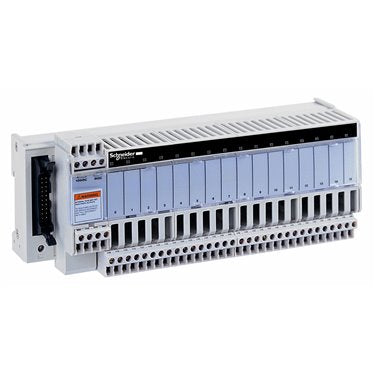

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Solid state output relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end 24 V DC preactuator end |
| Number of channels | 16 |
| Relay Type | Soldered solid state relay |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Isolation PLC/operative part | No |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Current state 0 guaranteed | 0.4 mA PLC end) |
| Voltage state 0 guaranteed | 3.4 V PLC end |
| Current state 1 guaranteed | 3.1 mA PLC end) |
| Voltage state 1 guaranteed | 16.9 V PLC end |
| Maximum current per output common | 9 A |
| Current per channel | 0.5 A preactuator end |
| Minimum switching current | 1 mA |
| Drop-out voltage | 0.3 V preactuator end) |
| Maximum switching current | 700 mA DC-12 700 mA DC-13 |
| Maximum tungsten load | <10 W DC-6 |
| Maximum residual current | 0.5 mA preactuator end |
| Fault type | Short-circuit Overload |
| Fault indication | Without |
| Switchable inductive energy L/R | <= 400(U.I) ms |
| Maximum circuit breaker threshold | 0.75 A |
| Response time | <= 0.1 ms from state 1 to 0 <= 0.2 ms from state 0 to 1 |
| Switching frequency | < 0.6/LI² Hz |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.9 lb(US) (0.4 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Solid state output relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end 24 V DC preactuator end |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Relay Type | Soldered solid state relay |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Isolation PLC/operative part | No |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Current state 0 guaranteed | 0.4 mA PLC end) |
| Voltage state 0 guaranteed | 3.4 V PLC end |
| Current state 1 guaranteed | 3.1 mA PLC end) |
| Voltage state 1 guaranteed | 16.9 V PLC end |
| Maximum current per output common | 8 A |
| Current per channel | 0.5 A preactuator end |
| Minimum switching current | 1 mA |
| Drop-out voltage | 0.6 V preactuator end) |
| Maximum switching current | 500 mA DC-12 500 mA DC-13 |
| Maximum tungsten load | <10 W DC-6 |
| Maximum residual current | 0.3 mA preactuator end |
| Fault type | Overload Short-circuit |
| Fault indication | Yes |
| Switchable inductive energy L/R | <= 400(U.I) ms |
| Maximum circuit breaker threshold | 0.75 A |
| Response time | <= 0.02 ms from state 1 to 0 <= 0.1 ms from state 0 to 1 |
| Switching frequency | < 0.6/LI² Hz |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 8.1 in (206 mm) |
| Product Weight | 0.893 lb(US) (0.405 kg) |

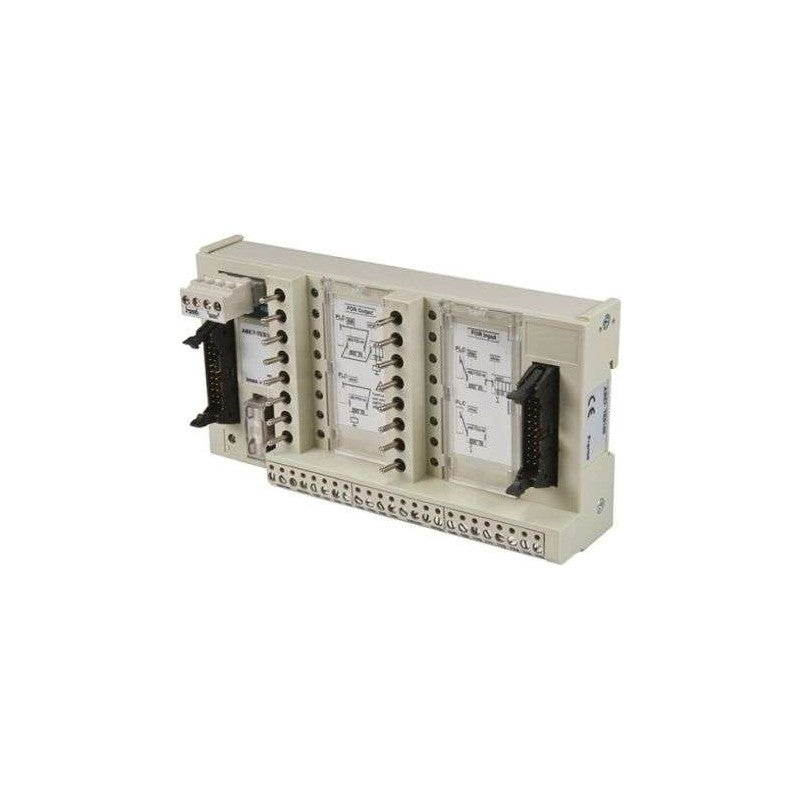

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Accessory / separate part designation | 16-channel simulator sub-base |
| Accessory / Separate Part Type | Simulator sub-base |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Between PLC I/O module and the Telefast I/O sub-base |
| Number of channels | 16 |
| Product Specific Application | For inhibiting discrete I/O For displaying discrete I/O For continuity of discrete I/O For forcing discrete I/O |
| Quantity per Set | Set of 1 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | ABE7P ABE7H ABE7R ABE7S |
| Electrical Connection | 2 connectors |
| Connector Type | HE10 |
| Product Weight | 0.77 lb(US) (0.35 kg) |

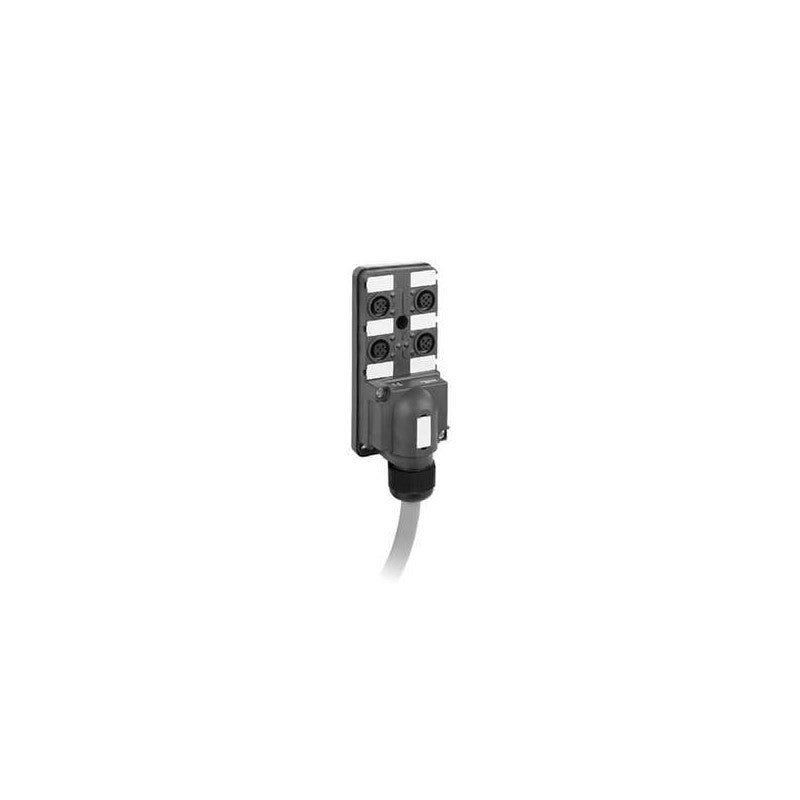

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 pre-wired cable connector, 16.4 ft (5 m) 4 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 1.50 lb(US) (0.68 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 pre-wired cable connector, 32.8 ft (10 m) 4 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 3.7 lb(US) (1.7 kg) |

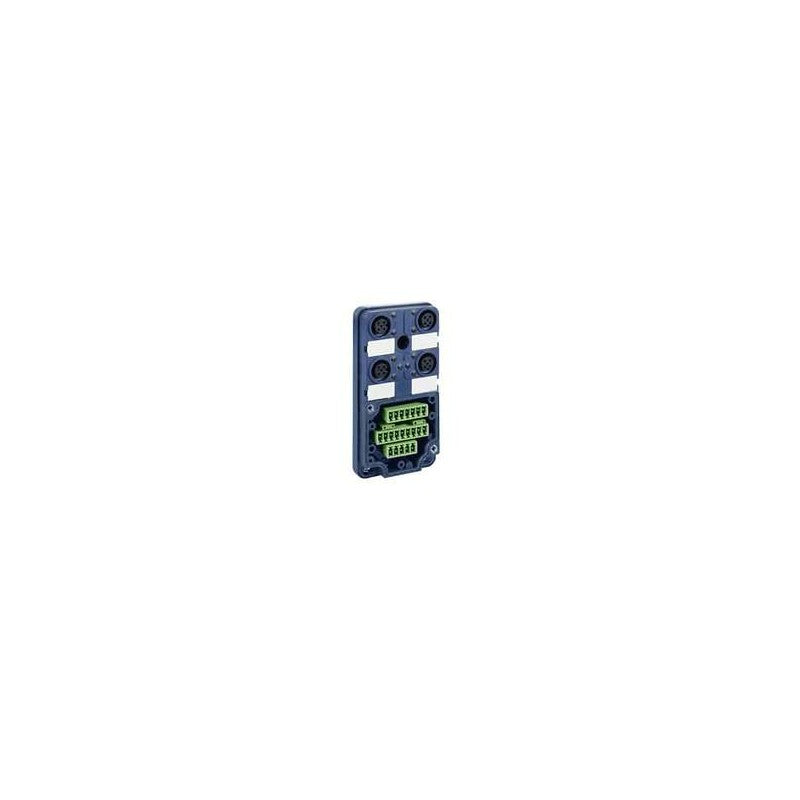

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 male plug-in connector 4 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 0.13 lb(US) (0.06 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 male connector M23 19 pins 4 female connectors M12 5 pins |
| Status LED | 1 LED (Green) power ON 1 LED per channel (Yellow) channel status |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without |
| Product Weight | 0.18 lb(US) (0.08 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 pre-wired cable connector, 16.4 ft (5 m) 4 female connectors M12 5 pins |
| Status LED | 1 LED per channel (Yellow) channel status 2 LEDs (Green) power ON |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 1.50 lb(US) (0.68 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 4 |
| Electrical connection | 1 pre-wired cable connector, 32.8 ft (10 m) 4 female connectors M12 5 pins |
| Status LED | 1 LED per channel (Yellow) channel status 2 LEDs (Green) power ON |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 8 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 3.7 lb(US) (1.7 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 male connector M23 19 pins 8 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without |
| Product Weight | 0.31 lb(US) (0.14 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 pre-wired cable connector, 16.4 ft (5 m) 8 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 3.55 lb(US) (1.61 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 pre-wired cable connector, 32.8 ft (10 m) 8 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 6.75 lb(US) (3.06 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 male plug-in connector 8 female connectors M12 5 pins |
| Status LED | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 0.2 lb(US) (0.1 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 male connector M23 19 pins 8 female connectors M12 5 pins |
| Status LED | 1 LED (Green) power ON 1 LED per channel (Yellow) channel status |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without |
| Product Weight | 0.31 lb(US) (0.14 kg) |
This product is part of the Advantys ABE9 range, an offer of IP67 passive splitters boxes. This passive splitter box for M12 connectors make it possible to eliminate long and difficult cabling operations. It provides 8 channels and 16 ways. It is furnished with 5-pin female M12 connectors and 5m pre-wired cable connector for electrical connection. It is a splitter box with an operational voltage of 24V DC and a current per channel of 4A. A single yellow LED is equipped for channel status and dual green LED's for power ON. It is an IP67 rated product. It weighs 1.61kg. The splitter box is suitable for packaging, bottling, assembly and conveying applications. This product is certified by CULus. Its modularity and dimensions mean they are the ideal solution for a wide variety of customer applications.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 pre-wired cable connector, 16.4 ft (5 m) 8 female connectors M12 5 pins |
| Status LED | 1 LED per channel (Yellow) channel status 2 LEDs (Green) power ON |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 3.55 lb(US) (1.61 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Advantys ABE9 |
| Product or Component Type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 male plug-in connector 8 female connectors M12 5 pins |
| Status LED | 1 LED per channel (Yellow) channel status 2 LEDs (Green) power ON |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of ways | 16 ways |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 VDE 0110 |
| Operating position | Any position |
| Fixing Mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 0.002 in² (1 mm²) 12 A 0.001 in² (0.75 mm²) |
| Separation of commons | Without or with |
| Product Weight | 0.2 lb(US) (0.1 kg) |

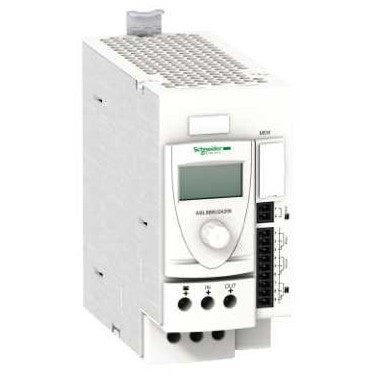

This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 20A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0.500kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Phaseo |
| Product or Component Type | Battery control module |
| Input voltage | 24...28.8 V DC |
| Output voltage | (Ubattery-0.5) V battery mode DC (Uin-0.25) V nominal mode DC |
| Maximum output current | 20 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 22...30 V |
| Maximum power dissipation in W | 7 W |
| Activation threshold | Adjustable 22...36 V |
| Number of output channels | 1 |
| Current consumption | 0.6 A on load 0.1 mA no load <= 40.6 A |
| Output protection type | Against overload, protection technology: 1.5 x In Against short-circuits, protection technology: battery-backed mode, automatic reset Against short-circuits, protection technology: power-supplied mode |
| Connections - terminals | For diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm² For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal By clips 35 mm symmetrical DIN rail vertical |
| Operating altitude | 6561.68 ft (2000 m) |
| Marking | CE |
| Name of test | Electrostatic discharges IEC 61000-4-2 Emission IEC 61000-6-3 Induced electromagnetic field IEC 61000-4-6 level 3 Radiated electromagnetic field IEC 61000-4-3 level 3 Rapid transient IEC 61000-4-4 level 3 Surge IEC 61000-4-5 level 2 Conducted/radiated emissions EN 55022 Class B, 20 % |
| Local signalling | 1 C/O relay for alarm status 1 C/O relay for battery status 1 C/O relay for power supply status LCD screen for module status |
| Width | 2.4 in (60 mm) |
| Height | 4.9 in (125 mm) |
| Depth | 6.3 in (160 mm) |
| Product Weight | 1.1 lb(US) (0.5 kg) |
battery control module - 24..28.8 V DC - 24 V - 40 A - for regulated SMPS
Modules
