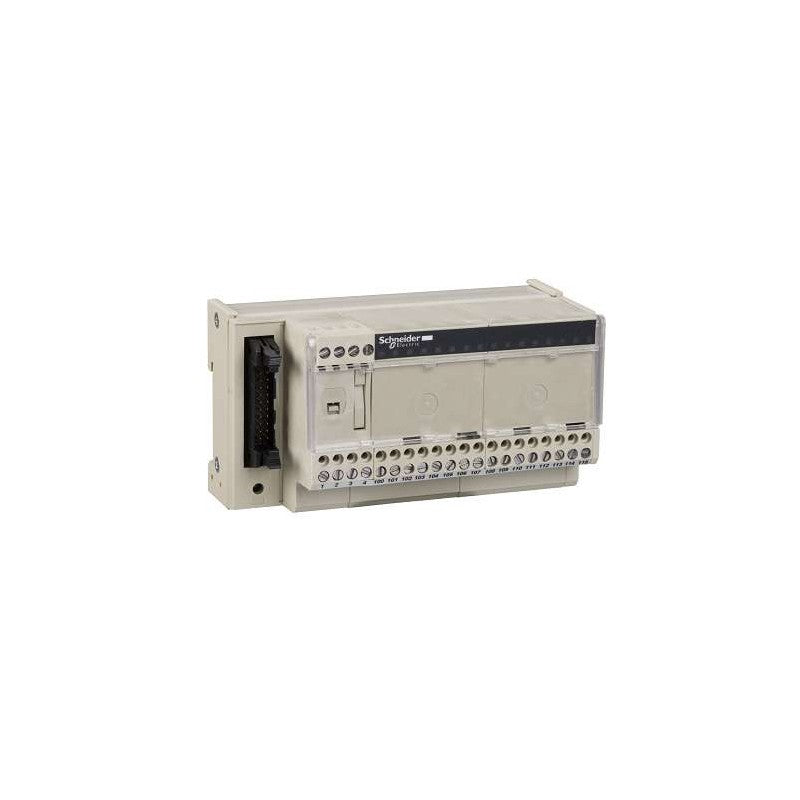

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.274kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.604 lb(US) (0.274 kg) |

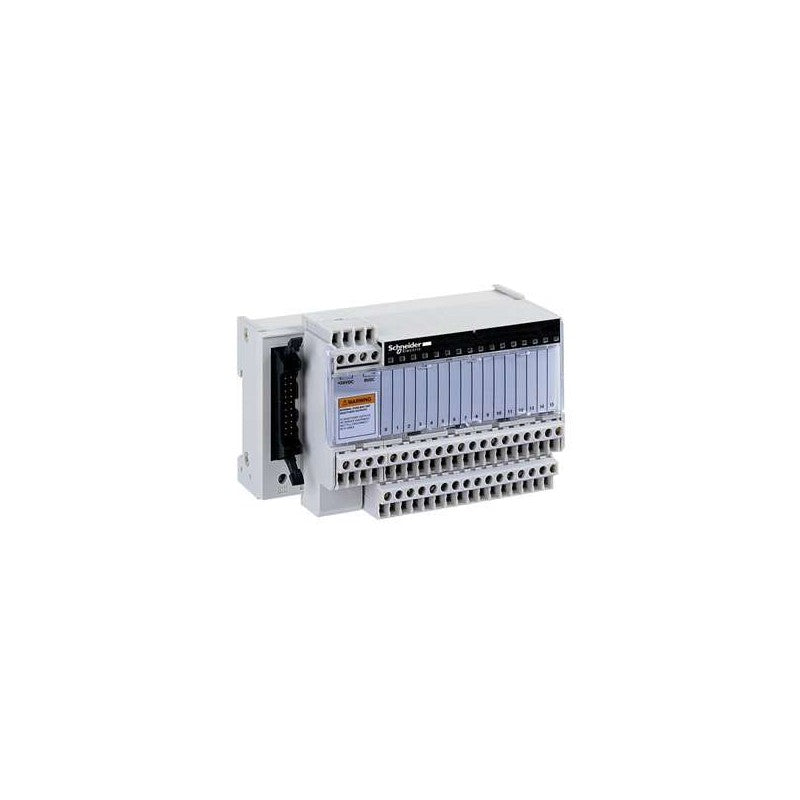

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED (Green) power ON |
| Polarity distribution | 0 V or 24 V |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | SUB-D 15 HE-10 SUB-D 9 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.7 lb(US) (0.3 kg) |

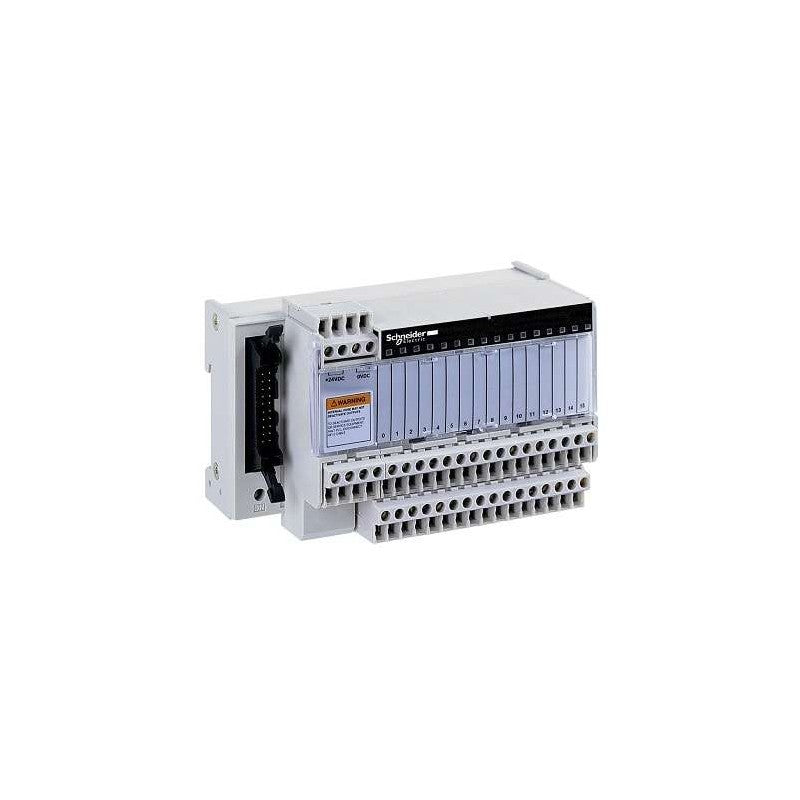

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.3kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | 0 V or 24 V |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Type 2 input sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | 0 V or 24 V |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.71 lb(US) (0.32 kg) |

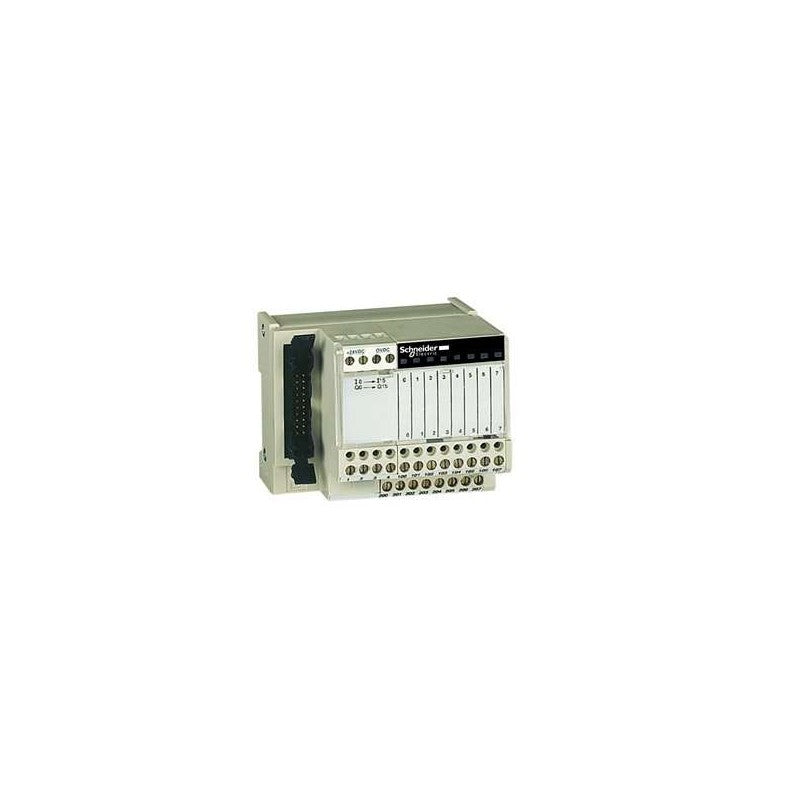

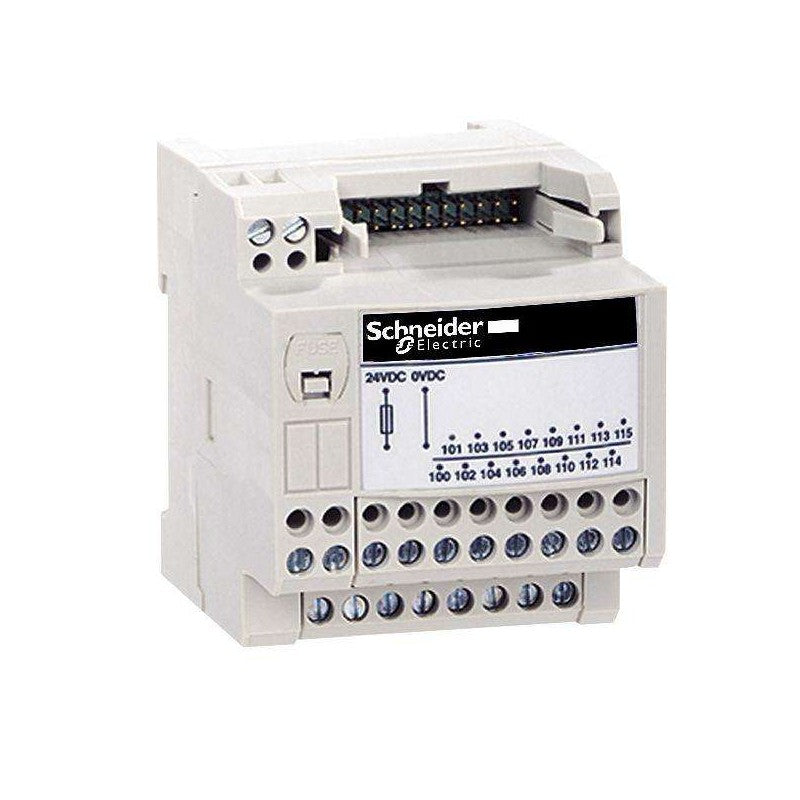

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 3.3 in (84 mm) |
| Product Weight | 0.432 lb(US) (0.196 kg) |

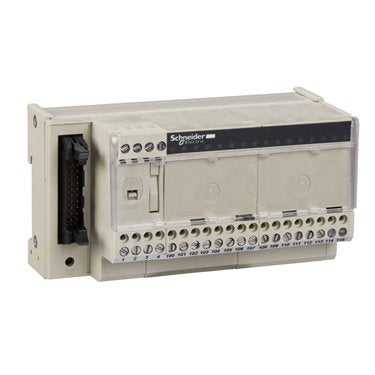

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels and an isolator. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.375kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | 0 V or 24 V |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.827 lb(US) (0.375 kg) |
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 1 switch disconnector per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 206mm. It weighs 0.64kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Input sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (Green) channel status 1 LED per channel (Red) blown fuse indication 1 LED (Green) power ON |
| Polarity distribution | 24 V |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) 0.125 A fuse per channel, 5 x 20 mm, fast blow output circuit) |
| Connector Type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.125 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum voltage drop per channel | 0.1 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 8.1 in (206 mm) |
| Height | 3.03 in (77 mm) |
| Depth | 2.3 in (58 mm) |
| Product Weight | 1.41 lb(US) (0.64 kg) |

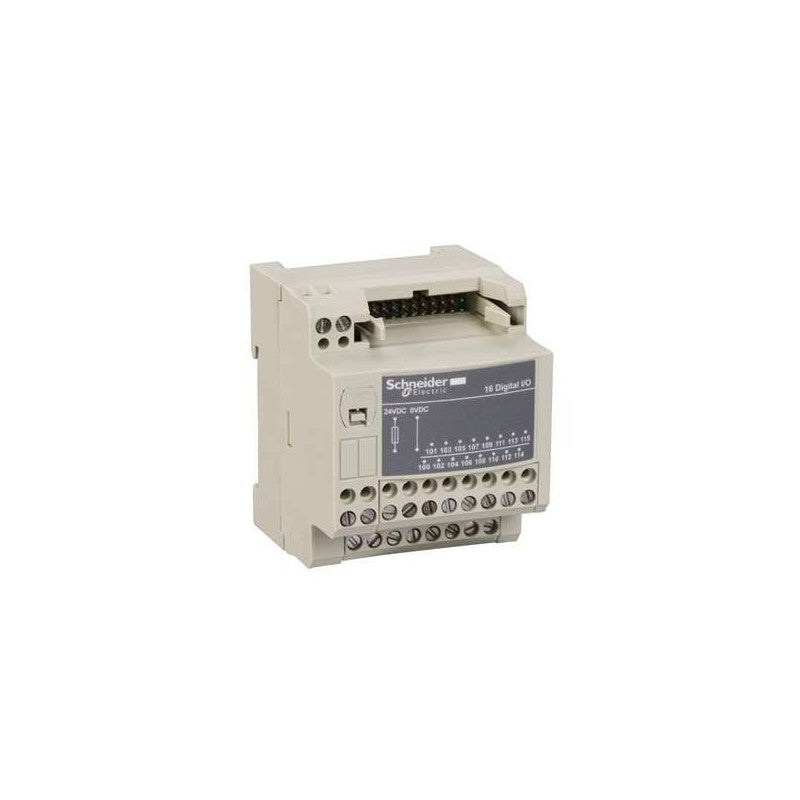

Passive connection sub-base ABE7 - Micro/Premium
passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m

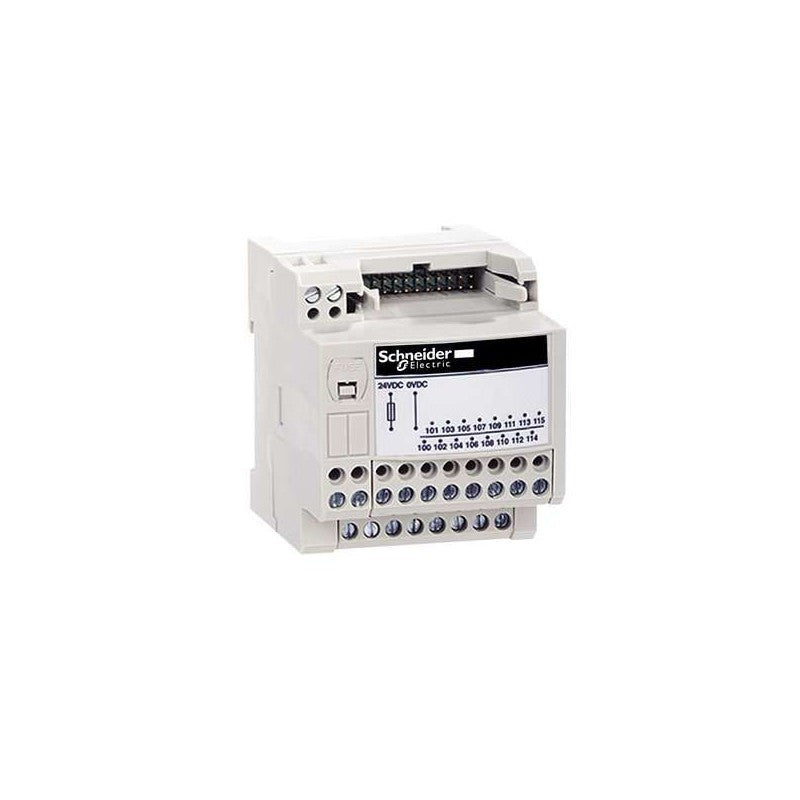

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product Compatibility | Modicon Premium PLC Modicon TSX Micro PLC |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.90 lb(US) (0.41 kg) |
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system." "This is a kit containing two sub-bases and a 1meter long Y-cordset." "Sub-bases provide 2x16 modularity input/output channels with 1 terminal per channel. Y-cordset is equipped with 1x 40-way FCN, and 2x HE10 20-way connectors." "This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors." "It is a sub base with a maximum supply current of 1.8A with 0.5A per channel, and a rated supply voltage of 19V to 30V." "It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product." "This kit weighs 0.582kg." "It is suitable for all types of industrial applications managed with Modicon X80 I/O modules or Modicon M340 controllers." "This kit is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC." "This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers." "The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment." "Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors."
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product compatibility | Modicon TSX Micro PLC Modicon Premium PLC |
| Status LED | 1 LED (green) power ON 1 LED (amber) APP1 |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat à 3.5 mm screwdriver |
| Product weight | 0.33 kg |
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system." "This is a kit containing two sub-bases and a 2meter long Y-cordset." "Sub-bases provide 2x16 modularity input/output channels with 1 terminal per channel. Y-cordset is equipped with 1x 40-way FCN, and 2x HE10 20-way connectors." "This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors." "It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V" "It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product." "This kit weighs 0.725kg." "It is suitable for all types of industrial applications managed with Modicon X80 I/O modules or Modicon M340 controllers." "This kit is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC." "This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers." "The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment." "Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors."
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product compatibility | Modicon Premium PLC Modicon TSX Micro PLC |
| Status LED | 1 LED per channel (green) channel status 1 LED (green) power ON |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat à 3.5 mm screwdriver |
| Product weight | 0.41 kg |
sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

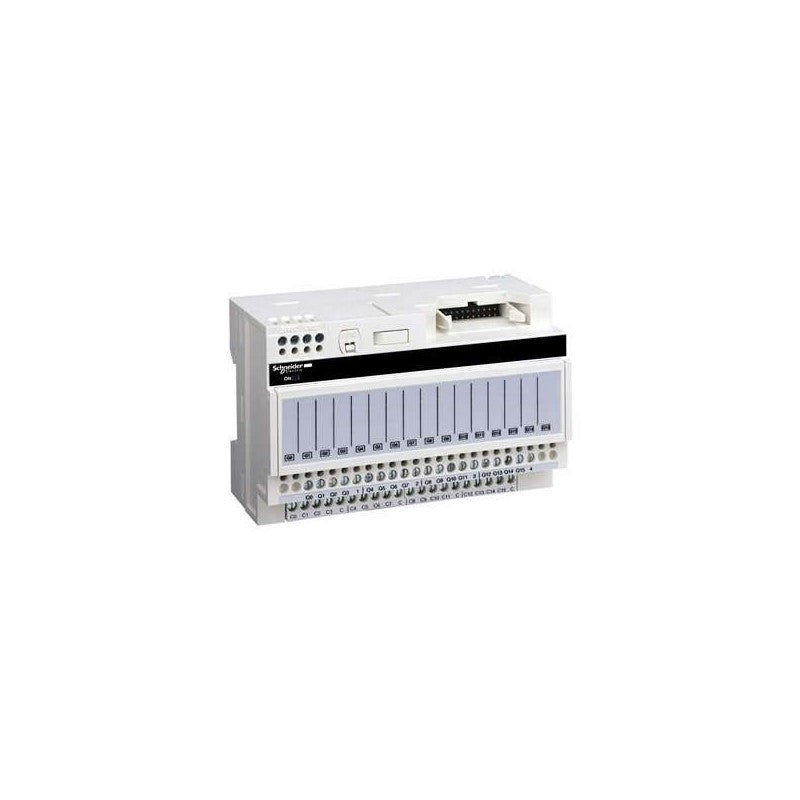

sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.615kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S2, ABS7SA2, ABS7SC2 and ABE7ACC20 connection sub-base accessory. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABS7SC2. ABR7S2. ABS7SA2. ABE7ACC20 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits IEC 60947-1 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.356 lb(US) (0.615 kg) |

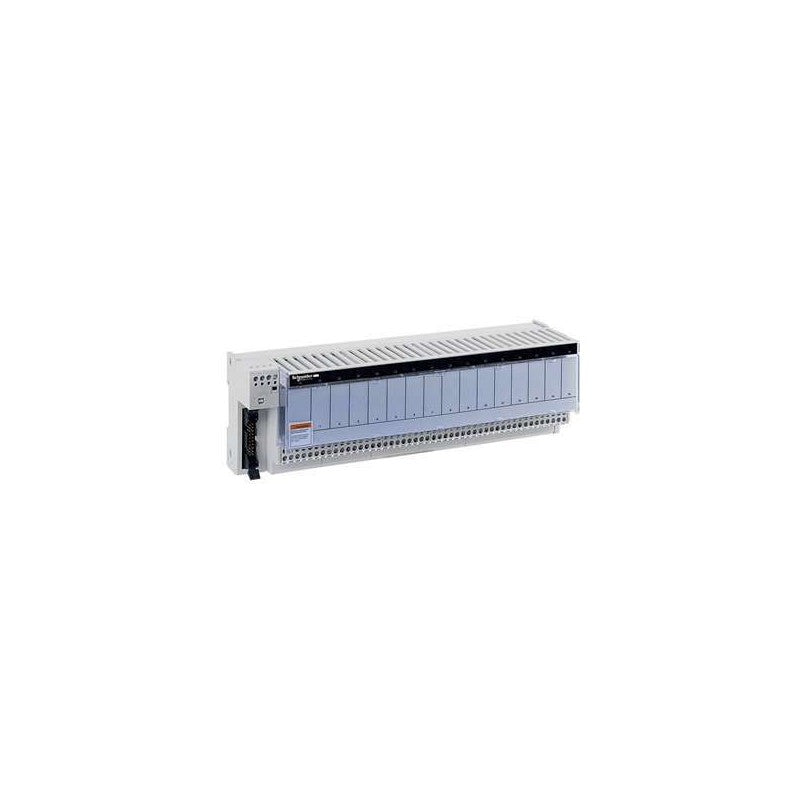

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. It has 1 switch disconnector per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.675kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S2, ABS7SA2, ABS7SC2 and ABE7ACC20 connection sub-base accessory. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base for plug-in relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Channel additional information | 1 switch disconnector per channel |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABR7S2. ABS7SA2. ABS7SC2. ABE7ACC20 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) 0.5 A fuse per channel, 5 x 20 mm, fast blow output circuit) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum current per output common | 16 A |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits IEC 60947-1 2000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.488 lb(US) (0.675 kg) |
sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm
ABE7P16T334 SCHNEIDER ELECTRIC.

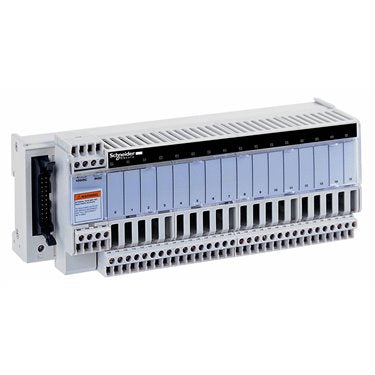

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end |
| Number of channels | 8 |
| Number of terminal per channel | 1 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Polarity distribution | Polarity distribution contact common per group of 4 channels |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum current per output common | 12 A |
| Current per channel | 2 A preactuator end |
| Minimum switching current | 1 mA >= 5 V |
| Drop-out voltage | 2.4 V 68 °F (20 °C) PLC end) |
| Threshold tripping voltage | 19.2 V 104 °F (40 °C) |
| Drop-out current | 0.5 mA 68 °F (20 °C) |
| Maximum power dissipation per channel in W | 0.22 W PLC end) |
| Contacts type and composition | 1 NO preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz IEC 60947-5-1 30 V DC IEC 60947-5-1 |
| Number of channel per common | 4 |
| Electrical durability | 500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) 500000 cycles 400 mA 230 V AC-15 preactuator end) 500000 cycles 600 mA 230 V AC-12 preactuator end) 500000 cycles 600 mA 24 V DC-12 preactuator end) |
| Electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing <= 6 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 3.3 in (84 mm) |
| Product Weight | 0.556 lb(US) (0.252 kg) |

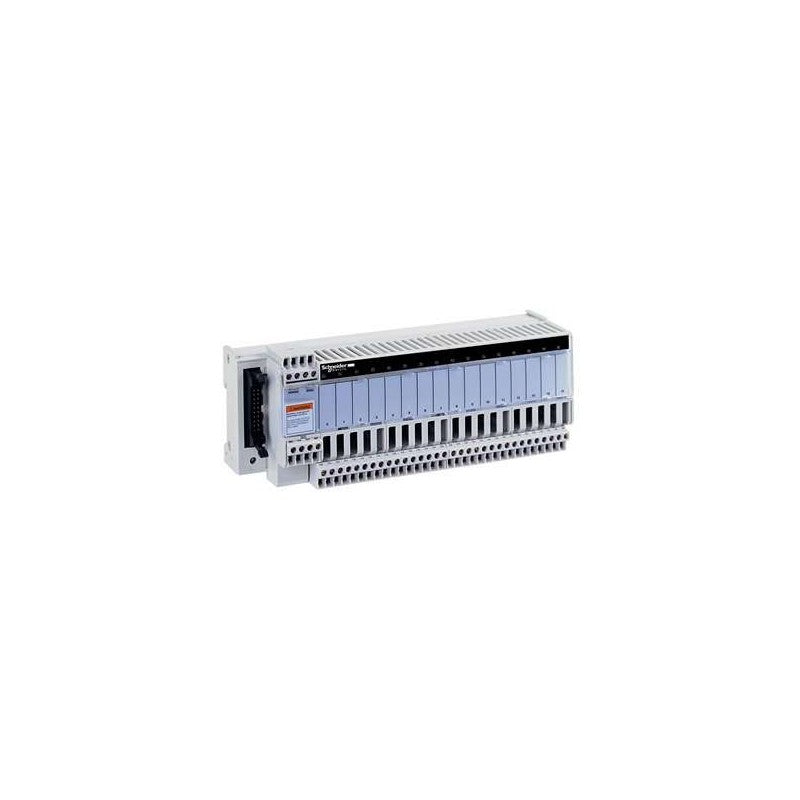

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end |
| Number of channels | 8 |
| Number of terminal per channel | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Polarity distribution | Volt-free |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum current per output common | 10 A |
| Current per channel | 5 A preactuator end |
| Minimum switching current | 10 mA >= 5 V |
| Drop-out voltage | 2.4 V 68 °F (20 °C) PLC end) |
| Switching frequency | <= 0.5 Hz <= 10 Hz |
| Threshold tripping voltage | 19.7 V 104 °F (40 °C) |
| Drop-out current | 1 mA 68 °F (20 °C) |
| Maximum power dissipation per channel in W | 0.36 W PLC end) |
| Contacts type and composition | 1 NO preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz IEC 60947-5-1 30 V DC IEC 60947-5-1 |
| Electrical durability | 500000 cycles 600 mA 24 V DC-13 10 ms preactuator end) 500000 cycles 1500 mA 230 V AC-12 preactuator end) 500000 cycles 1500 mA 24 V DC-12 preactuator end) 500000 cycles 900 mA 230 V AC-15 preactuator end) |
| Electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing <= 5 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 4.9 in (125 mm) |
| Product Weight | 0.988 lb(US) (0.448 kg) |

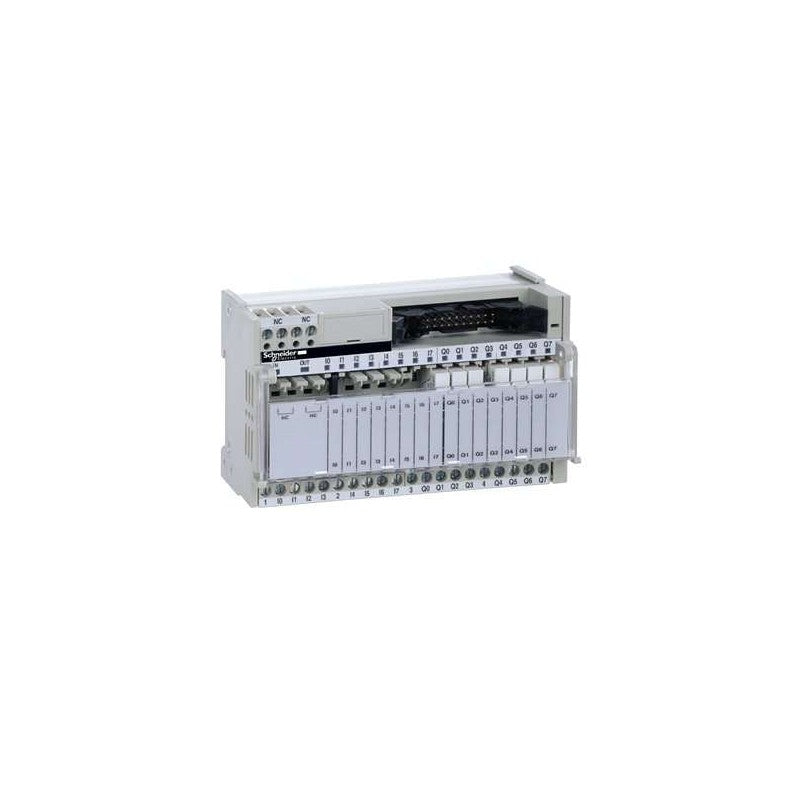

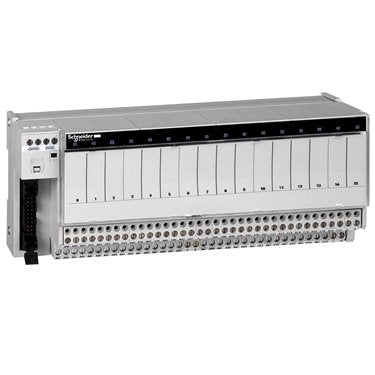

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC PLC end |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Terminal block type | Removable |
| Polarity distribution | Common per group of 8 channels on both poles |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum current per output common | 10 A |
| Current per channel | 5 A preactuator end |
| Minimum switching current | 10 mA >= 5 V |
| Drop-out voltage | 2.4 V 68 °F (20 °C) PLC end) |
| Switching frequency | <= 0.5 Hz <= 10 Hz |
| Threshold tripping voltage | 19.7 V 104 °F (40 °C) |
| Drop-out current | 1 mA 68 °F (20 °C) |
| Maximum power dissipation per channel in W | 0.36 W PLC end) |
| Contacts type and composition | 1 NO preactuator end |
| Maximum switching voltage | 250 V AC 50/60 Hz IEC 60947-5-1 30 V DC IEC 60947-5-1 |
| Electrical durability | 500000 cycles 600 mA 24 V DC-13 10 ms preactuator end) 500000 cycles 1500 mA 230 V AC-12 preactuator end) 500000 cycles 1500 mA 24 V DC-12 preactuator end) 500000 cycles 900 mA 230 V AC-15 preactuator end) |
| Electrical reliability | 1e-008 |
| Operating time | <= 10 ms coil energisation and NO closing <= 5 ms coil de-energisation and NO opening |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load 0.5 Hz at Ie |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Width | 8.1 in (206 mm) |
| Product Weight | 0.9 lb(US) (0.4 kg) |

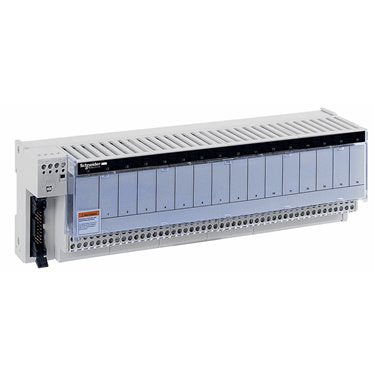

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 5 mm
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Sub-base with plug-in electromechanical relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 |
| Number of channels | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| supply voltage type | DC |
| Product Compatibility | ABR7S21 |
| Contacts type and composition | 1 NO |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | Volt-free |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails 300 V coil circuit/contact circuits IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 1.620 lb(US) (0.735 kg) |
Modules
