Best selling products

25001 products

Showing 1489 - 1512 of 25001 products

Showing 1489 - 1512 of 25001 products
View
2989527 Phoenix Contact - Industrial Ethernet Switch - FL SWITCH LM 5TX
Phoenix Contact 2989527 Phoenix Contact - Industrial Ethernet Switch - FL SWITCH LM 5TX
€396,95
Only 2 units left

Ethernet Lean Managed Switch with five 10/100 Mbps RJ45 ports
XBTGT1335 Schneider
Schneider XBTGT1335 Schneider
€1.408,95
Only 4 units left

Main

Characteristic Value(s)
Range of Product Harmony XBTGT
Product or Component Type Advanced touchscreen panel
Display Type Backlit colour TFT LCD
Display colour 256 colours
Display Resolution 320 x 240 pixels QVGA
Display size 3.8 inch
Software Type Configuration software
Software Designation Vijeo Designer
Operating System Harmony
Processor name CPU RISC
Processor frequency 200 MHz
Memory description 512 KB SRAM back up of data lithium battery
32 MB flash EPROM application memory
Integrated connection type removable screw terminal block power supply
RJ45 Ethernet TCP/IP
RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s
USB type A master port (V1.1) Modicon M340 terminal port communication
Resistance to electrostatic discharge 6 kV IEC 61000-4-2 level 3
Cut-out dimensions 118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm

Complementary

Characteristic Value(s)
Touch panel Analogue
Backlight lifespan 40000 hours
Brightness 16 levels
Character font Korean
ASCII
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC
Supply External source
Supply voltage limits 19.2…28.8 V
Inrush current 60 A
Power Consumption in W 13 W
Local signalling 1 LED (green) for normal operation
Number of pages Limited by internal memory capacity
Downloadable protocols Telemecanique Modicon Modbus TCP
Telemecanique Modicon Modbus
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Telemecanique Modicon Uni-TE
Realtime clock Built-in
Port Ethernet 100BASE-TX
Product mounting Flush mounting
Fixing Mode By 4 screw clamps
By 2 spring clips
Front material PPT
Enclosure Material PPT
Marking CE
Width 5.1 in (130 mm)
Height 4.09 in (104 mm)
Depth 1.6 in (40 mm)
Product Weight 2.2 lb(US) (1 kg)
ATV32HD11N4 Schneider
Schneider ATV32HD11N4 Schneider
€1.510,95
Only 9 units left

This Altivar 32 3-phase variable speed drive has a rated power of 11kW, and a supply voltage of 380V to 500V AC. It is designed for applications such as small conveyors, hoists, bagging / labeling machines, mixers, kneaders, textile machines, pumps, compressors, fans, wood-working and metal processing machines. It has a 180mm-wide compact form-factor, allowing for a flexible and easy installation on a mounting plate without any space between adjacent drives. It also offers a snap-lock seal, status and faults display, a jog dial navigation button and an integrated EMC filter. It offers high readability of key parameters thanks to a bright LED 4-digit display. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime.

Main

Characteristic Value(s)
Range of Product Altivar 32
Product or Component Type Variable speed drive
Product destination Synchronous motors
Asynchronous motors
Product Specific Application Complex machines
Function Available -
Assembly style With heat sink
Component name ATV32
EMC filter Class C2 EMC filter integrated
Phase 3 phase
[Us] rated supply voltage 380...500 V - 15...10 %
Supply voltage limits 323…550 V
Supply frequency 50...60 Hz - 5...5 %
Network Frequency 47.5...63 Hz
Motor power kW 11 kW 380...480 V
Maximum Horse Power Rating 15 hp 380...480 V

Complementary

Characteristic Value(s)
Line current 25.6 A 500 V 3 phase 11 kW / 15 hp
36.6 A 380 V 3 phase 11 kW / 15 hp
Apparent power 31.7 kVA 500 V 3 phase 15 kW / 20 hp
Prospective line Isc 22 kA 3 phase
Nominal output current 27.7 A 4 kHz 500 V 11 kW / 15 hp
Maximum transient current 41.6 A 60 s 11 kW / 15 hp
Output frequency 0.0005…0.599 kHz
Nominal switching frequency 4 kHz
Switching frequency 2...16 kHz adjustable
Speed range 1…100 asynchronous motor in open-loop mode
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Torque accuracy +/- 15 %
Transient overtorque 170…200 %
Braking torque <= 170 % with braking resistor
Asynchronous motor control profile Flux vector control without sensor, standard
Voltage/frequency ratio, 5 points
Voltage/frequency ratio, 2 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor - Energy Saving, NoLoad law
Synchronous motor control profile Vector control without sensor
Regulation loop Adjustable PID regulator
Motor slip compensation Adjustable 0...300 %
Automatic whatever the load
Not available in voltage/frequency ratio (2 or 5 points)
Local signalling 1 LED red drive voltage
1 LED green CANopen run
1 LED red CANopen error
1 LED red drive fault
Output voltage <= power supply voltage
Noise level 43 dB 86/188/EEC
Insulation Electrical between power and control
Electrical connection Screw terminal 0.5...1.5 mm², AWG 18...AWG 14 control)
Removable screw terminals 6...16 mm², AWG 8...AWG 6 motor/braking resistor)
Screw terminal 10...16 mm², AWG 8...AWG 6 power supply)
Tightening torque 4.4 lbf.in (0.5 N.m), 4.4 lb/ft control)
10.6 lbf.in (1.2 N.m), 10.6 lb/ft motor/braking resistor)
10.6 lbf.in (1.2 N.m), 10.6 lb/ft power supply)
Supply Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
Analogue input number 3
Analogue input type AI1 voltage 0...10 V DC 30000 Ohm 10 bits
AI2 bipolar differential voltage +/- 10 V DC 30000 Ohm 10 bits
AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Sampling duration 2 ms AI1, AI2, AI3) - analog
2 ms AO1) - analog
Response time LI1...LI6 8 ms +/- 0.7 ms logic
R1A, R1B, R1C 2 ms relay
R2A, R2C 2 ms relay
Accuracy +/- 0.2 % AI1, AI2, AI3) for a temperature of -10...60 °C
+/- 0.5 % AI1, AI2, AI3) for a temperature of 25 °C
+/- 1 % AO1) for a temperature of 25 °C
+/- 2 % AO1) for a temperature of -10...60 °C
Linearity error +/- 0.2...0.5 % of maximum value AI1, AI2, AI3)
+/- 0.3 % AO1)
Analogue output number 1
Analogue output type AO1 software-configurable current 0...20 mA 800 Ohm 10 bits
AO1 software-configurable voltage 0...10 V 470 Ohm 10 bits
Discrete output number 3
Discrete output type Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic R2A, R2B) NO - 100000 cycles
Logic LO)
Minimum switching current 5 mA 24 V DC configurable relay logic
Maximum switching current R1 3 A 250 V AC resistive, cos phi = 1
R1 4 A 30 V DC resistive, cos phi = 1
R1, R2 2 A 250 V AC inductive, cos phi = 0.4
R1, R2 2 A 30 V DC inductive, cos phi = 0.4
R2 5 A 250 V AC resistive, cos phi = 1
R2 5 A 30 V DC resistive, cos phi = 1
Discrete input number 7
Discrete input type Programmable (sink/source) LI1...LI4)24...30 V DC level 1 PLC
Programmable as pulse input 20 kpps LI5)24...30 V DC level 1 PLC
Switch-configurable PTC probe LI6)24...30 V DC
Safe torque off STO)24...30 V DC - 1500 Ohm
Discrete input logic Negative logic (sink) LI1...LI6), > 19 V, < 13 V
Positive logic (source) LI1...LI6), < 5 V, > 11 V
Acceleration and deceleration ramps CUS
Deceleration ramp adaptation
Linear
Deceleration ramp automatic stop DC injection
S
Ramp switching
U
Braking to standstill By DC injection
Protection type Input phase breaks drive
Overcurrent between output phases and earth drive
Overheating protection drive
Short-circuit between motor phases drive
Thermal protection drive
Communication Port Protocol CANopen
Modbus
Connector type 1 RJ45 on front face)Modbus/CANopen
Physical interface 2-wire RS 485 Modbus
Transmission frame RTU Modbus
Type of polarization No impedance Modbus
Number of addresses 1…127 CANopen
1…247 Modbus
Method of access Slave CANopen
Electromagnetic compatibility 1.2/50 µs - 8/20 µs surge immunity test, level 3 IEC 61000-4-5
Conducted radio-frequency immunity test, level 3 IEC 61000-4-6
Electrical fast transient/burst immunity test, level 4 IEC 61000-4-4
Electrostatic discharge immunity test, level 3 IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test, level 3 IEC 61000-4-3
Voltage dips and interruptions immunity test IEC 61000-4-11
Width 7.09 in (180 mm)
Height 15.9 in (404 mm)
Depth 9.1 in (232 mm)
Product Weight 19.2 lb(US) (8.7 kg)
Option card Communication card CANopen daisy chain
Communication card CANopen open style
Communication card DeviceNet
Communication card EtherNet/IP
Communication card Profibus DP V1
Functionality Mid
Specific application Other applications
ATV320U75M3C Schneider
Schneider ATV320U75M3C Schneider
€1.596,95
Only 6 units left

Variable Speed Drive Altivar ATV320 - 7.5kW - 200V - 3Phase - compact
ACH550-UH-017A-2 ABB
ABB ACH550-UH-017A-2 ABB
€845,95
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 208-240 V AC, 50/60 HZ, 16.7 A, 5 HP
HMIDT35X Schneider Electric
Schneider HMIDT35X Schneider Electric
€584,95
Only 6 units left

Main

Characteristic Value(s)
Range of Product Harmony GTUX
Product or Component Type EXtreme touchscreen panel
Terminal type Touchscreen display
[Us] rated supply voltage 12 V DC power supply
Supply voltage limits 10.8…28.8 V
Power consumption in W 12.5 W
Inrush current 30 A

Complementary

Characteristic Value(s)
Touchscreen resolution 1024 x 1024
Pixel resolution 800 x 480
Display size 7 inch
Aspect ratio 4:3
Display type Colour TFT LCD
Display Resolution 800 x 480 pixels WVGA
Display colour 262144 colors
Luminance 92.9 fc (1000 cd/m²)
Touch panel Single touch analogue resistive
type of cooling Natural convection
Cut-out dimensions 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
Width 8.02 in (203.6 mm)
Height 5.9 in (148.6 mm)
Depth 1.5 in (37 mm)
Product Weight 2.9 lb(US) (1.3 kg)
ACS550-U1-157A-4 ABB
ABB ACS550-U1-157A-4 ABB
€6.850,95
Only 6 units left

ACS550, 125HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives
6EP1334-1SL11 Siemens
Siemens 6EP1334-1SL11 Siemens
€733,95
Only 4 units left
Product
Article Number (Market Facing Number) 6EP13341SL11
Product Description SITOP power 10 A, Basic line Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A S7-300 Design
Product family Not available
Product Lifecycle (PLM) PM500:Discontinued Product or end of PLM & Support
Additional Product Information
EAN 4025515150022
UPC 754554386805
Commodity Code 85044090
LKZ_FDB/ CatalogID KT10-PA
Product Group 4741
Group Code R315
Country of origin Austria
SCIP number Not available
Delivery information
Net Weight (lb) 2.646 lb
Package size unit of measure Not available
Packaging Quantity 1
TA521 ABB
ABB TA521 ABB
€156,95
Only 8 units left

TA521: AC500 Battery. Lithium battery for PM5xx and PM56xx.
ACS580-01-430A-4 ABB
ABB ACS580-01-430A-4 ABB
€9.044,95
In stock, 16 units

AC Inverter for 200kW (270HP) 400V 3 Ph motor to 363A at high overload or 400A when Fan/Pump rated. Operates in VxF or Sensorless Vector control and converts fixed frequency Three Phase 400V input to variable frequency 400V to control the speed of a standard AC induction motor.
1SVR750660R0200 ABB - CM-IWN.1S
ABB 1SVR750660R0200 ABB - CM-IWN.1S
€647,95
Only 10 units left

Ordering

EAN:
4016779852623
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
45 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
104.8 mm
Product Net Weight:
0.241 kg

Technical

Function:
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 400 V AC
Up to 600 V DC
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 400 V AC
Up to 600 V DC
Measuring Range:
1 ... 200 kΩ
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Measuring Circuit 15 ... 400 Hz
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
System Leakage Capacitance (CE):
20 µF
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

CB Certificate:
cULus Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.27 kg
Package Level 1 EAN:
4016779852623

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
UNSPSC:
39122331
E-Number (Finland):
2712256
E-Number (Norway):
4187802
E-Number (Sweden):
3860657
1SFL447001R1311 ABB - AF140-30-11-13
ABB 1SFL447001R1311 ABB - AF140-30-11-13
€299,95
Only 5 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
90 mm
Product Net Depth / Length:
126 mm
Product Net Height:
150 mm
Product Net Weight:
1.55 kg

Technical

Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Number of Poles:
3P
Rated Operational Voltage:
Main Circuit 690 V
Rated Frequency (f):
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 200 A
Rated Operational Current AC-1 (Ie):
(690 V) 40 °C 200 A
(690 V) 70 °C 160 A
(690 V) 40 °C 200 A
(690 V) 70 °C 160 A
Rated Operational Current AC-3 (Ie):
(415 V) 55 °C 140 A
(440 V) 55 °C 140 A
(500 V) 55 °C 130 A
(690 V) 55 °C 80 A
(380 / 400 V) 55 °C 140 A
(220 / 230 / 240 V) 55 °C 140 A
(415 V) 55 °C 140 A
(440 V) 55 °C 140 A
(500 V) 55 °C 130 A
(690 V) 55 °C 80 A
(380 / 400 V) 55 °C 140 A
(220 / 230 / 240 V) 55 °C 140 A
Rated Operational Current AC-3e (Ie):
(415 V) 60 °C 140 A
(440 V) 60 °C 140 A
(500 V) 60 °C 130 A
(690 V) 60 °C 80 A
(380 / 400 V) 60 °C 140 A
(220 / 230 / 240 V) 60 °C 140 A
(415 V) 60 °C 140 A
(440 V) 60 °C 140 A
(500 V) 60 °C 130 A
(690 V) 60 °C 80 A
(380 / 400 V) 60 °C 140 A
(220 / 230 / 240 V) 60 °C 140 A
Rated Operational Current DC-1 (Ie):
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Current DC-3 (Ie):
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Current DC-5 (Ie):
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
(110 V) 2 Poles in Series, 40 °C 160 A
(220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Power AC-3 (Pe):
(415 V) 75 kW
(440 V) 90 kW
(500 V) 90 kW
(690 V) 75 kW
(380 / 400 V) 75 kW
(220 / 230 / 240 V) 37 kW
(415 V) 75 kW
(440 V) 90 kW
(500 V) 90 kW
(690 V) 75 kW
(380 / 400 V) 75 kW
(220 / 230 / 240 V) 37 kW
Rated Operational Power AC-3e (Pe):
(415 V) 75 kW
(440 V) 90 kW
(500 V) 90 kW
(690 V) 75 kW
(380 / 400 V) 75 kW
(220 / 230 / 240 V) 37 kW
(415 V) 75 kW
(440 V) 90 kW
(500 V) 90 kW
(690 V) 75 kW
(380 / 400 V) 75 kW
(220 / 230 / 240 V) 37 kW
Rated Breaking Capacity AC-3:
8 x Ie AC-3
Rated Breaking Capacity AC-3e:
8.5 x Ie AC-3e
Rated Making Capacity AC-3:
10 x Ie AC-3
Rated Making Capacity AC-3e:
12 x Ie AC-3e
Short-Circuit Protective Devices:
gG Type Fuses 315 A
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 8 kV
Maximum Electrical Switching Frequency:
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 150 cycles per hour
(AC-3) 300 cycles per hour
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 150 cycles per hour
(AC-3) 300 cycles per hour
Mechanical Durability:
5 million
Maximum Mechanical Switching Frequency:
300 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):
50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V
50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V
Coil Consumption:
Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 6 V·A
Holding at Max. Rated Control Circuit Voltage DC 3 W
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 135 W
Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 6 V·A
Holding at Max. Rated Control Circuit Voltage DC 3 W
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 135 W
Power Loss:
at Rated Operating Conditions per Pole 9 W
Operate Time:
Between Coil De-energization and NO Contact Opening 37 ... 47 ms
Between Coil Energization and NO Contact Closing 25 ... 55 ms
Between Coil De-energization and NO Contact Opening 37 ... 47 ms
Between Coil Energization and NO Contact Closing 25 ... 55 ms
Connecting Capacity Main Circuit:
Flexible 2 x 10 ... 70 mm²
Rigid Cu-Cable 2 x 10 ... 95 mm²
Flexible 2 x 10 ... 70 mm²
Rigid Cu-Cable 2 x 10 ... 95 mm²
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 2 x 1 .... 4 mm²
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 2 x 1 .... 4 mm²
Connecting Capacity:
Flexible 1 x 10 ... 70 mm²
Rigid Cu-Cable 2 x 10 ... 95 mm²
Flexible 1 x 10 ... 70 mm²
Rigid Cu-Cable 2 x 10 ... 95 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque:
Cable Lug 9 N·m
Main Circuit 8 N·m
Cable Lug 9 N·m
Main Circuit 8 N·m
Terminal Type:
Double Clamp
Product Name:
Block Contactor

Technical UL/CSA

NEMA Size:
4
Continuous Current Rating NEMA:
135 A
Horsepower Rating NEMA:
(200 V AC) Three Phase 40 Hp
(230 V AC) Three Phase 50 Hp
(460 V AC) Three Phase 100 Hp
(575 V AC) Three Phase 100 Hp
(200 V AC) Three Phase 40 Hp
(230 V AC) Three Phase 50 Hp
(460 V AC) Three Phase 100 Hp
(575 V AC) Three Phase 100 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
General Use Rating UL/CSA:
(600 V AC) 200 A
Horsepower Rating UL/CSA:
(200 V AC) Three Phase 40 hp
(208 V AC) Three Phase 40 hp
(220 ... 240 V AC) Three Phase 50 hp
(440 ... 480 V AC) Three Phase 100 hp
(550 ... 600 V AC) Three Phase 125 hp
(200 V AC) Three Phase 40 hp
(208 V AC) Three Phase 40 hp
(220 ... 240 V AC) Three Phase 50 hp
(440 ... 480 V AC) Three Phase 100 hp
(550 ... 600 V AC) Three Phase 125 hp
Full Load Amps Motor Use:
(440 ... 480 V AC) Three Phase 124 A
(550 ... 600 V AC) Three Phase 125 A
(440 ... 480 V AC) Three Phase 124 A
(550 ... 600 V AC) Three Phase 125 A

Environmental

Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible:
Without Derating 3000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers:
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 87.8 %
Sustainable Material Content in Product (wt. %):
Recycled Metal - 37 %

Certificates and Declarations

CB Certificate:
Declaration of Conformity - UKCA:
EAC Certificate:
RMRS Certificate:
UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
207 mm
Package Level 1 Depth / Length:
216 mm
Package Level 1 Height:
150 mm
Package Level 1 Gross Weight:
1.75 kg
Package Level 1 EAN:
7320500476949

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000066 - Power contactor, AC switching
ETIM 8:
EC000066 - Power contactor, AC switching
ETIM 9:
EC000066 - Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4758 >> Iec Contactors
E-Number (Finland):
3706192
E-Number (Norway):
4117619

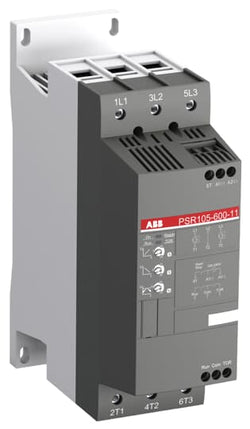

1SFA896115R1100 ABB
ABB 1SFA896115R1100 ABB
€607,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
Rated Operational Current - In-Line Connection (Ie):
105 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 80 ... 100
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR105
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
1caf577d-084a-43ed-a6ea-ef420754c09b China
Simplified SCIP:
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
276c5ed1-b47c-4b11-a7de-758b126406ce Germany
6316367b-0e87-4022-97c0-bb1b38236b6e Denmark
cc881b33-6bef-4421-b675-346654246e4e Poland
86228e4d-5940-4439-a735-a2af311ecd58 Portugal
f0d51129-e59b-4974-a411-7d241913fc46 France
bb8d235c-9e5b-4861-b31e-f60b685801dc Belgium
c758432a-acda-443f-bf65-b09c1ddd57f5 Norway
9efdb42b-c1fe-4671-af53-15557daeb42b Finland
e5f18c1f-acfd-4148-888a-6b068706089f Sweden
9682c877-ec29-4bdf-8354-056792b9c9c8 Poland
0584f014-7b5d-4d83-af8c-47f39eac3390 France
54faef34-4bb9-42c2-b843-1d3ba1df2c31 Sweden
a5ccf6bc-f1a2-417e-a9f7-4e523b20f42b Hungary
501c1aa6-d749-4002-9e54-1ebf614fa8f9 Spain
79470bfd-aa43-45f3-a204-fd05858a3cd0 Belgium
76f5a438-4408-4c0d-b2a0-76fa6190c7df Croatia
701e91fa-0ee5-4117-aa1f-62872988c231 Czech Republic
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477267
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SDA104958R1 ABB YU-C XT5-XT6 F/P 220..240Vac-220..250Vdc
ABB 1SDA104958R1 ABB YU-C XT5-XT6 F/P 220..240Vac-220..250Vdc
€107,95
Only 10 units left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KXTFYUC5
E-Number (Finland):
3642178
E-Number (Norway):
4381380
EAN:
8015644070502
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.143 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.15 kg
Package Level 1 EAN:
8015644070502

Additional Information

Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT5
XT6
XT5
XT6
Suitable for Product Class:
SACE Tamx XT

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
220...240 V AC
220...250 V DC
220...240 V AC
220...250 V DC
Standards:
IEC60947-2
UL489
IEC60947-2
UL489

External Classifications and Standards

ETIM 9:
EC001022 - Under voltage coil
ETIM 10:
EC001022 - Under voltage coil
IDEA Granular Category Code (IGCC):
4148 >> Under voltage coil
UNSPSC:
39121010
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370417
1SDA073674R1 ABB YO E1.2..E6.2-XT7-XT7M 220-240 VAC/DC
ABB 1SDA073674R1 ABB YO E1.2..E6.2-XT7-XT7M 220-240 VAC/DC
€200,95
Only 6 units left

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZEASG
E-Number (Norway):
4381722
EAN:
8015644776077
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
105 mm
Product Net Height:
55 mm
Product Net Depth / Length:
135 mm
Product Net Weight:
0.12 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
105 mm
Package Level 1 Height:
55 mm
Package Level 1 Depth / Length:
135 mm
Package Level 1 Gross Weight:
0.346 kg
Package Level 1 EAN:
8015644776077

Additional Information

Product Main Type:
Accessories for Emax 2, Accessories for Tmax XT
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
XT7-XT7M, E1.2, E2.2, E4.2, E6.2
Suitable for Product Class:
SACE Tmax XT, SACE Emax 2

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Rated Voltage (Ur):
220...240 V
Standards:
IEC

Certificates and Declarations

ATEX Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SDA068136R1 ABB
ABB 1SDA068136R1 ABB
€445,95
Only 7 units left

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.30 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
b2291b72-aef3-4968-a1ce-94bb806ce883 Italy
Simplified SCIP:
75a324bb-ee32-442f-bebf-d8c1052049eb Germany
044f936e-da76-481a-8519-ed7b47efe3ef France
7ce4f487-77b6-45cd-b303-2688e44e6dc2 Sweden
1961753b-e78a-4561-95dc-3540601a750e Germany
1a515add-0f1d-4615-9fe3-3f520c3ee9ba Germany
3f5ef36a-e368-457f-bb0f-65e90563e08f France
8ecff045-f20b-4953-9ce5-9f3fdd04f98e Netherlands
04d800e7-6d48-41a7-a458-d9a5828514ee Spain
c1c5ef7d-36ef-4b9e-a68e-c95dc3452bea Netherlands
055609c0-30d5-4763-9264-a808079ac679 Poland
0ac1115c-3d66-4114-a700-881272f0522d Norway
dbd6fb7f-f984-44c9-b0bb-f81c9faf9cef Finland
b729549e-b06e-4350-a238-c36d7f4647e7 Netherlands
d620dcbb-3d83-46c2-8580-f002b6f6a9d8 Germany
d7a101b9-4e4d-4274-894d-227e0301f247 Denmark
051a7e63-1dc6-4324-beb3-00546ac8056d Germany
00a30eb2-15bd-4779-9750-90e0e25b677f Croatia
57b44da2-4e85-4f18-a6f1-5040ca106c56 Czech Republic
b5891451-9746-4fa7-b10a-83fae960bfac Poland
1b9069a2-3ce0-435d-8f5d-71718693fb26 Netherlands
914a8870-c791-4181-b757-6e8edb05f82d Netherlands
e74edcd7-9993-4bea-baa1-3793d9ad165b Estonia
67b3f77b-0afb-4953-8ce0-b6ed11abe8a4 Greece
43b29558-97e5-4b95-9a13-1c6e24e86460 Portugal
94758f44-a808-4fd8-9d13-8fec8f8bfe5c Bulgaria
9fd8eb71-2981-4365-b175-8c1c8ac1f415 Sweden
f0f76699-090d-4612-9ef7-f24d270117d1 Poland
75a324bb-ee32-442f-bebf-d8c1052049eb Germany
044f936e-da76-481a-8519-ed7b47efe3ef France
7ce4f487-77b6-45cd-b303-2688e44e6dc2 Sweden
1961753b-e78a-4561-95dc-3540601a750e Germany
1a515add-0f1d-4615-9fe3-3f520c3ee9ba Germany
3f5ef36a-e368-457f-bb0f-65e90563e08f France
8ecff045-f20b-4953-9ce5-9f3fdd04f98e Netherlands
04d800e7-6d48-41a7-a458-d9a5828514ee Spain
c1c5ef7d-36ef-4b9e-a68e-c95dc3452bea Netherlands
055609c0-30d5-4763-9264-a808079ac679 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT4NE3250FFF000XXX
E-Number (Finland):
3641037
E-Number (Norway):
4379876
EAN:
8015644696009
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.323 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
151 mm
Package Level 1 Height:
214 mm
Package Level 1 Depth / Length:
171 mm
Package Level 1 Gross Weight:
2.445 kg
Package Level 1 EAN:
8015644696009

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..200 mm²
Current Type:
AC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.40 W
Rated Current (In):
250 A
Rated Frequency (f):
50/60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V AC
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
690 V AC
Recommended Screw Driver:
Main Circuit M8
Release:
Ekip C Dip LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT4
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification Code:
Q
UNSPSC:
39121616
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA067399R1 ABB - XT1C 160 TMD 160-1600 3p F F
ABB 1SDA067399R1 ABB - XT1C 160 TMD 160-1600 3p F F
€158,95
Only 5 units left

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
0d8bc7a2-0b2f-4c4e-b0d2-ae3184d07c12 Italy
Simplified SCIP:
2d38a763-4edd-4ec0-852e-8a7e7d01b167 Germany
ab107f86-ac30-4f6a-a6bf-c4d8c77a0fd2 France
4ce86c8a-88a3-4668-b9fe-6d159b3b770c Poland
2b6d4e8f-9999-4183-a923-afbb4bdcec78 Finland
1b141b21-8bef-4f72-8f3e-ddd51c5ec259 Norway
974eeae4-e997-42f0-aa0d-58883071678c Netherlands
c0df14b2-ce11-4e19-a2d5-72e2790aa9cc Netherlands
b756e454-2ef3-4dc7-99e0-091b44577511 Germany
99c1470b-f1a5-48b0-8949-840c4be74894 Denmark
e16d074d-620a-4ea1-8227-b05dc2e7d098 Germany
dfb95055-9cf7-4ec6-b0e7-801c62ca7cc8 Croatia
9fc57840-b252-4713-8387-c3b5c39c2768 Czech Republic
56162500-c94b-403f-a284-3e358af29456 Netherlands
82077ecd-9e46-4ba5-85c7-22fd9245ee2d Netherlands
df47e79a-6de1-4aa8-83e4-3b4ebc60686b Estonia
91ca0d03-e2ae-40be-88e0-e06a7b181f24 Greece
21de00c2-cdbb-4cc5-a139-d1e3d26dffcb Portugal
91902059-0a7b-46c8-9eda-6bb7beb04a2b Bulgaria
83cedd21-6566-49aa-bd8f-fa5be6b586dd Sweden
4f0c602c-433f-4412-8704-722fe1de2a92 Poland
1b963a22-3a58-43d0-94c5-819ab7622567 France
5489a759-29a8-46b8-a5c0-42d61d45ed5d Sweden
b8e985c9-c29a-4e6d-a0f0-f79c981441a9 Germany
0a6e7309-6bb1-4725-9934-8c06601b79c0 Germany
3daf304a-39bc-447c-a8cd-0e009652dae7 Spain
4a0eb37f-875b-48f5-ad3a-e2fe91f042c6 Netherlands
c8b2a3ef-2fdc-48b9-9068-d7b46a9d3213 Poland
2d38a763-4edd-4ec0-852e-8a7e7d01b167 Germany
ab107f86-ac30-4f6a-a6bf-c4d8c77a0fd2 France
4ce86c8a-88a3-4668-b9fe-6d159b3b770c Poland
2b6d4e8f-9999-4183-a923-afbb4bdcec78 Finland
1b141b21-8bef-4f72-8f3e-ddd51c5ec259 Norway
974eeae4-e997-42f0-aa0d-58883071678c Netherlands
c0df14b2-ce11-4e19-a2d5-72e2790aa9cc Netherlands
b756e454-2ef3-4dc7-99e0-091b44577511 Germany
99c1470b-f1a5-48b0-8949-840c4be74894 Denmark
e16d074d-620a-4ea1-8227-b05dc2e7d098 Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1CE3160AFF000XXX
E-Number (Finland):
3638779
E-Number (Norway):
4309619
EAN:
8015644012939
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
76.2 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.128 kg
Package Level 1 EAN:
8015644012939

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 15 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 12.5 kA
(500 V AC) 9 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 3 Poles in Series 25 kA
(220 V AC) 40 kA
(230 V AC) 40 kA
(240 V AC) 40 kA
(380 V AC) 25 kA
(415 V AC) 25 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 8 kA
(690 V AC) 4 kA
(250 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
C
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
LC1D50B7 Schneider Electric
Schneider LC1D50B7 Schneider Electric
€158,95
Only 6 units left

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Main

Characteristic Value(s)
Range TeSys
Range of Product TeSys Deca
Product or Component Type Contactor
Device short name LC1D
Contactor application Resistive load
Utilisation category AC-1
AC-2
AC-3e
AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit <= 690 V AC 25...400 Hz
[Ie] rated operational current 50 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit
80 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
65 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage 120 V AC 50/60 Hz

Complementary

Characteristic Value(s)
Motor power kW 30 kW at 440 V AC 50 Hz (AC-3)
30 kW at 500 V AC 50 Hz (AC-3)
33 kW at 660...690 V AC 50 Hz (AC-3)
15 kW at 220...230 V AC 50 Hz (AC-3)
11 kW at 400 V AC 50 Hz (AC-4)
30 kW at 1000 V AC 50 Hz (AC-3)
22 kW at 380...400 V AC 50 Hz (AC-3e)
25 kW at 415 V AC 50 Hz (AC-3e)
30 kW at 440 V AC 50 Hz (AC-3e)
30 kW at 500 V AC 50 Hz (AC-3e)
33 kW at 660...690 V AC 50 Hz (AC-3e)
15 kW at 220...230 V AC 50 Hz (AC-3e)
30 kW at 1000 V AC 50 Hz (AC-3e)
30 kW at 380...400 V AC 50 Hz (AC-3)
Maximum Horse Power Rating 15 hp at 200/208 V AC 60 Hz for 3 phase motors
15 hp at 230/240 V AC 60 Hz for 3 phase motors
40 hp at 460/480 V AC 60 Hz for 3 phase motors
40 hp at 575/600 V AC 60 Hz for 3 phase motors
5 hp at 115 V AC 60 Hz for 1 phase motors
10 hp at 230/240 V AC 60 Hz for 1 phase motors
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C)) for control circuit
80 A (at 140 °F (60 °C)) for power circuit
Irms rated making capacity 1000 A at 440 V for power circuit conforming to IEC 60947
140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 100 A gG at <= 690 V coordination type 2 for power circuit
10 A gG for control circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 1 for power circuit
Power dissipation per pole 3.7 W AC-3e
9.6 W AC-1
6.3 W AC-3
[Ui] rated insulation voltage Power circuit 600 V CSA
Power circuit 600 V UL
Control circuit 690 V IEC 60947-1
Power circuit 690 V IEC 60947-1
Control circuit 600 V CSA
Control circuit 600 V UL
Overvoltage category III
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability 6000000 cycles
Control circuit type AC 50/60 Hz
Coil technology Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz
1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz
0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz
Inrush power in VA 140 VA cos phi 0.75 (at 68 °F (20 °C))
160 VA cos phi 0.75 (at 68 °F (20 °C))
Hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))
15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation 4…5 W at 50/60 Hz for control circuit
Operating time 4...19 ms opening
12...26 ms closing
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end
Power circuit: screw terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: rigid
Power circuit: screw terminals 2 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: rigid
Power circuit: screw terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: flexible without cable end
Power circuit: screw terminals 2 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: flexible without cable end
Power circuit: screw terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: flexible with cable end
Power circuit: screw terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid
Tightening torque Power circuit 44.3 lbf.in (5 N.m) screw terminal flat Ø 6 to Ø 8 mm
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal pozidriv No 2
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal flat Ø 6 mm
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal Philips No 2
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mirror contact 1 NC IEC 60947-4-1
Minimum switching voltage 17 V for control circuit
Minimum switching current 5 mA for control circuit
Insulation resistance > 10 MOhm for control circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting Support Rail
6SN1145-1BB00-0EA1 Siemens
Siemens 6SN1145-1BB00-0EA1 Siemens
€8.823,95
In stock, 14 units
Product
Article Number (Market Facing Number) 6SN11451BB000EA1 | 6SN11451BB000EA1
Product Description ***SPARE PART*** SIMODRIVE 611 INFEED/REGEN.FEEDBACK MODULE 80/104 KW, CLOSED-LOOP CONTROL INTERNAL COOLING
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4025515015000
UPC 662643069631
Commodity Code 85044095
LKZ_FDB/ CatalogID SD.NC60
Product Group 9313
Group Code R2S3
Country of origin Germany
SCIP number Not available
Delivery information
Net Weight (lb) 52.911 lb
Package size unit of measure Not available
Packaging Quantity 1
6SL3224-0BE38-8UA0 Siemens
Siemens 6SL3224-0BE38-8UA0 Siemens
€4.987,95
Only 9 units left
Product
Article Number (Market Facing Number) 6SL32240BE388UA0 | 6SL32240BE388UA0
Product Description ***spare part*** SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 90 kW at 160% 3 s,136% 57 s,100% 240 s ambient temperature 0 to +50 °C power low overload: 110 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature 0 to +40 °C 634 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4019169456968
UPC 662643434606
Commodity Code 85044086
LKZ_FDB/ CatalogID D11.1SD
Product Group 9486
Group Code R2S3
Country of origin Germany
SCIP number 9e89ff8b-eedb-4181-9cd8-26c5fe0546c9
Delivery information
Net Weight (lb) 113.538 lb
Package size unit of measure Inch
Packaging Quantity 1
6SL3224-0BE31-8UA0 Siemens
Siemens 6SL3224-0BE31-8UA0 Siemens
€2.224,95
Only 10 units left
Product
Article Number (Market Facing Number) 6SL32240BE318UA0 | 6SL32240BE318UA0
Product Description ***spare part*** SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 18.5 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C power low overload: 22 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 °C 419 x 275 x 204 (HxWxD), FSD degree of protection IP20 without Control Unit and BOP
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4019169455091
UPC 662643434477
Commodity Code 85044086
LKZ_FDB/ CatalogID D11.1SD
Product Group 9486
Group Code R2S3
Country of origin Germany
SCIP number 6ceb1a50-2f48-4d2e-a9a1-e863077cf831
Delivery information
Net Weight (lb) 28.660 lb
Package size unit of measure Inch
Packaging Quantity 1
6SL3210-1SE31-8UA0 Siemens
Siemens 6SL3210-1SE31-8UA0 Siemens
€6.084,95
In stock, 11 units
Product
Article Number (Market Facing Number) 6SL32101SE318UA0 | 6SL32101SE318UA0
Product Description ***spare part*** SINAMICS S120 converter PM340 Power Module input: 380-480 V 3AC, 50/60 Hz output: 3 AC 178 A (90 kW) type of construction: blocksize frame size FSF internal air cooling
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4025515012801
UPC 662643259155
Commodity Code 85044086
LKZ_FDB/ CatalogID D21MC
Product Group 9486
Group Code R2S3
Country of origin Germany
SCIP number 07a46390-77e8-43f3-ac87-3e02894b152e
Delivery information
Net Weight (lb) 111.774 lb
Package size unit of measure Not available
Packaging Quantity 1
6SL3162-2MA00-0AC0 Siemens
Siemens 6SL3162-2MA00-0AC0 Siemens
€77,95
In stock, 12 units
Product
Article Number (Market Facing Number) 6SL31622MA000AC0 | 6SL31622MA000AC0
Product Description SINAMICS S120 POWER CONNECTOR C-/D-TYPE WITH SCREW TERMINALS FOR MOTOR MODULES 3-30 A FRAME SIZE: BOOKSIZE
Product family Screw terminal, push-in connection
Product Lifecycle (PLM) PM300:Active Product
Additional Product Information
EAN Not available
UPC 804766199608
Commodity Code 85366990
LKZ_FDB/ CatalogID D21MC
Product Group 5675
Group Code R220
Country of origin Germany
SCIP number Not available
Delivery information
Net Weight (lb) 0.073 lb
Package size unit of measure Not available
Packaging Quantity 1
6SE6420-2AD31-1CA1 Siemens
Siemens 6SE6420-2AD31-1CA1 Siemens
€1.164,95
In stock, 12 units
Product
Article Number (Market Facing Number) 6SE64202AD311CA1 | 6SE64202AD311CA1
Product Description
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
Additional Product Information
EAN 4019169452717
UPC 783087683402
Commodity Code 85044095
LKZ_FDB/ CatalogID DA51-C
Product Group 9848
Group Code R2S3
Country of origin Great Britain
SCIP number Not available
Delivery information
Net Weight (lb) 12.566 lb
Package size unit of measure Inch
Packaging Quantity 1

Recently viewed
